Configure Video Input - NewTek 3Play User Manual

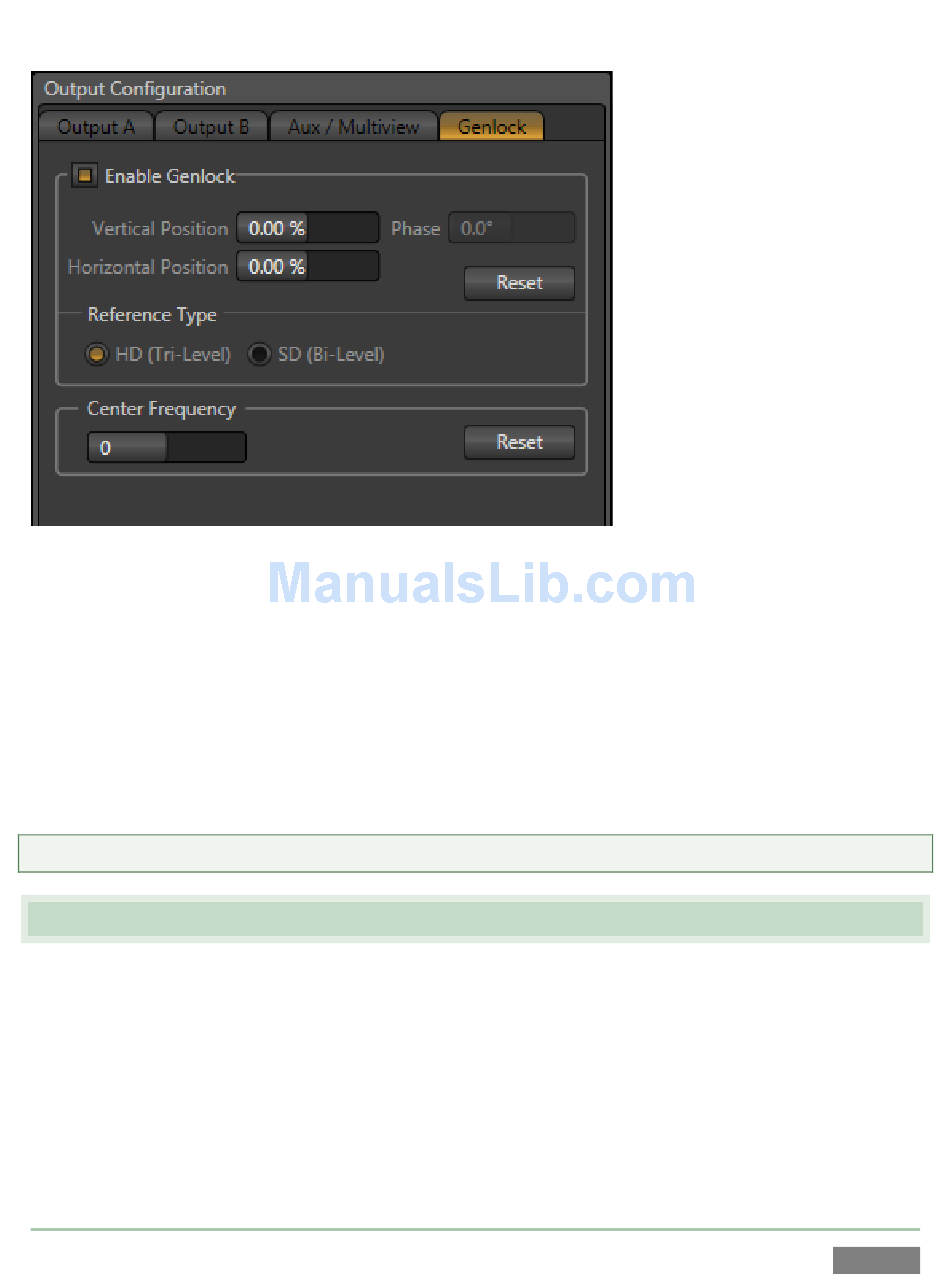

Figure 32
3. With the aid of downstream Waveform and Vector Scopes, adjust 3Play's Horizontal and
Vertical Position and Phase settings.
Again, ideally both the cameras and 3Play™ should be genlocked. If cameras are not genlocked
to the same reference signal as the 3Play, a TBC (Time Base Correction) operation is
automatically applied. Time Base Correction may drop or insert frames as necessary to maintain
sync, hence it is a less desirable approach.
Note: For a deeper explanation of genlocking, please see Section 7.1.3.

3.10 CONFIGURE VIDEO INPUT

Let's continue by configuring the video sources you connected earlier (Section 3.4):
1. With the Replay Desktop open, roll your mouse into the titlebar of any input monitor.
2. Notice that a Configure button (gear icon) is highlighted at right in the titlebar of the
input monitor as you do so.
