3.5

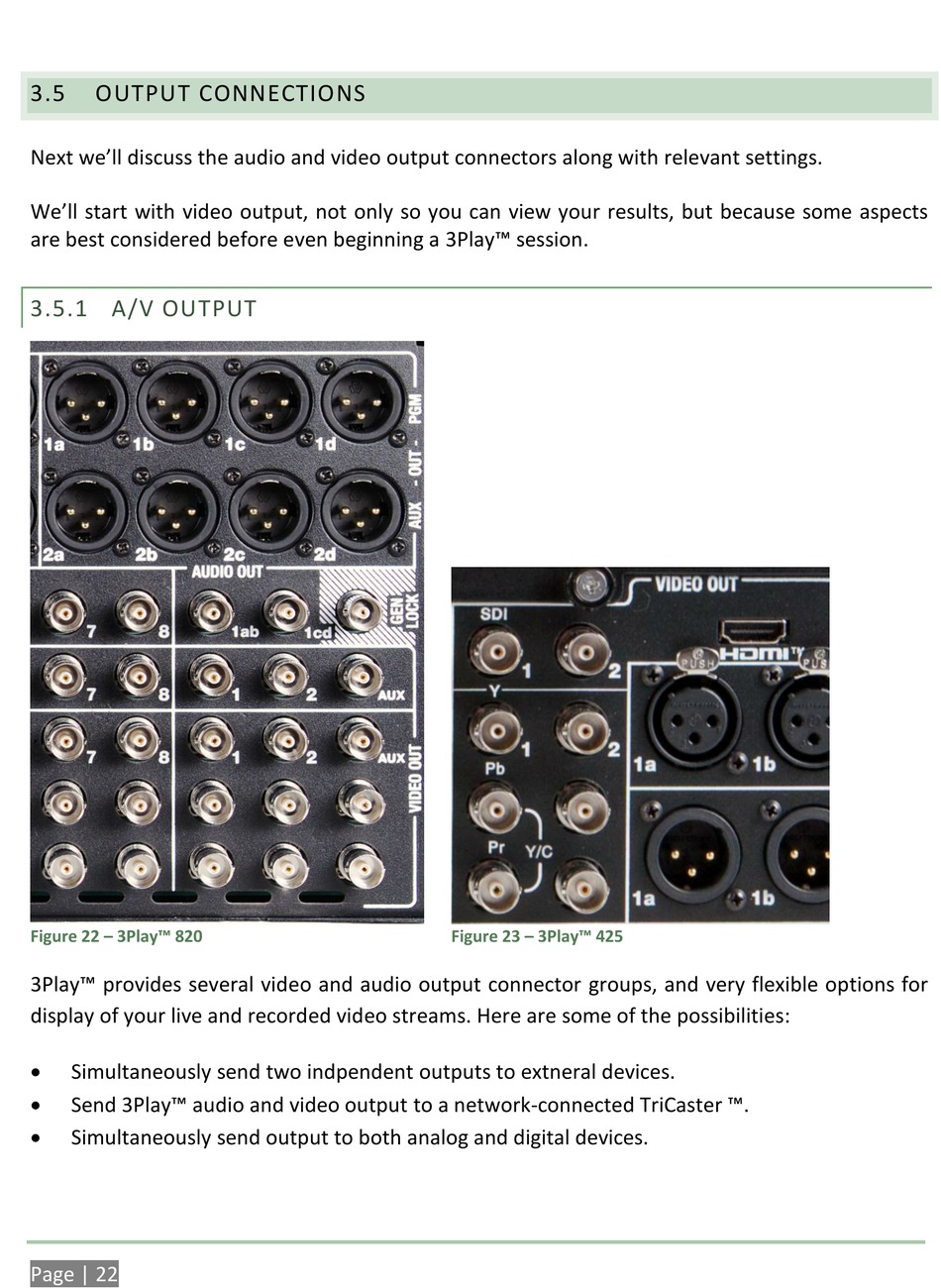

OUTPUT CONNECTIONS

Next we'll discuss the audio and video output connectors along with relevant settings.
We'll start with video output, not only so you can view your results, but because some aspects
are best considered before even beginning a 3Play™ session.

3.5.1 A/V OUTPUT

Figure 22 – 3Play™ 820
3Play™ provides several video and audio output connector groups, and very flexible options for
display of your live and recorded video streams. Here are some of the possibilities:

Simultaneously send two indpendent outputs to extneral devices.

Send 3Play™ audio and video output to a network-connected TriCaster ™.

Simultaneously send output to both analog and digital devices.
Page | 22
Figure 23 – 3Play™ 425
