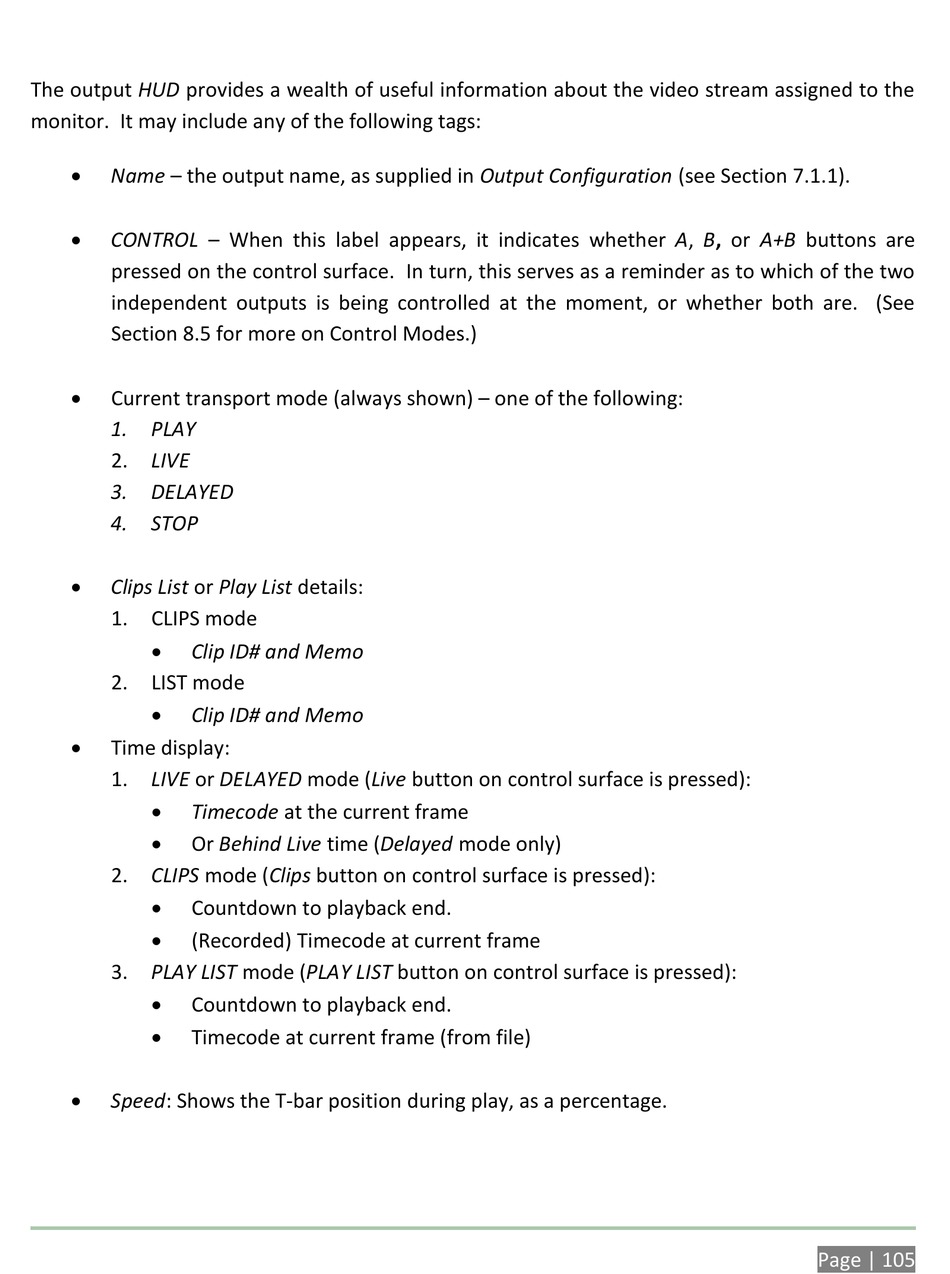

The output HUD provides a wealth of useful information about the video stream assigned to the
monitor. It may include any of the following tags:

Name – the output name, as supplied in Output Configuration (see Section 7.1.1).

CONTROL – When this label appears, it indicates whether A, B, or A+B buttons are
pressed on the control surface. In turn, this serves as a reminder as to which of the two
independent outputs is being controlled at the moment, or whether both are. (See
Section 8.5 for more on Control Modes.)

Current transport mode (always shown) – one of the following:
1. PLAY
2. LIVE
3. DELAYED
4. STOP

Clips List or Play List details:
1. CLIPS mode

Clip ID# and Memo
2. LIST mode

Clip ID# and Memo

Time display:
1. LIVE or DELAYED mode (Live button on control surface is pressed):

Timecode at the current frame

Or Behind Live time (Delayed mode only)
2. CLIPS mode (Clips button on control surface is pressed):

Countdown to playback end.

(Recorded) Timecode at current frame
3. PLAY LIST mode (PLAY LIST button on control surface is pressed):

Countdown to playback end.

Timecode at current frame (from file)

Speed: Shows the T-bar position during play, as a percentage.
