INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
250512-16
REFLECTIONS
BURNER KIT
INSTRUCTIONS
PART# TCWS.38NG08C
For use with
Model TCWS.38CE2
Series C
5056.4252361
TCWS.38NG08C
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TCWS.38NG08C
Summary of Contents for Town & Country Fireplaces TCWS.38NG08C

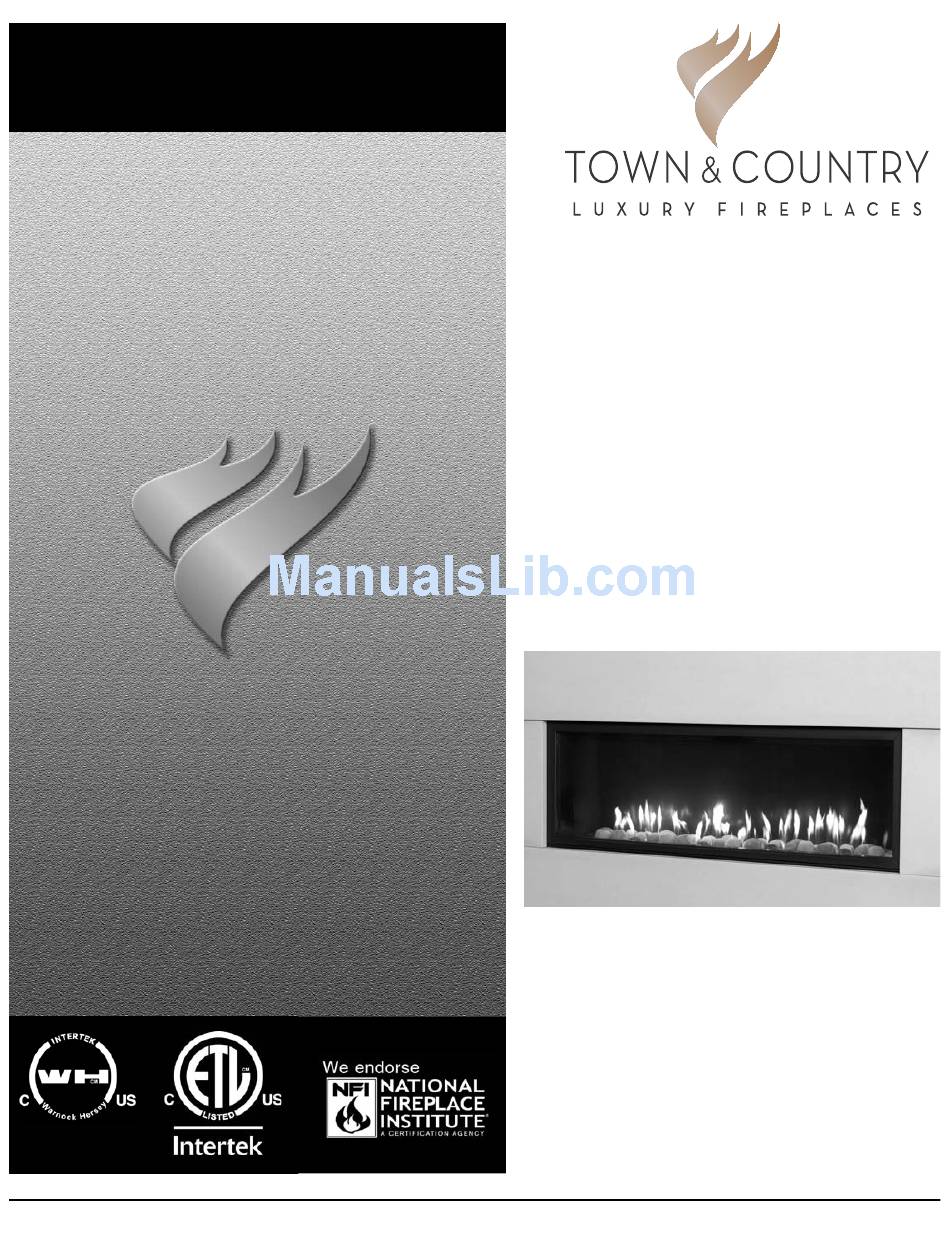

- Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. REFLECTIONS BURNER KIT INSTRUCTIONS PART# TCWS.38NG08C For use with Model TCWS.38CE2 Series C 250512-16 5056.4252361 TCWS.38NG08C...
-
Page 2: Contents Of Package
Contents of Package 5.0 LBS GLASS MEDIA HARDWARE PACK EQUALIZER ROCK BURNER ASSEMBLIES BURNER TRAY ASSEMBLY PEBBLE SETS TCWS.38NG08C 250512-16... - Page 3 CAUTION: The burners should be tightly butted up against each other at the center to ensure correct operation. Tilt burner tray length-wise and insert into the fi rebox(Fig. #2). Fig #3 Attach pilot to burner tray (2 screws) (Fig. #3). TCWS.38NG08C 250512-16...
- Page 4 Secure the burner tray to legs using Fig #4 six screws (Fig. #4). NOTE: a light will aid aligning the holes in the tray with the leg. Place rock chips into the burner tray and spread evenly around but not on the burners. TCWS.38NG08C 250512-16...
- Page 5 Fig #10 photographs, start from the right hand side of the burner and ensure that the arrow on each rock points towards the front of the fi replace(Fig. #6 to #16). Fig #11 Fig #7 Fig #8 Fig #12 TCWS.38NG08C 250512-16...
- Page 6 Repeat the sequence of placing the rocks two more times until the burner is covered. Fig #15 10. Install front porcelain cover (wide edge Fig #17 t owards the center of the fi replace). (Fig. #17) WIDE EDGE TO CENTER OF FIREPLACE TCWS.38NG08C 250512-16...
-
Page 7: Propane Conversion Kit
The installation is not proper and complete until the operation of the converted appliance is checked as specifi ed in the manufacturer's instructions supplied with the kit. With a 7/16” wrench loosen the pilot head on the pilot assembly. (Fig. #22) TCWS.38NG08C 250512-16... - Page 8 It helps to rotate the screw while lifting on it. Fig #25 Replace the minimum rate screw with the one provided in the propane conversion kit supplied with this fi replace. Ensure that the screw is fully seated (Fig. #25). TCWS.38NG08C 250512-16...
- Page 9 14. Re-attach the access panel with gasket to the side of the fi rebox with the screws previ- ously removed. (Fig. #30) 15. If the burner was removed in previous steps, replace in reverse order or return to instal- lation process on Pg. 3. TCWS.38NG08C 250512-16...
-
Page 10: Gas Pressure Check
Correct gas pressure requirement: Supply Pressure Natural Gas Propane Min. Pressure 5.0" WC 12.5" WC (For purpose of input adjustment) Max. Pressure 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11" WC Minimum 2.1" WC 5.5" WC TCWS.38NG08C 250512-16... -
Page 11: Burner Flame Adjustment
The shutter may also be opened to lessen the fl ame height. Fig #34 NOTE: Proper air shutter setting is required. The fl ame should be just orange and “lazy” . It should NEVER be set to create sooting on internal parts and window glass. TCWS.38NG08C 250512-16... -
Page 12: Replacement Parts
Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. #1..REFLECTIONS BURNER KIT..TCWS.38NG08C #2..PEBBLE ASSEMBLY ......5096.921 (3) #3..GLASS MEDIA ........TCRP.501207 #4..TRIM ROCK “A” .......... 5096.922 NOT SHOWN KIT CONTENTS: TCWS.38NG08C 250512-16... - Page 13 Notes: TCWS.38NG08C 250512-16...
- Page 14 Notes:...
- Page 15 Notes:...
- Page 16 Technical support: 1-250-748-1184 Web site: www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
