IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE HOMEOWNER
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
281112-12
BLACK DIAMOND
BURNER KIT
INSTRUCTIONS
PART#TCWS.38NG03C3
For use with
Model TCWS.38CE2
Series C
5056.425235
TCWS.38NG03C2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCWS.38CE2 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TCWS.38CE2

Summary of Contents for Town & Country Fireplaces TCWS.38CE2

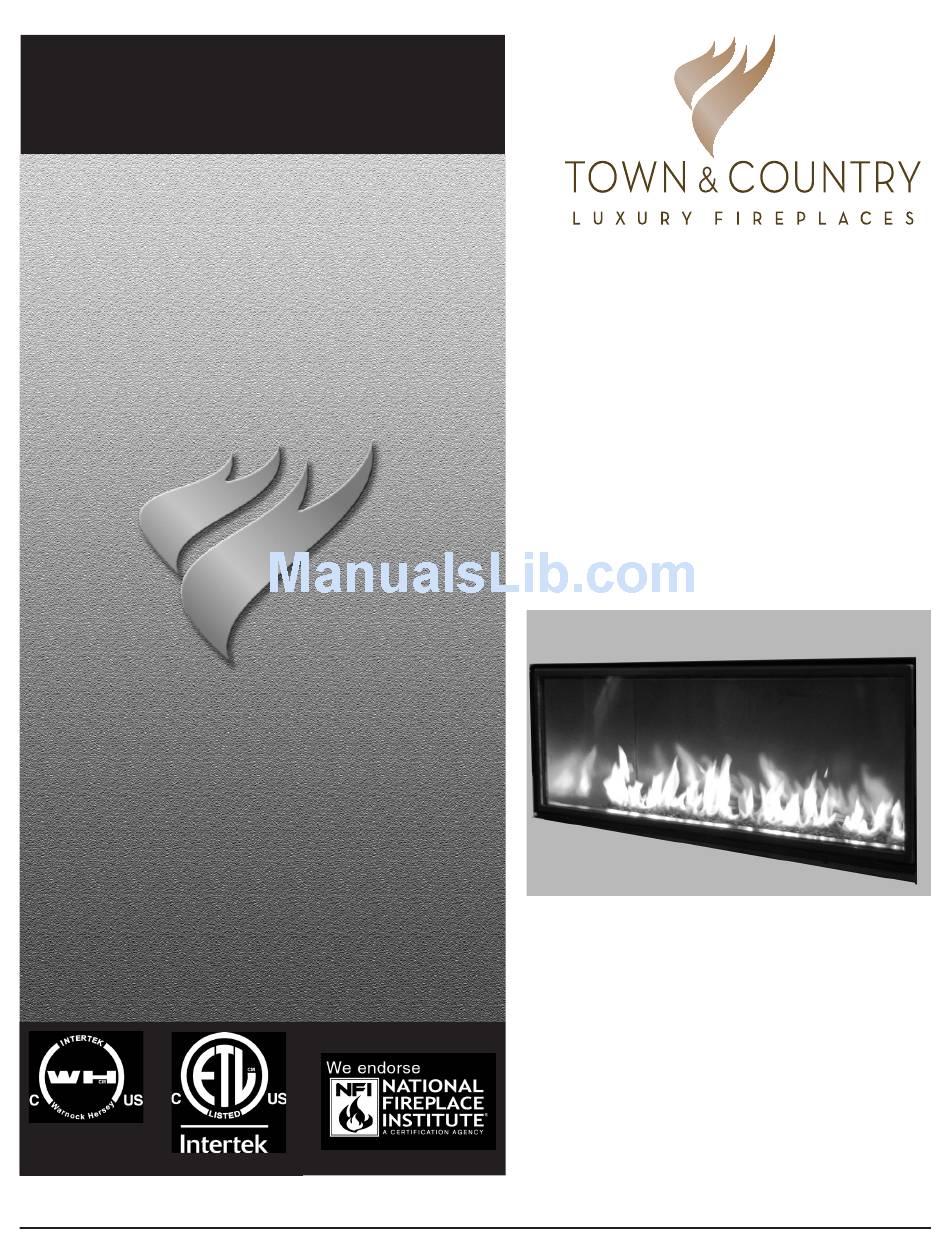

  • Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. BLACK DIAMOND BURNER KIT INSTRUCTIONS PART#TCWS.38NG03C3 For use with Model TCWS.38CE2 Series C 281112-12 5056.425235 TCWS.38NG03C2...

  • Page 2: Contents Of Package

    Contents of Package BURNER ASSEMBLIESR BURNER TRAY 5 LB GLASS MEDIA HARDWARE PACK TCWS.38NG03C3 281112-12...
  • Page 3 If converting to propane see Fig #1 conversion instructions on page #5 before proceeding. Install panels according to the TCWS.38CE2 Installation and Operating manual prior to burner installation. (Page 26) 1. Install the right burner by tipping into location trough and slipping the venturi tube over the orifi ce.
  • Page 4 5. Place glass media into the burner Fig #5 tray and spread evenly over the burners and burner tray.(Fig. #5) Fig #6 Place the front porcelain trim so that it rests on the front shelf of the firebox and is snug against the firebox frame.

  • Page 5: Propane Conversion

    Propane Conversion If the unit is to be used with propane convert as follows using the compo- nents supplied with this burner: MINIMUM RATE SCREW (5005.016) Caution: Factory supplied components must be used to ensure correct input. After conversion confi rm proper manifold pressure.
  • Page 6 6. Slide the pilot adjustment band over and Fig #11 Fig #12 ensure that the hole in the orifi ce band is showing.(Fig #12) Retighten pilot head. TROU Fig. #11 shows NG position Fig. #12 shows LP position). (Hole in tab visable) Remove the access panel on the right side of the fi rebox, 10 screws, and set POSITION : GAZ NATUREL...
  • Page 7 10. Remove the aluminum cap from the top of the pressure regulator. (Fig. #15) Fig #16 Fig #15 13. Fill in the date and the name of the person 11. Press down on the center post and rotate who performed the conversion in the white 90°.

  • Page 8: Gas Pressure Check

    Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from Fig #21 the supply pressure test port or manifold pressure test port. Verify gas pressures with the fi replace lit and on the highest setting. SUPPLY PRESSURE MANIFOLD...

  • Page 9: Burner Flame Adjustment

    Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air. It is set to the closed position at the factory for natural gas fuel. (For LP see Pg.6.) Some adjustment may be necessary to obtain desired flame and to eliminate carbon deposits. Evaluate flame appearance after the fireplace has reached operating temperature.

  • Page 10: Replacement Parts

    Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ............PART NO. #1..BLACK DIAMOND BURNER ..TCWS.38NG03C3 #2..GLASS MEDIA ........TCRP.501201 NOT SHOWN KIT CONTENTS: TCWS.38NG03C3 281112-12...
  • Page 11 TCWS.38NG03C3 281112-12...
  • Page 12 Technical support: 1-250-748-1184 Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
