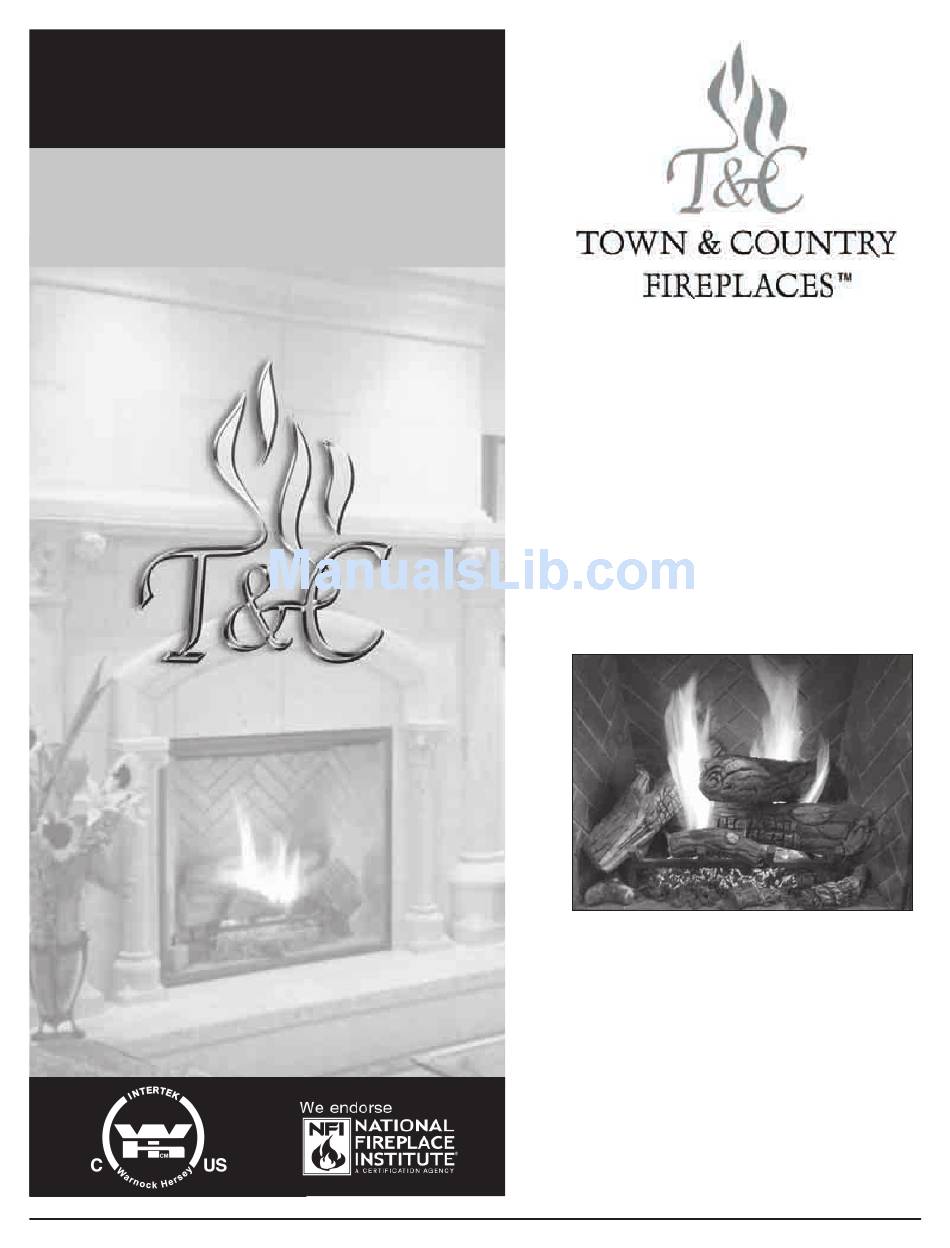

Town & Country Fireplaces TC30 Instructions Manual

Country home burner kit for tc30 series c

Advertisement

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fi replace and should be
kept together. Refer to the Installation and Operating Instructions
for proper gas supply, safety requirements and operating
instructions
100308-12
TC30
COUNTRY HOME
BURNER KIT
INSTRUCTIONS
PART#
TC30.NG02.C
For TC30 Series C
TC30.NG02.C
5056.429.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC30 and is the answer not in the manual?

Questions and answers

Summary of Contents for Town & Country Fireplaces TC30

  • Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC30 COUNTRY HOME BURNER KIT INSTRUCTIONS PART# TC30.NG02.C For TC30 Series C 100308-12 TC30.NG02.C 5056.429.02...
  • Page 2: Contents Of Package

    Attach the burner assembly to the fl oor of the fi rebox with two screws. (Fig. # 1). SCREWS Fig #2 Attach the manifold supply tube to the bulk head fi tting and tighten. (Fig. # 2) Ensure that there are no leaks. TC30.NG02.C 100308...
  • Page 3 (Fig. # 5) Fig #6 Attach air defl ector to rear of grate with two screws (Fig. # 6) TC30.NG02.C 100308...
  • Page 4: Ember Material

    Position the logs as indicated by the following pictures on page 5. The three main logs have holes and /or pins. Engage each pin in the corresponding holes. The four smaller logs do not have holes or pins. They rest in position. Locate as per the diagrams. (Figs. #8 – #15) TC30.NG02.C 100308...
  • Page 5 CENTER CHUNK, #4 Fig #13 Fig #9 BASE LOG, #1 BOTTOM RHS CHUNK, #5 Fig #14 Fig #10 TOP LEFT LOG, #2 BOTTOM LHS CHUNK, #6 Fig #15 Fig #11 TOP RIGHT LOG, #3 BOTTOM CENTER CHUNK, #7 TC30.NG02.C 100308...
  • Page 6: Propane Conversion

    Fig #19 With a ½” wrench remove the natural gas orifi ce (#32) and replace with propane orifi ce (#48)(our part # 5021.3407) (Fig. #19) Fully open the primary air shutter. Reinstall the manifold and air defl ector TC30.NG02.C 100308...
  • Page 7 (Fig. #23) A groove on the screw body will be Minimum visible just above the valve body. Insert rate screw a thin tool (knife blade or thin screwdriver blade) into the groove and gently pry the screw up. TC30.NG02.C 100308...
  • Page 8 Fig #27 16. Attach the access panel to the side of the fi rebox with the previously removed screws. (Fig. #27) Note: Gasket must be installed with access panel. TC30.NG02.C 100308...
  • Page 9: Gas Pressure Check

    Correct gas pressure requirement: Supply Pressure Natural Gas Propane Min. Pressure 5.0" WC 12.5" WC (For purpose of input adjustment) Max. Pressure 13.9" WC 13.9" WC Manifold Pressure Maximum 3.8" WC 11" WC Minimum 2.1" WC 5.5" WC TC30.NG02.C 100308...
  • Page 10: Burner Flame Adjustment

    Remove air defl ector from log grate (2 screws) It should NEVER be set to create sooting on internal parts and glass. Loosen the Primary Air Shutter screw. Rotate the shutter to increase or decrease the amount of primary air. Reassemble in reverse order. TC30.NG02.C 100308...
  • Page 11: Replacement Parts

    (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ........... PART NO. ITEM ..DESCRIPTION ........... PART NO. #4..PILOT ASSEMBLY, CONVERTIBLE . 5005.025 #1..COUNTRY HOME BURNER KIT ..TC30.NG02.C #5..MAIN SUPPLY TUBE ......5019.223 #2..7 PCS LOG SET .........
  • Page 12 Technical support: 1-877-715-2664 Web site: www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
