INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
210417-24
Visit www.townandcountry.com for the most recent version of this manual

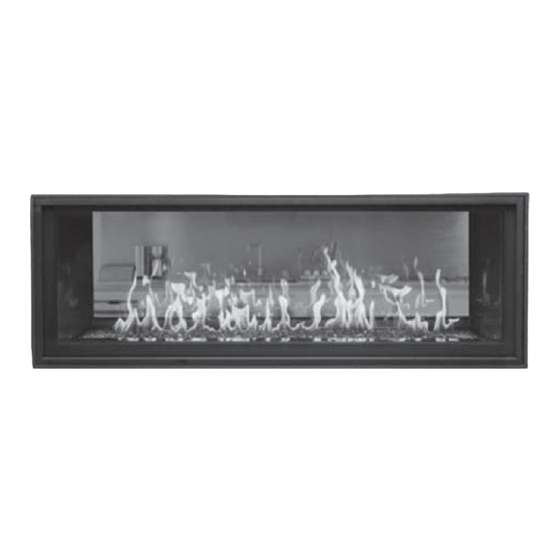

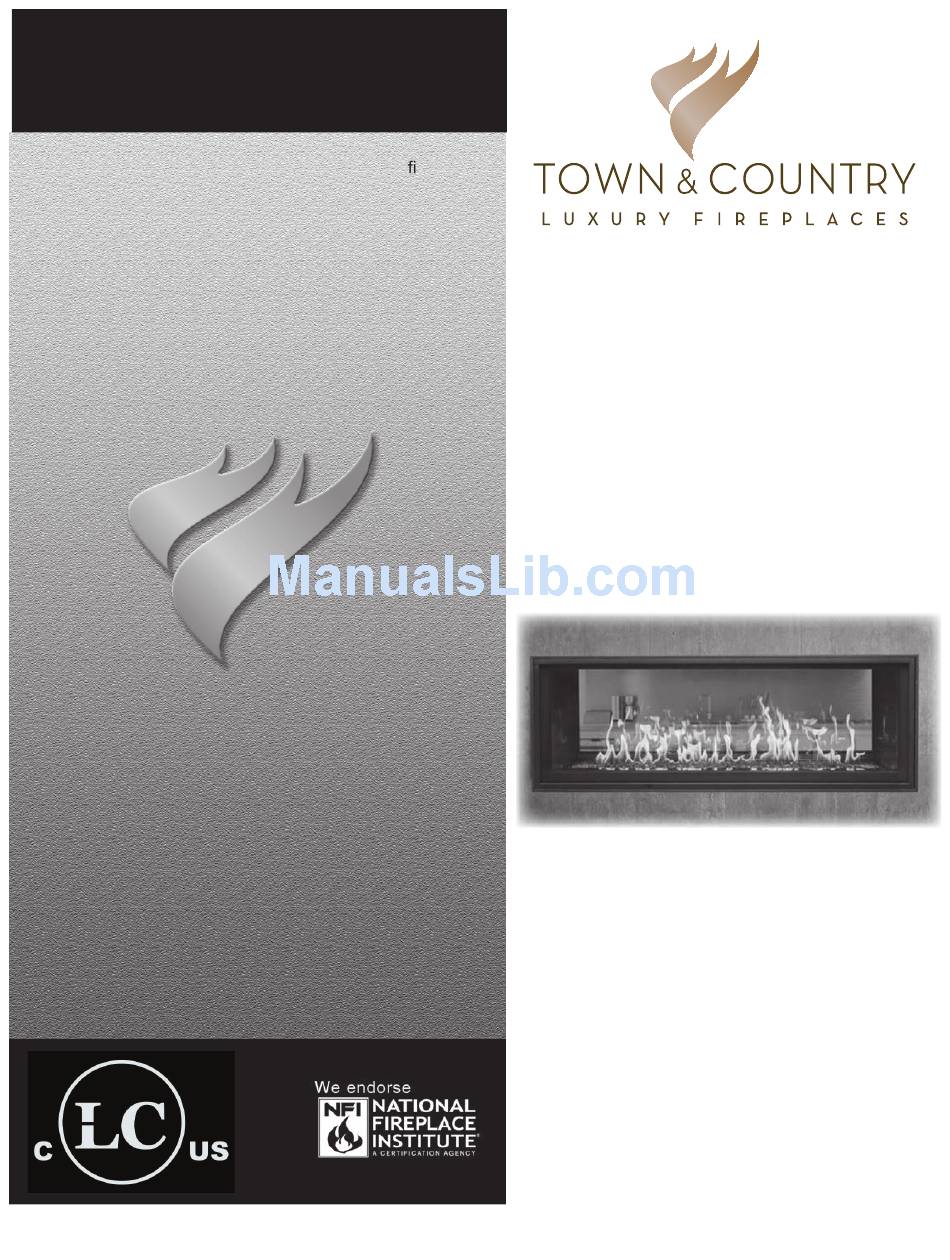

TCWS54
SEE THRU
DIAMOND BURNER
INSTALLATION KIT
INSTRUCTIONS
PART# TCWS.54NGST03D
For TCWS54DST Series D
Fireplaces
TCWS.54NGST03D
5056.425181D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCWS.54NGST03D and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TCWS.54NGST03D

Summary of Contents for Town & Country Fireplaces TCWS.54NGST03D

  • Page 1 Operating Instructions for proper gas supply, safety requirements and operating instructions. TCWS54 SEE THRU DIAMOND BURNER INSTALLATION KIT INSTRUCTIONS PART# TCWS.54NGST03D For TCWS54DST Series D Fireplaces 210417-24 TCWS.54NGST03D 5056.425181D Visit www.townandcountry.com for the most recent version of this manual...

  • Page 2: Table Of Contents

    Table of Contents Contents of Package ......................3 Diamond Burner Installation ..................... 4 Propane Conversion ....................... 13 Conversion procedure ..................... 13 Gas Pressure Check ....................... 16 Correct gas pressure requirement:................16 Burner Flame Adjustment ....................17 Optional Long Beach Log Set Installation ..............18 Log Placement ......................

  • Page 3: Contents Of Package

    TCWS54 SEE THROUGH DIAMOND BURNER INSTALLATION KIT INSTRUCTIONS 3 x 5lb bags Diamond Glass Media PART# TCWS.54NGST03D For TCWS54DST Series D Fireplaces 070417-16 TCWS.54NGST03D 5056.425181D Visit www.townandcountry.net for the most recent version of this manual 5056.425181D...

  • Page 4: Diamond Burner Installation

    Diamond Burner Installation If converting to propane see “Propane Conversion” on page 13 before proceeding. NOTE: For purposes of clarity, the “Front” of the fireplace shall be the side which has access to the electrical connection compartment cover, the connection to the gas valve and the side which places the control compartment cover and the coaxial vent located on top of the fireplace to your left.
  • Page 5 Grommet Figure 3: Wires through grommet. 2. Feed the two wires from the right side secondary oor panel down through the left most grommet over the gas control compartment cover (Figure 3). 3. Insert the other secondary oor panel into the left side of the rebox. As the panel is lowered, feed its two lights wires into the same grommet as was done with the wires from the right hand oor panel.
  • Page 6 Figure 5: Lights wiring coming from grommet. 4. Guide the four light wires from the bottom of the gas control compartment out through the opening as shown in Figure 5. 5. From inside the control compartment, punch out one of two available knockouts located in the electrical connection compartment, install a plastic grommet (not included) to protect the wires and feed the wires into the compartment.
  • Page 7 Figure 7: Bringing wires through front plate. 6. Remove the electrical connection compartment cover and feed all four lights wires through the opening. The lights wiring will connect to the wiring that supplies the re place power (Figure 7). 7. Connect the wires to a switched 120 VAC, 60Hz, 3A power supply, one pair made up of one wire from the left and one wire from the right light set to the “HOT”...
  • Page 8 Figure 9: Securing the burner leg to the secondary oor panel. 10. Slip the gas burner venturi over the ori ce and screw the burner leg to the secondary oor panel using a T20 screw (Figure 9). 11. Place the second burner in the rebox so that its venturi ts over the second ori ce. Secure the leg to the secondary oor panel.
  • Page 9 12. Remove the panel retainer clips from both sides of the upper rebox in preparation for side panel installa- tion (Figure 11). There are two clips on each side of the rebox. Side panel retainer clips Figure 11: Side panel retainer clips location. Figure 12: Side panel.
  • Page 10 Reinstalled Side panel retainer clips Figure 14: Reinstalled side panel retainer clips. 14. Reinstall the side panel retainer clips (Figure 14) . 15. Place mesh burner tray over top of the burners so that its legs rest on the secondary oor. The side of the tray with the mesh strip crossing over from one side to the other must be positioned over top of the pilot assembly.
  • Page 11 Screws Screws Figure 16: Mesh burner tray installation. 16. Secure the mesh to the burners with screws provided by screwing through the mesh to each small ange on the burners. There are 10 securing points for each burner (Figure 16). 17.
  • Page 12 Narrow edge toward center of replace Figure 18: Edge panel pro le. Figure 19: Bump in mesh for pilot ame. 18. Spread the three bags of glass media evenly over the entire mesh tray, leaving only the small protrusion above the pilot ame clear of glass (Figure 19). 19.

  • Page 13: Propane Conversion

    Propane Conversion If this unit is to be used on propane convert as follows using the components supplied with the propane gas conversion kit. Propane conversion kit part number is TCWS.54DSTLPKIT. Note: Factory supplied components must be used to ensure correct input. After conversion con rm proper manifold pressure.
  • Page 14 3/16” Open for Propane Gas Figure 21: Ori ce. 4. Using a 1/2” wrench, undo the natural gas burner ori ces and Figure 22: Shutter gap for propane. replace with the propane gas ori ces included in the conver- sion kit. Apply a small amount of pipe joint compound to the threads of the propane burner ori ce to ensure a good seal,...
  • Page 15 7. Slide the pilot adjustment band over (Figure 25) and ensure that the hole in the ori ce band is showing. 8. Remove access panel to gain access to the gas valve for propane conversion. 9. Complete the gas valve con- version from natural gas to propane gas according to the instructions included in the...

  • Page 16: Gas Pressure Check

    Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from the supply pressure test port or manifold pressure test port. Verify gas pressures with the fireplace lit and on the highest setting. 1.

  • Page 17: Burner Flame Adjustment

    Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air. It is set to the closed position at the factory for natural gas fuel. For liquid propane, See “Propane Conversion” on page 13. Some adjustment may be necessary to obtain desired ame and to eliminate carbon deposits.

  • Page 18: Optional Long Beach Log Set Installation

    Optional Long Beach Log Set Installation Log 1 x 2 pieces Log 2 x 2 pieces Log 4 x 2 pieces Log 3 x 2 pieces Figure 30: Contents of Long Beach log set. Log Placement The Long Beach Log Set consists of four pair of logs for a total of eight logs. Four of the logs will cover one half of the circumference of the glass tray while the other four will duplicate the pattern of the of the rst four.
  • Page 19 Edge Panel Location post for 3rd log Edge Panel Figure 32: Log 2 placement. 2. Place the 2nd log so that the middle of it overhangs the tray itself and rests on the edge panel as shown in Figure 32. Note that there is a location post for the 3rd log at one end of the 2nd log. This location post should have a vertical alignment.
  • Page 20 Edge Panel Edge Panel Figure 34: Log 4 placement. 4. The 4th log also has a socket which will t over top of the location post of the 3rd log. Fit the 4th log over the location post and let the opposite end rest on the glass at about a 1 o’clock position (Figure 34). 5.
  • Page 21 Figure 36: Example of desirable ame pattern. 5056.425181D TCWS.54NGST03D_210417-24...

  • Page 22: Lights Wiring Diagram

    Lights Wiring Diagram Figure 37: TCWS54ST lights wiring diagram. 5056.425181D TCWS.54NGST03D_210417-24...

  • Page 23: Replacement Parts

    Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM DESCRIPTION PART NO. DIAMOND BURNER KIT ......TCWS.54NGST03D GLASS MEDIA (1-5lb bag. 2 required) ....TCRP.501207 LONG BEACH LOG SET ........50942440-A NOT SHOWN 5056.425181D TCWS.54NGST03D_210417-24...
  • Page 24 © 2017 Copyright Paci c Energy Fireplace Product LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please call your retailer. Web site: www.townandcountry replaces.com 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
