INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
210417-08
Visit www.townandcountry.com for the most recent version of this manual
TCWS54
SEE THRU
LONG BEACH LOG
INSTALLATION
INSTRUCTIONS
INCLUDES INSTALLATION
INSTRUCTIONS FOR
PREREQUISITE DIAMOND
BURNER KIT PART#
TCWS.54NGST03D
PART# TCWS.54LOGDW
For TCWS54DST Series D
Fireplaces
TCWS.54LOGDW
5056.42519-A
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TCWS.54LOGDW
Summary of Contents for Town & Country Fireplaces TCWS.54LOGDW

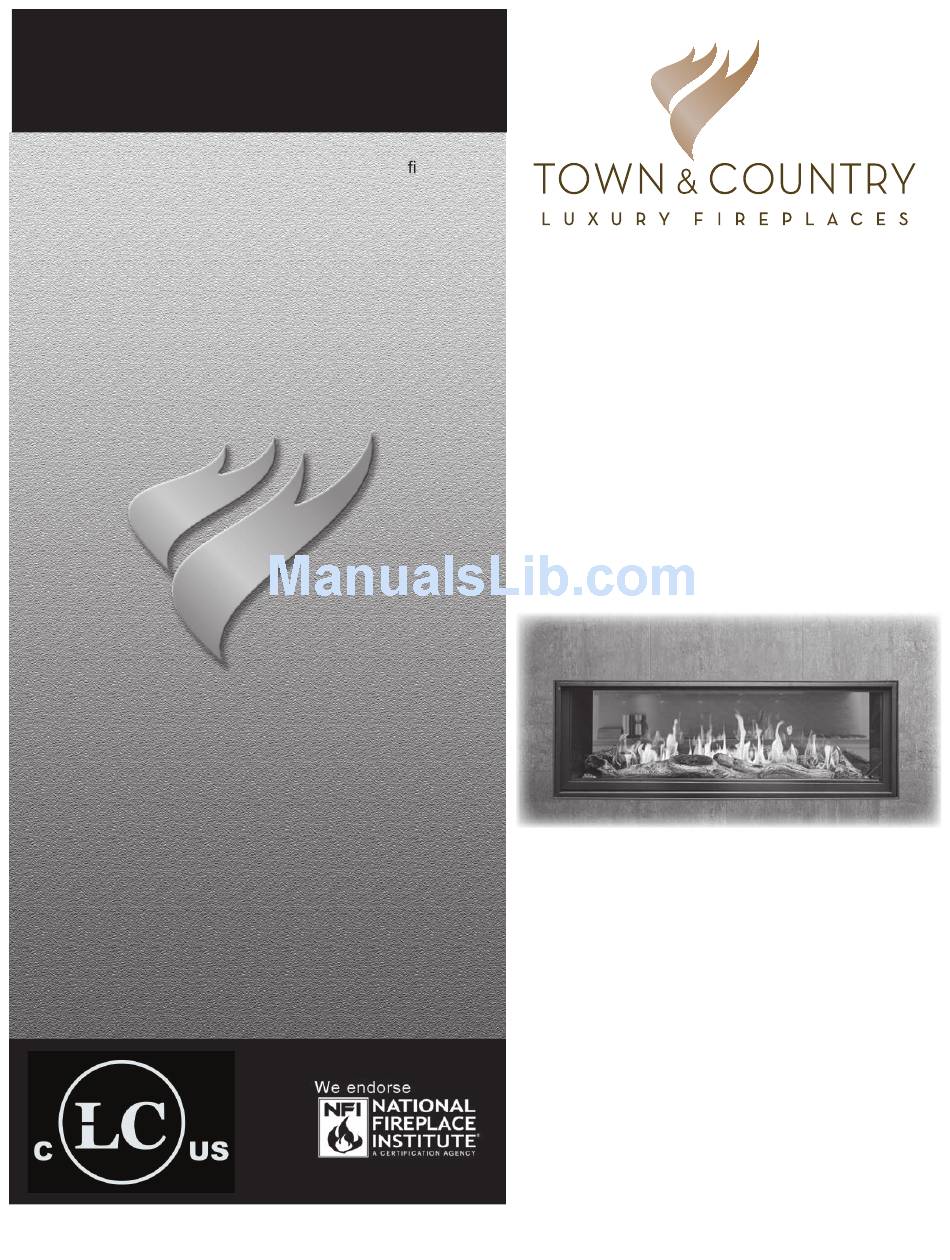

- Page 1 TCWS54 SEE THRU LONG BEACH LOG INSTALLATION INSTRUCTIONS INCLUDES INSTALLATION INSTRUCTIONS FOR PREREQUISITE DIAMOND BURNER KIT PART# TCWS.54NGST03D PART# TCWS.54LOGDW For TCWS54DST Series D Fireplaces 210417-08 TCWS.54LOGDW 5056.42519-A Visit www.townandcountry.com for the most recent version of this manual...
- Page 2 Long Beach Log Set Installation Log 1 x 2 pieces Log 2 x 2 pieces Log 4 x 2 pieces Log 3 x 2 pieces Figure 1: Contents of Long Beach log set. Log Placement The Long Beach Log Set consists of four pair of logs for a total of eight logs. Four of the logs will cover one half of the circumference of the glass tray while the other four will duplicate the pattern of the of the rst four.
- Page 3 Edge Panel Location post for 3rd log Edge Panel Figure 3: Log 2 placement. 2. Place the 2nd log so that the middle of it overhangs the tray itself and rests on the edge panel as shown in Figure 3. Note that there is a location post for the 3rd log at one end of the 2nd log. This location post should have a vertical alignment.
- Page 4 Edge Panel Edge Panel Figure 5: Log 4 placement. 4. The 4th log also has a socket which will t over top of the location post of the 3rd log. Fit the 4th log over the location post and let the opposite end rest on the glass at about a 1 o’clock position (Figure 5). 5.
- Page 5 Figure 7: Example of desirable ame pattern. 5056.42519-A TCWS.54LOGDW_210417-08...
- Page 6 5056.42519-A TCWS.54LOGDW_210417-08...
- Page 7 5056.42519-A TCWS.54LOGDW_210417-08...
- Page 8 © 2017 Copyright Paci c Energy Fireplace Product LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please call your retailer. Web site: www.townandcountry replaces.com 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
