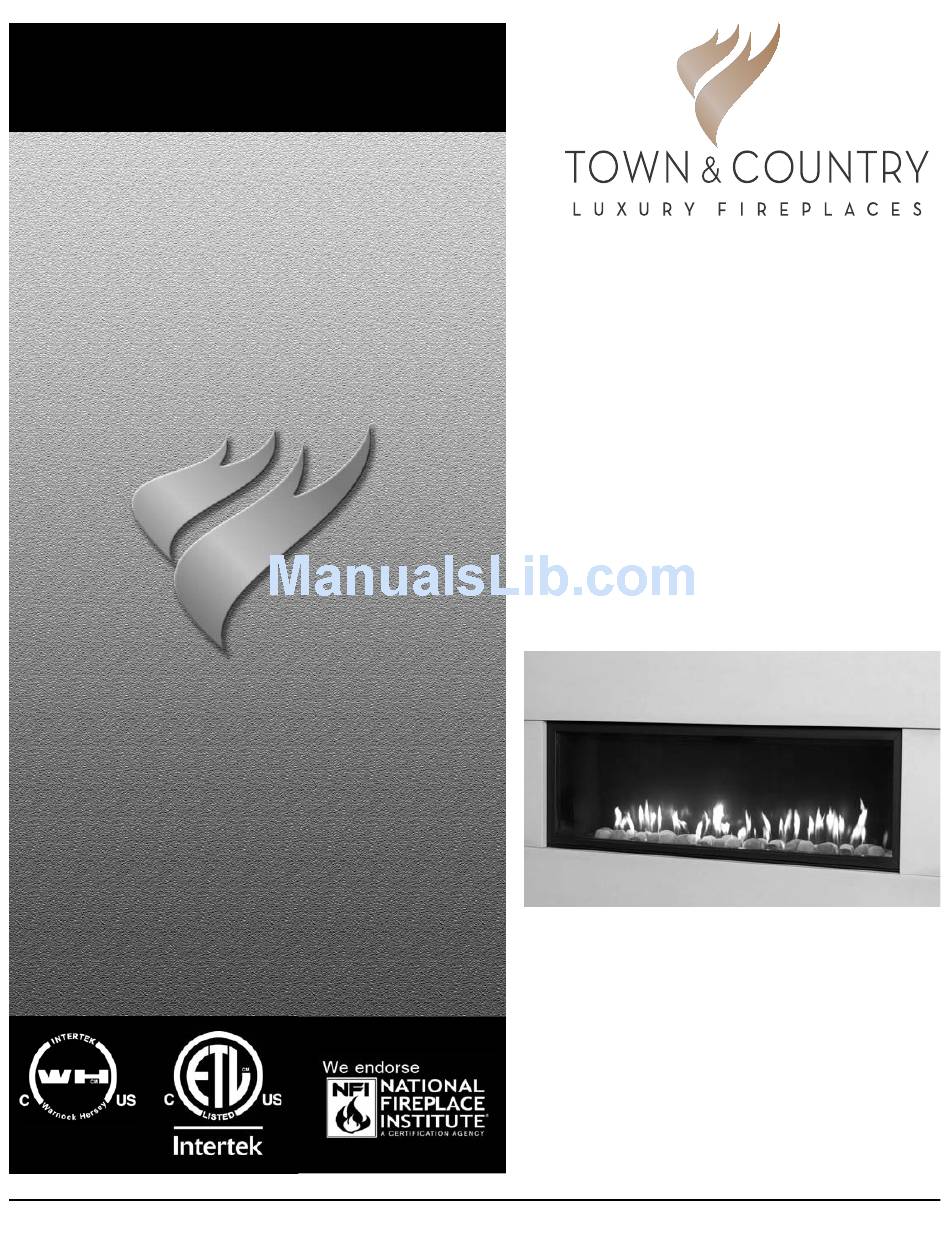

Town & Country Fireplaces TCWS.38CE2 Instructions For The Use
Tranquility burner kit for use with model tcws.38ce2 series c
Hide thumbs
Also See for TCWS.38CE2:
- Instructions manual (12 pages) ,
- Installation and operating instructions manual (44 pages) ,
- Manual for use (12 pages)
Table of Contents
Advertisement
Quick Links
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation
and Operating Instructions supplied with the fi replace
and should be kept together. Refer to the Installation
and Operating Instructions for proper gas supply, safety
requirements and operating instructions.
240910-16
TRANQUILITY
BURNER KIT
INSTRUCTIONS
PART# TCWS.38NG04C2
For use with
Model TCWS.38CE2
Series C
5056.425234
TCWS.38NG04C2
Advertisement
Table of Contents
Related Manuals for Town & Country Fireplaces TCWS.38CE2
Summary of Contents for Town & Country Fireplaces TCWS.38CE2
- Page 1 Operating Instructions supplied with the fi replace and should be kept together. Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions. TRANQUILITY BURNER KIT INSTRUCTIONS PART# TCWS.38NG04C2 For use with Model TCWS.38CE2 Series C 240910-16 5056.425234 TCWS.38NG04C2...
-
Page 2: Contents Of Package
Contents of Package 5.0 LBS SAND HARDWARE PACK EQUALIZER ROCK BURNER ASSEMBLIES BURNER TRAY ASSEMBLY PEBBLE SETS TCWS.38NG04C2 240910-16... - Page 3 If converting to propane see conver- sion instructions on page #7 before proceeding. Install panels according to the TCWS.38CE2 Installation and Operating manual prior to burner installation. (Page 26) Install the right burner by tipping into location trough and slipping the venturi tube over the orifi ce.
- Page 4 Secure the burner tray to legs using Fig #4 six screws (Fig. #4) NOTE: a light will aid aligning the holes in the tray with the leg Fig #5 Place sand into the burner tray and brush smooth. Use caution not to get sand near the burner ports.
- Page 5 Each rock has a slot in it’s base and is Fig #10 Fig #6 marked with a letter and an arrow. (Fig. #6) Place each rock as per the following Fig #7 Fig #11 photographs, start from the right hand side of the burner and ensure that the arrow on each rock points towards the front of the fi replace.
- Page 6 Fig #17 Fig #14 Place the remaining (A) rock on the left hand end of burner as shown. (Fig. #17) Fig #15 Repeat the sequence of placing the rocks two more times until the burner is covered. Fig #16 10. Install front porcelain cover (wide edge Fig #18 t owards the front of the fi replace).
-
Page 7: Propane Conversion Kit
Propane Conversion If the unit is to be used on propane Fig #19 PROPANE CONVERSION KIT convert as follows using the compo- nents supplied with this burner: MINIMUM RATE SCREW (5005.015) CAUTION The gas supply and electrical power shall be shut off before proceeding with the conversion. - Page 8 6. Slide the pilot adjustment band over and Fig #24 Fig #27 ensure that the hole in the orifi ce band is showing.(Fig. 27) Retighten pilot head. Fig. #24 shows NG position Fig. #27 shows LP position). Remove the access panel on the right side of the fi rebox, 10 screws, and set LP POSITION NG POSITION...
- Page 9 Fig #29 Fig #28 11. Press down on the center post and rotate 10. Pull off the rubber cap from the top of 90°. The center post should stay down. the pressure regulator. (Fig. #29). Replace the rubber cap. (Fig. #28) 12.
-
Page 10: Gas Pressure Check
Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from Fig #34 the supply pressure test port or manifold pressure test port. Verify gas pressures with the fi replace lit and on the highest setting. SUPPLY PRESSURE MANIFOLD... -
Page 11: Burner Flame Adjustment
Burner Flame Adjustment The air shutter on the venturi tube controls the primary combustion air. It is set to the closed position at the factory for natural gas fuel. For LP see Pg.8. Some adjustment may be neces- sary to obtain desired fl ame and to eliminate carbon deposits. Evaluate fl ame appearance after the fi replace has reached operating temperature. -
Page 12: Replacement Parts
Replacement Parts (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM ..DESCRIPTION ..........PART NO. #1..TRANQUILITY BURNER KIT..TCWS.38NG04.C #2..PEBBLE ASSEMBLY ......5096.921 (3) #3..SAND ..........TC36.SAND50 #4..TRIM ROCK “A” .......... 5096.922 NOT SHOWN KIT CONTENTS: TCWS.38NG04C2 240910-16... - Page 13 Notes: TCWS.38NG04C2 240910-16...
- Page 14 Notes:...
- Page 15 Notes:...
- Page 16 Technical support: 1-250-748-1184 Web site: www.townandcountryfi replaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
