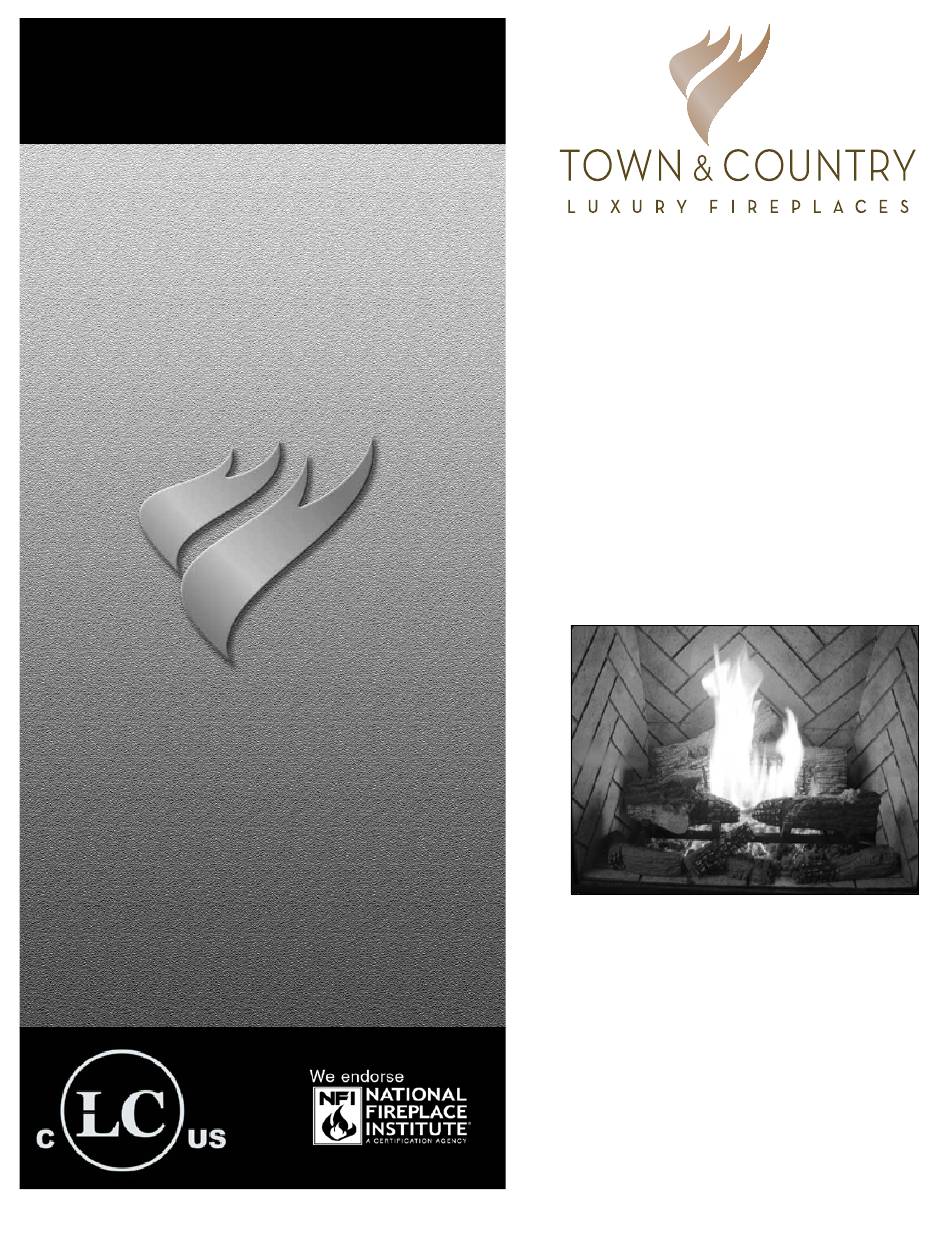

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
These instructions are supplementary to the Installation and
Operating Instructions supplied with the fireplace and should be kept
together. Refer to the Installation and Operating Instructions for proper
gas supply, safety requirements and operating instructions
Visit www. townandcountryfireplaces.net for the most recent version of this manual
160223-16
TC30
CHALET
BURNER KIT
INSTALLATION
INSTRUCTIONS
SKU# 22150005
For TC30 Series D
Fireplaces
SKU# 22150005
100005907

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC30 and is the answer not in the manual?

Questions and answers

Related Manuals for Town & Country Fireplaces TC30

Summary of Contents for Town & Country Fireplaces TC30

  • Page 1 Refer to the Installation and Operating Instructions for proper gas supply, safety requirements and operating instructions TC30 CHALET BURNER KIT INSTALLATION INSTRUCTIONS SKU# 22150005 For TC30 Series D Fireplaces Visit www. townandcountryfireplaces.net for the most recent version of this manual 160223-16 SKU# 22150005 100005907...

  • Page 2: Contents Of Package

    Contents of Package BURNER ASSEMBLY EMBER MATERIAL 7 PCS LOG SET HARDWARE PACKAGE LOG GRATE Burner Installation Place the keyhole slots in the burner Fig. # 1a over the two screws located in the firebox If this fireplace is to be base.
  • Page 3 Burner/ Grate Installation Fig. # 2 4. Feed the ignition and sensor wires through the bulkhead plate (Fig. #2) to the interface module. (Fig.#3). Ignition and sensor wires Bulkhead plate Fig. # 3 Flame sensor wire (white) Ignition wire (red) Interface module SKU# 22150005_160223-16 100005907...
  • Page 4 Attach the pilot and gas supply tubes to Fig. # 4 the bulk head fitting and tighten. (Fig. # 4) Ensure the connections are gas tight. Conceal the spark and sensor wires below the supply tubes. A panel set must now be installed. See Installation and Operating Instructions manual for details.
  • Page 5 Ember Material A large bag of ember material is shipped Fig. # 6 with the fireplace and needs to be Ember Material Placement installed on the burner to ensure optimum performance and flame appearance. Pull apart the material into ember size pieces (approximately 1”...
  • Page 6 Fig. # 8 Place the first log so that the slot on the un- derside of the log fits over the # 1 positioning pin (See Fig #7). The right side of the log can be swivelled so that the base of the log is parallel to the log grate.
  • Page 7 Fig. #10 Place the 3rd log so that the slot on its’ under- side fits over top of the # 3 pin (See Fig #7). Swivel the left hand side of the log so that it comes to rest up against the log grate finger. Fig.
  • Page 8 Fig. #12 Position the 5th log so that it covers the line created by the two front floor panels. Fig. #13 Rest the right side of the 6th log so that it is on top of the 5th log as shown in Fig #13 100005907 SKU#22150005_160223-16...
  • Page 9 Fig. # 14 Position the 7th log so that if rests on top of the pilot assemly and fits un- derneath and behind the 3rd log. Note: Improper placement of logs will cause sooting on internal parts and glass. SKU# 22150005_160223-16 100005907...

  • Page 10: Propane Conversion

    Propane Conversion WARNING This appliance was converted to propane gas This conversion kit shall be Kit Number 5052.52001-B installed by a qualified service agency in accordance with the manufacturer's instructions and Company all applicable codes and require- Address ments of the authority having The above accepts the responsibility that this jurisdiction.
  • Page 11 Fig #18 With a ½” wrench remove the natural gas Fig #22 orifice (#32) and replace with propane orifice (1.9mm)(marked “LE”) (Fig. #18) Fully open the primary air shutter. Reinstall the manifold and air deflector Slide the pilot adjustment band over and ensure that the hole in the orifice band Fig #19 is showing.

  • Page 12: Gas Pressure Check

    Gas Pressure Check Note: To test the gas pressure, turn off the gas supply before removing the plug from Fig #25a the supply pressure test port or manifold pressure test port. Verify gas pressures with the fireplace lit and on the highest setting. SUPPLY PRESSURE MANIFOLD...

  • Page 13: Burner Flame Adjustment

    Burner Flame Adjustment The air shutter on the burner tube controls the primary combustion air to the gas burner and is preset at the factory for natural gas fuel. Some adjustment may be necessary to obtain desired flame and to eliminate carbon deposits. Evaluate flame appearance after the fireplace has reached operating temperature.

  • Page 14: Replacement Parts

    #5..MAIN SUPPLY TUBE ........5019.223 #2..7 PCS CHALET II LOG SET ....5094.302642 #6..PILOT TUBE ..........5019.225 #3..ORIFICE, NATURAL GAS (#32) .... 5021.332.A *#7...PROPANE CONVERSION KIT...TC30.DLPKIT *NOT SHOWN KIT CONTENTS: #1..BURNER ASSEMBLY #3..ORIFICE, NATURAL GAS (#32) GRATE #2..
  • Page 15 SKU# 22150005_160223-16 100005907...
  • Page 16 © 2016 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. For technical support, please contact your retailer. Web site: www.townandcountryfireplaces.net 2975 Allenby Rd., Duncan, BC V9L 6V8 Printed in Canada...
