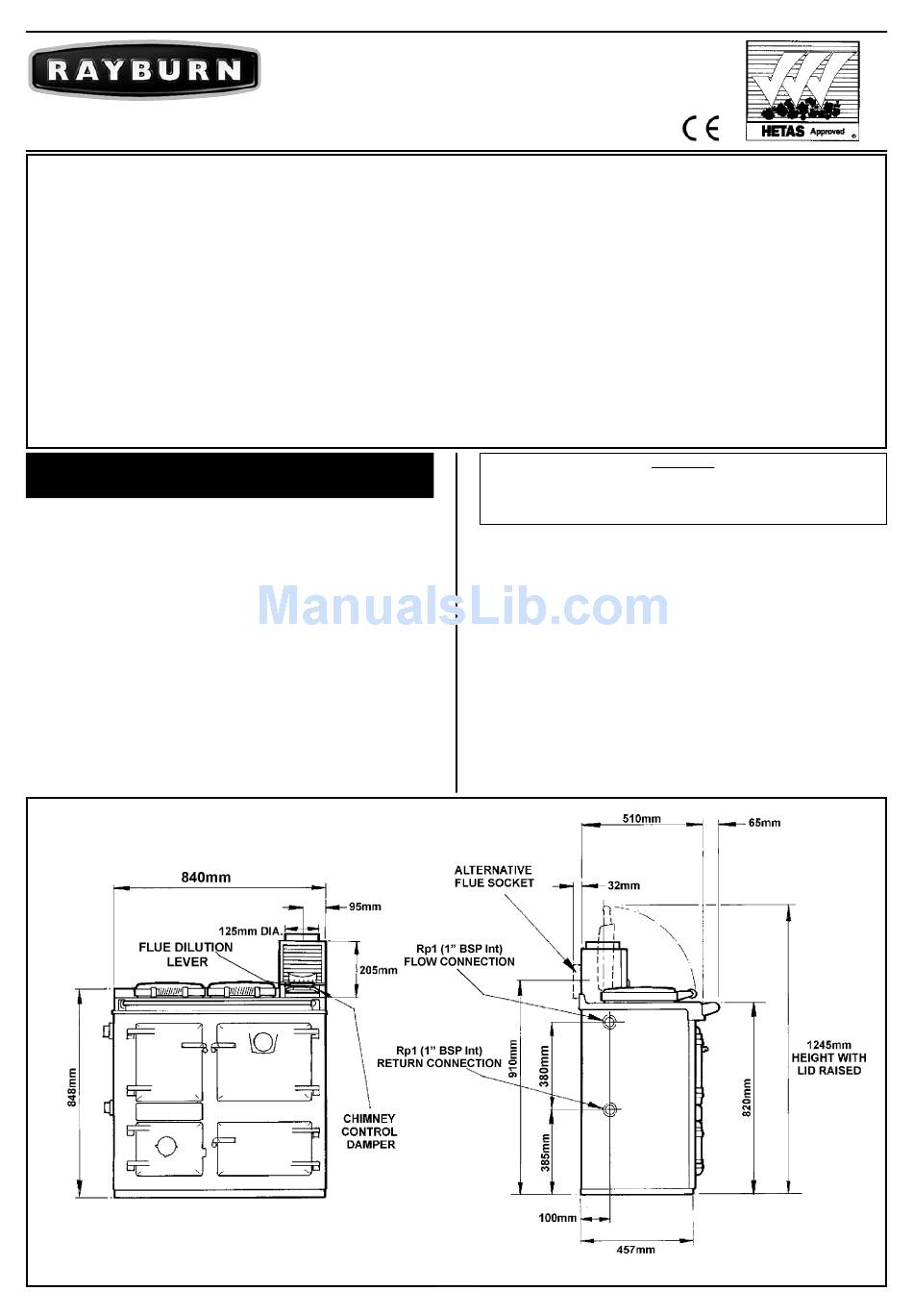

Rayburn Heatranger 216SFW Installation Instructions Manual

Better than you ever imagined
Consumer Protection
As responsible manufacturers we take care to make sure that our products
are designed and constructed to meet the required safety standards when
properly installed and used.
IMPORTANT NOTICE: PLEASE READ THE ACCOMPANYING
WARRANTY. Any alteration that is not approved by Aga, could invalidate
the approval of the appliance, the warranty and could also infringe the
current issue of the statutory requirements.
All local regulations including those referring to national and
European standards need to be complied with when installing this
appliance.
Control of Substances - Health & Safety
Important
This appliance may contain of the materials that are indicated below. It is
INTRODUCTION
REMEMBER, when replacing a part on this appliance, use
only spare parts that you can be assured conform to the
safety and performance specification that we require. Do
not use reconditioned or copy parts that have not been
clearly authorised by AGA.
The Rayburn Heatranger 216SFW is intended to supply heating
for:-
(a) Cooking and domestic hot water.
(b) Cooking domestic hot water and central heating.
The cooker meets the requirements of BS 1252 and is fully
registered under the HETAS Ltd Approval Scheme.
Air for combustion within the firebox and the rate of burning is
determined by the manually operated spinwheel control on the
ashpit door.
raywarranty@aga-web.co.uk
Installation Instructions for
Rayburn Heatranger 216SFW
Solid Fuel and
Wood Burning Cooker
the Users/Installers responsibility to ensure that the necessary personal
protective clothing is worn when handling, where applicable, the pertinent
parts that contain any of the listed materials that could be interpreted as
being injurious to health and safety, see below for information.
Firebricks, Fuel beds, Artificial Fuels- when handling use disposable
gloves.
Fire Cement - when handling use disposable gloves.
Glues and Sealants - exercise caution - if these are still in liquid form
use face mask and disposable gloves.
Glass Yarn, Mineral Wool, Insulation Pads, Ceramic Fibre, Kerosene
Oil - may be harmful if inhaled, may be irritating to skin, eyes, nose and
throat. When handling avoid inhaling and contact with skin or eyes. Use
disposable gloves, face-masks and eye protection. After handling wash
hands and other exposed parts. When disposing of the product, reduce
dust with water spray, ensure that parts are securely wrapped.
THE ASHPIT AND FIREBOX DOORS MUST BE LOCKED CLOSED
AT ALL TIMES DURING NORMAL USE, EXCEPT WHEN LIGHTING
Weight of appliance - 305 Kgs
The mean flue gas temperature directly downstream of the flue
spigot at nominal heat output is 170ºC.
This appliance has been tested using Taybrite manufactured
smokeless fuel and wood logs. The nominal heat output of this
appliance is 9 kW, firebricks removed. This provides about 5
kW to hot water and 4 kW to the appliance. In summer mode,
firebricks in place, the nominal heat output is 8 kW. This
provides about 4 kW to hot water and 4 kW to the appliance.
Other fuels may give a slightly different result.
The minimum clearance to combustible materials is 150mm.
1
WARNING
OR RE-FUELLING
DESN 513402 A
08/06 EINS 514410
