Rayburn Heatranger 355SFW Installation Instructions Manual

Consumer Protection Act 1987
As responsible manufacturers, we take care to make sure that our
products are designed and constructed to meet the required safety
standards when properly installed and used.
IMPORTANT NOTICE: PLEASE READ THE ACCOMPANYING
WARRANTY: Any alteration that is not approved by Aga, could
invalidate the approval of the appliance, operation of the warranty
and could also affect your statutory rights.
All local regulations including those referring to national and
European standards need to be complied with when installing
the appliance.
Control of Substances - Health and Safety
Important
This appliance may contain some of the materials that are indicated.
It is the Users/Installers responsibility to ensure that the necessary
personal protective clothing is worn when handling, where
PERFORMANCE
REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and
performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by Aga.
This appliance has been tested using Ancit manufactured smokeless fuel and wood logs. The nominal heat output is indicated on the
table below. Other fuels may give a slightly different result. These outputs were achieved using the following re-fuelling cycles. MSF
winter and summer 3 hours. Wood logs winter 2 hours and summer 1 hour.
Total weight of appliance - 370 Kg.
Fuel
MSF (Ancit)
Wood Logs
raywarranty@aga-web.co.uk
Mode Total (kW)
Winter 16.5
Summer 11.1
Winter 16.4
Summer 15.9

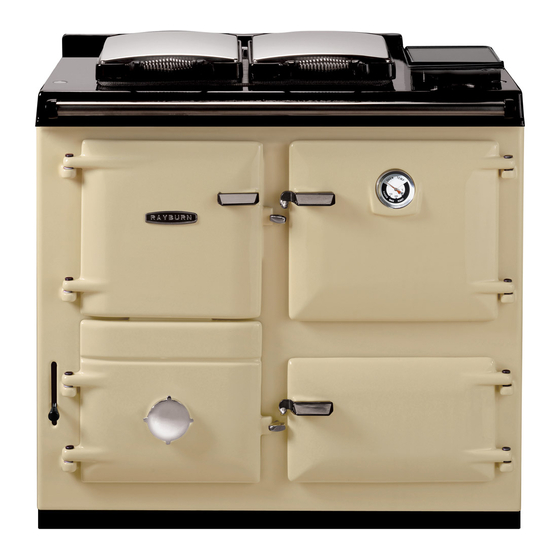

Installation Instructions for
Rayburn Heatranger 355SFW
Solid Fuel and
Wood Burning Cooker
applicable, the pertinent parts that contain any of the listed materials
that could be interpreted as being injurious to health and safety, see
below for information.
Firebricks, Fuel beds, Artificial Fuels - when handling use
disposable gloves.
Fire Cement - when handling use disposable gloves.
Glues and Sealants - exercise caution - if these are still in liquid
form use face mask and disposable gloves.
Glass Yarn, Mineral Wool, Insulation Pads, Ceramic Fibre,
Kerosene Oil - may be harmful if inhaled, may be irritating to skin,
eyes, nose and throat. When handling avoid inhaling and contact
with skin or eyes. Use disposable gloves, face-masks and eye
protection. After handling wash hands and other exposed parts.
When disposing of the product, reduce dust with water spray,
ensure that parts are securely wrapped.
To Space (kW)
5.7
3.2
6.3
8.1
To water (kW)
10.8
7.9
10.1
7.8
DESN 510278 C
03/07 EINS 514408
