Better than you ever imagined
Consumer Protection
As responsible manufacturers we take care to make sure that our
products are designed and constructed to meet the required safety
standard when properly installed and used.
IMPORTANT NOTICE: PLEASE READ THE ACCOMPANYING
WARRANTY. Any alteration that is not approved by Aga could
invalidate the approval of the appliance, operation of the warranty
and could affect your statutory rights.
All local regulations including those referring to National and
European standards need to be complied with when installing
the appliance.
Important
This appliance may contain some of the materials that are
indicated. It is the Users/Installers responsibility to ensure that the
necessary personal protective clothing is worn when handling,
PERFORMANCE
REMEMBER, when replacing a part on this
appliance, use only spare parts that you can be
assured conform to the safety and performance
specification that we require. Do not use
reconditioned or copy parts that have not been
authorised by AGA.

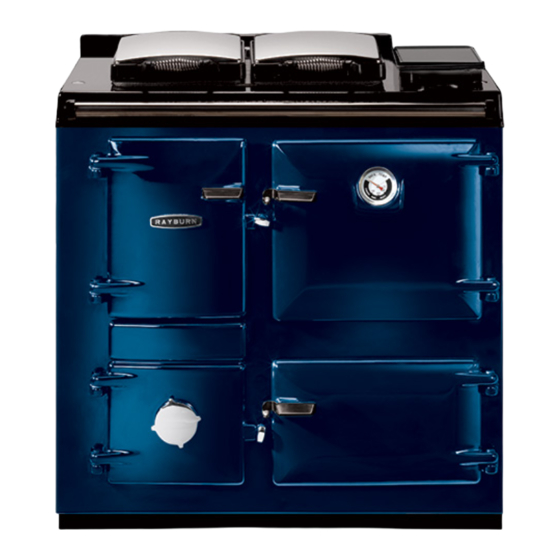

The Rayburn Cookmaster 200SFW is intended to be
used for cooking only. The Rayburn Cookmaster Plus
212SFW is intended to supply heating for cooking and
domestic hot water.
The Rayburn Cookmaster 200SFW has been tested
using Taybrite manufactured smokeless fuel only. The
nominal heat output of this appliance is 4.4 kW.
The Rayburn Cookmaster Plus 212SFW has been
tested using Taybrite manufactured smokeless fuel and
wood logs. The nominal heat output of this appliance is
raywarranty@aga-web.co.uk

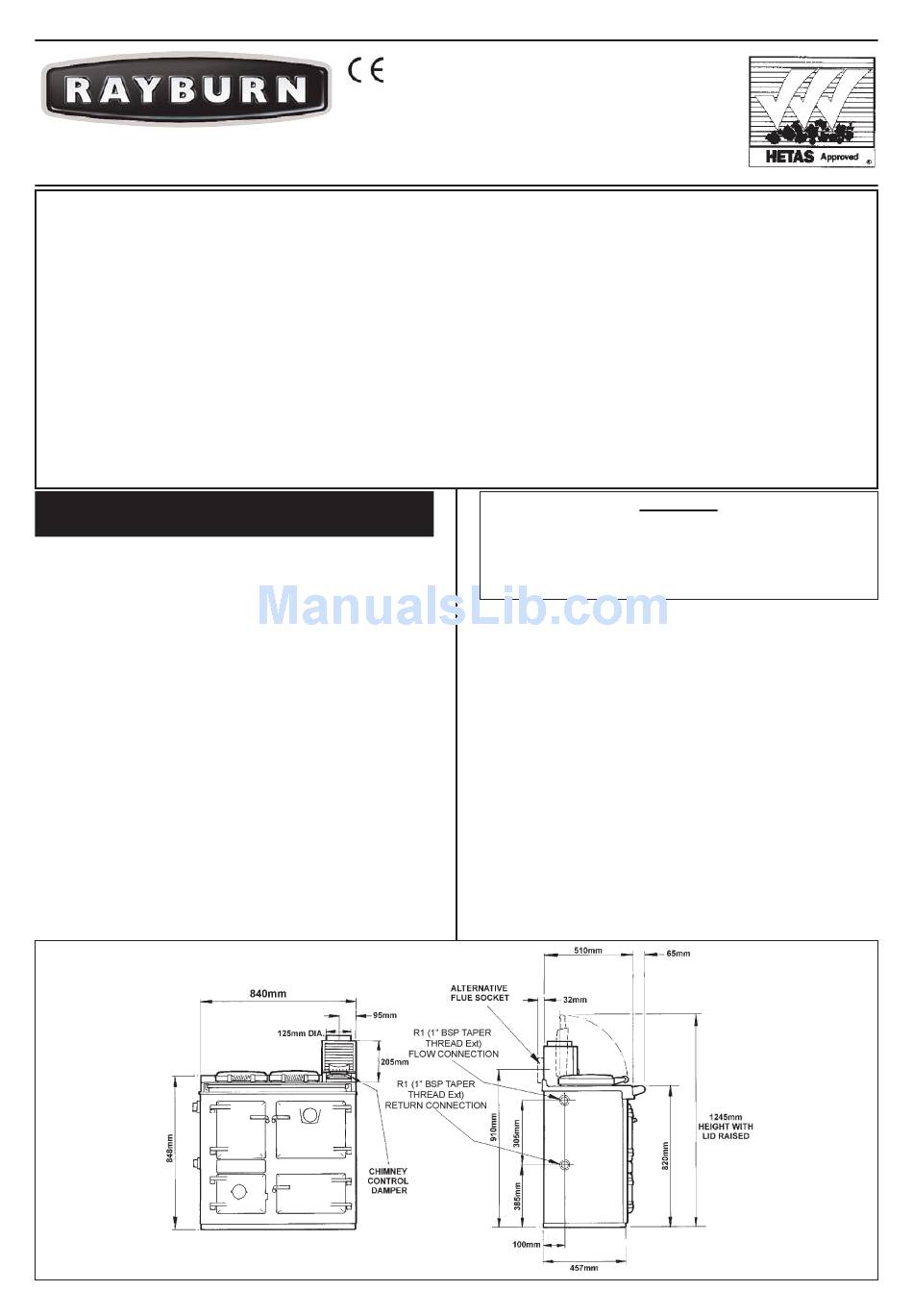

Installation Instructions for

Rayburn Cookmaster 200SFW
and Rayburn Cookmaster
Plus 212SFW Solid Fuel Cooker
where applicable, the pertinent parts that contain any of the listed
materials that could be interpreted as being injurious to health and
safety, see below for information.
Firebricks, Fuel beds, Artificial Fuels - when handling use
disposable gloves.
Fire Cement - when handling use disposable gloves.
Glues and Sealants - exercise caution - if these are still in liquid
form use face mask and disposable gloves.
Glass Yarn, Mineral Wool, Insulation Pads, Kerosene/Gas Oil -
may be harmful if inhaled, may be irritating to skin, eyes, nose and
throat. When handling avoid inhaling and contact with skin or
eyes. Use disposable gloves, face-masks and eye protection.
After handling wash hands and other exposed parts. When
disposing of the product, reduce dust with water spray, ensure that
parts are securely wrapped.
THE ASHPIT DOOR AND FIREBOX DOORS MUST
BE LOCKED CLOSED AT ALL TIMES DURING
NORMAL USE, EXCEPT WHEN LIGHTING OR RE-
6 kW. This provides about 2 kW to hot water and 4 kW
to the appliance. Other fuels may give a slightly
different result.
Weight of Rayburn Cookmaster Plus 212SFW - 300 Kgs.
Weight of Rayburn Cookmaster 200SFW - 240 Kgs.
There is no requirement for an electrical power supply.
The mean flue gas temperature of the Rayburn
Cookmaster 200SFW directly downstream of the flue
spigot at nominal heat output is 131ºC.
The mean flue gas temperature of the Rayburn
Cookmaster Plus 212SFW directly downstream of the
flue spigot at nominal heat output is 210ºC.
1
WARNING
FUELLING
DESN 510179 D
08/06 EINS 514406

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cookmaster 200SFW and is the answer not in the manual?

Questions and answers

Summary of Contents for Rayburn Cookmaster 200SFW

  • Page 1: Installation Instructions For

    Do not use reconditioned or copy parts that have not been authorised by AGA. The Rayburn Cookmaster 200SFW is intended to be used for cooking only. The Rayburn Cookmaster Plus 212SFW is intended to supply heating for cooking and domestic hot water.
  • Page 2: Hot Water System

    HOT WATER SYSTEM Rayburn Cookmaster Plus 212SFW - It is recommended that a 140 litre (30 galls) indirect hot water storage cylinder of the double feed type, (e.g. manufactured by Albion Cylinders) complying with BS 1566 Part 1: DF Type 8 should be lagged and fixed vertically as near as possible to the cooker.
  • Page 3: Preparation Of Site

    BS8303, BS. 6461 Part 1 and BS. 7566 Parts 1 to 4. Rayburn Cookmaster Plus 212SFW - The boiler installation section must also be in accordance with the byelaws of the local Water Undertaking and any relevant requirements of the Local Authority.
  • Page 4 200SFW at nominal total heat output is 2.5 Pa. The minimum chimney draught requirement for the 212SFW at nominal total heat output is 12 Pa. The mean flue gas temperature of the Rayburn 200SFW directly downstream of the flue spigot at nominal heat output is 131ºC.
  • Page 5: Cooker Flue Connection

    IN ALL TYPE OF CHIMNEYS THE MINIMUM HEIGHT FOR CORRECT OPERATION OF THE CHIMNEY IS 4.5m AND SHOULD TERMINATE ABOVE THE ROOF IN ACCORDANCE WITH REGIONAL STATUTORY REQUIREMENTS RECOMMENDED FLUE DRAUGHT - 12 pa MINIMUM. THE APPLIANCE SHOULD BE INSTALLED AND CONFORM TO THE CURRENT CODES OF PRACTICE FOR INSTALLATION OF DOMESTIC HEATING AND COOKING APPLIANCES BURNING SOLID FUEL - BS 8303.
  • Page 6: High Updraughts

    HIGH UPDRAUGHTS Tall chimneys may develop excessively high updraughts which prevent the appliance operating correctly. It is recommended that a proprietary brand adjustable flue draught stabiliser having an openable cross sectional area of 126cm be fitted above the flue pipe connection, either in the brickwork or into a right angle ‘T’...
  • Page 7: Testing And Commissioning

    NOTE: The water capacity of the boiler is 7 litres. FIREBRICK REPLACEMENT The firebricks fitted to Rayburn Cookers are of first quality manufacture, and providing the cooker has been installed and used correctly will have a reasonable life. They are, however, expendable items and in time will require renewal.
  • Page 8 For further advice or information contact your local distributor/stockist With Aga’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described at any time. Manufactured by Station Road Ketley Telford Shropshire TF1 5AQ England www.aga-web.co.uk...
