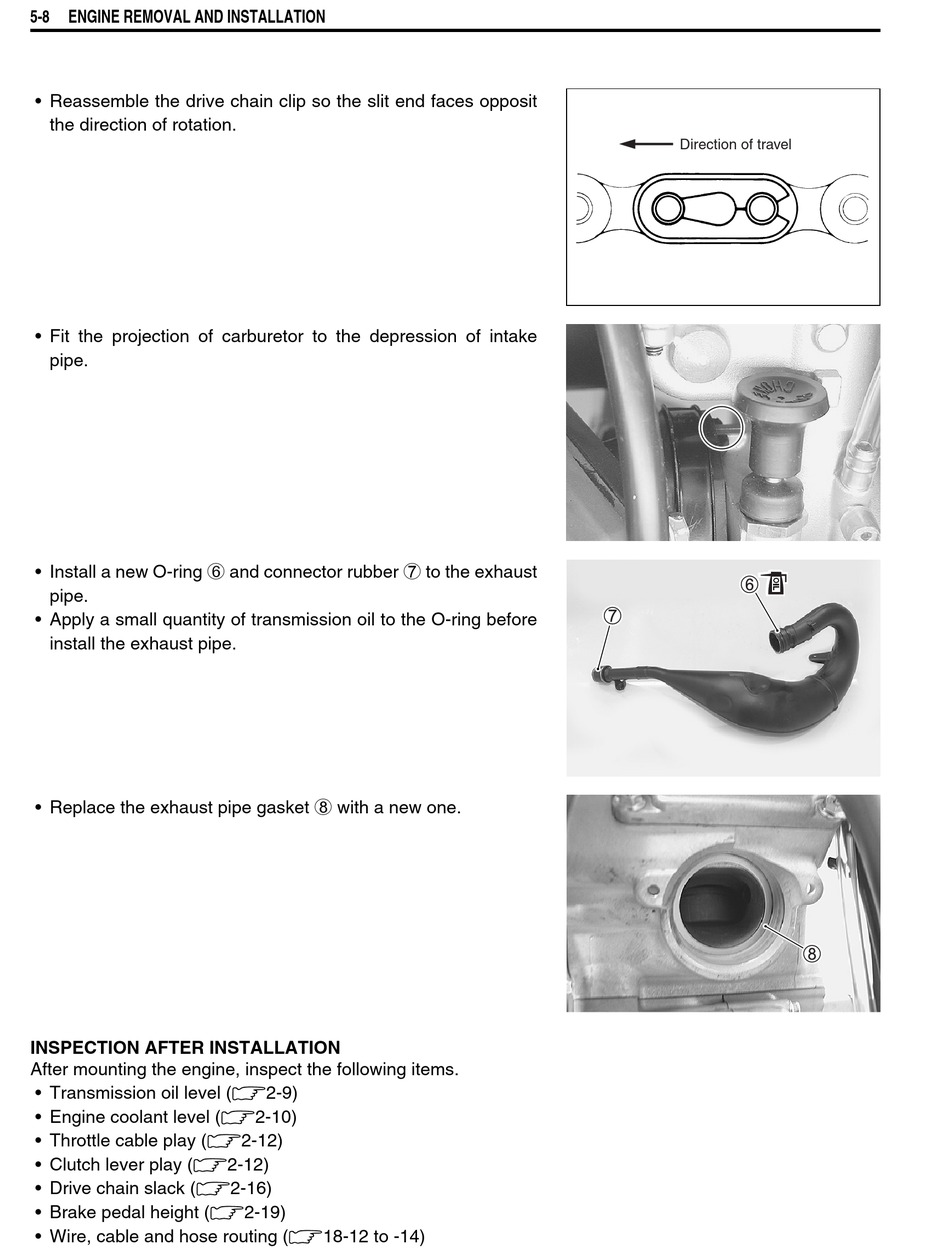

Suzuki RM125 Owner's Service Manual page 73

5-8 ENGINE REMOVAL AND INSTALLATION
• Reassemble the drive chain clip so the slit end faces opposit
the direction of rotation.
• Fit the projection of carburetor to the depression of intake
pipe.
• Install a new O-ring 6 and connector rubber 7 to the exhaust
pipe.
• Apply a small quantity of transmission oil to the O-ring before
install the exhaust pipe.
• Replace the exhaust pipe gasket 8 with a new one.
INSPECTION AFTER INSTALLATION
After mounting the engine, inspect the following items.
• Transmission oil level (2-9)
• Engine coolant level (2-10)
• Throttle cable play (2-12)
• Clutch lever play (2-12)
• Drive chain slack (2-16)
• Brake pedal height (2-19)
• Wire, cable and hose routing (18-12 to -14)
Direction of travel
