ASSEMBLY

To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver
adjustable wrench

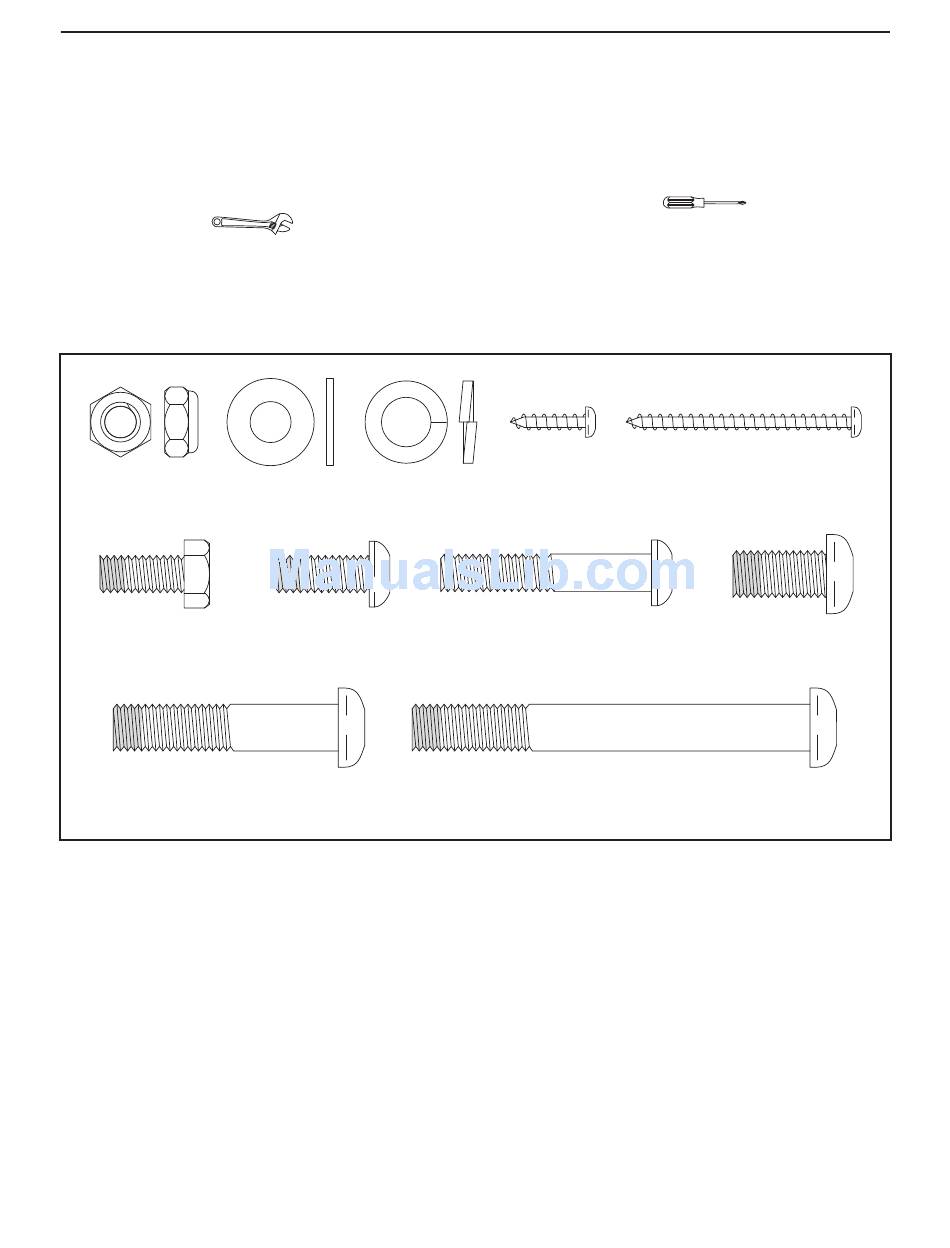

As you assemble the elliptical, use the drawings below to identify small parts. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol-
lowing the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check
to see if it has been preassembled.
M8 Jam Nut M8 Washer
(77)–4
M8 x 18mm Patch
Hex Screw (85)–2
M10 x 48mm Patch
Screw (75)–6
.
M10 Split
Washer (78)–10
(33)–6
M8 x 20mm
Patch Screw
(80)–4
M4 x 16mm
Screw (92)–7
M8 x 45mm Button
Bolt (76)–4
M10 x 85mm Patch Screw (82)–4
5
and an
M4 x 48mm
Screw (89)–2
M10 x 20mm Patch
Screw (79)–7
