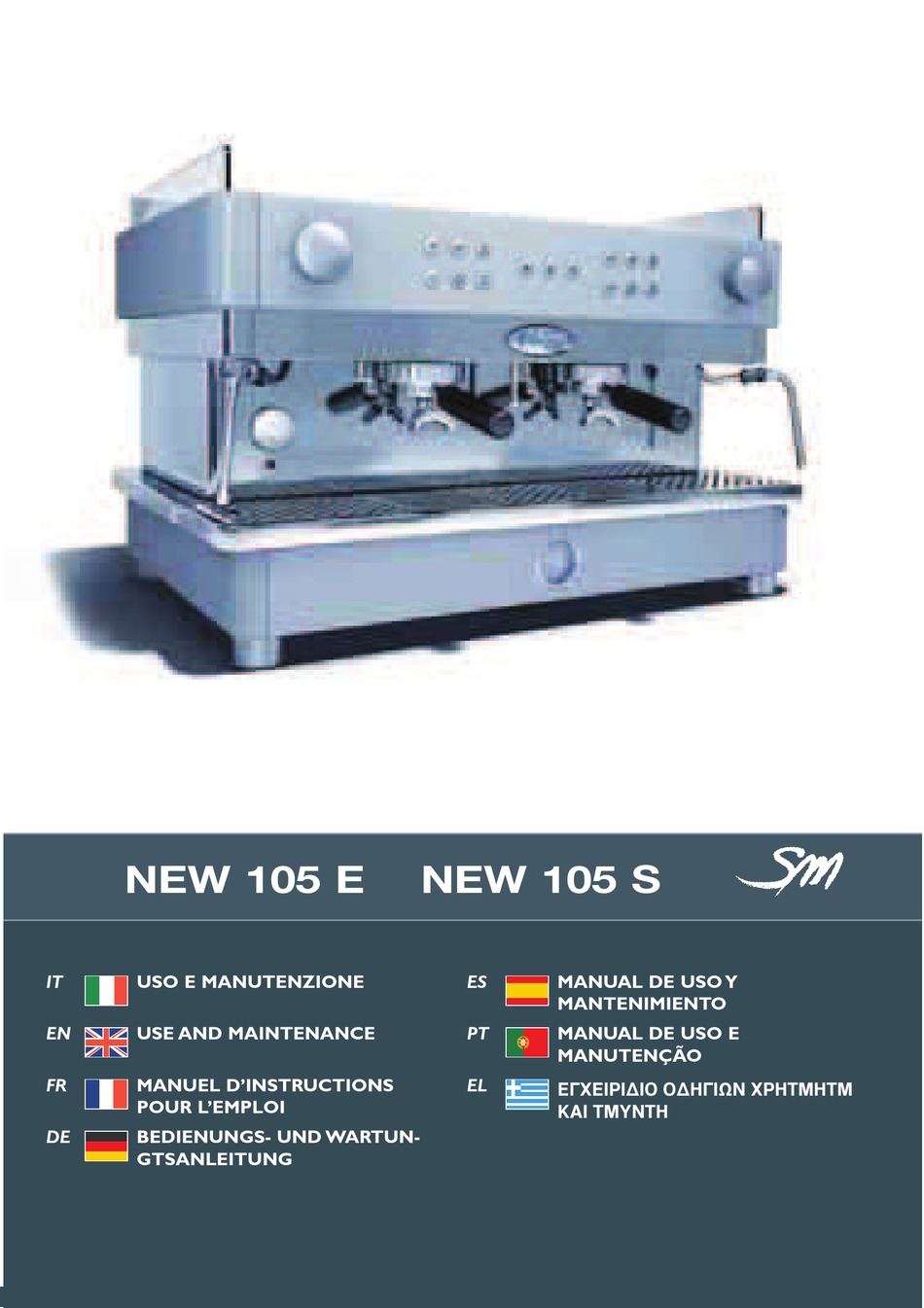

- Page 1 NEW 105 E NEW 105 S USO E MANUTENZIONE MANUAL DE USO Y MANTENIMIENTO USE AND MAINTENANCE MANUAL DE USO E MANUTENÇÃO MANUEL D’INSTRUCTIONS ˜°Ã˜›ƒ›¢›¥ ¥¢š°›ø¡ ÚTMšTM POUR L’EMPLOI œ’› TMÀ¡¨š BEDIENUNGS- UND WARTUN- GTSANLEITUNG...
- Page 2 USE AND MAINTENANCE SERIES NEW 105...
-
Page 3: Table Of Contents
10.1 Volumetric counter alarm (NEW 105 E) ....... pag. 39... -
Page 4: Introduction
1. Introduction 1.1 Using the manual This manual contains all information required for the installation, use and maintenance of the coffee machine. 1.2 Warnings This machine is designed and built for serving espresso coffee, hot water (for the preparation of than its intended purposes is considered to be improper and unauthorized. -
Page 5: Starting The Coffee Machine
9000 3500 3500 4500 4500 5500 NEW 105 DTC E/S 5500 1030 7000 7000 1270 9000 Standard: On request: water in boiler) on all models. groups). available on models NEW 105 DTC). NEW 105 DTC) (NEW 105 E 2/3/4 groups). -
Page 6: Description Of The Machine
Electronic level Steam spout Burn protection sheath Hot water spout Hot water drawing valve knob 1 key keypad – models NEW 105 S - Steam drawing vlve knob 6 key keypad – models NEW 105 E - Upper cup support tray... -
Page 7: General Water System Diagram
2.1 General water system diagram... -
Page 8: Water System Diagram Key
Exchanger tap Safety thermostat probe Electric heating element Heat exchanger Safety thermostat Pressure switch Steam valve Hot water mixer (NEW 105 E) Hot water serving valve (NEW 105 S) Pressure gauge Vacuum valve Maximum level probe Level probe Safety valve... -
Page 9: Installation
3. Installation the packing, check the proper condition of the coffee machine and its components. In sported in the future. heat generated during its operation. heat. 3.1 Equipment provided The machine packing contains the equipment kit, which includes the following items: –... -
Page 10: Installation Of Water System
3.4 Installation of water system INTERNAL PUMP Use the pipe a (900 mm, provided with the machine) to connect the cut-off valve of the mains to the tap 1 for water inlet to the water softener ( gure 3). Connect the pipe b for internal pump suction to the tap 2 of the water softener ( gure 4). Figure 3 Figure 4 EXTERNAL PUMP (OPTIONAL) - Page 11 Connect the power cord to the electrical mains as shown in the attached diagram: 110V/ 230 MONO-PHASE 1 HEATING ELEMENT ONLY FOR BLUE BLUE MODELS BROWN BROWN NEW 105 PRACTICAL YE/GR YE/GR 230V MONO-PHASE 2 HEATING ELEMENTS BLUE BLACK ONLY FOR BLACK BLACK MODELS...
-
Page 12: Start-Up
The taps of the automatic level valve b-c must be open ( gure 8). c) MODELS NEW 105 S: The taps for the cold water dispensers d must be open ( gure 9). d) MODELS NEW 105 E: The taps for the volumetric counters e must be open ( gure 10). Figure 8... -
Page 13: Adjustment Of The Boiler Water Level Probe
In models of the NEW 105 series, the pump is located inside the coffee machine. Calibration of the pump operating pressure is set by LA SAN MARCO SPA at 9 bar. If you want to change this value, proceed as follows: The standard location for the pump is the right side of the machine (looking at it from the work zone). -
Page 14: Adjustment Of Temperature Of Dispenser Groups: (Models New 105)
5.5 Adjustment of temperature of hot water (NEW 105 E) Models NEW 105 E with 2/3/4 groups include a mixer that makes it possible to adjust the temperature of the hot water for the preparation of infusions. The mixer can be calibrated by turning the adjustment screw, which is accessed from the upper tub ( gure 17). -
Page 15: Additional Notes For Models New 105 Dtc (Dual Temperature Control)
When the desired serving quantity is reached inside the cup, the flow is stopped by pressing button 1 again. Models NEW 105 E Each serving unit has a push-button panel with six buttons: A, D, C and F for programmed doses;... -
Page 16: Drawing Steam
Use the appropriate switch to activate or de-activate the cup heater. The cup heater heating element is equipped with a working thermostat that controls the temperature of the cup support surface. 7. Programming the NEW 105 E models... -
Page 17: Programming Of Servings: Espresso Coffee And Hot Water
7.1 Programming of servings: espresso coffee and hot water Turn the knob 1 of the main switch to position 0 (zero). Press key G (continuous serving of rst serving group) and while holding it down, turn the knob of the main switch to position 2. -
Page 18: Cleaning The Steam Spout
Cover the machine if necessary. 10. Display of alarms 10.1 Volumetric counter alarm (NEW 105 E) The button associated with the displacement meters of all the units lights up when the machine is switched on; when coffee is being served, the led inside the button should flash. If, while coffee is being served, the displacement meter remains idle for more than two minutes, the electronic control unit stops the coffee flow and signals the alarm by flashing button A (strong coffee in the first unit). -
Page 19: Autolevel Alarm
10.2 Autolevel alarm If the water level in the boiler is below normal and the pump is not able to restore that level after 150 seconds, the electronic control unit of the machine will stop automatic lling and signal the problem via simultaneous ashing of the double short coffee button of all groups plus the large tea key and the rst of the three LED’s of the electronic level control. -
Page 20: Guarantee
14. Declaration of conformity The manufacturer: La San Marco S.p.A. 34072 Gradisca d’Isonzo (GO) Italy – Via Padre e Figlio Venuti, 10 phone (+39) 0481 967111 – fax (+39) 0481 960166 – http://www.lasanmarco.com... -
Page 21: Problem Solving
15. Problem solving PROBLEM CAUSE SOLUTION and the water ows out the boiler or from a circuit of manual charging button, and the of the safety valve. the unit has a leak. boiler heat exchangers. eliminate the leak. and vents the steam. system (the electrical heating heating element and the pressure element is always connected). - Page 22 (NEW 105 S). (NEW 105 S). and cold water) and replace as necessary (NEW 105 E). (NEW 105 E). after serving the coffee. valve. necessary replace it. Calibrate the valve at 12 bar.
- Page 23 PROBLEM CAUSE SOLUTION ows out of the spout rapidly). coffee. coffee. 90°C the group to a higher number or increase boiler pressure. cup). replace. drips out of the spout). coffee. coffee. the group to a lower number or decrease boiler pressure. cup).
- Page 24 La San Marco S.p.A. Via Padre e Figlio Venuti, 10 34072 Gradisca d’Isonzo - Gorizia - Italy Tel. +39.0481.967111 Fax +39.0481.960166 http://www.lasanmarco.com E-mail: info@lasanmarco.com...
