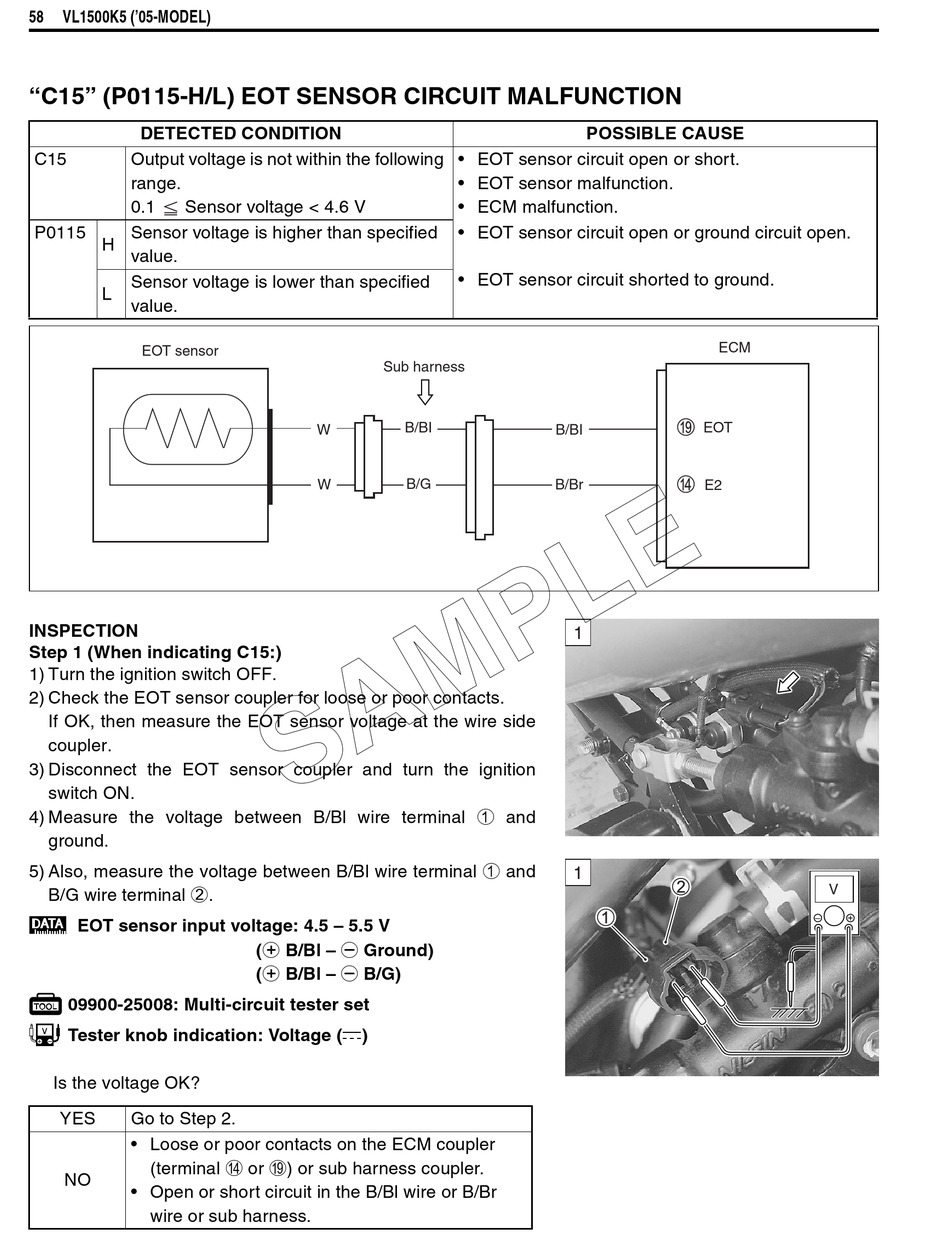

Suzuki VL1500K5 Supplementary Service Manual page 59

58 VL1500K5 ('05-MODEL)
"C15" (P0115-H/L) EOT SENSOR CIRCUIT MALFUNCTION
DETECTED CONDITION
C15 Output voltage is not within the following
range.
0.1 Sensor voltage < 4.6 V
P0115 Sensor voltage is higher than specified
H
value.
Sensor voltage is lower than specified
L
value.
EOT sensor
INSPECTION
Step 1 (When indicating C15:)
1) Turn the ignition switch OFF.
2) Check the EOT sensor coupler for loose or poor contacts.
If OK, then measure the EOT sensor voltage at the wire side
coupler.
3) Disconnect the EOT sensor coupler and turn the ignition
switch ON.
4) Measure the voltage between B/Bl wire terminal 1 and
ground.
5) Also, measure the voltage between B/Bl wire terminal 1 and
B/G wire terminal 2.
" EOT sensor input voltage: 4.5 – 5.5 V
# 09900-25008: Multi-circuit tester set
* Tester knob indication: Voltage (+)
Is the voltage OK?
YES Go to Step 2.
• Loose or poor contacts on the ECM coupler
(terminal D or I) or sub harness coupler.
NO
• Open or short circuit in the B/Bl wire or B/Br
wire or sub harness.
Sub harness
B/BI
W
B/G
W
(+ B/Bl – - Ground)
(+ B/Bl – - B/G)
POSSIBLE CAUSE
• EOT sensor circuit open or short.
• EOT sensor malfunction.
• ECM malfunction.
• EOT sensor circuit open or ground circuit open.
• EOT sensor circuit shorted to ground.
B/BI
B/Br
1
1
ECM
EOT
E2
V
