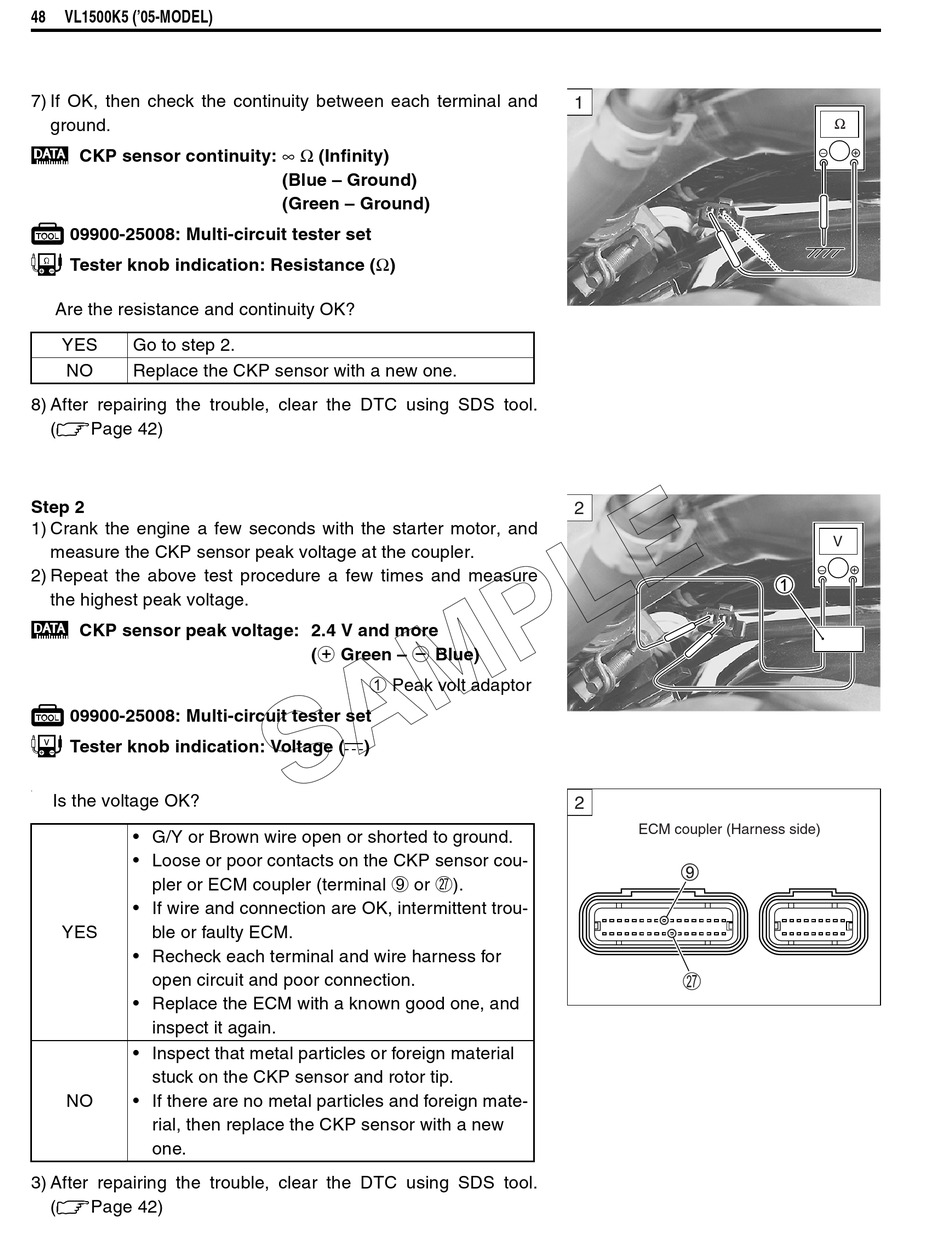

Suzuki VL1500K5 Supplementary Service Manual page 49

48 VL1500K5 ('05-MODEL)
7) If OK, then check the continuity between each terminal and
ground.
" CKP sensor continuity: ∞ Ω (Infinity)
# 09900-25008: Multi-circuit tester set
) Tester knob indication: Resistance (Ω)
Are the resistance and continuity OK?
YES Go to step 2.
NO Replace the CKP sensor with a new one.
8) After repairing the trouble, clear the DTC using SDS tool.
(!Page 42)
Step 2
1) Crank the engine a few seconds with the starter motor, and
measure the CKP sensor peak voltage at the coupler.
2) Repeat the above test procedure a few times and measure
the highest peak voltage.
" CKP sensor peak voltage: 2.4 V and more
# 09900-25008: Multi-circuit tester set
* Tester knob indication: Voltage (+)
.
Is the voltage OK?
• G/Y or Brown wire open or shorted to ground.
• Loose or poor contacts on the CKP sensor cou-
pler or ECM coupler (terminal 9 or Q).
• If wire and connection are OK, intermittent trou-
YES ble or faulty ECM.
• Recheck each terminal and wire harness for
open circuit and poor connection.
• Replace the ECM with a known good one, and
inspect it again.
• Inspect that metal particles or foreign material
stuck on the CKP sensor and rotor tip.
NO • If there are no metal particles and foreign mate-
rial, then replace the CKP sensor with a new
one.
3) After repairing the trouble, clear the DTC using SDS tool.
(!Page 42)
(Blue – Ground)
(Green – Ground)
(+ Green – - Blue)
1 Peak volt adaptor
1
2
2
ECM coupler (Harness side)
V
