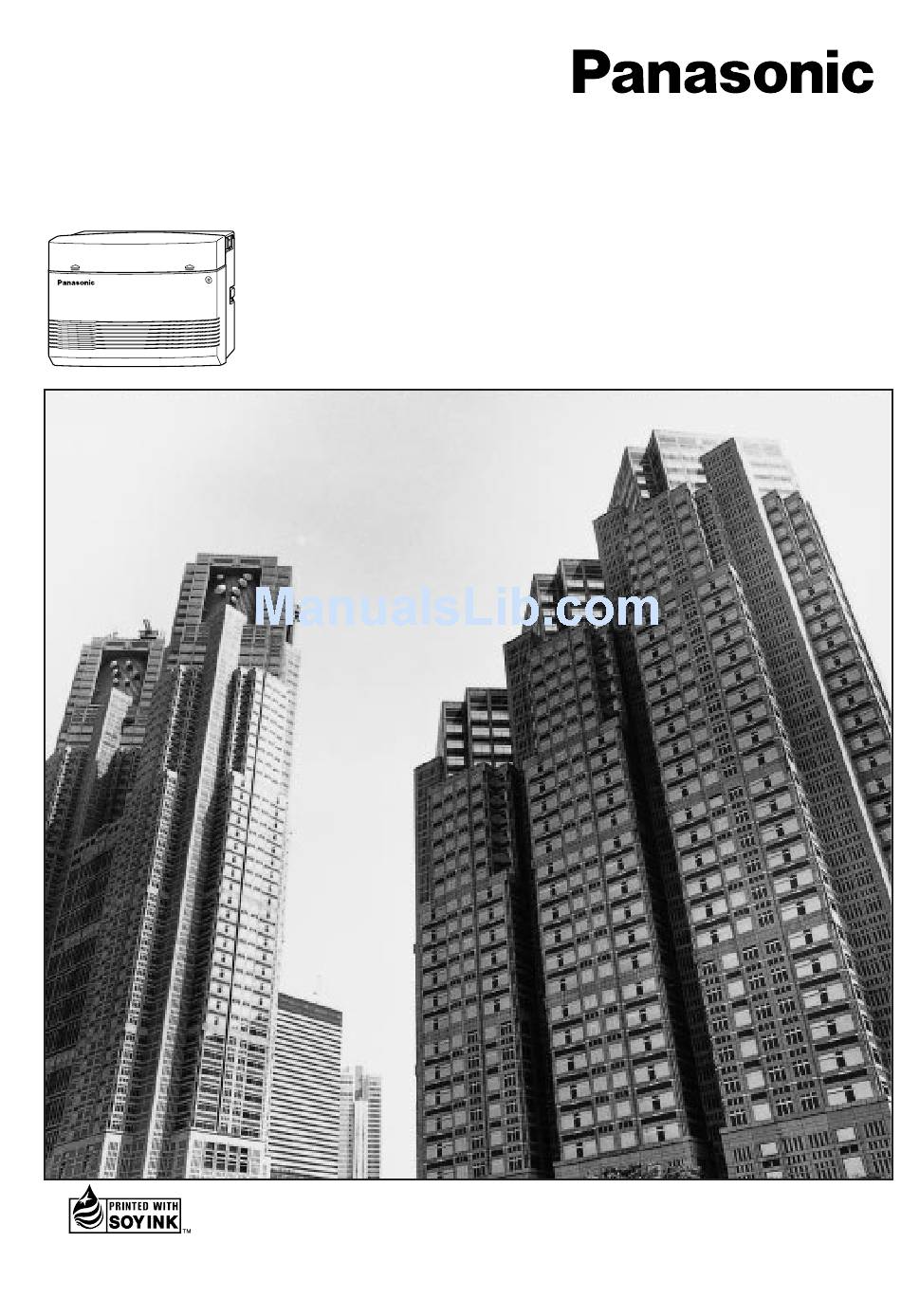

Advanced Hybrid System

Installation Manual

Please read this manual before connecting
the Advanced Hybrid System.
KX-TA308
KX-TA616
MODEL

Advertisement

Table of Contents

   Related Manuals for Panasonic KX-TA308

   Summary of Contents for Panasonic KX-TA308

  • Page 1: Installation Manual

    Advanced Hybrid System Installation Manual KX-TA308 KX-TA616 MODEL Please read this manual before connecting the Advanced Hybrid System. This manual was printed with soy based ink.
  • Page 2: System Highlights

    Direct Backup Power Supply This system can expand the outside (CO) Car batteries can be connected directly lines (KX-TA308 only) and extension to this system as a backup power supply capacity by installing an optional card. in the event of a power failure.
  • Page 3 Precautions • Keep the unit away from heating appliances and electrical noise generating devices such as fluorescent lamps, motors and televisions. These noise sources can interfere with the performance of the Advanced Hybrid System. • This unit should be kept free of dust, moisture, high temperature (more than 40 ˚C {104 ˚F}) and vibration, and should not be exposed to direct sunlight.
  • Page 4 Precautions For your future reference SERIAL NO. DATE OF PURCHASE (found on the bottom of the unit) NAME OF DEALER DEALER’S ADDRESS Note • This Installation Manual does not show complete model number that indicate the country where your models should be used. The model number of your unit is found on the label affixed to the unit.
  • Page 5: Structure Of The Manual

    Introduction Structure of the Manual This manual consists of the following sections: Section 1. Basic System Construction Provides general information on the system including connection diagrams. Section 2. Installation Contains the system installation and wiring instructions, as well as how to install the optional cards.
  • Page 6: Table Of Contents

    Contents Section 1 Basic System Construction Section 2 Installation Before Installation ................. Unpacking ....................Names and Locations ................Wall Mounting ..................Frame Ground Connection ..............Opening the Top Front Cover .............. Outside (CO) Line Connection ............Extension Connection ................External Pager (Paging Equipment) Connection....... 2-10 2.10 External Music Connection..............
  • Page 7 Contents Call Waiting ..................3-13 Conference (3-party) ................3-14 Conference (5-party) ................3-15 Data Line Security................3-15 Date and Time Setting ................ 3-16 Direct In Line (DIL)................3-16 Direct Inward System Access (DISA)..........3-17 Display Contrast Adjustment (KX-T7330/KX-T7030/KX-T7130/KX-T7033 only)...... 3-24 Distinctive Dial Tones ................
  • Page 8 Contents Paging ....................3-45 Paralleled Telephone Connection ............3-46 Personal Speed Dialing ..............3-46 Pickup Dialing ..................3-47 Polarity Reverse Detection ..............3-47 Power Failure Transfer ............... 3-48 Preferred Line Assignment — Incoming ........... 3-48 Preferred Line Assignment — Outgoing..........3-49 Proprietary Telephone Setting Data Default Set ........
  • Page 9 Contents [007] Time (Day/Night/Lunch) Service Start Time ......[008] Operator Assignment .............. 4-10 [009] Extension Number Assignment ..........4-10 [010] LCD Time Display Selection ..........4-11 [011] System Speed Dialing Name Setting ........4-12 [012] Second Feature Numbering Plan ........... 4-13 [100] Hunting Group Set ..............
  • Page 10 Contents [211] No Dial Disconnection ............4-31 [212] Outside (CO) Line Duration Time Limit ....... 4-32 [213] Bell Off Detection ..............4-32 [300] Carrier Excepted Code Assignment ........4-33 [301] Toll Restriction — System Speed Dialing Boundary Class .. 4-33 [302]–[305] Toll Restriction —...
  • Page 11 Contents [505] DISA Waiting Time after OGM ..........4-59 [506] DISA Busy Mode ..............4-60 [507] DISA Intercept Mode ............. 4-60 [508] DISA Ringing Time before Intercept ........4-61 [509] DISA Ringing Time after Intercept ........4-61 [510] DISA No Dial Mode .............. 4-62 [511] DISA Security Type ..............
  • Page 12 Contents [800] SMDR RS-232C Communication Parameters ....... 4-83 [801] SMDR Parameter ..............4-84 [802] Incoming/Outgoing Call Selection for Printing ..... 4-84 [803] Secret Speed Dialing / One-Touch Dialing Printing ..... 4-85 [804] System Data Dump ..............4-85 [805] SMDR Account Code Selection ..........4-86 [806] SMDR Language Assignment ..........
  • Page 13: Basic System Construction

    Section 1 Basic System Construction...
  • Page 14: System Connection Diagram

    Basic System Construction The KX-TA308 has a basic capacity of 8 extensions and 3 outside (CO) lines, and the KX-TA616 has 16 extensions and 6 outside (CO) lines. It is capable of supporting Panasonic analog proprietary telephones, and single line devices such as single line telephones, facsimiles and data terminals.
  • Page 15 Basic System Construction KX-TA616 6 Outside (CO) Lines to outside lines 1 – 6 (Lightning Protectors) car batteries External Music Source Amplifier Speaker Printer Computer Extension jacks 01 – 16 (initial) 24 Extensions Extension jacks 17 – 24 (additional) (two pair) (one pair) (two pair) Single Line Telephone...
  • Page 16 Basic System Construction...
  • Page 17 Section 2 Installation...
  • Page 18: Before Installation

    7. Install at least 1.8 m {6 feet} away from radios and televisions. (Both the system and Panasonic proprietary telephones) 8. Do not obstruct area around the system (for reasons of maintenance and inspection — be especially careful to allow space for cooling above and at the sides of the system).
  • Page 19 To discharge body static, Side View touch ground or wear a grounding strap. Warning: Static sensitive connectors * The illustration on this page is a KX-TA308. Installation...
  • Page 20: Unpacking

    Music Source Connector AC Cord Plug Adaptor Screws (Wall Mounting) Strap Washers (Wall Mounting) Rivet Pager Connector Names and Locations KX-TA308 External Music Jack Paging Jack Extension Modular Jacks Strap Hole Outside (CO) Line Modular Jacks Serial Interface (RS-232C) Power Switch...
  • Page 21: Wall Mounting

    Wall Mounting This set is designed for wall mounting only. The wall where the main unit is to be mounted must be able to support the weight of the main unit. If screws other than the ones supplied are used, use screws with the same diameter as the ones enclosed. Mounting on a Wooden Wall Mounting on a Concrete or Mortar Wall...
  • Page 22: Frame Ground Connection

    Frame Ground Connection IMPORTANT!!! Connect the frame of the main unit to the ground. 1. Loosen the screw. 2. Insert the grounding wire (user- supplied). To the ground 3. Tighten the screw. Screw 4. Connect the grounding wire to the ground.
  • Page 23 2.5, Frame Ground Connection). Recommended lightning protectors • TELESPIKE BLOK MODEL TSB (TRIPPE MFG. CO.) • SPIKE BLOK MODEL SK6-0 (TRIPPE MFG. CO.) • Super MAX™ (PANAMAX) • MP1 (ITW LINK) * The illustration on this page is a KX-TA308. Installation...
  • Page 24: Outside (co) Line Connection

    Outside (CO) Line Connection Installation Lightning System Protectors Terminal EXTN. Board Protective Earth Terminal EXTN. EXTN. Frame Ground Outside line Ground EXTN.: Extension line TEL: Telephone Installation of an Earth Rod Lightning Protectors Grounding Wire System (Underground) 1) Installation location of the earth rod ..Near the protector 2) Check obstructions .
  • Page 25: Extension Connection

    Extension Connection Extension jacks 01 through 08 for the KX-TA308 and extension jacks 01 through 16 for the KX-TA616 can be used for all kinds of telephones. Telephone Wiring The maximum length of the extension line cord (twisted cable) which connects the system and the extension is as follows.
  • Page 26: External Pager (paging Equipment) Connection

    • To adjust the sound level of the pager, use the volume control on the amplifier. • Required System Programming Section 4.2, System Programming [106] External Paging Access Tone • Feature Reference Section 3, Features Paging * The illustration on this page is a KX-TA308. 2-10 Installation...
  • Page 27: External Music Connection

    • To adjust the sound level of the Music on Hold, use the volume control on the external music source. • Required System Programming Section 4.2, System Programming [111] Hold Music Selection • Feature Reference Section 3, Features Music on Hold / Background Music (BGM) * The illustration on this page is a KX-TA308. 2-11 Installation...
  • Page 28: Paralleled Telephone Connection

    Any single line telephone can be connected in parallel with a proprietary telephone as follows. Using a Modular T-Adaptor Modular T-Adaptor (Panasonic KX-J66 or USOC RJA2X) 2-conductor wiring cord Connect pins “T” and “R”. 4-conductor wiring cord For a proprietary telephone: Connect pins “T”, “R”, “H”...
  • Page 29: Polarity Sensitive Telephone Connection

    2.12 Polarity Sensitive Telephone Connection If your telephone is polarity sensitive, follow the procedure below: 1. Complete all the required extension wiring. 2. Confirm that dialing can be done from all the extensions using a touch-tone telephone. If dialing fails, the polarity between the extension and the system must be reversed.
  • Page 30: Printer And Pc Connection

    2.13 Printer and PC Connection A user-supplied printer or personal computer (PC) can be connected to the system. These are used to print out or refer to the SMDR call records and system programming data. Connect the printer cable or the PC cable to the Serial Interface (RS-232C) connector. The cable must be shielded and the maximum length is 2 m {6.5 feet}.
  • Page 31 2.13 Printer and PC Connection Connection Chart for a Printer / Personal Computer with the System If you connect a printer or a PC with a 9-pin cable, follow the chart below. System 9-pin Cable Printer/PC Circuit type Signal Signal Circuit type (EIA) name...
  • Page 32 2.13 Printer and PC Connection Serial Interface (RS-232C) Signals Frame Ground: FG Connects the unit frame and the earth ground conductor of the AC power cord. Transmitted Data: SD (TXD) ..... . (output) Conveys signals from the unit to the printer.
  • Page 33: Location Of Optional Cards

    Facsimile detection: When the system receives a facsimile transmission signal by DISA, it automatically connects the specified facsimile extension. 1. Remove the 2 screws. Screws * The illustrations on this page are a KX-TA308. 2-17 Installation...
  • Page 34 • Required System Programming See ‘Required System Programming’ in Section 3, Features “Direct Inward System Access (DISA)” • Feature References Section 3, Features Direct Inward System Access (DISA) Outgoing Message (OGM) * The illustrations on this page are a KX-TA308. 2-18 Installation...
  • Page 35: Doorphone And Door Opener Connection

    2.16 Doorphone and Door Opener Connection Four doorphones (KX-T30865) and 4 door openers (user-supplied) can be installed. Maximum cable length The maximum length of the doorphone and door opener line cord which connects the system is as follows. Diameter of the line Max.
  • Page 36 Attach the optional Doorphone/Door Opener Card to the main unit, connect the cord to the Doorphone/Door Opener Card connector and secure the screw. Doorphone Connectors Screw Door Opener Terminal Doorphone/Door Opener Card (KX-TA30860) Doorphone/Door Opener Card Card Connector * The illustration on this page is a KX-TA308. 2-20 Installation...
  • Page 37 Doorphone 1 Doorphone 3 4-conductor wiring is required. Black Yellow Green Doorphone 1 Doorphone 2 (KX-T30865) (KX-T30865) 4-conductor wiring is required. Black Yellow Green Doorphone 3 Doorphone 4 (KX-T30865) (KX-T30865) * The illustration on this page is a KX-TA308. 2-21 Installation...
  • Page 38 • Required System Programming Section 4 System Programming [700]–[702] Doorphone Ringing Assignment — Day/Night/Lunch [703]–[705] Door Opener Assignment — Day/Night/Lunch • Feature References Section 3, Features Door Opener, Doorphone Call * The illustrations on this page are a KX-TA308. 2-22 Installation...
  • Page 39: Backup Batteries Connection

    2.17 Backup Batteries Connection Two car batteries can be connected to the system as a backup power supply in the event of a power failure. 1. Attach the cables (KX-A227) and 2 user-supplied car batteries (12 V DC each) as shown below.
  • Page 40: Installing A 3-co Line & 8 Ext Expansion Card (kx-ta)

    This card can be installed directly to the system or to the KX-TA30877. • Only a single line telephone (SLT) can be connected to extension jacks 17 through 24. Installing the KX-TA30877 to the KX-TA308 1. Loosen the screws and open the top and bottom front covers.
  • Page 41 2.18 Installing a 3-CO Line & 8 Ext Expansion Card (KX-TA30877) and 8 SLT Extn. Expansion Card (KX-TA30874) 3. After cutting the areas, be sure to cut off any excess plastic in order to make the surface smooth. 4. First, insert the plastic spacer into the hole on the KX-TA30877. Attach the 2 extension connectors to the system, install the KX-TA30877 and secure the 2 extension bolts.
  • Page 42 1. Loosen the screws and open the front and bottom front covers. 2. If your system is a KX-TA308, remove the lower front panel in the same way as installing a KX-TA30877. If you install the KX-TA30874 to a KX-TA616 or a KX-TA30877, which is connected to a KX-TA308, remove the top front panel with pliers.
  • Page 43 (JACK 17 through 24). ( 2.8, Extension Connection) 6. Wrap the strap around all of the cords. ( 2.20, Securing the Cords) 7. Close the covers and secure the screws. * The illustration on this page is a KX-TA308. 2-27 Installation...
  • Page 44 Installing a 3-CO Line & 8 Ext Expansion Card (KX-TA30877) and 8 SLT Extn. Expansion Card (KX-TA30874) Installing the KX-TA30877 and KX-T30874 — for KX-TA308 only 1. Install the KX-TA30877 first and then the KX-TA30874. Screws 8 SLT Extension Expansion Card...
  • Page 45: Auxiliary Connection For Power Failure Transfer

    Power Failure Transfer, Paralleled Telephone Connection 2.20 Securing the Cords 1. Insert the rivet into the hole in the strap. 2. Insert the rivet and strap into the hole on the system. * The illustration on this page is a KX-TA308. 2-29 Installation...
  • Page 46: Closing The Front Cover

    1. Replace the covers and tighten the screws. 2. Tie together all of the connected cords and attach them to the wall so that the cords cannot be pulled out of the system. * The illustrations on this page are a KX-TA308. 2-30 Installation...
  • Page 47: Starting The System For The First Time

    2.22 Starting the System for the First Time 1. Set the Power Switch to the “OFF” position. 2. Plug the AC power cord into the system and an AC outlet. 3. Turn the Power Switch on. (The power indicator will light.) 4.
  • Page 48 2.22 Starting the System for the First Time Plug Adaptor The plug adaptor (included) is to be used if the power plug will not fit your socket. Assemble as shown below, using the plug which fits your socket. In this case, be sure to connect the frame of the main unit to ground because the ground line in the power cable cannot be used.
  • Page 49: System Restart

    2.23 System Restart After starting the system, if the system does not operate properly, restart the system. Before restarting the system, try the system feature again to confirm whether there definitely is a problem or not. System Restart causes the following. •...
  • Page 50: System Data Clear

    • After pressing the Reset Button, return the System Clear Switch to the “NORMAL” position in step 3 before the power indicator stops flashing. Otherwise, the system will not clear. • Feature Reference Section 3, Features System Data Default Set * The illustration on this page is a KX-TA308. 2-34 Installation...
  • Page 51 Section 3 Features...
  • Page 52: A Absent Message Capability

    Features Absent Message Capability Allows an extension user to set a message which will be displayed at the calling extension to show the reason for the called extension’s absence. One of 6 messages can be programmed as desired, which are available for any telephone (single line telephone or proprietary telephone).
  • Page 53: Alternate Calling – Ring/voice

    Features • Required System Programming [310] Account Codes [601]-[603] TRS – Class of Service Assignment — Day/Night/Lunch [605] Account Code Entry Mode [805] SMDR Account Code Selection • Related Feature References Station Message Detail Recording (SMDR), Toll Restriction Override by Account Codes •...
  • Page 54: Automatic Outside (co) Line Access Number

    Features Automatic Outside (CO) Line Access Number An Automatic Line Access number (9 or 0) can be programmed. When an extension user dials an Automatic Line Access number before a telephone number, an available outside (CO) line from the assigned lines in program [419] is seized automatically. If “0” is selected in program [121], the operator call will be “9”...
  • Page 55 1 Enable Enable outside line group number 2 Enable Disable First Local Call Carrier Second 050 (Long Distance Call) Carrier Mobile KX-TA308 Jack Third 05000 (International Call) Outside (CO) Line Carrier Group1 Group1 Group2 Group2 Features...
  • Page 56 Features Example 5 [Long distance call using Route 1 (outside line group number 1)]: <Dialed number> <Modified number> 9 93 425 9477 050 93 425 9477 9 04 123 4567 050 04 123 4567 Example 6 [International call using Route 2 (outside line group number 1)]: <Dialed number>...
  • Page 57 Features Flow chart of possible cases and results for ARS calls Start Is (another) 1 digit dialed within the ARS Interdigit Time? Each time a digit is dialed, the system checks the Is the dialed number a toll Reorder tone dialed number (other than Host PBX access codes, restriction denied code? Carrier excepted codes and 1st carrier access code).
  • Page 58: Busy Station Signaling (bss)

    Features *1: The ARS Interdigit timer is assigned in program [363] “ARS Interdigit Time”. *2: The codes are assigned in the following programs. Host PBX access codes: [403] “Host PBX Access Codes” Carrier excepted codes: [300] “Carrier Excepted Code Assignment” 1st carrier access code: [359] “1st Carrier Selection Code”.
  • Page 59: Call Forwarding

    Features Call Forwarding Allows an extension user to transfer incoming calls automatically to another extension or to an external destination. The following types are available. All Calls: All incoming calls are forwarded to another extension. Busy or No Answer: All incoming calls are forwarded to another extension when the extension user does not answer within the programmed time in [202] or when the extension is busy.
  • Page 60: Calling Party Control (cpc) Signal Detection

    Features Calling Party Control (CPC) Signal Detection The Calling Party Control (CPC) signal is a disconnect signal sent from the Central Office for an outside call. The CPC signal detection is activated by programs [420] and [421]. Program [420] is for incoming outside calls, and [421] is for outgoing outside calls. •...
  • Page 61: Call Pickup

    Features Call Pickup <Directed Call Pickup> Allows an extension user to answer a call ringing at any other extension. <Group Call Pickup> Allows an extension user to answer a call ringing at another extension, if the call is ringing within the user’s extension group assigned in program [600]. If “Enable” is selected for an extension group in [127], persons in the group can pickup calls just by going off-hook, even though their extension is not ringing.
  • Page 62: Call Transfer – To Extension

    Features Call Transfer – to Extension Allows an extension user to transfer a received call, an intercom or an outside call, to another extension. Two types are available. Screened Call Transfer: Announces the call to another extension before completing the transfer. Unscreened Call Transfer:Immediately releases the call to another extension without an announcement.
  • Page 63: C Call Waiting

    Features • Required System Programming [111] Hold Music Selection [205] Outside-to-Outside (CO-to-CO) Line Duration Time Limit [606] Call Transfer to an Outside (CO) Line • Related Feature Reference Hold, Music on Hold • Operating Instructions Reference 1.5 During Conversation, “Transferring a Call to an Outside (CO) Line (Call Transfer – to Outside (CO) Line)”...
  • Page 64: Conference (3-party)

    Features Conference (3-party) <Conference> During a 2-party conversation, an extension user can add a third party to make a 3-party conference. The maximum number of members of a conference can be programmed in program [116]. <Conference, Unattended> When a proprietary telephone user is in a 3-party conference with 2 external parties, the user can leave the conference to allow the other 2 parties to continue the conversation.
  • Page 65: Conference (5-party)

    Features Conference (5-party) Allows an extension user to establish a 5-party conference when “5 party C-2 E-5” is selected in program [116]. • Up to 2 external parties can participate in a conference call. • All 5 parties can be extensions. •...
  • Page 66: Date And Time Setting

    Features Date and Time Setting A manager or operator can adjust the current time. • Required System Programming [000] Date and Time Setting • Operating Instructions Reference 1.8 Operator / Manager Service Features, “Date and Time Setting” Direct In Line (DIL) Enables an incoming outside call to go directly to a specified extension.
  • Page 67: Direct Inward System Access (disa)

    Features Direct Inward System Access (DISA) Allows an outside caller to access specific system features as if the caller is an extension in the system. The caller can have direct access to features such as: • Placing an incoming call to an extension, extension group or operator. The caller also has the option of dialing the route for an extension using a 1 digit number (DISA built- in auto attendant number) via DISA calls.
  • Page 68 Features • The duration of outside-to-outside (CO-to-CO) line calls can be limited in program [205]. When the specified time expires, both lines are disconnected. A warning tone is sent to both parties 15 seconds before the time-limit. • To detect the end of an outside-to-outside (CO-to-CO) line call, CPC Signal Detection can be assigned.
  • Page 69 Features DISA Operation Calling an extension by following the outgoing message from an External Party In None Security Mode DISA phone no. extension no. Enter the extension number. Enter the DISA phone number. Ringback tone and Ring back tone DISA outgoing message •...
  • Page 70 Features Calling an external party by following the outgoing message from an External Party In None Security Mode DISA phone no. line acccess code phone no. Enter the DISA phone number. Ringback tone and Dial tone Enter the phone number Enter a DISA outgoing message of the external party.
  • Page 71 Features Flow chart of possible cases and results for DISA calls An outside line call is made. The caller reaches the DISA line. Without optional With optional OGM/FAX Detection Card OGM/FAX Detection Card (Internal DISA) @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ e ? @ @ @ @ @ @ @ @ ? e @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ e ?
  • Page 72 Features *1: The DISA Delayed timer starts. This is the time between a call reaching the system and being received. The time is assigned in program [504]. *2: When the assigned time period in program [519] expires, the system sends a short beep to the caller.
  • Page 73 Features *9: If the destination extension belongs to a hunting group and all extensions in the group are busy, the system will check the DISA Busy Mode. If the destination is a DISA ring group, the DISA Busy Mode will not work for the call. The system regards the call as unanswered. *10: The DISA Busy Mode is selected in program [506].
  • Page 74: Distinctive Dial Tones

    Features Display Contrast Adjustment (KX-T7330/KX-T7030/KX-T7130/KX-T7033 only) Allows a display proprietary telephone user to adjust the display contrast with the CONTRAST selector. • Operating Instructions Reference 1.2 Proprietary Telephone Settings, “Display Contrast Adjustment” Distinctive Dial Tones An extension user will hear 3 types of dial tone patterns which give information about the features activated on the telephone.
  • Page 75: Do Not Disturb (dnd)

    Features Do Not Disturb (DND) <Do Not Disturb (DND)> Allows an extension user to prevent other parties from disturbing them. The extension will not receive intercom or outside calls. <Do Not Disturb (DND) Override> Allows an extension user enabled in program [609] to call an extension which has set the Do Not Disturb (DND) feature.
  • Page 76: Doorphone Call

    Features • Connection Reference 2.16 Doorphone and Door Opener Connection • Required System Programming [703]–[705] Door Opener Assignment — Day/Night/Lunch [709] Door Opener Time • Related Feature Reference Doorphone Call • Operating Instructions Reference 1.7 Useful Features, “Door Opener” Doorphone Call Up to 4 Doorphones (KX-T30865) can be installed.
  • Page 77: Dss Console

    Features DSS Console The Direct Station Selection (DSS) Console provides direct access to extensions, a busy lamp display, as well as 16 PF (Programmable Feature) buttons. The DSS Console must be programmed to work with a proprietary telephone (PT). The jack number of the DSS Console and its associated PT are assigned in programs [003] and [004].
  • Page 78: Executive Busy Override

    Features Executive Busy Override <Executive Busy Override – Extension> Allows an extension user enabled in program [608] to interrupt an existing intercom call. A 3-party conference will be established. <Executive Busy Override – Outside (CO) Line> Allows a proprietary telephone user enabled in program [608] to interrupt an existing outside call or add a third party.
  • Page 79: Extension Group

    Features Extension Group The system supports 8 extension groups. In an extension group, the following features can be activated. • Group Call Pickup: Any member of an extension group can pick up a call directed to another member in the same group. •...
  • Page 80: External Feature Access

    Features External Feature Access Allows an extension user to access special features (e.g. Call Waiting) offered by the Central Office or host PBX. This is done by placing the current call on hold and sending a flash signal using either the FLASH button or the feature number. This feature is effective only during an outside call.
  • Page 81: Flexible Buttons

    Features Flexible Buttons A proprietary telephone (PT) user can change the flexible buttons on the telephone and DSS console to certain function buttons. For example, if the telephone has more CO buttons than available outside (CO) lines, the unused CO buttons may be changed to One-Touch Dialing buttons, etc.
  • Page 82: Handsfree Answerback

    Features Handset/Headset Selection (KX-T7330/KX-T7030/KX-T7130/KX-T7033 only) The system supports the use of headsets with proprietary telephones. Switch the selection mode before using the headset (optional). • Operating Instructions Reference 1.2 Proprietary Telephone Settings, “When Using the Headset” Handsfree Answerback Allows a proprietary telephone with a speakerphone to answer an intercom call without lifting the handset.
  • Page 83: Hold

    Features Hold <Call Hold> Allows an extension user to place an intercom and/or outside call. The held call can be retrieved by the user who held it, or by any other extension (Call Hold Retrieve). With a single line telephone (SLT), either one outside or intercom call can be held at one time.
  • Page 84: Hookswitch Flash

    Features Hookswitch Flash Flashing the hookswitch is used to allow a single line telephone user to hold a call for transferring or holding, if the flash time is within the assigned time in program [207]. The procedure to transfer a call or hold is determined in program [104] “Hold Mode Selection”. Flashing the hookswitch can be also used to disconnect a call, if the flash time is more than the assigned time in program [207].
  • Page 85: Intercom Calling

    Features Intercept Routing Provides automatic redirection of incoming outside calls via the DISA or UCD feature. The Intercept Routing feature works in the following 2 cases. 1) When nothing is dialed after a dial tone or OGM is sent to the caller. (The DISA feature only) 2) When the call is not answered within a programmed time.
  • Page 86: L Language Selection

    Features Language Selection The selected language in program [615] is shown on the LCD display of a proprietary telephone during operation and Proprietary Telephone Settings, but not used during System Programming. The selected language in program [806] is used for an SMDR printout. •...
  • Page 87: Line Access Buttons

    Features Line Access Buttons A proprietary telephone (PT) user must assign one of the following 3 types of CO buttons to flexible CO buttons in the Proprietary Telephone Settings. This allows making or receiving outside calls. The default setting for the flexible CO buttons (CO 1 – CO 6) are Single-CO (S-CO) buttons.
  • Page 88: Log-in/log-out

    Features Log-In/Log-Out Allows an extension user to join (Log-In) or leave (Log-Out) a hunting, DISA ring or UCD group temporarily. Extensions in the log-out mode will not receive calls by Station Hunting, DISA or UCD but will receive other calls, not like the Do Not Disturb (DND) feature. The Log-In/Log-Out button can be assigned to a flexible button in the Proprietary Telephone Settings.
  • Page 89: Microphone Mute

    Features Microphone Mute Allows a proprietary telephone user to turn off the microphone for privacy. • The user’s voice will only be muted during a handsfree conversation. The user can hear the other party’s voice during Microphone Mute. • Operating Instructions Reference 1.5 During a Conversation, “Turning off the Microphone (Microphone Mute)”...
  • Page 90: Operator / Manager Extension

    Features • Operating Instructions References 1.2 Proprietary Telephone Settings, “Customizing the Buttons on Your Telephone” One-Touch Dialing button 1.3 Making Calls, “Dialing by Simply Pressing a Button (One-Touch Dialing)” 1.9 DSS Console Features, “Initial Settings” 1.9 DSS Console Features, “One-Touch Dialing” 1.9 DSS Console Features, “One-Touch Access for System Features”...
  • Page 91: Outgoing Message (ogm)

    Features Outgoing Message (OGM) Allows the extension assigned as an operator or manager to record up to 2 outgoing voice messages (maximum 30 seconds each). This message is played when a caller accesses the DISA or UCD feature. An optional OGM/FAX Detection Card is required to program the OGM.
  • Page 92 Features OGM1: “This is A company. For the sales division, press 1. For the service division, press 2. To call the operator, press 0.” OGM2: “This is B company. To contact Mr. A, press 101. To contact Mr. B, press 102.”...
  • Page 93 Features Case 7: Uses the DISA or UCD feature for outside (CO) lines – OGM for DISA and UCD. System UCD with (UCD) The line is busy. (When the line is free.) Outside Call To the UCD group OGM1 DISA with (DISA) Outside Call To the designated destination...
  • Page 94: Outside Calling

    Features Outside Calling Allows an extension user to make a call to an external party by using one of the following line access methods. <Automatic Line Access> Allows an extension user to select an available outside (CO) line automatically from the assigned lines in program [419] by pressing the Automatic Line Access number (9 or 0).
  • Page 95: Outside (co) Line Ringing Selection

    Features Outside (CO) Line Ringing Selection When an outside call is received at an extension, the user can select whether their extension will ring or not. • Select “Enable” in programs [408]–[410]. • Required System Programming [408]–[410] “Flexible Ringing Assignment — Day/Night/Lunch •...
  • Page 96: Paralleled Telephone Connection

    Features Paralleled Telephone Connection Any analog proprietary telephone can be connected in parallel with a single line device, such as a single line telephone, facsimile and data terminal. • System Programming is required. • Connection Reference 2.11 Paralleled Telephone Connection •...
  • Page 97: Pickup Dialing

    Features Pickup Dialing Allows a single line telephone user to make an outgoing call by going off-hook, if the user has stored the telephone number (up to 32 digits) beforehand. This feature is also known as Hot Line. • A rotary telephone cannot program this feature. •...
  • Page 98: Power Failure Transfer

    Features Power Failure Transfer During a power failure, specific extension telephones are automatically connected to specific outside (CO) lines. This provides outside (CO) line conversations between the following extensions and outside (CO) lines. Outside (CO) line 1 : extension jack 01 Outside (CO) line 4 : extension jack 09 A single line telephone (SLT) can work in case of a power failure.
  • Page 99: Preferred Line Assignment - Outgoing

    Features Preferred Line Assignment — Outgoing A proprietary telephone user can select a desired outgoing line preference to make outside calls from the following 3 line preferences. System Programming and Proprietary Telephone Settings are required. Idle Line Preference: When the user goes off-hook, they are connected to an idle line. An idle line is automatically selected from the pre-assigned lines in program [419].
  • Page 100: Pulse To Tone Conversion

    Features Pulse to Tone Conversion Allows an extension user to change the dialing mode from Pulse to Tone after entering a telephone number to access services, such as computer telephone services or Voice Mail, which require tones. • This feature only works for outside (CO) lines which have set “Pulse Mode” or ”Call Blocking Mode”...
  • Page 101: Ringing Pattern Selection

    Features <Saved Number Redial> Allows a proprietary telephone user to save the current external telephone number in the SAVE button during a conversation, so that the extension user can redial the same party later using a simple operation. The saved number can be redialed until another number is stored. A flexible button can be assigned as the SAVE button in the Proprietary Telephone Settings.
  • Page 102: Room Monitor

    Features Room Monitor Allows a proprietary telephone user to monitor a room or the front door through another proprietary telephone or doorphone without them knowing. The access tone will not be sent to the monitored proprietary telephone when monitoring starts. •...
  • Page 103: Self-extension Number Confirmation (kx-t7330/kx-t7030/kx-t7130/kx-t7033 Only)

    Features Self-Extension Number Confirmation (KX-T7330/KX-T7030/KX-T7130/KX-T7033 only) Allows a display proprietary telephone user to confirm their jack and extension number using a simple operation. • Operating Instructions Reference 1.7 Useful Features, “Self-Extension Number Confirmation (KX-T7330/KX-T7030/KX-T7130/KX-T7033 only)” Station Feature Clear Allows an extension user to reset the following station features to the default settings. •...
  • Page 104: Station Hunting

    Features Station Hunting If a called extension is busy, Station Hunting redirects the incoming call to an idle extension in an extension group in numerical order. Idle extensions are automatically hunted according to programming. The following 2 hunting types are available. Circular hunting: The extensions are hunted one time in numerical order.
  • Page 105: Station Lock

    Features Station Lock <Electronic Station Lockout> Allows an extension user to lock their station so that other users cannot make outside calls until it is unlocked. Any 4-digit code can be used to lock and unlock an extension. <Electronic Station Lockout – CANCEL ALL> The operator and manager can cancel Electronic Station Lockout of all extensions at one time.
  • Page 106: Station Message Detail Recording (smdr)

    Features Station Message Detail Recording (SMDR) Station Message Detail Recording (SMDR) automatically prints out detailed call information of outside calls. A printer connected to the Serial Interface (RS-232C) port can be used to print incoming and outgoing outside calls, as well as print a hard copy of System Programming.
  • Page 107: System Data Default Set

    Features UCD waiting call: Shows <UCD waiting> for an incoming call via the UCD feature. When the “UCD waiting call” is answered, it becomes a “Received call” and a new record is started. (6) Duration : shows the duration of the call or the UCD call waiting time in Hours/Minutes/Seconds.
  • Page 108: System Speed Dialing

    Features System Speed Dialing The system supports 100 System Speed Dial numbers (up to 32 digits) assigned in program [001] that are available to all extension users. A System Speed Dial number is dialed out using a simple operation. Each System Speed Dial number can be assigned a name in program [011]. The assigned name will be displayed when making a call by using the System Speed Dialing feature.
  • Page 109: Time (day/night/lunch) Service

    Features Time (Day/Night/Lunch) Service The system supports the day, night and lunch operation modes. The system operation for making and receiving calls can be different for the day, night and lunch modes. The system operation for toll restriction can be arranged to prevent unauthorized toll calls for each mode. Time service can be set automatically or manually by program [006].
  • Page 110: Toll Restriction

    Features Toll Restriction Toll Restriction is a system programmable feature that can prohibit certain extension users from making unauthorized toll calls. Every extension is programmed to belong to one of 5 classes of service (COS). Each COS is programmed to have a toll restriction class for day mode, night mode and lunch mode. There are 5 toll restriction COS numbers available.
  • Page 111 Features Combination of denied codes and exception codes COS No. Denied Calls Excepted Calls No restriction. No restriction. 20 denied codes programmed in [302]. 80 exception codes (code numbers 01-80) programmed in [306]. 20 denied codes programmed in [302] plus 60 exception codes (code numbers 01-60) 20 denied codes programmed in [303].
  • Page 112: Toll Restriction For System Speed Dialing

    Features Toll Restriction for System Speed Dialing Calls originated by System Speed Dialing are restricted depending on the combination of the System Speed Dialing Boundary Class assigned in program [301] and the class of service (COS) assigned to each extension as follows. System Speed Dialing Boundary Class...
  • Page 113: Toll Restriction Override By Account Codes

    Features Toll Restriction Override by Account Codes Allows an extension user to override toll restriction temporarily to make a toll call from a toll-restricted extension. The user can carry out this feature by entering one of the account codes programmed in [310] before dialing the telephone number. The user can make a toll call with the COS number 2.
  • Page 114: Toll Restriction - Station Lock Boundary Class

    Features Toll Restriction — Station Lock Boundary Class Allows assigning a toll restriction class for extensions where the Electronic Station Lockout or Remote Station Lock feature has been set. An extension user usually cannot make an outside call at a locked extension, however if a toll restriction class is assigned in program [312], the user can make an outside call at the locked extension.
  • Page 115 Features [521] UCD Busy Waiting Time [522] UCD OGM Message Interval Time [523] UCD Busy Mode [524] UCD Intercept Mode [525] UCD Ringing Time before Intercept [526] UCD Ringing Time after Intercept [600] Extension Group Assignment • Related Feature References Call Forwarding, Do Not Disturb (DND), Extension Group, Log-In/Log-Out Outline of a UCD (1) When a number of calls have arrived...
  • Page 116 Features Flow chart of possible cases and results for UCD calls An outside line call is made. The caller reaches the UCD group. Busy Call Answered. The call is not answered. Music on Hold is heard. Is Intercept Routing employed? Busy Call Goes to B...
  • Page 117 Features *1: An OGM is sent to the caller. When the system detects a cyclic tone or CPC signal while the OGM is being sent, the call is disconnected. *2: Music on hold is selected in program [111] as follows. •...
  • Page 118: Voice Mail Integration For Kx-tvp75/kx-tvp100

    Features Voice Mail Integration for KX-TVP75/KX-TVP100 This system supports Voice Processing System (VPS) equipment (Panasonic KX-TVP75/ KX-TVP100) by sending DTMF tones described in program [103]. The DTMF tones sent to a VPS indicate the state of a call (busy, answered, ringing, disconnected, etc.). The DTMF tones also inform a VPS of the destination of a call transferred to the VPS by the Call Forwarding or DISA Intercept Routing –...
  • Page 119 Features 1.2 DISA Intercept to VM If the VPS is set as the Intercept destination of an outside (CO) line, an outside call is forwarded to the VPS. The system sends the VPS the extension mailbox number at that time. Therefore, the calling party can leave their message in the mailbox of the desired extension without having to know the mailbox number.
  • Page 120 • The mailbox number is the same as its extension number. • The Voice Mail extension should set Data Line Security to achieve proper recording. • If KX-TA308 or KX-TA616 cannot be selected with the PBX type setup menu of the KX-TVP75/KX-TVP100, select “KX-T1232”. Follow the steps for a KX-T1232.
  • Page 121: Volume Control

    Features Volume Control Allows a proprietary telephone user to adjust the following volumes, as necessary, by adjusting the corresponding levers or pressing the corresponding buttons. • Handset receiver volume • Headset volume • Ringer volume • Speaker volume • Operating Instructions Reference 1.2 Proprietary Telephone Settings, “Volume Control —...
  • Page 122 3-72 Features...
  • Page 123: System Programming

    Section 4 System Programming...
  • Page 124 Before System Programming NOTE: System data clear should be performed before System Programming. 2.22, Starting the System for the First Time) Default Setting This system has factory default settings ( 5.1, Default Values). If any of the programming needs to be changed, you can change the setting by System Programming. Default shows you the factory default setting.
  • Page 125: Before System Programming

    Before System Programming , – SECRET CLEAR PAUSE STORE AUTO SELECT PREV FLASH NEXT KX-T7130 To enter the programming mode MEMORY PROGRAM system password PROGRAM Press the PROGRAM Set to “PROGRAM” on Press Enter the system password. button. the back of the telephone. (default : 1234) •...
  • Page 126: Programming Example

    Before System Programming Programming example The following programming instructions assume that you have already entered the programming mode. Example: Program [404] “Outside (CO) Line Group Assignment” Program address Program title [404] Outside (CO) Line Group Assignment Program Assigns a maximum 6 outside (CO) line groups. Each outside (CO) line must be assigned to description an outside (CO) line group.
  • Page 127: System Programming

    System Programming [000]-[001] [000] Date and Time Setting Sets the current date and time. year NEXT SELECT (00···99) (Jan.···Dec.) (1···31) hour minute SELECT SELECT STORE (Sun···Sat) (1···12) (00···59) (AM/PM) Default ’98 Jan. 1 Thu 12:00 AM • To return to the previous programming step, press •...
  • Page 128: System Password

    [001]-[002] System Programming • Up to 32 digits, consisting of “0 through 9”, “ ,”, “#”, “PAUSE”, “—”,“FLASH” and “ICM (Secret)”can be stored. • If you are storing an account code assigned in [310] “Account Codes”, enter and the account code after a line access number. •...
  • Page 129: Dss Console Port Assignment

    System Programming [003]-[004] [003] DSS Console Port Assignment Assigns a maximum of 2 jack numbers to connect the DSS console(s). DSS console no. extension jack no. NEXT STORE (1···2) (02···16) To continue PREV NEXT Default All DSS consoles – Disable (Not stored) •...
  • Page 130: One-touch Transfer Using A Dss Button

    [005]-[006] System Programming [005] One-Touch Transfer Using a DSS Button Selects how an outside call is transferred to any extension using the DSS button. With Transfer: Press the DSS button to transfer an outside call. Without Transfer: Press the TRANSFER button then the DSS button to transfer an outside call.
  • Page 131: Time (day/night/lunch) Service Start Time

    System Programming [007] [007] Time (Day/Night/Lunch) Service Start Time Sets the starting time on a week day basis, when “Automatic” is selected in program [006] “Time (Day/Night/Lunch) Service Changing Mode”. PREV NEXT NEXT SELECT (Every day) (Day/Night/ (Sun···Sat) Lunch-S/Lunch-E) To go to another day of the week To go to another mode hour minute...
  • Page 132: Operator Assignment

    [008]-[009] System Programming [008] Operator Assignment Assigns an extension jack number for the operator. extension jack no. NEXT STORE (01···24) Default Jack-01 • Feature References Section 3, Features Operator / Manager Extension, Operator Call [009] Extension Number Assignment Selects an extension numbering plan, Plan 1, Plan 2 or Plan 3, and assigns an extension number to each extension.
  • Page 133: Lcd Time Display Selection

    System Programming [009]-[010] • If the selected extension numbering plan is the same as the previously stored one, 2 beeps will be heard. • If “Plan 2” or “Plan 3” is selected, the default extension numbers will change automatically as follows. Plan 2: extension jacks 01 through 24 –...
  • Page 134: System Speed Dialing Name Setting

    [011] System Programming [011] System Speed Dialing Name Setting Assigns a name to each System Speed Dialing number. The name will be displayed when making a call by using the System Speed Dialing feature. It will also be used for the Caller ID feature.
  • Page 135: Second Feature Numbering Plan

    System Programming [011]-[012] • Feature References Section 3, Features System Speed Dialing [012] Second Feature Numbering Plan Replaces any feature number with a code number 50 through 59. This is useful when selecting “Plan 2” or “Plan 3” in program [009] “Extension Number Assignment” as some feature numbers change for Plan 2 and Plan 3 and they might be difficult to remember.
  • Page 136: Hunting Group Set

    [100]-[101] System Programming [100] Hunting Group Set Enables or disables automatically locating an idle extension in the same extension group as the dialed extension, when the called extension is busy. If “Enable” is selected, assign the next program [101] “Hunting Type”. Extension groups are defined in program [600] “Extension Group Assignment”.
  • Page 137: Voice Mail Port For Kx-tvp75/kx-tvp100

    Voice Mail Port in program [102] “Voice Mail Port for KX-TVP75/KX-TVP100”. These DTMF signals indicate the state of the call (busy, answered, ringing, disconnected, etc.) in addition to the normal call tones. They also enable the Panasonic Voice Processing System (VPS) equipment (KX-TVP75/KX-TVP100) to immediately recognize the current state of the call and speed up the call handling.
  • Page 138 [103] System Programming • Feature Reference Section 3, Features Voice Mail Integration for KX-TVP75/KX-TVP100 DTMF signals Code Call State Conditions Ringback Tone When an extension a VPS has dialed is ringing. Busy Tone When an extension a VPS has dialed is busy. Reorder Tone When a VPS dials an invalid extension number or when a VPS is accidentally connected to another Voice Mail Port.
  • Page 139: Hold Mode Selection

    System Programming [104]-[105] [104] Hold Mode Selection You can select how to hold a line and transfer a call to another extension with a single line telephone (SLT), Hold-1, Hold-2 or Hold-3. If the following occurs frequently with an SLT, select “Hold-2”...
  • Page 140: External Paging Access Tone

    [106]-[108] System Programming [106] External Paging Access Tone Enables or disables the confirmation tone before paging is sent over the external pager. NEXT SELECT STORE (Enable/ Disable) Default Enable • Feature Reference Section 3, Features Paging [107] DTMF Receiver Check Enables or disables the 6 DTMF receivers to check whether the DTMF receivers are activated normally or not.
  • Page 141: Co Indicator Assignment

    System Programming [109]-[110] [109] CO Indicator Assignment Enables or disables an extension which was assigned not to ring in programs [408]-[410] “Flexible Ringing Assignment” to answer an incoming outside call. The CO button indicator will flash when an outside call is received. If enabled, an extension user can answer the call by pressing the flashing CO button.
  • Page 142: Hold Music Selection

    [111]-[112] System Programming [111] Hold Music Selection Selects the music source, Internal, External or Tone, which an external party will hear when an outside call is on hold. External : Uses an external music source, such as a radio. Internal : Uses the internal music source equipped with the system. Tone : Uses the cyclic tone below equipped with the system.
  • Page 143: Automatic Redial Repeat

    System Programming [113]-[114] [113] Automatic Redial Repeat Selects the number of times Automatic Redial is repeated. NEXT SELECT STORE (0/3/10/ 15 times) Default 10 times • Feature Reference Section 3, Features Redial [114] Automatic Redial Interval Time Selects the interval time between Automatic Redial attempts. NEXT SELECT STORE...
  • Page 144: Extension Ringing Pattern Selection

    [115]-[116] System Programming [115] Extension Ringing Pattern Selection Selects the extension ringing pattern when an intercom call received, either Single, Double or Triple. Single: Double: Triple: NEXT SELECT STORE (Single/Double/ Triple) Default Double • The length of the ring cycle for a single line telephone (SLT) is determined in program [124] “SLT Ringing Mode Selection”.
  • Page 145: Call Pickup Tone

    System Programming [117]-[119] [117] Call Pickup Tone Enables or disables the confirmation tone when the Call Pickup feature is activated. NEXT SELECT STORE (Enable/ Disable) Default Enable • Feature Reference Section 3, Features Call Pickup [118] Pulse Restriction Enables or disables sending pulse dialing to the Central Office during a conversation with an external party when “Pulse Mode”...
  • Page 146: Bell Frequency

    [120]-[122] System Programming [120] Bell Frequency Selects the bell frequency sent to a single line telephone (SLT). NEXT SELECT STORE (20/25 Hz) Default 25 Hz [121] Automatic Outside (CO) Line Access Number Selection Selects the Automatic Outside (CO) Line Access number (9 or 0). NEXT SELECT STORE...
  • Page 147: Break Ratio

    System Programming [123]-[125] [123] Break Ratio Selects the pulse break rate, MODE1 or MODE 2, when a Pulse is sent to the Central Office during a conversation. MODE 1: 66 % MODE 2: 60 % NEXT SELECT STORE (MODE1/ MODE2) Default MODE 1 [124] SLT Ringing Mode Selection...
  • Page 148: Dss Off-hook Mode

    [126]-[127] System Programming [126] DSS Off-Hook Mode Enables or disables making an intercom call just by pressing a DSS button on a DSS Console. If enabled, going off-hook is not needed. NEXT SELECT STORE (Enable/ Disable) Default Enable • This assignment is also effective for a flexible CO button on a proprietary telephone assigned as a DSS button.
  • Page 149: Hold Recall Time

    System Programming [200]-[202] [200] Hold Recall Time Assigns the length of the hold recall timer. Hold recall (a ring tone or an alarm tone) is heard when the timer expires. If hold recall is not required, select “Disable”. NEXT SELECT STORE (30 sec/ 1/1.5/2/3/4/5/6 min/...
  • Page 150: Pickup Dial Delay Time

    [203]-[204] System Programming [203] Pickup Dial Delay Time Assigns the length of time for the Pickup Dialing feature. If the telephone user lifts the handset, the programmed party is called automatically when the timer expires. This delay gives the user an opportunity to enter numbers before automatic dialing occurs. STORE NEXT SELECT...
  • Page 151: Outside-to-outside (co-to-co) Line Duration Time Limit

    System Programming [205]-[206] [205] Outside-to-Outside (CO-to-CO) Line Duration Time Limit Sets the maximum time allowed for a conversation between two external parties using the Call Forwarding – to Outside (CO) Line, Call Transfer – to Outside (CO) Line, Unattended Conference feature, or the DISA feature. When the timer expires, the outside-to-outside line call is disconnected.
  • Page 152: Hookswitch Flash Timing Range Selection

    [207]-[208] System Programming [207] Hookswitch Flash Timing Range Selection Sets the hookswitch flash time range sent from an extension to the system. MODE 1: 50 to 180 milliseconds. MODE 2: 80 to 180 milliseconds. MODE 3: 80 to 650 milliseconds. MODE 4: 80 to 1000 milliseconds.
  • Page 153: Dtmf Time

    System Programming [210]-[211] [210] DTMF Time Assigns the minimum duration of a DTMF signal sent to an outside (CO) line which is set to the DTMF mode in program [401] “Dial Mode”. MODE 1: 80 milliseconds MODE 2: 160 milliseconds NEXT STORE SELECT...
  • Page 154: Outside (co) Line Duration Time Limit

    [212]-[213] System Programming [212] Outside (CO) Line Duration Time Limit Sets the maximum time allowed for a conversation with an external party. This program is effective for the extension(s) which assigned “Enable” in program [613] “Outside (CO) Line Duration Time Limit Selection”. time NEXT STORE...
  • Page 155: Carrier Excepted Code Assignment

    System Programming [300]-[301] [300] Carrier Excepted Code Assignment Assigns up to 20 carrier excepted codes, for example, Per Call Block code (1831). The system disregards the assigned code, and toll restriction and ARS are applied to the numbers after the code. PREV NEXT To continue...
  • Page 156 [302]-[305] System Programming [302]-[305] Toll Restriction – Classes 2 through 5 Denied Codes Assigns up to 20 toll call numbers which are restricted to make outside (CO) calls on a class of service (COS) basis for each program. PREV NEXT To continue code no.
  • Page 157: Emergency Dial Number Set

    System Programming [306], [309] [306] Toll Restriction – Exception Codes Assigns up to 80 exception numbers which are allowed to make outside (CO) calls on a class of service (COS) basis even when denied codes are programmed in [302]-[305] “Toll Restriction –...
  • Page 158: Account Codes

    [310]-[311] System Programming [310] Account Codes Assigns up to 24 account codes which are compared with the code entered when “Verify-All” or “Verify-Toll” is selected in program [605] “Account Code Entry Mode”. If “Verify-All” is selected, an account code is required to make an outside call. If “Verify-Toll”...
  • Page 159 System Programming [312] [312] Toll Restriction – Station Lock Boundary Class Assigns the Toll Restriction class for an extension which has set the Electronic Station Lockout or Remote Station Lock Control. NEXT STORE SELECT (Disable/ COS-2···5)* * Boundary COS: 2 through 5 / Disable (Disables all outside outgoing calls.) Default Disable •...
  • Page 160: Ars Selection

    [350]-[354] System Programming [350] ARS Selection Enables or disables the ARS feature for each outside (CO) line. PREV NEXT To continue outside line no.* STORE NEXT SELECT (1···6/ ) (Enable/ To continue Disable) SELECT * Outside (CO) line number: 1 through 6 / (All outside lines) Default All outside (CO) lines –...
  • Page 161: Routes 1 Through 4 Exception Codes

    System Programming [355]-[359] [355]-[358] Routes 1 through 4 Exception Codes Assigns up to 80 area codes for outside calls which are not applied to the ARS feature for each route. PREV NEXT To continue code no. area code STORE NEXT (01···80) 7 digits max.
  • Page 162 [360]-[361] System Programming [360] ARS Modification – Removed Digits Determines how the dialed number applied to the ARS feature should be modified before sending to the outside (CO) line for each route. The digits are deleted from the beginning of the dialed number.
  • Page 163: Ars Dial Tone Pattern Selection

    System Programming [362]-[363] [362] ARS Dial Tone Pattern Selection Selects the dial tone pattern, Disable (no tone), Tone1, Tone2 or Tone3, generated after seizing an ARS outside (CO) line. The ARS feature is enabled on an outside (CO) line basis in program [350] “ARS Selection”.
  • Page 164: Ars Outside (co) Line Group

    [364] System Programming [364] ARS Outside (CO) Line Group Assigns an outside (CO) line group(s) for each ARS route number. Outside (CO) line groups are assigned in program [404] “Outside (CO) Line Group Assignment”. An outside (CO) line in the assigned outside (CO) line group(s) is automatically seized when making an outside call using the Automatic Outside (CO) Line Access number (9 or 0), and the dialed number is applied to one of the ARS route numbers.
  • Page 165: Outside (co) Line Connection Assignment

    System Programming [400]-[401] [400] Outside (CO) Line Connection Assignment Assigns which outside (CO) line(s) is connected to the system or not. PREV NEXT To continue outside line no.* NEXT SELECT STORE (1···6/ ) (Connect/ Not connect) To continue SELECT * Outside (CO) line number: 1 through 6 / (All outside lines) Default All outside (CO) lines –...
  • Page 166: Pulse Speed Selection

    [402]-[403] System Programming [402] Pulse Speed Selection Selects a pulse rate for each outside (CO) line which sets “Pulse Mode” or “Call block Mode” in program [401] “Dial Mode”. There are 2 pulse rates, Low Speed (10 pps) and High Speed (20 pps). PREV NEXT To continue...
  • Page 167: Outside (co) Line Group Assignment

    System Programming [404] [404] Outside (CO) Line Group Assignment Assigns a maximum 6 outside (CO) line groups. Each outside (CO) line must be assigned to an outside (CO) line group. For example, if there are multiple telephone service companies available, outside (CO) lines can be grouped by company. PREV NEXT To continue...
  • Page 168 [405]-[407] System Programming [405]-[407] Flexible Outward Dialing Assignment —Day/Night/Lunch Determines which extension(s) can make an outside call in the day, night and/or lunch modes. PREV To continue NEXT Go to next or prev. line number To continue Go to next or prev. jack number outside line no.* NEXT...
  • Page 169 System Programming [408]-[410] [408]-[410] Flexible Ringing Assignment —Day/Night/Lunch Determines which extension(s) will ring for incoming outside calls in the day, night and/or lunch modes. PREV To continue NEXT Go to next or prev. line number To continue Go to next or prev. jack number outside line no.* extension jack no.*...
  • Page 170 [411]-[413] System Programming [411]-[413] Delayed Ringing Assignment —Day/Night/Lunch Assigns the ringing start time for extension(s) which were selected to ring in programs [408]-[410] “Flexible Ringing Assignment —Day/Night/Lunch” in the day, night and/or lunch modes. PREV NEXT To continue Go to next or prev. line number To continue Go to next or prev.
  • Page 171 System Programming [414]-[416] [414]-[416] Outside (CO) Line Mode —Day/Night/Lunch Selects the mode of an incoming outside call on each outside (CO) line in the day, night and lunch modes. There are the following 5 modes. Normal: An incoming outside call will be received at the extension(s) assigned in programs [408]–[410] “Flexible Ringing Assignment —...
  • Page 172: Pause Time

    [414]-[417] System Programming • You must select “DISA1”when the optional OGM/FAX Detection card is not installed and if you want to use the internal DISA. • When you select “UCD”, assign program [520] “UCD Group” to determine which extension group is assigned to the UCD group. •...
  • Page 173: Flash Time

    System Programming [418]-[419] [418] Flash Time Assigns the length of the flash time. If your system is installed behind a host PBX, External Feature Access is necessary to obtain its services. To enable it, select the required flash signal sending time for an outside (CO) line. PREV NEXT To continue...
  • Page 174: Calling Party Control (cpc) Signal

    [420] System Programming [420] Calling Party Control (CPC) Signal Assigns the required minimum duration of the Calling Party Control (CPC) signal from the Central Office for incoming outside calls. If programmed, the system disconnects the line when the CPC signal is detected. PREV NEXT To continue...
  • Page 175: Cpc Detection For Outgoing Calls

    System Programming [421]-[422] [421] CPC Detection for Outgoing Calls Enables or disables the CPC signal detection during an outgoing outside call. If disabled, the CPC signal detection is only activated during an incoming outside call or after call hold. PREV NEXT To continue outside line no.*...
  • Page 176: Outside (co) Line Ringing Pattern Selection

    [423] System Programming [423] Outside (CO) Line Ringing Pattern Selection Selects the incoming outside call ringing pattern, Single, Double or Triple, for each outside (CO) line. This is useful for distinguishing private calls from business calls. Single: Double: Triple: PREV NEXT To continue outside line no.*...
  • Page 177: Reverse (polarity) Circuit Assignment

    System Programming [424] [424] Reverse (Polarity) Circuit Assignment Enables or disables detecting the reverse signal for each outside (CO) line’s polarity from the Central Office when making a call. If enabled, the outside call duration can be determined. PREV NEXT To continue outside line no.* NEXT...
  • Page 178: Disa Incoming Dialing Mode Selection

    [500] System Programming [500] DISA Incoming Dialing Mode Selection Selects the destination of an incoming outside call via the DISA feature when you select “DISA 1” or “DISA 2” in programs [414]-[416] “Outside (CO) Line Mode –Day/Night/Lunch”, Without AA (auto attendant) or With AA . If you select “With AA”, assign the next program [501] “DISA Built-in Auto Attendant”.
  • Page 179: Disa Built-in Auto Attendant

    System Programming [501] [501] DISA Built-in Auto Attendant Assigns a maximum of 10 DISA built-in auto attendant numbers when “With AA” is selected in program [500] “DISA Incoming Dialing Mode Selection”. The extension numbers assigned in program [009] “Extension Number Assignment”, and the extension group numbers assigned in program [600] “Extension Group Assignment”...
  • Page 180: Ogm Mode Selection

    [502] System Programming [502] OGM Mode Selection Selects how the 2 outgoing messages (OGM1 and OGM2) are used, MODE1 through MODE6. Mode OGM1 OGM2 Description DISA1 DISA1 The system can receive 2 incoming calls via the DISA feature at the same time. This is useful when receiving many calls. DISA1 DISA2 An example: DISA1 is used in the day mode and DISA2 is...
  • Page 181: Fax Connection

    System Programming [503]-[505] [503] FAX Connection * Assigns one extension which can receive facsimile data when the system receives a FAX (CNG) tone via the DISA feature. extension jack no. STORE NEXT (01···24) Default Disable (Not assigned) • The assigned extension will automatically have the Data Line Security feature set. •...
  • Page 182: Disa Busy Mode

    [506]-[507] System Programming [506] DISA Busy Mode Selects the operation when a called extension or all called extensions in an extension group enabled in program [100] “Hunting Group Set” via the DISA feature is/are busy. Disconnect, Call Waiting or DISA2 is available. Disconnect: The call is disconnected after the busy tone.
  • Page 183: Disa Ringing Time Before Intercept

    System Programming [508]-[509] [508] DISA Ringing Time before Intercept Assigns the length of time for the Intercept Routing – No Answer feature ( [507] “DISA Intercept Mode”, Intercept). When the time expires the system starts to redirect the call to the programmed extension(s).
  • Page 184: Disa No Dial Mode

    [510]-[511] System Programming [510] DISA No Dial Mode Selects the operation when the system does not receive either DTMF signals or a FAX (CNG) tone after a programmed length of time. If the optional card is installed, then use program [505] “DISA Waiting Time after OGM”. If the optional card is not installed, then use program [515] “Intercept Time for Internal DISA”.
  • Page 185: Disa Security Codes

    System Programming [512]-[513] [512] DISA Security Codes Assigns a maximum of 4 required DISA security codes if “Trunk Security” or “All Security” is selected in program [511] “DISA Security Type”. PREV NEXT To continue code no. security code STORE NEXT (1···4) 4 digits To continue...
  • Page 186: Fax Tone Detection

    [514]-[515] System Programming [514] FAX Tone Detection* Sets the number of times the FAX (CNG) tone must be detected while the DISA outgoing message is sent before the system recognizes the incoming signal as facsimile data. NEXT STORE SELECT (1 Time/2 Times) Default 1 Time •...
  • Page 187: Disa Incoming Assignment

    System Programming [516]-[517] [516] DISA Incoming Assignment Enables or disables each extension to receive an outside call via the DISA feature. If a DISA call is received at a disabled extension, the DISA caller will hear a reorder tone and the call will be disconnected automatically.
  • Page 188: Disa Tone Selection After The Security Code

    [518]-[519] System Programming [518] DISA Tone Selection after the Security Code Enables or disables sending a beep after entering the security code. If “Enable” is selected, a beep is sent when the number entered is the same as one of the security codes assigned in program [512] “DISA Security Codes”.
  • Page 189: Ucd Group

    System Programming [520]-[522] [520] UCD Group* Assigns one extension group which works as the UCD group. extension group no. NEXT STORE (1···8) Default Extension group number 1 • Feature Reference Section 3, Features Uniform Call Distribution (UCD) [521] UCD Busy Waiting Time* Assigns the length of time the system holds an incoming outside call via the UCD feature when all extensions in the UCD group are busy.
  • Page 190: Ucd Busy Mode

    [523]-[524] System Programming [523] UCD Busy Mode* Selects the operation when the length of time programmed in [521] “UCD Busy Waiting Time” expires. Intercept or Disconnect is available. Intercept: The call will be redirected depending on programs [408]-[410] “Flexible Ringing Assignment–Day/Night/Lunch” (Intercept Routing feature). The extension which receives a redirected call rings during the length of time programmed in [526] “UCD Ringing Time after Intercept”.
  • Page 191: Ucd Ringing Time Before Intercept

    System Programming [525]-[526] [525] UCD Ringing Time before Intercept* Assigns the length of time for the Intercept Routing – No Answer feature ( [524] “UCD Intercept Mode”, Intercept). When the time expires, the system starts to redirect the call to the programmed extension(s).
  • Page 192: Extension Group Assignment

    [600]-[603] System Programming [600] Extension Group Assignment Assigns an extension group for each extension. For example: by department or floor. PREV NEXT To continue extension jack no.* extension group no.* NEXT STORE (01···24/ (1···8) To continue SELECT Extension jack number: 01 through 24 / (All extension jacks) Extension group number: 1 through 8 Default...
  • Page 193: Extension Name Setting

    System Programming [604] [604] Extension Name Setting Assigns a name to each extension which will be displayed when making or receiving an intercom call. PREV NEXT To continue extension jack no. extension name* NEXT STORE (01···24 ) 10 characters max. To continue SELECT * Extension name:...
  • Page 194: Account Code Entry Mode

    [605] System Programming [605] Account Code Entry Mode Selects the account code input mode, Option, Forced, Verify–All or Verify–Toll, for each extension jack. This feature displays the account code of the called or calling party on the SMDR. Option: The user can enter any account code, if needed. Forced: The user must always enter an account code.
  • Page 195: Call Transfer To An Outside (co) Line

    System Programming [606]-[607] [606] Call Transfer to an Outside (CO) Line Enables or disables transferring an intercom or outside call to any outside (CO) line manually for each extension. PREV NEXT To continue extension jack no.* NEXT STORE SELECT (01···24/ (Enable/ To continue Disable)
  • Page 196: Executive Busy Override

    [608]-[609] System Programming [608] Executive Busy Override Enables or disables using the Executive Busy Override feature at each extension. If enabled, an extension user can interrupt an established call. PREV NEXT To continue extension jack no.* NEXT STORE SELECT (01···24/ (Enable/ To continue Disable)
  • Page 197: Paralleled Telephone Connection

    System Programming [610]-[611] [610] Paralleled Telephone Connection Enables or disables a single line telephone (SLT) to be connected in parallel with a proprietary telephone. PREV NEXT To continue extension jack no.* NEXT SELECT STORE (01···16/ (Enable/ Disable) To continue SELECT * Extension jack number: 01 through 16 / (All extension jacks) Default...
  • Page 198: Room Monitor Assignment

    [612]-[613] System Programming [612] Room Monitor Assignment Enables or disables which extension(s) can be monitored using the Room Monitor feature. PREV NEXT To continue extension jack no.* NEXT SELECT STORE (01···16/ (Enable/ Disable) To continue SELECT * Extension jack number: 01 through 16 / (All extension jacks) Default All extension jacks –...
  • Page 199: Internal Pulse Detection

    System Programming [614] [614] Internal Pulse Detection Enables or disables connecting a single line telephone (SLT) to receive pulse signals for each extension. PREV NEXT To continue extension jack no.* NEXT STORE SELECT (01···24/ (Enable/ Disable) To continue SELECT * Extension jack number: 01 through 24 / (All extension jacks) Default All extension jacks –...
  • Page 200: Lcd Language Assignment

    [615] System Programming [615] LCD Language Assignment Selects the language, English or Spanish, shown on the LCD display of a proprietary telephone on an extension basis. The selected language is shown during operation and Proprietary Telephone Settings. PREV NEXT To continue extension jack no.* NEXT SELECT...
  • Page 201 System Programming [700]-[702] [700]-[702] Doorphone Ringing Assignment—Day/Night/Lunch Enables or disables receiving a call from up to 4 doorphones in the day, night and/or lunch modes for each extension. To continue PREV NEXT Go to next or prev. doorphone number To continue Go to next or prev.
  • Page 202 [703]-[705] System Programming [703]-[705] Door Opener Assignment—Day/Night/Lunch Enables or disables accessing to up to 4 door openers in the day, night and/or lunch modes for each extension. PREV To continue NEXT Go to next or prev. door opener number To continue Go to next or prev.
  • Page 203: Doorphone Ringing / Tone Pattern Selection

    System Programming [706]-[707] [706] Doorphone Ringing / Tone Pattern Selection Selects the doorphone ringing pattern, Single, Double, Triple or S-Double. Single: Double: Triple: S-Double: doorphone no.* NEXT SELECT STORE (1···4/ (Single/Double/ Triple/S-Double) To continue PREV NEXT * Doorphone number: 1 through 4 / (All doorphones) Default All doorphones –...
  • Page 204: Doorphone Ringing Time

    [708]-[709] System Programming [708] Doorphone Ringing Time Sets the ringing time when making an intercom call from a doorphone. doorphone no.* NEXT STORE SELECT (1···4/ (15/30 sec) To continue PREV NEXT * Doorphone number: 1 through 4 / (All doorphones) Default All doorphones –...
  • Page 205: Smdr Rs-232c Communication Parameters

    System Programming [800] [800] SMDR RS-232C Communication Parameters Assigns the communication parameters for the Serial Interface (RS-232C). NL–Code: Selects the code for your printer or personal computer. If your printer or (New line) personal computer automatically feeds lines with a carriage return, select “CR”.
  • Page 206: Smdr Parameter

    [801]-[802] System Programming [801] SMDR Parameter Assigns the following 2 printing parameters to match the SMDR output with the paper size used in the printer. Page Length: Sets the number of lines per page. Skip Perf: Sets the number of lines to be skipped at the end of every page. (Perforation) <...
  • Page 207: Secret Speed Dialing / One-touch Dialing Printing

    System Programming [803]-[804] [803] Secret Speed Dialing / One-Touch Dialing Printing Selects to print or not print (on SMDR) secret dialing numbers stored in program [001] “System Speed Dialing Entry” and/or stored in One-Touch Dialing even though they are not displayed on the LCD.
  • Page 208: Smdr Account Code Selection

    [804]-[805] System Programming < To select the CO (outside line) parameter. > outside line no.* STORE NEXT SELECT STORE (1···6/ ) (All/System/CO/Ext/ To continue DSS Para/Speed Dial/ Stop Output) < To select the Extension parameter. > extension jack no.* STORE NEXT SELECT STORE...
  • Page 209: Smdr Language Assignment

    System Programming [806], [998] [806] SMDR Language Assignment Selects the language, English or Spanish, used for an SMDR printout. NEXT SELECT STORE (English/Spanish) Default English • Feature References Section 3, Features Language Selection, Station Message Detail Recording (SMDR) [998] ROM Version Confirms the system ROM version.
  • Page 210: System Data Clear

    [999] System Programming [999] System Data Clear Resets all or a specific area of the current assigned data to the default settings. The areas are as follows. Resets all data to the default settings. Para System Para: Resets all data to the default settings except for the data of the following 4 parameters.
  • Page 211 Section 5 Appendix...
  • Page 212: Default Values

    Default Values Address Program Default [000] Date and Time Setting ’98 Jan. 1 Thu 12:00 AM [001] System Speed Dialing Entry All speed dialing numbers – Not stored [002] System Password 1234 [003] DSS Console Port Assignment All DSS Consoles — Disable [004] Paired Telephone Assignment for DSS Console DSS1 –...
  • Page 213 Default Values Address Program Default [117] Call Pickup Tone Enable [118] Pulse Restriction Enable [119] Redialing after Pulse to Tone Conversion Disable [120] Bell Frequency 25 Hz [121] Automatic Outside (CO) Line Access Dial 9 Number Selection [122] Automatic Rotation for Outside (CO) Line Disable Access [123] Break Ratio...
  • Page 214 Default Values Address Program Default [309] Emergency Dial Number Set All codes – Not stored [310] Account Codes All codes – Not stored [311] Automatic Pause Insertion Codes All codes – Not stored [312] Toll Restriction — Station Lock Boundary Disable Class [350] ARS Selection...
  • Page 215 Default Values Address Program Default [420] Calling Party Control (CPC) Signal All outside (CO) lines – 00 (Disable) [421] CPC Detection for Outgoing Calls All outside (CO) lines – Disable [422] Disconnect Time All outside (CO) lines – 1.5 seconds [423] Outside (CO) Line Ringing Pattern Selection All outside (CO) lines –...
  • Page 216 Default Values Address Program Default [600] Extension Group Assignment All extension jacks — EXT GRP-1 [601]–[603] TRS – Class of Service Assignment All extension jacks — COS-1 — Day/Night/Lunch — Day/Night/Lunch [604] Extension Name Setting All extension jacks – Not stored [605] Account Code Entry Mode All extension jacks –...
  • Page 217: Specifications

    Specifications System Capacity KX-TA308 Outside (CO) Lines: 3 max. (6 max. with 3-CO Line & 8 Ext Expansion Card) Extensions : 8 max. (24 max. with 3-CO Line & 8 Ext Expansion Card and 8 SLT Extension Expansion Card) KX-TA616 Outside (CO) Lines: 6 max.
  • Page 218 Lines, Cards, Station Equipment Item Max. Quantity Service Units Outside (CO) lines Extension Jacks Station Terminals 1 (KX-TA308 only) 3-CO Line and 8 Ext Expansion Card 8 SLT Extension Expansion Card OGM/FAX Detection Card Doorphone/Door Opener Card Doorphones Door Openers...
  • Page 219 Section 6 Troubleshooting...
  • Page 220: While Installing

    While Installing PROBLEM PROBABLE CAUSE POSSIBLE SOLUTION Extension does not Something is wrong with Exchange the printed circuit board operate. the printed circuit board with another printed circuit board. (Extension Card). Something is wrong with Take the extension and plug it into the connection between the the same extension port using a system and extension.
  • Page 221: While Connecting

    T • • T extension? R • • R H/L). L • • L KX-TA308 or Extension KX-TA616 Connection between the system and a single line telephone: CAUSE SOLUTION T/R is connected to H/L. Use the correct cord (the inner 2 wires are for H •...
  • Page 222: While Operating

    While Operating PROBLEM PROBABLE CAUSE POSSIBLE SOLUTION When using the The HANDSET/HEADSET When the headset is not used, set the speakerphone with a selector on the KX-T7030, HANDSET/HEADSET selector to the proprietary telephone, KX-T7130, KX-T7330 or “HANDSET” position. KX-T7030, KX-T7130, KX-T7033 is set to the KX-T7330 or “HEADSET”...
  • Page 223 Section 7 Programming Tables...
  • Page 224: Programming Tables

    Programming Tables [000] Date and Time Setting Year Month Day of the week Hour Minute AM / PM (00 – 99) (Jan. – Dec.) (1 – 31) (Sun – Sat) (1 – 12) (00 – 59) Default ’98 Jan. Change [002] System Password Default Parameter: 4 digits, 0 –...
  • Page 225 Programming Tables [001] System Speed Dialing Entry [011] System Speed Dialing Name Setting SPD no. Telephone no. (32 digits max.) Name (16 characters max.) Default All: Not stored (Continued) Programming Tables...
  • Page 226 Programming Tables [001] System Speed Dialing Entry [011] System Speed Dialing Name Setting SPD no. Telephone no. (32 digits max.) Name (16 characters max.) Default All: Not stored (Continued) Programming Tables...
  • Page 227 Programming Tables [001] System Speed Dialing Entry [011] System Speed Dialing Name Setting SPD no. Telephone no. (32 digits max.) Name (16 characters max.) Default All: Not stored Programming Tables...
  • Page 228 Programming Tables [009] Extension Number Assignment Selection Plan 1 Plan 2 Plan 3 Default Change Extension no. (100 … 199) Extension no. (100 … 499) Extension no. (10 … 49) Extension jack no. Default Change Default Change Default Change [012] Second Feature Numbering Plan CODE no.
  • Page 229 Programming Tables [100] Hunting Group Set Extension group no. (1 … 8, *: all) Default Selection Disable Enable [101] Hunting Type Extension group no. (1 … 8, *: all) Default Selection Terminate Circular [102] Voice Mail Port for [107] KX-TVP75/KX-TVP100 DTMF Receiver Check DTMF receiver no.
  • Page 230 Programming Tables [115] Extension Ringing [116] Pattern Selection Conference Pattern Selection 3-Party 3-Party 3-Party 5-Party Selection Single Double Triple C-0 E-3 C-1 E-3 C-2 E-3 C-2 E-5 Default Change [117] Call [118] [119] Redialing after [120] Pickup Tone Pulse Restriction Pulse to Tone Conversion Bell Frequency Selection...
  • Page 231 Programming Tables [200] Hold Recall Time Selection 30 sec 1 min 1.5 min 2 min 3 min 4 min 5 min 6 min Disable Default Change [201] [202] [203] Transfer Recall Time Call Forwarding Start Time Pickup Dial Delay Time Selection 15 sec 30 sec 1 min 2 min...
  • Page 232 Programming Tables [300] Carrier Excepted Code Assignment CODE no. Carrier code (10 digits max.) CODE no. Carrier code (10 digits max.) Default: All Not stored [301] Toll Restriction — System Speed Dialing Boundary Class Selection Class-1 Class-2 Class-3 Class-4 Class-5 Default Change [302] Toll Restriction –...
  • Page 233 Programming Tables [306] Toll Restriction – Exception Codes CODE no. Telephone no. (11 digits) CODE no. Telephone no. (11 digits) Default All: Not stored 7-11 Programming Tables...
  • Page 234 Programming Tables [309] Emergency Dial Number Set CODE no. Emergency no. (11 digits max.) Default All: Not stored [310] Account Codes CODE no. Account code (4 digits) CODE no. Account code (4 digits) Default All: Not stored 7-12 Programming Tables...
  • Page 235 Programming Tables [311] Automatic Pause Insertion Codes CODE no. Pause code (7 digits max.) CODE no. Pause code (7 digits max.) Default All: Not stored [312] Toll Restriction – Station Lock Boundary Class Default Change Disable COS-2 COS-3 COS-4 COS-5 [350] ARS Selection Outside line no.
  • Page 236 Programming Tables [351] Route 1 Selection Codes (Leading Digits) Code no. Area code no. (7 digits max.) Code no. Area code no. (7 digits max.) Default All: Not stored 7-14 Programming Tables...
  • Page 237 Programming Tables [352] Route 2 Selection Codes (Leading Digits) Code no. Area code no. (7 digits max.) Code no. Area code no. (7 digits max.) Default All: Not stored 7-15 Programming Tables...
  • Page 238 Programming Tables [353] Route 3 Selection Codes (Leading Digits) Code no. Area code no. (7 digits max.) Code no. Area code no. (7 digits max.) Default All: Not stored 7-16 Programming Tables...
  • Page 239 Programming Tables [354] Route 4 Selection Codes (Leading Digits) Code no. Area code no. (7 digits max.) Code no. Area code no. (7 digits max.) Default All: Not stored 7-17 Programming Tables...
  • Page 240 Programming Tables [355] Route 1 Exception Codes Code no. Area code no. (7 digits max.) Code no. Area code no. (7 digits max.) Default All: Not stored 7-18 Programming Tables...
  • Page 241 Programming Tables [356] Route 2 Exception Codes Code no. Area code no. (7 digits max.) Code no. Area code no. (7 digits max.) Default All: Not stored 7-19 Programming Tables...
  • Page 242 Programming Tables [357] Route 3 Exception Codes Code no. Area code no. (7 digits max.) Code no. Area code no. (7 digits max.) Default All: Not stored 7-20 Programming Tables...
  • Page 243 Programming Tables [358] Route 4 Exception Codes Code no. Area code no. (7 digits max.) Code no. Area code no. (7 digits max.) Default All: Not stored 7-21 Programming Tables...
  • Page 244 Programming Tables [359] 1st Carrier Selection Code Selection 1st carrier access code (4 digits max.) Default Change [360] ARS Modification – [361] ARS Modification – [364] ARS Outside (CO) Removed Digits Added Number Line Group Outside line (TRK) group Deleted digits Added no.
  • Page 245 Programming Tables [404] Outside (CO) [403] Host PBX Access Codes Line Group Assignment Access codes Outside line (TRK) group Outside line no. no. (1 … 6) (1 or 2 digits, 8 different codes max.) Default All: Not stored Default Change —...
  • Page 246 Programming Tables [406] Flexible Outward Dialing Assignment — Night * (All) Outside line 1 Outside line 2 Outside line 3 Outside line 4 Outside line 5 Outside line 6 Extension Selection jack no. Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable...
  • Page 247 Programming Tables [407] Flexible Outward Dialing Assignment — Lunch Outside line 1 Outside line 2 Outside line 3 Outside line 4 Outside line 5 Outside line 6 (All) Extension Selection jack no. Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable Enable...
  • Page 248 Programming Tables [408] Flexible Ringing Assignment — Day Outside line 1 Outside line 2 Outside line 3 Outside line 4 Outside line 5 Outside line 6 (All) Extension Selection jack no. Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable...
  • Page 249 Programming Tables [409] Flexible Ringing Assignment — Night Outside line 1 Outside line 2 Outside line 3 Outside line 4 Outside line 5 Outside line 6 (All) Extension Selection jack no. Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable...
  • Page 250 Programming Tables [410] Flexible Ringing Assignment — Lunch Outside line 1 Outside line 2 Outside line 3 Outside line 4 Outside line 5 Outside line 6 (All) Extension Selection jack no. Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable...
  • Page 251 Programming Tables [411] Delayed Ringing Assignment — Day Outside line 1 Outside line 2 Outside line 3 Outside line 4 Outside line 5 Outside line 6 (All) Extension Selection (I: Immediately, 5: 5 seconds delay, 10: 10 seconds delay, 15: 15 seconds delay) jack no.
  • Page 252 Programming Tables [412] Delayed Ringing Assignment — Night Outside line 1 Outside line 2 Outside line 3 Outside line 4 Outside line 5 Outside line 6 (All) Extension Selection (I: Immediately, 5: 5 seconds delay, 10: 10 seconds delay, 15: 15 seconds delay) jack no.
  • Page 253 Programming Tables [413] Delayed Ringing Assignment — Lunch * (All) Outside line 1 Outside line 2 Outside line 3 Outside line 4 Outside line 5 Outside line 6 Extension Selection (I: Immediately, 5: 5 seconds delay, 10: 10 seconds delay, 15: 15 seconds delay) jack no.
  • Page 254 Programming Tables [414] Outside (CO) Line Mode [415] Outside (CO) Line Mode [416] Outside (CO) Line Mode — Day — Night — Lunch Selection — N: Normal, DIL + Extension jack no. (01 … 24), D1: DISA1, D2: DISA2, U: UCD Outside line no.
  • Page 255 Programming Tables [422] [423] Outside (CO) Line [424] Reverse (Polarity) Disconnect Time Ringing Pattern Selection Circuit Assignment Selection (seconds) Selection Selection Outside line no. Single Double Triple Enable Disable Default: All [500] DISA Incoming Dialing Mode Selection Selection Without AA With AA Default Change...
  • Page 256 Programming Tables [502] [503] OGM Mode Selection FAX Connection Extension jack no. (01 … 24) / Disable Selection MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6 Default Disable (Not assigned) Change [504] [505] DISA Delayed Answer Time DISA Waiting Time after OGM Selection 0 sec...
  • Page 257 Programming Tables [516] DISA Incoming Assignment Selection Selection Extension Extension jack no. jack no. Enable Disable Enable Disable Default: All [518] DISA Tone Selection [519] [520] after the Security Code DISA OGM Mute Time UCD Group Extension group no. (1 … 8) Selection Enable Disable...
  • Page 258 Programming Tables [600] [604] Extension Group Assignment Extension Name Setting Extension group no. (1 … 8) Extension name Extension (10 character max.) Default: All – Group 1 jack no. Default: All – Not stored 7-36 Programming Tables...
  • Page 259 Programming Tables [601] TRS – Class of Service [602] TRS – Class of Service [603] TRS – Class of Service Assignment — Day Assignment — Night Assignment — Lunch COS no. (1 … 5) COS no. (1 … 5) COS no. (1 … 5) Extension jack no.
  • Page 260 Programming Tables [605] [606] Call Transfer to [607] Call Forwarding Account Code Entry Mode an Outside (CO) Line to an Outside (CO) Line Selection Selection Selection Extension jack no. Option Forced Verify-All Verify-Toll Enable Disable Enable Disable Default: All 7-38 Programming Tables...
  • Page 261 Programming Tables [608] Executive [609] Do Not [610] Paralleled [611] Busy Override Disturb Override Telephone Connection TAM Extension Selection Selection Selection Selection Extension jack no. Enable Disable Enable Disable Enable Disable Enable Disable Default: All 7-39 Programming Tables...
  • Page 262 Programming Tables [612] [613] Outside (CO) [614] [615] Room Monitor Line Duration Time Internal Pulse LCD Language Assignment Limit Selection Detection Assignment Selection Selection Selection Selection Extension jack no. Enable Disable Enable Disable Enable Disable English Spanish Default: All 7-40 Programming Tables...
  • Page 263 Programming Tables [700] Doorphone Ringing [701] Doorphone Ringing [702] Doorphone Ringing Assignment — Day Assignment — Night Assignment — Lunch 1 … 4: Doorphone no., E: Enable / D: Disable Extension jack no. Default: All 7-41 Programming Tables...
  • Page 264 Programming Tables [703] Door Opener [704] Door Opener [705] Door Opener Assignment — Day Assignment — Night Assignment — Lunch 1 … 4: Door opener no., E: Enable / D: Disable Extension jack no. Default: All [706] Doorphone Ringing [707] Doorphone [708] Doorphone / Tone Pattern Selection Access Tone Selection...
  • Page 265 Programming Tables [709] Door Opener Time Selection Door opener 1 sec 2 sec 3 sec 4 sec 5 sec 6 sec 7 sec 8 sec Default: All [800] SMDR RS-232C Communication Parameters New line Word Stop Baud rate Parity Selection code length CR+LF CR 150...
  • Page 266 7-44 Programming Tables...
  • Page 267 169 mm (6 inch) 92.5 mm (3 inch) 185 mm (7 inch)
  • Page 268 This unit complies with the EU Directives. 73 / 23 / EEC “Electrical equipment for use within certain voltage limits.” 89 / 336 / EEC “Electromagnetic compatibility” (basic standard) 92 / 31 / EEC “Electromagnetic compatibility” (amendment) 93 / 68 / EEC “Marking”...

This manual is also suitable for:

Kx-ta616

Comments to this Manuals

Symbols: 0
Latest comments:
