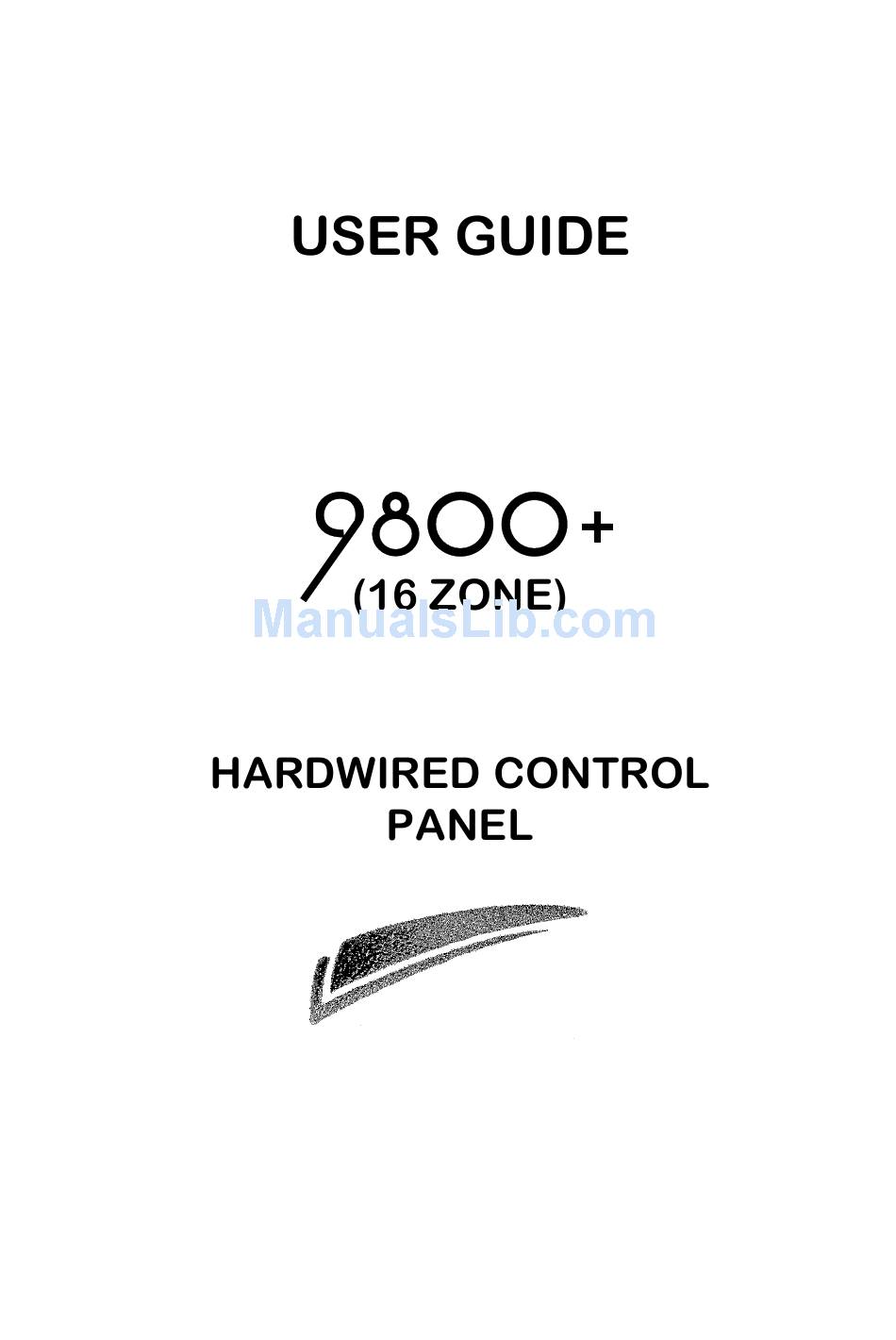

- Page 1 Scantronic Leading the way in security...
-
Page 2: Table Of Contents
Table 1 (Cont'd) . Log Event Codes contents of this book are correct. However, neither the authors nor Scantronic accept any liability for loss or damage caused or alleged to be caused directly or Turning the Chime On/Off .... 16 indirectly by this book. -
Page 3: Introduction
1. Introduction The 9800+ (16 zone) System The 9800+ (16 zone) system comprises a control unit, one or more keypads, and various detectors. The control unit is a steel box that houses the main controller, power supply, stand-by battery, and any remote communicator. The control unit is normally fitted out of sight in a safe place (for example under the stairs). - Page 4 1. Introduction Figure 1. 9800+ Keypad The keypad has the following displays and controls: A, B, C LEDs These LEDs (Light Emitting Diodes) glow to show which Level is set. The LEDs are dark when the Levels are unset. Note that the installer can pro gram the system to hide the display.
-
Page 5: About This Guide
1. Introduction whole system. B and C set part of the system. (D is not active.) Note that you will have to use your access code first. Panic Alarm Keys Press keys 1 and 3 together to raise a personal attack alarm. -
Page 6: Everyday Operation
2. Everyday Operation There are several different ways of setting the system. For all methods (except using a Keyswitch) you must enter your access code at the keypad. The Keyswitch method uses a key in a special switch fitted to your premises. "Setting the System"... -
Page 7: Exceeding The Exit Time
2. Everyday Operation Leave via the designated exit route. Close the final door. At the end of the exit time the system sets, and stops the exit tone. The Level LED glows steadily to show which Level is set. Note: If you change your mind about setting the system either press (Clear) within five seconds of entering your code, or key in your access code again if you miss the first five seconds. -
Page 8: Part Setting
2. Everyday Operation Part Setting The Installer may have programmed your system so that you can protect part of the premises while the rest is in use. Level keys B and C can give two part set areas, ask your installer which areas each key covers. Close doors and windows in the protected area. -
Page 9: Unsetting The System
2. Everyday Operation Return to the keypad and set the system again. If no other detectors are active the system sets. Repeat steps 1 to 3 if the display shows other zones. If you still cannot set the system then call the engineer. Unsetting the System Unsetting From a Keyswitch Turn the keyswitch to OFF. -
Page 10: After An Alarm
3. After an Alarm 3. After an Alarm When your system raises an alarm you must disarm it in order to switch off the sounders and strobes. The system keeps a record of which zone(s) triggered the alarms, and shows the zone number(s) on the keypad display. Once you have disarmed the system, the system must be reset before you can start using it again. -
Page 11: Customer Reset
3. After an Alarm Customer Reset Key-in your access code and press (Clear). The Fault LED goes dark and the display clears. You can now use your system as normal. Remote Reset Before starting this process, make sure you have a pen and paper to hand. You will need to write down some information shown on the keypad. -
Page 12: Special Functions
4. Special Functions Introduction You can perform a number of other functions, apart from setting and unset ting the system. These functions are: [Access code] + X Setting the system so that some zones are by passed or omitted. [Access code] + 3 Setting the time and date on the system's internal clock. -
Page 13: Omitting 24 Hour Zones
4. Special Functions Omitting 24 Hour Zones If your system is fitted with 24 hour detector zones, you may be able to omit them if necessary. For example, your premises may have a fire door that you occasionally open. Ask your Installer if this is possible. If your system is programmed to allow you to omit a 24 hour zone, then: Key in your access code. -
Page 14: Access Codes
4. Special Functions Key in two digits for the minutes, followed by (Clear). To view the time when the system is unset: Enter User 01 access code. Press 3 followed by (Clear). The system displays two digits for the year. Press (Clear) repeatedly to see, in order, the month, day, hour, and minutes. -
Page 15: Using The Log
4. Special Functions Key in the access code you wish to change. The display shows "nc" (new code). Key in the new access code that you wish to use. Note: Do not use 0 (zero) as the first digit of the code. Press (Clear) to store the new code. -
Page 16: Turning The Chime On/Off
4. Special Functions Table 1 (Cont'd) . Log Event Codes Code Meaning Control unit lid tamper † o1 to o16 Zone omitted P1 to P4 Remote keypad dual key PA alarm Mains power failure Print log. r1 to r4 Remote keypad enclosure tamper Remote keypad missing Installer reset Remote keypad excess key presses... -
Page 17: Walk Test
4. Special Functions Walk Test You can set the system so that it will allow you to walk round the premises and test each of the detectors (a walk test). Choose a time when the premises are empty to carry out the test, otherwise people may trigger any movement detectors before you do, and confuse the results of the test. -
Page 18: System Faults
5. System Faults Your system may light the Fault LED and start an internal alarm to indicate that it has detected a fault. (An internal alarm is the keypad and internal sounders active, but the external sounder (bell) and strobe quiet.) The display will give a two letter code to indicate what type of fault has occurred. - Page 19 Day contact Tel: Night contact Tel: Company Name: 496247 Issue 4...
- Page 20 496247 Issue 4...
