STORAGE

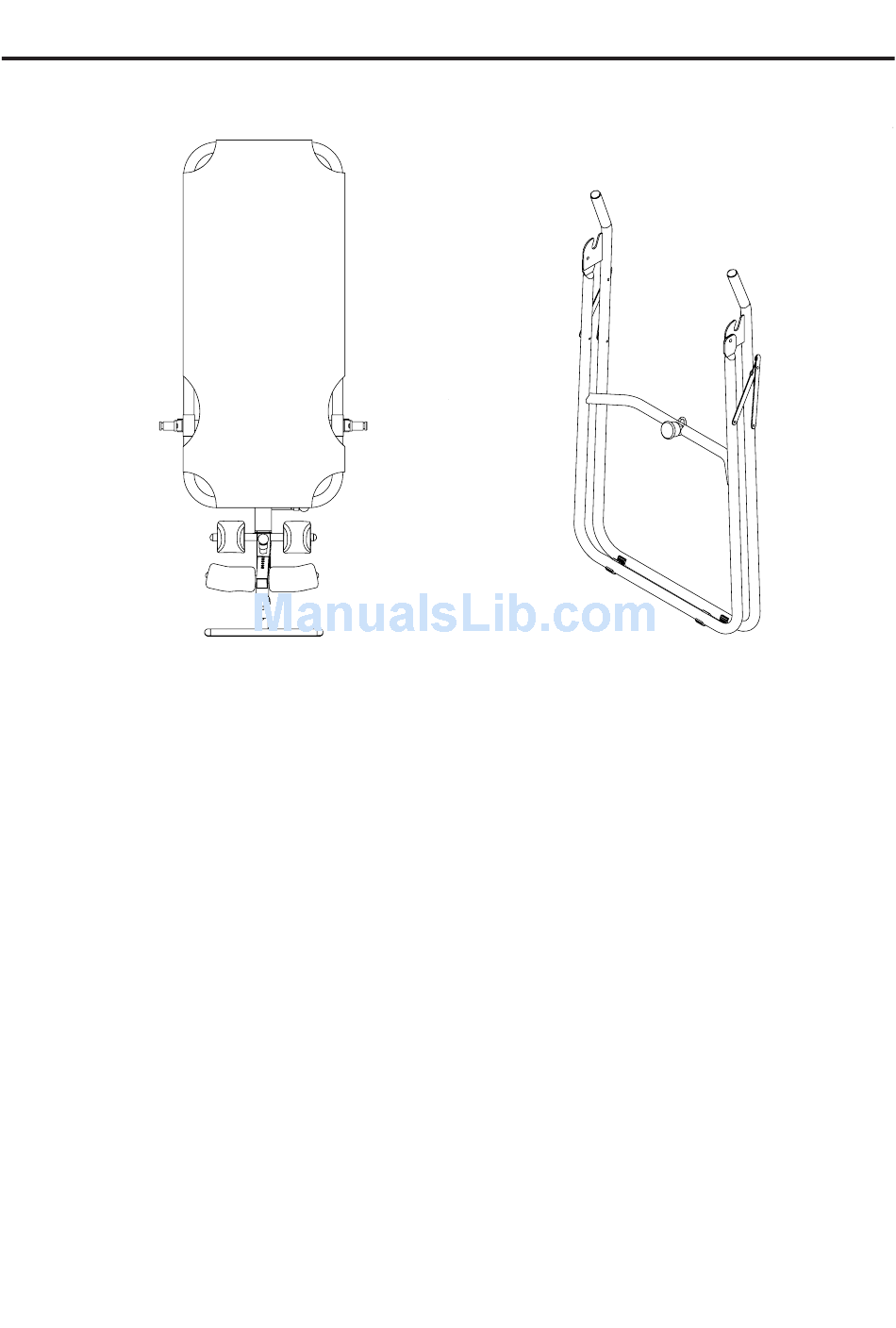

FOLDING THE INVERSION TABLE
The Gravity Inversion Therapy Table can be easily folded for storage.
To fold the Gravity Inversion Therapy Table loosen the LOCKING KNOB(19) and pull out the LARGE
SPRING PIN(18). Now, slide the HEIGHT ADJUSTMENT BEAM(6) all the way up into the MAIN FRAME(4)
until the ADJUSTABLE INSTEP FRAME(7) is just below the MAIN FRAME(4), release the LARGE SPRING
PIN(18) and slide the HEIGHT ADJUSTMENT BEAM(6) slightly up or down until the spring pin lock s the
beam in place. Remove the MAIN FRAME ASSEMBLY from the BASE by lifting up on the MAIN FRAME(4)
until the PIVOT ARMS(5) come out of the slots located at the top of the REAR FRAME(2), (Make sure the
NYLON STRAP is not attached to the MAIN FRAME(4) before attempting to remove it.) Push up on the
center of the FOLDING LINKAGES(3) and push the FRONT FRAME(1) and REAR FRAME(2) together
until they meet.

MAINTENANCE INSTRUCTIONS

The safety level of the Gravity Inversion Therapy Table can be maintained only if it is exa mined regularly
for damage and wear.
1. Check the warning la bel, nylon stra p, strap buckle, pivot arms, nylon bed, Foa m Pads, heel holders,
small spring pin and large spring pin for damage and wear.
2. Replace damaged and worn components i m mediately and/or keep the equipment out of use until re pairs
are completed.
