Stamina 55-1527C Owner's Manual

Stamina 55-1527C Owner's Manual

Inversion table
Hide thumbs Also See for 55-1527C:

Advertisement

Table of Contents

READ AND FOLLOW THE WARNINGS AND INSTRUCTIONS IN THIS OWNER'S MANUAL.
ANY PREVIOUSLY PROVIDED OWNER'S MANUALS OR INSTRUCTIONAL DVD THAT
ACCOMPANIED THIS PRODUCT OR CONTAINED HEREIN SHOULD BE DISCARDED AND
REPLACED WITH THIS UPDATED VERSION. REFER TO PAGE 5 FOR INSTRUCTIONS ON
WHERE TO AFFIX THE NEW INVERSION WARNING DECAL.

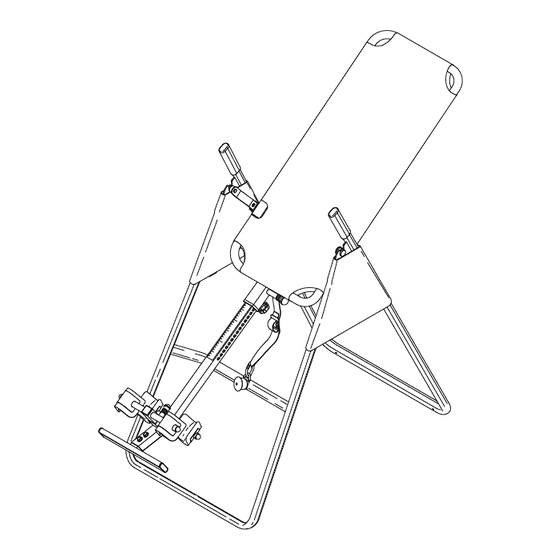

Product May Vary Slightly From Pictured.
WARNING: The Buckle Strap and the Nylon Strap must be
attached and properly adjusted at all times during
use of this product.
CAUTION: Weight on this product should not exceed 250 lbs.
This Product is Distributed Exclusively by
2040 N. Alliance, Springfield, MO 65803
www.staminaproducts.com
Customer Service
1 (800) 375-7520
Owner's
Manual
WARNING
!
Exercise can present a
h e a l t h r i s k . C o n s u l t a
physician before beginning
any exercise program with
this equipment. If you feel
faint or dizzy, immediately
d i s c o n t i n u e u s e o f t h i s
equipment. Serious bodily
i n j u r y c a n o c c u r i f t h i s
equipment is not assembled
and used correctly. Serious
bodily injury can also occur
if all instructions are not
followed. Keep others and
pets away from equipment
when in use. Always make
sure all bolts and nuts are
securely tightened prior to
each use. Follow all safety
instructions in this manual.
When calling for parts or
service, please specify
the following number :
Model#: 55-1527,
55-1527B,
55-1527C
STAMINA PRODUCTS
MADE IN CHINA
©
2011 Stamina Products, Inc.
2011, 03

Advertisement

Table of Contents
loading

Related Manuals for Stamina 55-1527C

Summary of Contents for Stamina 55-1527C

  • Page 1 CAUTION: Weight on this product should not exceed 250 lbs. This Product is Distributed Exclusively by STAMINA PRODUCTS MADE IN CHINA 2040 N. Alliance, Springfield, MO 65803 Customer Service © 2011 Stamina Products, Inc. 1 (800) 375-7520 2011, 03 www.staminaproducts.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Instructions ........2 Storage ............14 Before You Begin ........4 Maintenance ..........14 Equipment Warning, Caution & Notice Labels ... 5 Warranty ............. 15 Hardware Identification Chart ....6 Product Parts Drawing ......16 Assembly Instructions ........ 7 Parts List ............

  • Page 3: Customer Service

    Monday - Thursday, 7:30 A.M. - 5:00 P.M., Central Time. Friday, 8:00 A.M. - 3:00 P.M., Central Time. ONLINE TELEPHONE MAIL CUSTOMER SERVICE CUSTOMER SERVICE CUSTOMER SERVICE STAMINA PRODUCTS, INC. customerservice@staminaproducts.com Tel: 1 (800) 375-7520 Fax: (417) 889-8064 ATTN: Customer Service www.staminaproducts.com P.O. Box 1071 Springfield, MO. 65801-1071...

  • Page 4: Before You Begin

    BEFORE YOU BEGIN T h a n k y o u f o r c h o o s i n g t h e I N V E R S I O N Although Stamina constructs its products with TABLE.

  • Page 5: Equipment Warning, Caution & Notice Labels

    EQUIPMENT WARNING, CAUTION & NOTICE LABELS This chart is provided to help identify the warning, caution, and notice labels on the INVERSION TABLE. Please take a moment to familiarize yourself with all of the warning, caution, and notice labels. Labels are larger than actual size WARNING LABEL(44) WARNING DECAL(45) INVERSION WARNING DECAL(46)

  • Page 6: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART This chart is provided to help identify the hardware used in the assembly process. Place the washers or the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to check the length of the bolts and screws.

  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed.
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 3 Slide the bottom of the two PIVOT ARMS(5) into the brackets located at each side of the MAIN FRAME(4). Align the desired hole on the arm with the peg on the bracket, and insert the peg into the hole to lock the PIVOT ARMS(5) in position.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 5 Attach the FOOTREST(8) onto the HEIGHT ADJUSTMENT BEAM(6) with BOLTS(M8x1.25x50mm)(34), WASHERS(M8)(38), and NYLOCK NUTS(M8x1.25)(36). NOTE: The five holes in the FOOTREST(8) allow the FOOTREST(8) to be attached in three different positions. Start with the center position and adjust if necessary. Use the outer position if users are taller than average.
  • Page 10 SET UP INSTRUCTIONS STEP 8 : Install the HEIGHT ADJUSTMENT BEAM(6) into MAIN FRAME(4) by pulling the LARGE SPRING PIN(16) on the MAIN FRAME(4) and inserting the HEIGHT ADJUSTMENT BEAM(6) as shown. For added safety, thread the LOCKING KNOB(17) into back side of the MAIN FRAME(4). WARNING: Do not use the INVERSION TABLE until you have verified your height setting.

  • Page 11: Operational Instructions

    OPERATIONAL INSTRUCTIONS GENERAL PRECAUTIONS Use the lowest holes in the PIVOT ARMS(5) until you become familiar with the INVERSION TABLE. Do not use the INVERSION TABLE alone. Always have a helper available in case assistance is needed in recovering from the decline position. Make sure that the HEEL HOLDERS(11) are holding your feet securely.
  • Page 12 OPERATIONAL INSTRUCTIONS USING THE INVERSION TABLE 1. Check the decline angle before using the INVERSION TABLE. To increase the decline, lengthen the straps. To decrease the decline, shorten the straps. WARNING: DO NOT ALLOW table to invert past vertical. Table inverting past vertical may result in table contacting frame, damage to table and serious injury to user due to fall hazard.
  • Page 13 OPERATIONAL INSTRUCTIONS USING THE INVERSION TABLE Start by lying fully back on the bed with your hands at your side, or resting on your thighs. Keeping your hands close to your body begin to raise your arms slowly allowing the table to rotate backward.

  • Page 14: Storage

    STORAGE FOLDING THE INVERSION TABLE The INVERSION TABLE can be easily folded for storage. To fold the INVERSION TABLE loosen the LOCKING KNOB(17) and pull out the LARGE SPRING PIN(16). Now, slide the HEIGHT ADJUSTMENT BEAM(6) all the way up into the MAIN FRAME(4) until the ADJUSTABLE INSTEP FRAME(7) is just below the MAIN FRAME(4), release the LARGE SPRING PIN(16) and slide the HEIGHT ADJUSTMENT BEAM(6) slightly up or down until the spring pin locks the beam in place.

  • Page 15: Warranty

    To implement this limited warranty, send a written notice stating your name, date, and place of purchase and a brief description of the defect along with your receipt to Stamina Products, Inc. P.O. Box 1071, Springfield Missouri, USA, 65801-1071, or email us at customerservice@staminaproducts.com, or call us at 1-800-375-7520.

  • Page 16: Product Parts Drawing

    PRODUCT PARTS DRAWING BACK FRONT...

  • Page 17: Parts List

    PARTS LIST PART# PART NAME Front Frame Rear Frame Folding Linkage Main Frame Pivot Arm Height Adjustment Beam Adjustable Instep Frame Footrest Pad Tube Heel Holder Bracket Heel Holder Spring Small Spring Pin Scale Decal Bushing Large Spring Pin Locking Knob Foam Pad Double sided Tape Nylon Bed...

  • Page 18: Fax/Mail Ordering Form

    ATTN: Customer Service www.staminaproducts.com P.O. Box 1071 Springfield, MO. 65801-1071 Would you like to recieve email information or special offers from Stamina Products? Register at contact.staminaproducts.com TO REGISTER YOUR PRODUCT TO REGISTER YOUR PRODUCT To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your...
