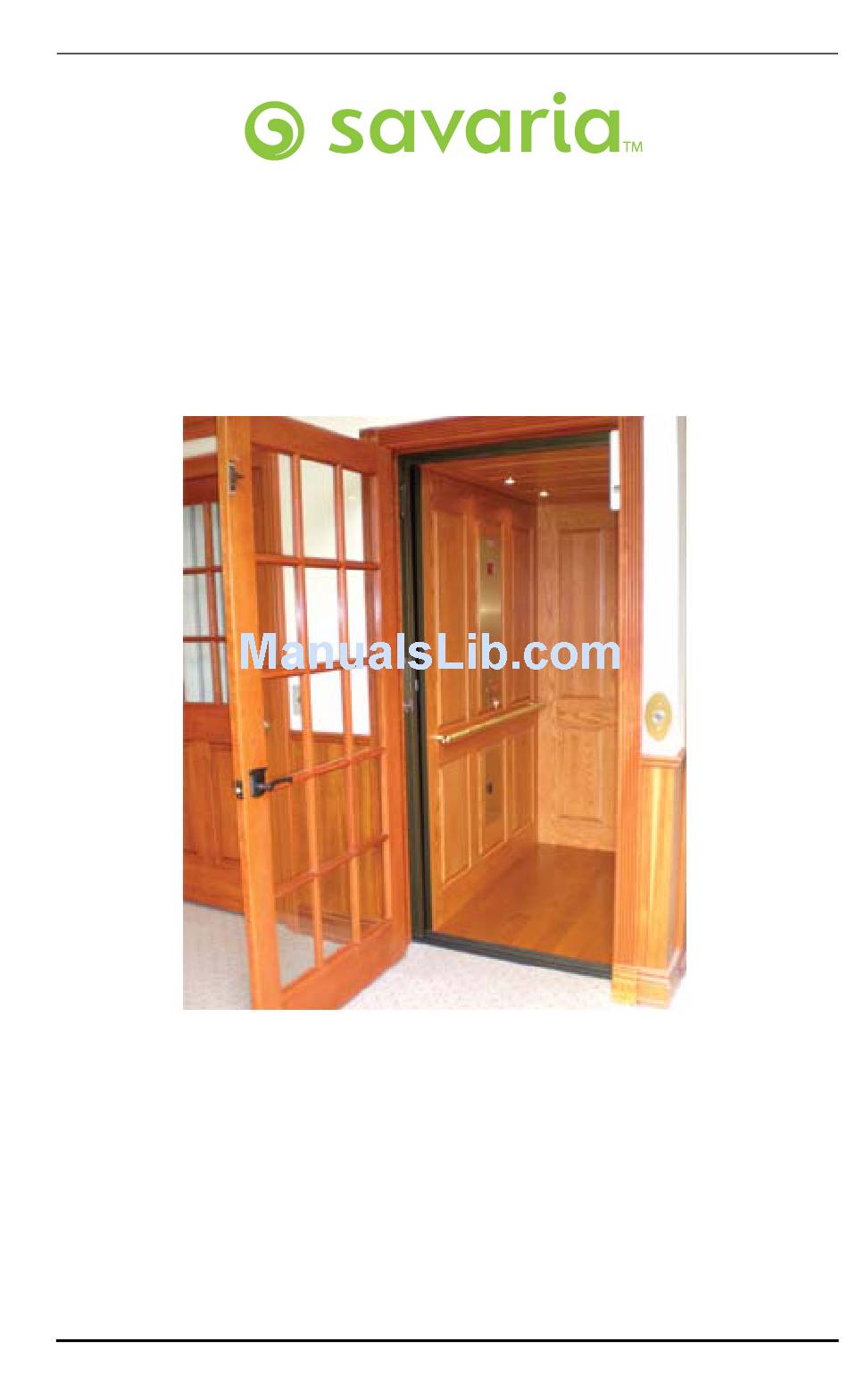

- Page 1 Infinity & Infinity HD Residential Elevators OWNER’S MANUAL (To Be Retained by Owner After Installation by Authorized Savaria Dealer) Part No. 000784 10-m01-2011...
- Page 2 Failure to follow this warning can result in safety system compromises or defeat; this can result in serious injury or death. Savaria accepts no liability for property damage, warranty claims or personal injury, including death, in this circumstance.
-
Page 3: Table Of Contents
Maintenance Record ..........14 Part No. 000784, 10-m01-2011 Infinity & Infinity HD Owner’s Manual... -
Page 4: To Ensure Safe Operation
To ensure safe operation of this equipment, pay careful attention to the important notes below. • Read this manual carefully before using your Infinity or Infinity HD Residential Elevator. • To prevent accidents, adhere strictly to the instructions and keep clear of moving parts at all times. -
Page 5: Specifications
1. SPECIFICATIONS Infinity/Infinity HD Specifications Infinity: 750 lb (341 kg) or 1000 lb (454 kg) Load capacity Infinity HD: 1400 lb (635 kg) Rated speed 36 ft/min (0.18 m/s) nominal 208 volt, three phase, 30 amps or Power supply 230 volt, single phase, 40 amps... -
Page 6: Features
This button can be pressed at any time to stop the cab and activate the alarm buzzer. 6 Handrail A single handrail is mounted on the Cab Operating Panel side of the cab. Infinity & Infinity HD Owner’s Manual Part No. 000784, 10-m01-2011... - Page 7 In the event of a building power failure, the door system is provided with a temporary power back-up system to continue the opening operation for a number of times. On resuming normal building power, the back-up system will turn OFF and begin automatic recharging. Part No. 000784, 10-m01-2011 Infinity & Infinity HD Owner’s Manual...
-
Page 8: Options
If the gate is left open, all controls will remain inoperable. An “entry” and “exit” timer allows approximately 9 seconds before the Hall Call buttons become operational. This delay allows time for a person to enter/exit the cab. Infinity & Infinity HD Owner’s Manual Part No. 000784, 10-m01-2011... -
Page 9: Operation
5 If the cab has a manual gate, slide the gate open and enter the cab. 6 Once inside the cab, close the gate, insert the key (if equipped) into the key switch, and turn the key to the ON position. Part No. 000784, 10-m01-2011 Infinity & Infinity HD Owner’s Manual... -
Page 10: Operating From The Cab Operating Panel (Cop) Controls
If the gate is left open, all controls will remain inoperable. An “entry” and “exit” timer allows approximately 9 seconds before the Hall Call buttons become operational. This delay allows time for a person to enter/exit the cab. Infinity & Infinity HD Owner’s Manual Part No. 000784, 10-m01-2011... -
Page 11: Power Failure And Emergency Lowering
5 Release the Landing button, remove the key, open the manual gate (if equipped) and exit the cab. 6. EMERGENCY LIGHTING In the event of a main power failure, the emergency cab light will turn on automatically. Part No. 000784, 10-m01-2011 Infinity & Infinity HD Owner’s Manual... -
Page 12: Manual Lowering Device (Machine Room)
7 After the passenger has exited the cab, remove the cab key. Make sure the landing door is closed, reconnect the disconnect switch in the machine room, and lock the door. Infinity & Infinity HD Owner’s Manual Part No. 000784, 10-m01-2011... -
Page 13: Maintenance
8. MAINTENANCE Regular maintenance (performed by your Authorized Savaria Dealer) will keep your elevator in proper operating condition. Please remember, as the owner of this elevator, you are responsible for making sure that maintenance and upkeep are done on a regularly scheduled basis. To ensure proper operating condition of your unit, the items listed below must be inspected and, if necessary, serviced a minimum of twice per year. -
Page 14: Maintenance Record
Maintenance Record Date Time Reason for Call Comments Dealer Infinity & Infinity HD Owner’s Manual Part No. 000784, 10-m01-2011... - Page 16 Infinity & Infinity HD Residential Elevators OWNER’S MANUAL Part No. 000784 Copyright © 2011 Savaria Corporation Elevators and Lifts www.savaria.com Sales 107 Alfred Kuehne Blvd. Brampton, Ontario, L6T 4K3, Canada Tel: (905) 791-5555 Fax: (905) 791-2222 Toll Free: 1-800-661-5112...
