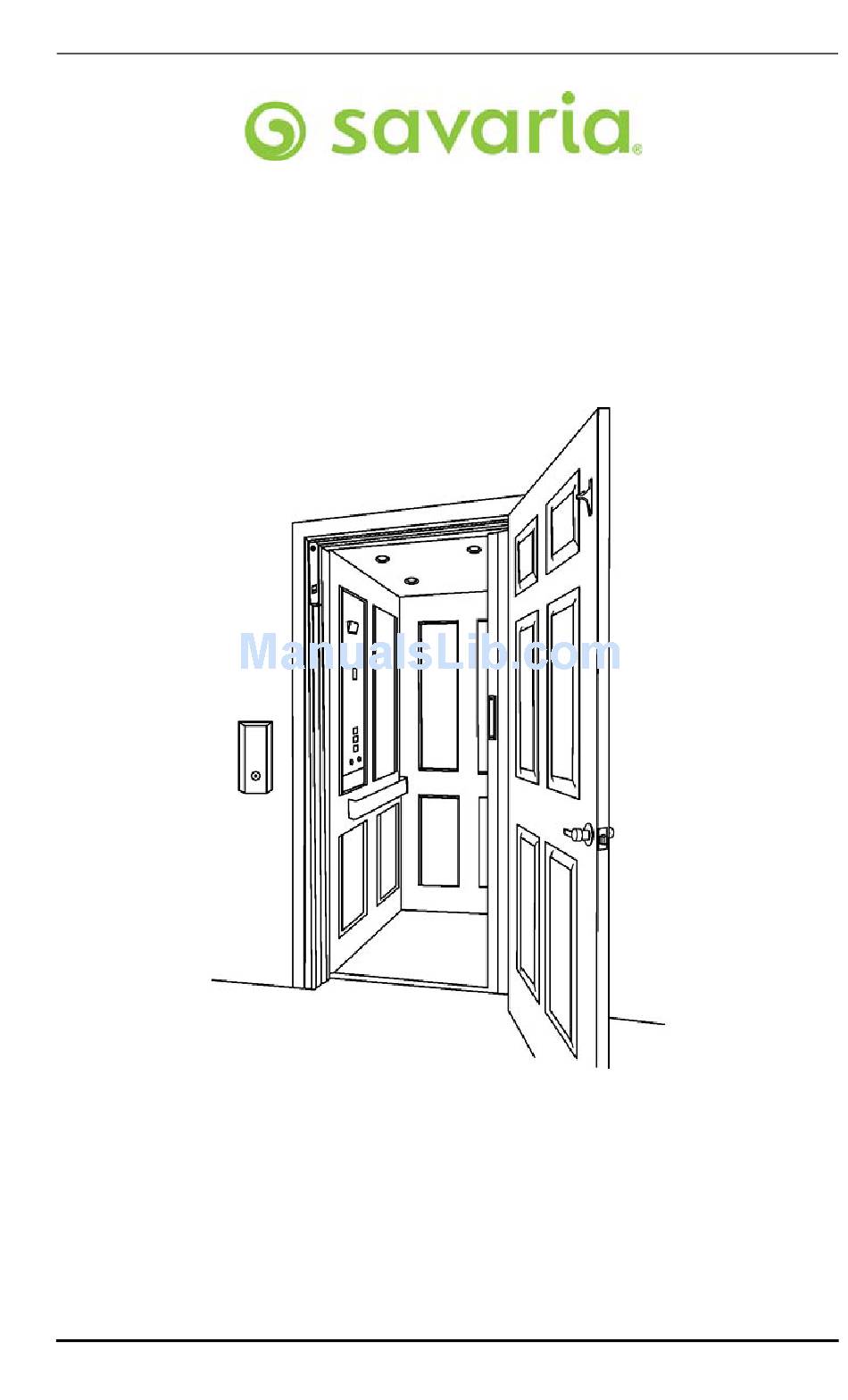

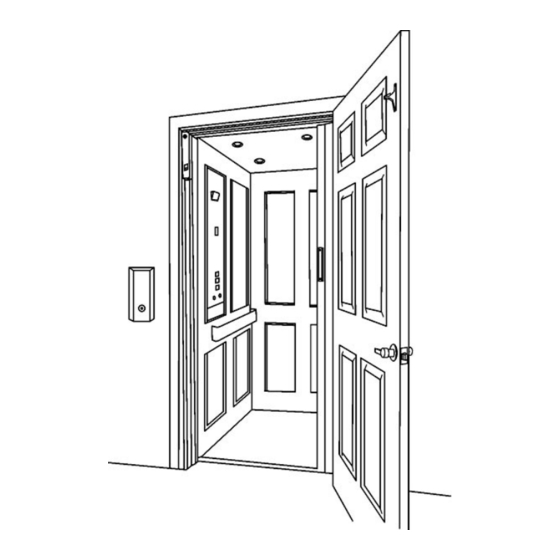

OWNER'S MANUAL
(To Be Retained by Owner After Installation
by Authorized Savaria Dealer)
Part No. 000841
12-m01-2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eclipse and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Savaria Eclipse

Summary of Contents for Savaria Eclipse

  • Page 1 Eclipse Residential Elevator (with Micro-6 Controller) OWNER’S MANUAL (To Be Retained by Owner After Installation by Authorized Savaria Dealer) Part No. 000841 12-m01-2018...
  • Page 2 IMPORTANT Ensure that only an Authorized Savaria Dealer installs and services the Savaria™ Eclipse Residential Elevator. Under no circumstances is anyone other than a dealer with Savaria training and authorization to install, adjust, service or modify any mechanical or electrical device on this equipment. Failure to follow this warning can result in safety system compromises or defeat;...

  • Page 3: Table Of Contents

    Maintenance Record ..........15 Part No. 000841, 12-m01-2018 Eclipse (Micro-6) Owner’s Manual...

  • Page 4: To Ensure Safe Operation

    Ensure that only qualified personnel perform maintenance and service on the unit. • When replacing parts, be sure that only genuine Savaria parts are used. • This unit is intended for use by a mature person who understands its proper operation as set out in this manual.

  • Page 5: Specifications

    Digital display in cab operating panel Clear or bronze anodized aluminum cab entrance trim and handrail Standard features Date plates, capacity tags Modular rail sections Unfinished plywood sub-floor White ceiling with four LED lights Part No. 000841, 12-m01-2018 Eclipse (Micro-6) Owner’s Manual...
  • Page 6 Recessed cab panels in solid cherry, oak, or maple veneer Raised cab panels in solid cherry, oak, or maple veneer Telephone cabinet to match cab operating panel Custom cab size Ceiling panel to match walls Eclipse (Micro-6) Owner’s Manual Part No. 000841, 12-m01-2018...

  • Page 7: Features

    For units that have a keypad phone, it will be on the COP. For units that have a standard phone, it will located in the phone box (see below). Figure 2: Standard Phone and Phone Box Part No. 000841, 12-m01-2018 Eclipse (Micro-6) Owner’s Manual...
  • Page 8 On resuming normal building power, the back-up system will turn OFF and begin automatic recharging. Eclipse (Micro-6) Owner’s Manual Part No. 000841, 12-m01-2018...

  • Page 9: Options

    2 The gate will open automatically once the entrance door is fully open. NOTE If the cab is equipped with a gate, the gate must be closed after exiting the cab. If the gate is left open, all controls will remain inoperable. Part No. 000841, 12-m01-2018 Eclipse (Micro-6) Owner’s Manual...

  • Page 10: Operation

    (called) to the level from which you are calling. When using the control buttons in the cab, the cab can be moved to any level. WARNING Wheelchair wheels must be locked at all times when the elevator is moving. Eclipse (Micro-6) Owner’s Manual Part No. 000841, 12-m01-2018...

  • Page 11: Operating From The Cab Operating Panel (Cop) Controls

    If the cab door is left open and the cab lights turn off, there are two ways to get the lights back on again: • Enter the cab, close the door and gate and then press a Landing button. • Press a Hall Call button before entering the cab. Part No. 000841, 12-m01-2018 Eclipse (Micro-6) Owner’s Manual...

  • Page 12: Power Failure And Emergency Lowering

    3 Locate the Motor Access Door, insert the Manual Hand Crank onto the motor shaft and crank the elevator to the next lowest level. 4 To exit the cab, open the landing door (using the special emergency key) and assist the passenger(s). Eclipse (Micro-6) Owner’s Manual Part No. 000841, 12-m01-2018...

  • Page 13: Diagnostics

    All beep codes that begin with a long beep (on for 2 seconds) are Service codes (contact your authorized Savaria dealer). If you press a Hall Call button and it beeps but the car doesn’t move, refer to the information in the following table....

  • Page 14: Maintenance

    7 Perform the required maintenance to the door locks. 8 Activate and test the safety mechanism. 9 Check, and if necessary, adjust the motor brake air gap. Refer to the Eclipse Maintenance and Troubleshooting Guide (P/N 000858) to do this.

  • Page 15: Maintenance Record

    Maintenance Record Date Time Reason for Call Comments Dealer Part No. 000841, 12-m01-2018 Eclipse (Micro-6) Owner’s Manual...
  • Page 16 Authorized Savaria Dealer Eclipse (with Micro-6 Controller) OWNER’S MANUAL Part No. 000841 Copyright 2018 Savaria Concord Lifts, Inc. 2 Walker Drive Brampton, Ontario, L6T 5E1, Canada www.savaria.com For service or questions about this product, please contact your installing dealer. DEALER NAME:...
