Instant Stack Guide

Guide d'empilement rapide
Schnellstapelanleitung
Guía de apilamiento instantáneo
Guida allo stack istantaneo
Overlap Handleiding
Guia de Empilhamento Instantâneo
Guide för stapling
Regulatory models: W60, W61
010-0762-00
DISPERINDAG No. 0287/1.824.51/09.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN5122 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InFocus IN5122

Summary of Contents for InFocus IN5122

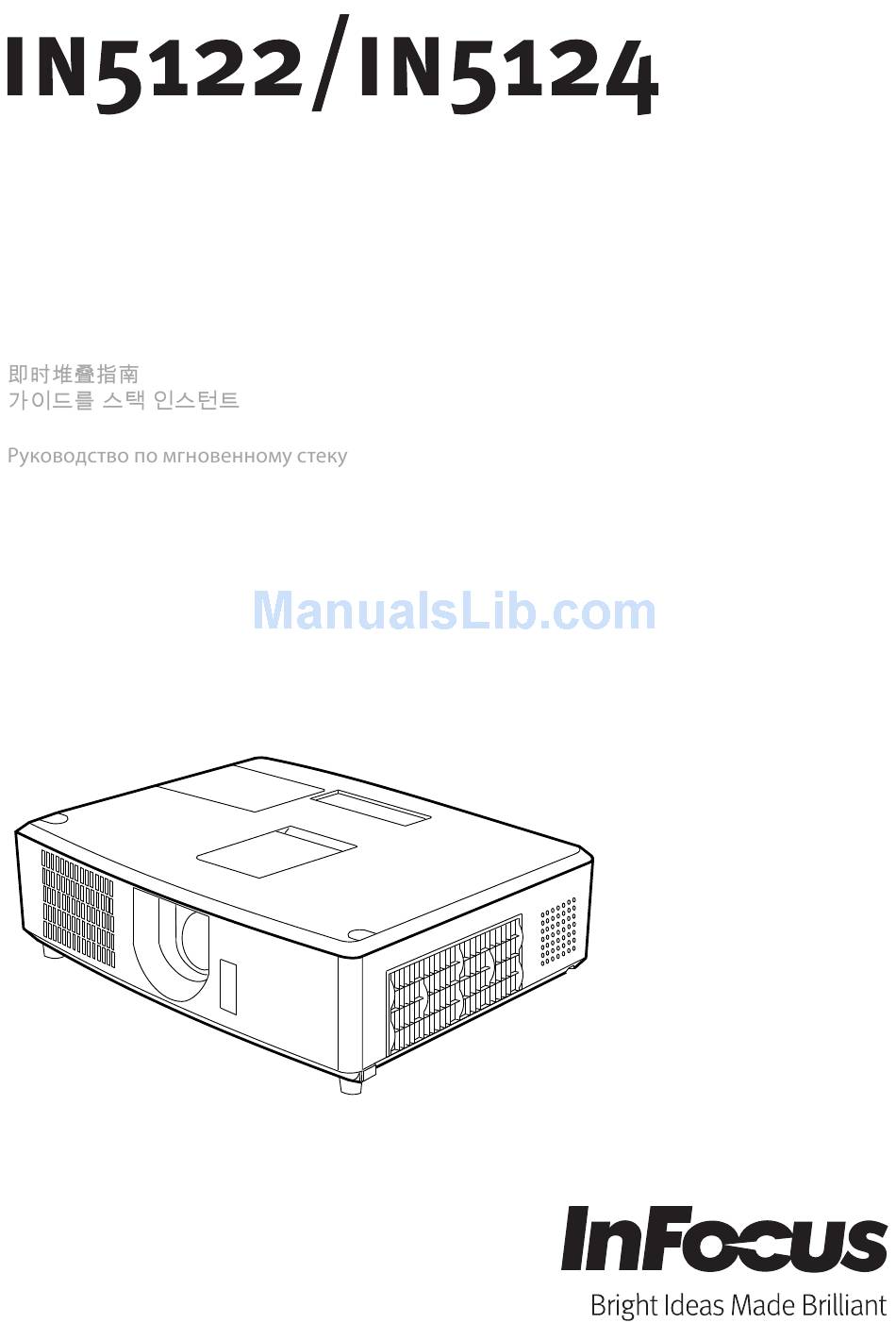

  • Page 1: Instant Stack Guide

    Instant Stack Guide Guide d’empilement rapide Schnellstapelanleitung Guía de apilamiento instantáneo Guida allo stack istantaneo Overlap Handleiding Guia de Empilhamento Instantâneo Guide för stapling Regulatory models: W60, W61 010-0762-00 DISPERINDAG No. 0287/1.824.51/09.03...
  • Page 2 This page left blank intentionally...
  • Page 3 Features This IN5122/IN5124 projector can be used with another IN5122/IN5124 projector to project an image on the same screen using the Instant Stack feature. Both projectors can be operated simultaneously to make the image brighter.

  • Page 4: Table Of Contents

    Contents   3. STACK menu settings ..17 1. Introduction ......3 1.1 Entries and graphical 3.1 Displaying the STACK menu ..17 symbols explanation ......3 3.2 Selecting Main, Sub or off ..18 1.2 Important safety instruction ..3 3.3 Selecting lamp operation mode ..

  • Page 5: Introduction

    1. Introduction 1.1 Entries and graphical symbols explanation The following entries and graphical symbols are used for this manual and the product as follows, for safety purposes. Please review and heed this information. WARNING This entry warns of a risk of serious personal injury or even death.
  • Page 6 Introduction 1.2 Important safety instructions (continued) NOTICE ► Instant Stack allows you to stack two projectors or arrange them side-by-side easily. Depending on the installation and surrounding environment, images projected from both projectors may not superimpose perfectly. The images cannot superimpose well when the screen is slanted, warped or has an uneven surface.

  • Page 7: General Installation

    Introduction General installation WARNING ► Install the projectors where you can access the power outlet easily. ► Do not subject the projectors to unstable conditions. Install the projectors in a stable horizontal position. ► Do not use any mounting accessories except the accessories specified by the manufacturer.

  • Page 8: Basic Information And Preparation

    Introduction 1.3 Basic information and preparation Instant Stack Instant Stack allows you to superimpose images projected from two projectors easily. This projector is designed with Instant Stack capabilities to install two pro- jectors and superimpose their images. Smart Stack and Simple Stack Instant Stack includes the following two features.

  • Page 9: Installation

    2. Installation instructions ( 3~5 ) carefully before For safety reasons, read 1.2 Important safety installation. In addition, review the following for proper use of Instant Stack. ● When using Smart Stack, both projectors will respond to remote control signals until the STACK MODE on either projector is set to SUB.

  • Page 10: Installing The First Projector (Projector A)

    Installation 2.2 Installing the first projector (Projector A) Preparing the elevator feet When stacking both projectors, minimize the length of the elevator feet using the elevator buttons on Projec- tor A and B. CAUTION ► Be careful when stacking both pro- jectors.

  • Page 11: Setting Up Projector A

    Installation Setting up Projector A Turn on Projector A. Use the VERTICAL adjuster to set the lens to its upper-most position. NOTES • If the lens is not at its upper-most position, Projector B’s image may not superimpose well onto Projector A’s image. •...
  • Page 12 Installation 2.2 Installing the first projector (Projector A) - Setting up Projector A (continued) Use the ▲/▼ buttons to highlight STACK MODE, and press the ► button to display the STACK MODE dialog. Highlight SUB pressing the ▲/▼ buttons, and press the ► button. After pressing the ►...

  • Page 13: The Second Projector (Projector B)

    Installation 2.3 Installing the second projector (Projector B) Stacking the projectors Place Projector B on Projector A when stacking both projectors. Make sure the heel on the bottom of Projector B is inserted into the corresponding pock- et on the top of Projector A. With Projector B placed on Pro- jector A, push Projector B’s elevator feet to extend the eleva-...

  • Page 14: Setting Up Projector B

    Installation Setting up Projector B Turn on Projector B. • After turning on Projector B, make sure Projector B’s image is not NOTE significantly tilted compared to Projector A’s image. If the image is overly tilted, rotate Projector B’s elevator feet to adjust the angle so that the tilt is approximately correct.
  • Page 15 Installation 2.3 Installing the second projector (Projector B) - Setting up Projector B (continued) Use the ▲/▼ buttons to highlight STACK MODE, and press the ► button to display the STACK MODE dialog. Highlight MAIN with the ▲/▼ buttons, and press the ◄...

  • Page 16: Confirming Main And Sub Settings

    Installation 2.4 Confirming Main and Sub settings Press the MENU button on the remote control for Main (Projector B). NOTE • When Smart Stack is in use, MAIN is only capable of receiving remote control signals. SUB will not respond to remote control signals. The following dialogs appear on the lower right screen.

  • Page 17: Fine Adjustment Ot The Image Position

    Installation 2.5 Fine adjustment of the image position To superimpose the images of Main (Projector B) and Sub (Projector A), use CORNER CORRECTION to finely adjust the image size and position of Main (Projector B). For Smart Stack users Press the MENU button on the remote control or the control panel on Main (Projector B) to display the MENU dialog.

  • Page 18: For Simple Stack Users

    Installation For Simple Stack users Press the MENU button on the remote control to display Projector A’s menu. Use the ▲/▼/◄/► buttons to open the RULED LINES dialog, then select STACK on the dialog. (User's Manual → SCREEN menu) Press the MENU button on Projector B’s con- trol panel to display the menu.

  • Page 19: Stack Menu Settings

    3. STACK menu settings Set the Smart Stack operation using the STACK menu. NOTES • If you are using Simple Stack without RS232 connection, skip this chapter. • If you do not need to change the settings made during the installation mode.

  • Page 20: Selecting Main, Sub Or Off

    STACK menu settings 3.2 Selecting Main, Sub or off To enable Smart Stack, select either MAIN or SUB. Smart Stack starts when one projector is set to MAIN and the other is set to SUB in the STACK MODE dialog. To disable Smart Stack, select OFF.

  • Page 21: Selecting Lamp Operation Mode

    STACK menu settings 3.3 Selecting the lamp operation mode Select the DUAL or ALTERNATE lamp operation mode. Highlight LAMP MODE in the STACK menu with the ▲/▼ buttons, then press the ► button to display the LAMP MODE dialog. Use the ▲/▼ buttons in the dialog to highlight DUAL or ALTERNATE. DUAL: Turns on the projectors at the same time.
  • Page 22 STACK menu settings 3.3 Selecting lamp operation mode (continued) NOTES • When LAMP MODE is set to DUAL, the images projected from the Main and Sub projectors may be different. To prevent this, we recommend you set the projectors as follows: - Use the same image for RULED LINES and START UP LOGO on both projectors.

  • Page 23: Selecting Lamp Switching Mode

    STACK menu settings 3.4 Selecting the lamp switching mode The following setting is necessary only when ALTERNATE is selected in the LAMP MODE dialog. ( 19 ) Select the AUTO or NORMAL lamp switching mode when using ALTERNATE. Highlight ALTERNATE MODE in the STACK menu with the ▲/▼...

  • Page 24: Selecting The Sub Input Source

    STACK menu settings 3.5 Selecting Sub input source Highlight SUB INPUT SOURCE in the STACK menu with the ▲/▼ buttons, then press the ► button to display the SUB INPUT SOURCE dialog. Use the ▲/▼ buttons in the dialog to highlight FOLLOW MAIN UNIT or FIXED (COMPUTER IN 1).

  • Page 25: Saving Smart Stack Settings

    STACK menu settings 3.6 Saving Smart Stack settings Before exiting the Smart Stack menu, we recommend you check all the settings in the STACK menu. When STACK menu dialogs are displayed, you can press the ◄ button to return to the STACK menu. Follow these steps to exit the Smart Stack menu.

  • Page 26: Important Information For Smart Stack

    STACK menu settings 3.7 Important information for Smart Stack This section provides important information on setting up the Main and Sub projectors, but not on menu operation. Read this information carefully. ● To use Smart Stack, one projector must be set to Main and the other set to Sub. ●...
  • Page 27 STACK menu settings 3.7 Important information for Smart Stack (continued) - Turning on/off AUTO KEYSTONE (User's Manual → OPTION menu) - AC POWER ON (User's Manual → OPTION menu) - POWER UP SOURCE (User's Manual → OPTION menu) - COMMUNICATION TYPE (User's Manual →...
  • Page 28 STACK menu settings 3.7 Important information for Smart Stack (continued) ● If you need to turn a projector off to fix an issue, turn off both projectors, so that Smart Stack can be re-started properly. ● If both projectors have their PIN LOCK or TRANSITION DETECTOR security functions set to ON, both projectors will turn on.

  • Page 29: Connecting Cables

    4. Connecting cables To superimpose two images onto one screen, the same image must be input to both the Main and Sub projectors. There are various ways to do this. This chapter describes different ways to connect the cables. Read this chapter to find a method which meets your needs.

  • Page 30: Connecting Signal Cables

    Connecting cables 4.2 Connecting signal cables There are two methods to input the image to the Sub projector. ( 22, 23 ) - Input the image from the MONITOR OUT port on Main to Sub. - Input the image to Sub and Main separately. Input the image from Main to Sub Connect the MONITOR OUT port on Main to the COMPUTER IN1 port on Sub with a...

  • Page 31: Setting Input Ports Using Menu

    5. Setting input ports using menu 5.1 Preparing for menu operations If Simple Stack without an RS232 connection is used, press the SOURCE button on the remote control or the control panel's SOURCE button to select the port to which the cable is connected. To set-up MONITOR OUT DEFAULT, refer to SETUP menu User's Manual.

  • Page 32: Starting The Main Projector

    Setting input ports using menu 5.3 Starting up the Main projector After completing section 5.2 Checking Main projector's operating status, both projectors should be set to ALTERNATE mode and the Sub projector should be operating. Since the Smart Stack settings can only be changed when the Main projector is operating, this section explains how to switch from the Sub projector to the Main projector.

  • Page 33: Setting The Source Inputs

    Setting input ports using menu 5.4 Setting the Source Inputs If Smart Stack is used with an RS232 connection, review the following. When inputting image signals to Sub via Main, the operations differ depending on whether computer signals or video signals (e.g. component, S-video, composite) are being used.

  • Page 34: Inputting An Image From Main To Sub - Video Signal (Either Component Or Video)

    Setting input ports using menu Inputting an image from Main to Sub - Video signal (either component or video) If the STACK menu is already displayed on the screen, proceed to Step 3 below. Otherwise press the MENU button on the remote control. If the MENU dialog is displayed, use the ▲/▼...
  • Page 35 Setting input ports using menu 5.4 Setting the menu - Inputting image to Sub and Main separately (continued) Use the ▲/▼ buttons to highlight SUB INPUT SOURCE, and press the ► button to display the SUB INPUT SOURCE dialog. Use the ▲/▼ buttons to highlight FOLLOW MAIN UNIT, and press the ►...

  • Page 36: Scheduling Limitations

    6. Scheduling limitations This model supports Web Control scheduling functions. (Network Guide → Web Control → 3.7 Schedule Settings) There are some scheduling limitations when Smart Stack is used with an RS232 connection. But for Simple Stack with- out an RS232 connection, there are no limitations. Regardless of whether Smart Stack or Simple Stack is used, review the Schedule settings before using the Stack function.
  • Page 37 Schedule function limitations 6. Schedule function limitations (continued) are operating in Smart Stack. If the input port to be changed according to the Schedule function can be used in Smart Stack, the Schedule will be performed. If not, it will not be performed. X *2): This item can be scheduled using Web Control when the projectors are operating in Smart Stack but will not be performed.

  • Page 38: Troubleshooting

    7. Troubleshooting The following situations can be misinterpreted as a projector defect. Review the following table before arranging for a repair. Situation Description Page Reference The Main and/or Sub projectors do not have power. 8 To use the Smart Stack feature, supply AC Quick Start power to both the Main and Sub projectors.
  • Page 39 Troubleshooting 7. Troubleshooting (continued) Situation Description Page Reference The projector settings are not set up for a Smart Stack. Check these Main and Sub projector settings: The STACK - POWER SAVING MODE in SETUP menu: menu cannot ENABLE 7 function. - COMMUNICATION TYPE under COMMUNICATION in SERVICE menu: - STACK LOCK in SECURITY menu: OFF...
