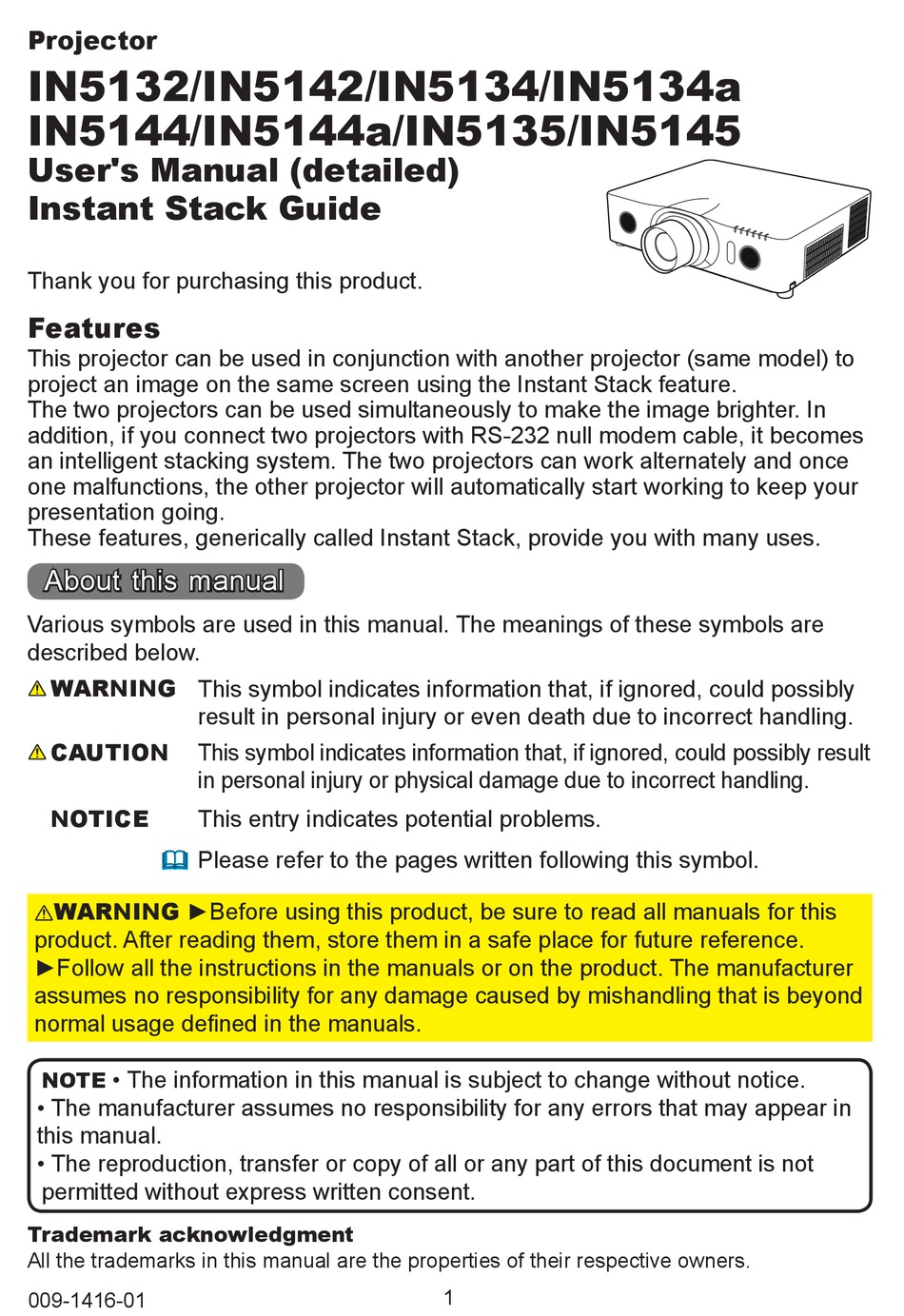

Projector
IN5132/IN5142/IN5134/IN5134a
IN5144/IN5144a/IN5135/IN5145
User's Manual (detailed)
Instant Stack Guide
Thank you for purchasing this product.
Features
This projector can be used in conjunction with another projector (same model) to
project an image on the same screen using the Instant Stack feature.
The two projectors can be used simultaneously to make the image brighter. In
addition, if you connect two projectors with RS-232 null modem cable, it becomes
an intelligent stacking system. The two projectors can work alternately and once
one malfunctions, the other projector will automatically start working to keep your
presentation going.
These features, generically called Instant Stack, provide you with many uses.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
CAUTION
NOTICE
WARNING ►Before using this product, be sure to read all manuals for this
product. After reading them, store them in a safe place for future reference.
►Follow all the instructions in the manuals or on the product. The manufacturer
assumes no responsibility for any damage caused by mishandling that is beyond
normal usage defined in the manuals.
NOTE
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
All the trademarks in this manual are the properties of their respective owners.
009-1416-01
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly result
in personal injury or physical damage due to incorrect handling.
This entry indicates potential problems.
Please refer to the pages written following this symbol.
1

Advertisement

Table of Contents
loading

Related Manuals for InFocus IN5132

Summary of Contents for InFocus IN5132

  • Page 1 Projector IN5132/IN5142/IN5134/IN5134a IN5144/IN5144a/IN5135/IN5145 User's Manual (detailed) Instant Stack Guide Thank you for purchasing this product. Features This projector can be used in conjunction with another projector (same model) to project an image on the same screen using the Instant Stack feature.

  • Page 2: Table Of Contents

    Contents   1. Introduction ......3 3. STACK menu settings ..13 1.1 Basic information 3.1 Displaying STACK menu .... 13 and preparations ......3 3.2 Selecting Main, Sub or off ..14 Instant Stack ........3 3.3 Selecting lamp operation mode .. 15 Intelligent Stack and Simple Stack ..

  • Page 3: Introduction

    1. Introduction 1.1 Basic information and preparations Instant Stack Instant Stack is a feature that allows you to easily superimpose images projected from two projectors. Intelligent Stack and Simple Stack Instant Stack includes the following two features: When two projectors are connected via an RS-232 cable and proper menu set- tings have been selected, these two projectors will automatically operate in syn- chronization with each other.
  • Page 4 Introduction 1.1 Basic information and preparations (continued) NOTICE ► Intelligent Stack can be only be used with pairs of the same model projectors. ► A maximum of two projectors can be used in an Intelligent Stack. ► Depending on the installation and surrounding environment, images projected from the two projectors may not superimpose completely.

  • Page 5: Installation

    2. Installation For safety reasons, read 1.1 Basic information and preparations ( 3, 4 ) carefully before installation. In addition, review the following for proper use of Instant Stack. • Use the same model projectors. • Arrange the projectors side by side. Screen •...

  • Page 6: Installing The First Projector (Set A)

    Installation 2.2 Installing the first projector (Set A) Deciding the installation position Decide the position of Set A and its projection angle. (User’s Manual (concise) → Arrangement Adjusting the projector’s elevator) WARNING ► For IN5142, IN5144, IN5144a and IN5145 only: You can install the projector in any direction with specified mounting accessories.
  • Page 7 Installation 2.2 Installing the first projector (Set A) - Setting up Set A (continued) Press the MENU button to display the menu. (Operating Guide → Using the menu function) Use the ▲/▼/◄/► buttons to go into the following menu. ADVANCED MENU > OPTION >...

  • Page 8: Installing The Second Projector (Set B)

    Installation 2.3 Installing the second projector (Set B) Deciding the installation position Decide the position of Set B and its projection angle. (User’s Manual (concise) → Arrangement Adjusting the projector’s elevator) WARNING ►For IN5142, IN5144, IN5144a and IN5145 only: You can install the projector in any direction with specified mounting accessories.
  • Page 9 Installation 2.3 Installing the second projector (Set B) - Setting up Set B (continued) Adjust the image size and position of Set B with the ZOOM, FOCUS and LENS SHIFT features so that the image can be completely superimposed to the image of Set A.

  • Page 10: Confirming Main And Sub Settings

    Installation 2.4 Confirming Main and Sub settings Press the MENU button on the remote control for Main (Set B). NOTE • When Intelligent Stack is in use, only Main will be able to receive remote control signals. Sub will not respond to remote control signals. The following dialogs appear on the lower right screen.

  • Page 11: Fine Adjusting Image Position

    Main (Set B) using PERFECT FIT. For Intelligent Stack users Main (Set B) Press the MENU button on the remote control or the <IN5132, IN5142, IN5134, control panel on Main (Set B) to display the MENU IN5134a, IN5144, IN5144a> dialog.

  • Page 12: For Simple Stack Users

    Press the MENU button on Set B’s control panel to display the menu. STACK of TEMPLATE Use the ▲/▼/◄/► buttons to select PERFECT <IN5132, IN5142, IN5134, IN5134a, IN5144, IN5144a> FIT from EASY MENU, or the SETUP menu of ADVANCED MENU.

  • Page 13: Stack Menu Settings

    3. STACK menu settings Set up Intelligent Stack settings in the STACK menu. • If you are using Simple Stack without an RS-232 connection, skip this NOTE chapter. • If you do not need to change the settings made during the installation process described in the previous chapter, go to 3.3 Selecting lamp operation mode.

  • Page 14: Selecting Main, Sub Or Off

    STACK menu settings 3.2 Selecting Main, Sub or off To enable Intelligent Stack, select either MAIN or SUB. Intelligent Stack starts when one projector is set to MAIN and the other is set to SUB in the STACK MODE dialog. To disable Intelligent Stack, select OFF. Highlight STACK MODE in the STACK menu with the ▲/▼...

  • Page 15: Selecting Lamp Operation Mode

    STACK menu settings 3.3 Selecting lamp operation mode Select DUAL or ALTERNATE lamp operation mode. Highlight LAMP MODE in the STACK menu with the ▲/▼ buttons, then press the ► button to display the LAMP MODE dialog. Use the ▲/▼ buttons in the dialog to highlight DUAL or ALTERNATE. DUAL: Turns on the projectors simultaneously.
  • Page 16 STACK menu settings 3.3 Selecting lamp operation mode (continued) NOTE • When DUAL is selected for LAMP MODE, the images projected from the Main and Sub projectors can be different. We recommend setting up the projectors as follows: - Select the same image for TEMPLATE and START UP on the Main and Sub projectors.

  • Page 17: Selecting Lamp Switching Mode

    STACK menu settings 3.4 Selecting lamp switching mode The following setting is only necessary when ALTERNATE is selected in the LAMP MODE dialog. ( 15 ) Select the AUTO or NORMAL lamp switching mode when using ALTERNATE. Highlight ALTERNATE MODE in the STACK menu with the ▲/▼...

  • Page 18: Selecting Input Source For Sub

    STACK menu settings 3.5 Selecting input source for Sub Highlight SUB INPUT SOURCE in the STACK menu with the ▲/▼ buttons, then press the ► button to display the SUB INPUT SOURCE dialog. Use the ▲/▼ buttons in the dialog to highlight FOLLOW MAIN UNIT or FIXED (COMPUTER IN 1).

  • Page 19: Exiting Intelligent Stack Menu

    STACK menu settings 3.6 Exiting Intelligent Stack menu Before exiting menu operation for Intelligent Stack, we recommend checking all the settings in the STACK menu. For dialogs that are associated with the STACK menu, you can press the ◄ button to return to the STACK menu. Refer to the following to exit menu operation for Intelligent Stack.

  • Page 20: Important Information For Intelligent Stack

    STACK menu settings 3.7 Important information for Intelligent Stack This section provides important information related to setting up the Main and Sub projectors. It does not contain explanations on menu operation. Read all information carefully. ● To use Intelligent Stack, one projector must be set to Main and the other set to Sub.
  • Page 21 STACK menu settings 3.7 Important information for Intelligent Stack (continued) SUB on both projectors in the STACK MODE dialog, or turn both projectors off and on again. ● The Main and Sub projectors share these settings: - AV MUTE (Operating Guide →...
  • Page 22 STACK menu settings 3.7 Important information for Intelligent Stack (continued) Example: Cover Error: The lamp cover is open. Lamp Error: The lamp will not light up. Fan Error: There is a problem with the cooling fan. Temp Error: The temperature of the projector is too high.

  • Page 23: Connecting Cables

    4. Connecting cables To superimpose two images onto one screen, the same image must be input to the Main and Sub projectors. There are various methods to input the image to the projectors. This chapter describes different ways to connect the cables. Read this chapter to find a method that meets your needs.

  • Page 24: Connecting Signal Cables

    Connecting cables 4.2 Connecting signal cables There are two methods to input an image to the Sub projector ( 18, 19 ): - Inputting image from the MONITOR OUT port on Main to Sub. - Inputting an image to Sub and Main individually. Inputting the image from Main to Sub Connect the MONITOR OUT port on Main to the COMPUTER IN1 port on Sub with a...

  • Page 25: Setting Input Ports Using Menu

    5. Setting input ports using menu 5.1 Preparing for menu operations If Simple Stack without an RS-232 connection is used, press the related source button on the remote control or press the projector's INPUT button to select the port which has the connected cable. For setting up MONITOR OUT, refer to SETUP menu Operating Guide.

  • Page 26: Starting Up Main Projector

    Setting input ports using menu 5.3 Starting up Main projector After completing section 5.2 Checking Main projector's operating status, the two projectors should be set to ALTERNATE mode and the Sub projector should be operating. Because the settings for Intelligent Stack can only be changed when the Main projector is operating, this section explains how to switch from the Sub projector to the Main projector.

  • Page 27: Setting The Menu

    Setting input ports using menu 5.4 Setting the menu If Intelligent Stack with RS-232 connection is used, observe the following. When inputting image signals to Sub via Main, the operations differ between using computer signals and video signals such as component and video signals. Inputting image from Main to Sub - Computer signal If the STACK menu is already displayed on the screen, proceed to 3 below.

  • Page 28: Inputting Image From Main To Sub - Video Signal (Either Component Or Video)

    Setting input ports using menu Inputting image from Main to Sub - Video signal (either component or video) If the STACK menu is already displayed on the screen, proceed to 3 below. Otherwise press the MENU button on the remote control. If the MENU dialog is displayed, use the ▲/▼...
  • Page 29 Setting input ports using menu 5.4 Setting the menu - Inputting image to Sub and Main individually (continued) Use the ▲/▼ buttons to highlight SUB INPUT SOURCE, and press the ► button to display the SUB INPUT SOURCE dialog. Use the ▲/▼ buttons to highlight FOLLOW MAIN UNIT, and press the ►...

  • Page 30: Restrictions On Schedule Function

    6. Restrictions on Schedule function This model supports the Projector Web Control Schedule function. (Network Guide → 3.1.7 Schedule Settings) There are some restrictions on the functions when Intelligent Stack with an RS-232 connection is used. There are no restric- tions when using Simple Stack without an RS-232 connection.
  • Page 31 Restrictions on Schedule function 6. Restrictions on Schedule function (continued) are operating in Intelligent Stack. If the input port can be used in Intelligent Stack, then it can also be scheduled and executed. If not, it will not be executed. X *2): This can be scheduled using Projector Web Control when the projectors are operating in Intelligent Stack but it will not be executed.

  • Page 32: Troubleshooting

    7. Troubleshooting Before assuming that the projector needs repair, review the following trouble- shooting tips: Problems can be easily mistaken for machine defects Reference Situation Troubleshooting tips page No power is supplied to the Main and Sub projectors. 8 User’s To use the Intelligent Stack feature, supply AC Manual power to both the Main and Sub projectors.
  • Page 33 Troubleshooting 7. Troubleshooting (continued) Reference Situation Troubleshooting tips page The projectors are not set up for the Intelligent Stack feature. Check the following settings on the Main and Sub projectors. The STACK - STANDBY MODE in SETUP menu: menu is not 5 NORMAL functioning.
