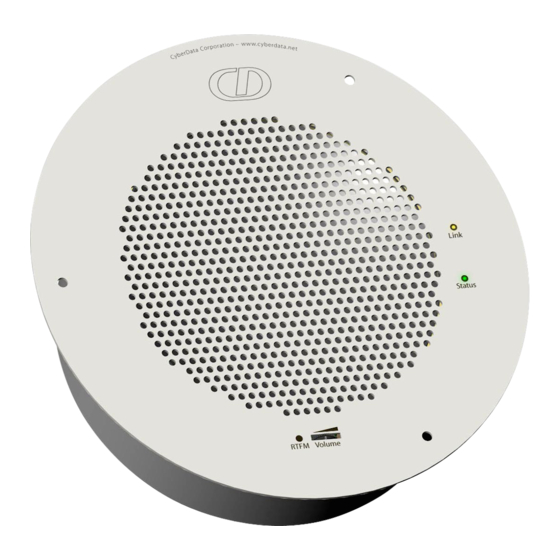

- Page 1 VoIP Ceiling Speaker with 3CX Server Setup Guide CyberData Corporation • 2555 Garden Road • Monterey, CA • 93940 • T:831-373-2601 • F: 831-373-4193 www.CyberData.net...
-
Page 2: Setup Diagram
Figure 1-1 is a setup diagram for a single VoIP speaker configuration. In this configuration, the ceiling speaker acts as a standalone SIP telephony device. Figure 1-1. Setup Diagram CyberData VoIP Ceiling Speaker Aastra 480i CT IP Phone 3CXSystem xxx.xxx.x.xx xxx.xxx.x.xx... -
Page 3: Test Setup Equipment
Software Version 6.1.0 3.0 Test Setup Equipment Table 3-1. Test Setup Equipment Equipment Model Version Aastra IP Phone 480i CT Notes: CyberData VoIP Ceiling Speaker 010844D 4.01 Notes: Linksys EtherFast 10/100 8-port Workgroup Hub Notes: Notes: Notes: Notes: Notes: Notes:... -
Page 4: Setup Procedure
4.0 Setup Procedure To set up the 3CX SIP Server for the CyberData VoIP Ceiling Speaker, 1. Go to the web address of the Login page. The web address is determined by the customer. 2. On the Login page, type the user name and password into the User Name and Password fields. - Page 5 Figure 4-3. Main Page Click on here to add an extension. 5. Click on the word here to add an extension. See Figure 4-3. This will take you to the Add Extension page. See Figure 4-4. Server Setup Guide 930271B CyberData Corporation...
- Page 6 Figure 4-4. Add Extension Page speaker speaker Login ID Password Next Extension Number First Name Last Name Email Address 7. Click the Next button. You will see the Extension Created page. See Figure 4-5. Server Setup Guide 930271B CyberData Corporation...
- Page 7 (Figure 4-6) by pointing your browser to the speaker’s IP address. For the initial configuration of the speaker, refer to the VoIP Ceiling Speaker Operation Guide PDF which can be found at the VoIP Ceiling Speaker product page at: http://www.cyberdata.net/support/voip/index.html Note You may also download CyberData’s VoIP Discovery Utility program which allows you...
- Page 8 9. When prompted, enter the following Web Access Username and Web Access Password to access the CyberData Configuration Home page (Figure 4-6): Default Login: Web Access Username: admin Web Access Password: admin Figure 4-6. CyberData Configuration Home Page 000000 SIP Setup 10.
- Page 9 SIP User ID • Authenticate ID • Authenticate Password Note Figure 4-7 is an example of a CyberData VoIP Ceiling Speaker that is configured to extension 405. Figure 4-7. SIP Setup Page Save Settings 12. Click Save Settings. Server Setup Guide 930271B...
- Page 10 16. When a connection is established (as indicated by a beep), speak into the phone and verify that you can hear your voice through the speaker. This step completes the procedure. Server Setup Guide 930271B CyberData Corporation...
-
Page 11: Frequently Asked Questions
5.0 Frequently Asked Questions Q: I upgraded my 3CX PBX server to 7.1 and now my Rev B CyberData VoIP Ceiling speaker and My VoIP Paging Amplifier do not stay registered with the server. A: There is a 3CX version 7.1 registration/timing bug. To correct this problem, complete the following steps: 1. - Page 12 Figure 5-2. Select Custom Parameters and then Select NONCEEXPIRATION 1. Select Custom Parameters 2. Select NONCEEXPIRATION 3. Change value from 1 to 2. 3. Change the NONCEEXPIRATION parameter value from 1 to 2 and save the changes. Figure 5-2. CyberData Corporation 930271B Server Setup Guide...
