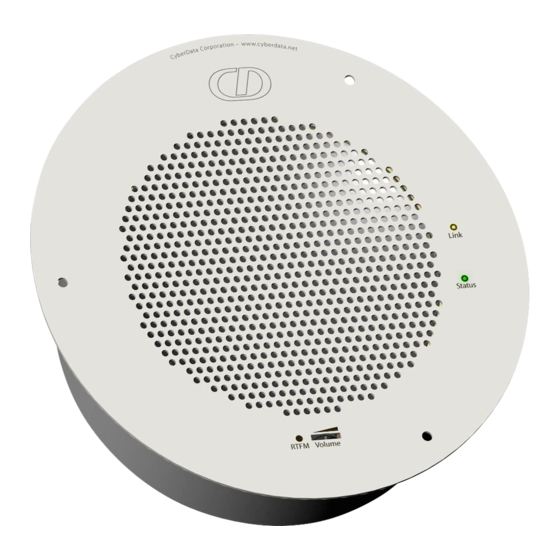

VoIP Ceiling Speaker with
Allworx 6x Server Setup Guide
CyberData Corporation • 2555 Garden Road • Monterey, CA • 93940 • T:831-373-2601 • F: 831-373-4193
www.CyberData.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the VoIP Ceiling Speaker and is the answer not in the manual?

Questions and answers

Related Manuals for CyberData VoIP Ceiling Speaker

Summary of Contents for CyberData VoIP Ceiling Speaker

  • Page 1 VoIP Ceiling Speaker with Allworx 6x Server Setup Guide CyberData Corporation • 2555 Garden Road • Monterey, CA • 93940 • T:831-373-2601 • F: 831-373-4193 www.CyberData.net...

  • Page 2: Setup Diagram

    VoIP speaker configuration. In this configuration, the ceiling speaker acts as a standalone SIP telephony device. Figure 1-1. Setup Diagram Allworx 9112 IP Phone CyberData VoIP Ceiling Speaker Allworx 6x System 192.168.2.xx 192.168.2.xx 192.168.2.254 (default)
  • Page 3 3.0 Test Setup Equipment Table 3-1. Test Setup Equipment Equipment Model Version Allworx VoIP Phone 9112 1.8.2.1 Notes: Allworx System 6.8.3.1 Notes: CyberData VoIP Ceiling Speaker 010844D 4.01 Notes: Linksys EtherFast 10/100 8-port Workgroup Hub EFAH08W Notes: Notes: Notes: Notes: Notes: Notes:...

  • Page 4: Setup Procedure

    4.0 Setup Procedure To set up the Allworx 6x SIP Server for the CyberData VoIP Ceiling Speaker, 1. Go to the Login page. By default, the login can be found at the following web address: 192.168.2.254:8080 2. On the Login page, enter the password and click on Login to go to the Home page. The default password is admin.
  • Page 5 3. On the Home page, go to the PHONE SYSTEM section and click on Handsets to go to the Handsets page. Figure 4-3. Home Page Handsets Server Setup Guide 930249A CyberData Corporation...
  • Page 6 4. On the Handsets page, go to the SIP Handsets section and click on Add new SIP Handsets to go to the Add new SIP Handsets page. Figure 4-4. Handset Page add new SIP Handset Server Setup Guide 930249A CyberData Corporation...
  • Page 7 Note The information that you enter must match the SIP information in the Ceiling Speaker. Figure 4-5, the speaker is set for extension 5103. Figure 4-5. SIP Handset Add Password Login ID Model Number of Lines Description Caller ID Name Server Setup Guide 930249A CyberData Corporation...
  • Page 8 Note Figure 4-6 is an example of a CyberData VoIP Ceiling Speaker that is configured to extension 5103. Figure 4-6. Ceiling Speaker Configured to Extension 5103 6. Click Add to go back to the SIP Handsets page. Server Setup Guide...
  • Page 9 Generic SIP section. Figure 4-7. SIP Handset Never Registered (never registered) in the Identification column 8. To register the speaker, you will need to reboot the speaker by logging into the CyberData Configuration Home page. Server Setup Guide...
  • Page 10 (Figure 4-8) by pointing your browser to the speaker’s IP address. For the initial configuration of the speaker, refer to the VoIP Ceiling Speaker Operation Guide which can be found at the following web address: http://www.cyberdata.net/support/voip/ceilingspeaker.html Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.
  • Page 11 12. On the Upgrade Firmware page, click on Reboot. Figure 4-9. Reboot VoIP Speaker Reboot Server Setup Guide 930249A CyberData Corporation...
  • Page 12 14. After the speaker reboots, the green Status LED on the speaker will blink at one second intervals to indicate normal operation. Note If Yes is selected for Speaker Beep After Initialization on the Speaker Setup page, you will hear a tone after the initialization sequence is complete. Server Setup Guide 930249A CyberData Corporation...
  • Page 13 16. To test the speaker, pick up any phone that is configured to the Allworx system and call the speaker’s extension number. 17. When a connection is established (as indicated by a beep), speak into the phone and verify that you can hear your voice through the speaker. Server Setup Guide 930249A CyberData Corporation...
  • Page 14 CyberData Corporation 930249A Server Setup Guide...
