I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
TS110SU
Istruzioni di installazione
Installatie-instructies
Instructions d´installation

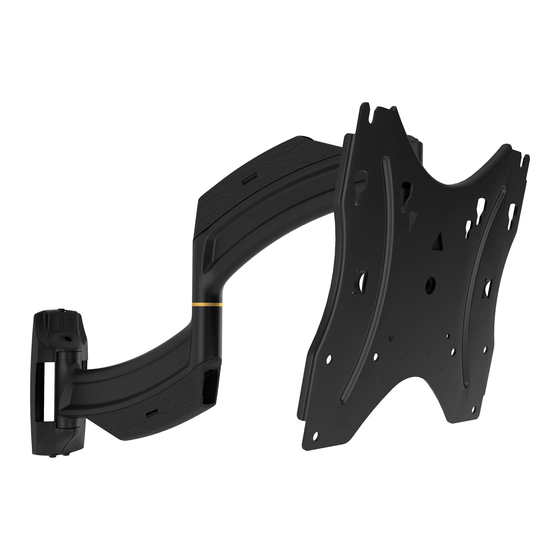

Small Thinstall™ Swing Arm
Portuguese Product Description
TS110SU/TS118SU
TS118SU
Spanish Product Description
German Product Description
Italian Product Description
Dutch Product Description
French Product Description
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CHIEF Thinstall TS118SU
Summary of Contents for CHIEF Thinstall TS118SU
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation TS118SU TS110SU Small Thinstall™ Swing Arm Spanish Product Description German Product Description Portuguese Product Description...
-
Page 2: Important Warnings And Cautions
WARNING: Exceeding the weight capacity can result in Chief® and Thinstall™ are registered trademarks of Milestone serious personal injury or damage to equipment! It is the AV Technologies. All rights reserved. installer’s responsibility to make sure the combined weight of all components attached does not exceed 35 lbs (15.9 kg). - Page 3 Installation Instructions TS110SU/TS118SU DIMENSIONS - TS110SU 9.09 230.9 90 PAN LEFT/RIGHT FACEPLATE THICKNESS 9.85 250.1 9.51 MAXIMUM 241.6 EXTENSION 1.49 FROM WALL 37.9 MINIMUM 12.0° DISTANCE FROM WALL 8.55 6.24 7.37 SCREEN CENTER 217.3 2.62 158.6 187.1 66.5 SCREEN CENTER TO TOP LAG BOLT COMPATIBLE MOUNTING PATTERNS INCLUDE:...
- Page 4 Installation Instructions TS110SU/TS118SU LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
-
Page 5: Tools Required For Installation
TS110SU/TS118SU Installation Instructions TOOLS REQUIRED FOR INSTALLATION concrete only 1/8" - wood studs 7/16" (11.1mm) 8mm - concrete PARTS TS118SU "A" A1 (4) A3 (4) A2 (4) M4x25mm M4x12mm M4x16mm "B" B1 (4) B2 (4) B3 (4) M5x25mm M5x16mm M5x12mm H (1) [main assembly] "C"... - Page 6 TS110SU/TS118SU Installation Instructions Assembly And Installation (TS110SU shown) Install to Wall Install Main Assembly to Wall - Wood Studs 1/2" WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment.
- Page 7 Installation Instructions TS110SU/TS118SU Install Main Assembly to Wall Hollow Concrete Block, Poured Concrete or Clay (TS110SU shown) Brick 1/2" WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment.
-
Page 8: Display Installation
TS110SU/TS118SU Installation Instructions Display Installation WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the (D1) x 2 with (A) installer’s responsibility to make sure the combined weight of (D2) x 2 with (B) all components attached does not exceed 35 lbs (15.9 kg). -
Page 9: Cable Management
Installation Instructions TS110SU/TS118SU Wall Cover Installation Cable Management Make all cable connections to display. CAUTION: Open cable management covers on upper and lower swing Wall covers are fragile and may be damaged or arms by unhinging center tabs and lifting covers to the open broken if installed with excessive force! Use caution when position. - Page 10 TS110SU/TS118SU Installation Instructions Tilt Friction Adjustment Arm Tension Adjustment Use 3/16" hex key (T) to adjust arm tension at any of the Adjust tilt friction adjustment screws to increase or decrease tension adjustment points. (See Figure 14) or (See Figure tilt friction.
- Page 11 Installation Instructions TS110SU/TS118SU...
- Page 12 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products divi- Asia Pacific A Office No. 1 on 12/F, Shatin Galleria sion of Milestone AV Technologies...
