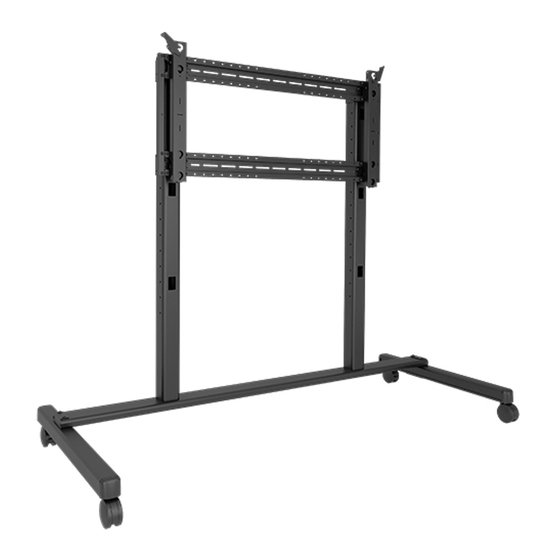

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation XL Single Screen Video Wall Cart Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description XVM1X1U...
-
Page 2: Installation Instructions
Exceeding the weight capacity can result in the information contained in this document. serious personal injury or damage to equipment! It is the Chief® is a registered trademark of Milestone AV Technologies. installer’s responsibility to make sure the combined weight of All rights reserved. - Page 3 Installation Instructions XVM1X1U LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 4: Tools Required For Installation
XVM1X1U Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/2" (12.7mm) 3/16" (included) M14 (included) PARTS A (1) [base cross bar] C (1) B (1) [right leg] [left leg] F (2) [column cap] E (2) [cart array column] J (2) [end bracket]... - Page 5 Installation Instructions XVM1X1U Assembly And Installation Cart Assembly Lay two cart array columns (E) down on a flat surface. (P) x 4 Use eight 5/16-18 x 2 1/2" button head cap screws (M) and eight 5/16" washers (R) to connect cross bar (A) to columns (E).
-
Page 6: Display Installation
XVM1X1U Installation Instructions Place clamp brackets (G) on columns with the top hole on Install two 5/16-18 x 3/4" button head flange screws (Q) into the brackets lined up with the fifth holes from the bottom of the lower holes on each quick connect base (H) to secure the columns. - Page 7 Hang interface brackets (L) to center of mounting rails (D). (See Figure 8) WARNING: FAILING TO CENTER DISPLAY ON XVM1X1U CART MAY CAUSE THE MOUNT TO TIP OVER WHICH COULD RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Always install display onto the center of the cart! Lift locking brackets on interface brackets (L) up to the back of mounting rails (D).
-
Page 8: Cable Management
XVM1X1U Installation Instructions Column Cap Installation For any cable management holes that are not used, snap covers (X) may be used to cover holes as desired. (See Use four 5/16-18 x 1/2" button head cap screws (T) to install Figure 12) each column cap (F) to each column. - Page 9 Installation Instructions XVM1X1U...
- Page 10 XVM1X1U Installation Instructions...
- Page 11 Installation Instructions XVM1X1U...
- Page 12 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
