CHIEF PSBU Installation Instructions Manual

Universal interface bracket
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Universal Interface Bracket
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
JSBU

Advertisement

loading
Need help?

Need help?

Do you have a question about the PSBU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CHIEF PSBU

Summary of Contents for CHIEF PSBU

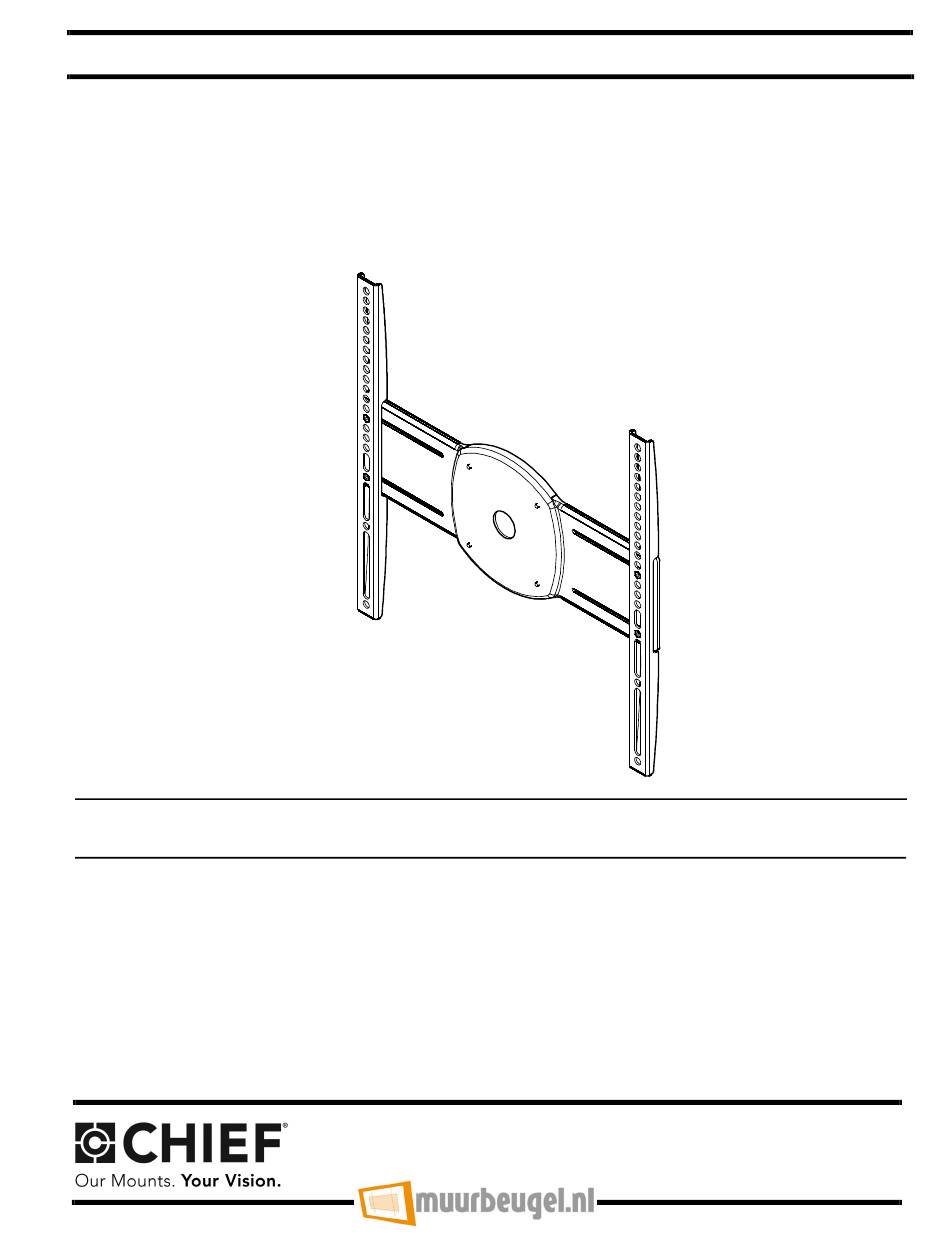

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Universal Interface Bracket Spanish Product Description German Product Description Portuguese Product Description...
