Remote Controller(4)
DESCRIPTION
Signal from Remote Controller put in only Control Data Signal at Micom Terminal of Number 5, which is gotten
field of Carrier (38KHz) from Receive Module. Signal Wave repeat third as following Fig 5-1.
But in Secondary Wave Custom Code is Reversed Face.

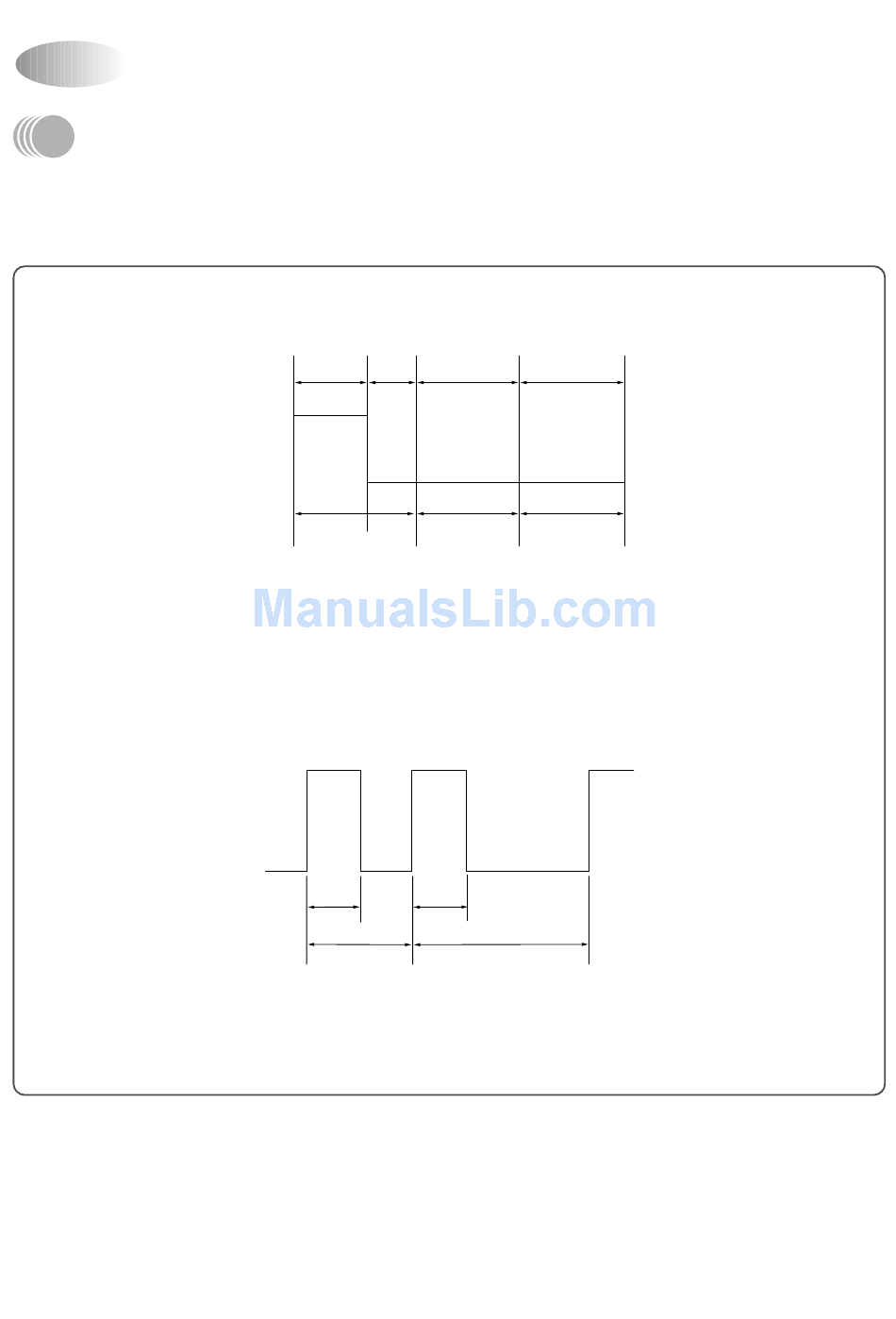

9ms 4.5ms 16bit 16bit
CUSTOM DATA
LEADER CODE
CODE CODE
Fig 5-1
0.56ms 0.56ms
1.12ms 2.25ms
bit 0 bit 1
Fig 5-2
BIT STRUCTURE
