Related Manuals for Aarrow ECB5PLUS SC
Summary of Contents for Aarrow ECB5PLUS SC

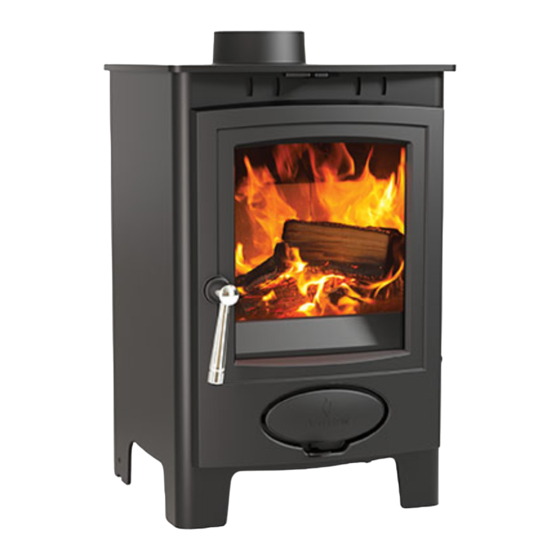

- Page 1 Aarrow Stove User Guide Aarrow Stove User Guide PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE EN 13240:2011 +A2:2004 BK690 Rev 01...
- Page 2 Your Aarrow stove is built to the highest standard of craftsmanship using the best materials and the most modern equipment available. It is a highly efficient and sophisticated piece of machinery and when properly installed and operated it should provide a lifetime of heating satisfaction.
-
Page 3: Table Of Contents
Multi fuel or Flexifuel grates ..................15 How heat is delivered by your stove Radiant heat ......................16 Convected heat ......................16 Ongoing care for your Aarrow stove Adjusting the door hinges ..................17 Liners / firebricks ....................... 17 Throat plate ...................... -
Page 4: Warnings
Aarrow Stove User Guide IMPORTANT INFORMATION 1 Warnings Petroleum coke or Bituminous house coal must not be burned in this appliance. The use of these fuels will invalidate the appliance guarantee. Arada recommends the use of approved smokeless fuels which have been deemed suitable for use on closed appliances, including multi fuel stoves. -
Page 5: Smoke Control Areas
Aarrow Stove User Guide 1.2 Smoke control areas Under the Clean Air Act local authorities may declare the whole or part of the district of the authority to be a smoke control area. It is an offence to emit smoke from a chimney of a building, from a furnace or from any fixed boiler if located in a designated smoke control area. -
Page 6: Advice On Fuel Types
Aarrow Stove User Guide 2 Advice on fuel types 2.1 Wood As a natural and renewable fuel, wood is the first choice for burning, however burning wood requires a little effort and planning. Any type of wood is suitable (though hardwood is preferable) provided it is well seasoned and has a moisture content below 20%. -
Page 7: Before Using Your Stove
Aarrow Stove User Guide 3 Before using your stove Aarrow stoves are designed to be operated with the fire door(s) closed at all times, apart from refuelling (when alight) or cleaning (when cold). Never leave the appliance unattended for an extended length of time with the door(s) open. -
Page 8: Air Inlet Controls
Aarrow Stove User Guide 4 Air inlet controls If you have an Aarrow iSeries stove please turn to section 4.2.1 on the following page for information on how your air control system works and should be operated as it diff ers from the information below. -
Page 9: Airwash System / Secondary Air
2 (in figure 1 on previous page). Sliding it to the left will shut off the air inlet slots as shown in position 1. The air wash control for ECB5PLUS SC and ECB7PLUS SC cannot be fully closed. This is to prevent shut down of the appliance. -
Page 10: Lighting Your Stove
Please check the data plate before operating in a Smoke Control Zone to ensure it is a compliant product, indicated by the letters ’SCE’ or just ’SC’ following the product name. The ECB5PLUS SC, ECB7PLUS SC, i400-G2, i400 F-SCE, i500-G2, i600-G2, i600SLF-G2 and i750-G2 have been recommended for burning wood in a smoke control area and are manufactured with a modified air control to prevent full closure. -
Page 11: Burning Solid Fuels
Aarrow Stove User Guide Set the fire by using scrunched up newspaper and placing a layer of dry kindling wood on top of this. The use of two or three fire lighters may assist in lighting the kindling. Fully open your air controls and light the fire lighters and or paper. -
Page 12: Burning Solid Fuels In An I Series Stove
Aarrow Stove User Guide 5.4 Burning solid fuels in an i Series stove Solid fuel burns best with its air supply for combustion coming from underneath the fuel. To achieve this the burn will be controlled by setting the air control slider into the solid fuel range of settings (see section 4.2.1 on page 9) on single lever stoves, or on two lever... -
Page 13: Further Information For All Stove Owners
Aarrow Stove User Guide 6 Further information for all stove owners 6.1 Door glass The door glass should remain clear during normal burning. However under certain conditions, such as burning at a low rate, using damp wood or overnight burning, the glass may become somewhat blackened. -
Page 14: Replacement Parts
Aarrow Stove User Guide 6.4 Replacement parts As a leading manufacturer we are conscious of being able to support all our users with the supply of spare parts to ensure your continued enjoyment and warmth from your stove. You can find a complete list of spares and consumables such as liners, grate bars and throat plates as well as items to enhance its visual appearance and efficiency such as Arada anthracite stove paint and rope kits. -
Page 15: Multi Fuel Or Flexifuel Grates
6.6 Multi fuel or Flexifuel grates The grate system in your Aarrow stove comprises of a series of reciprocating cast iron bars seated on a pivoted comb. These should come pre-assembled in your new stove. -
Page 16: How Heat Is Delivered By Your Stove
7 How heat is delivered by your stove 7.1 Radiant heat All Aarrow stoves radiate heat into the room. The radiated heat is most intense at the front of the stove, especially through the door glass and less intense the further you move away from the stove. -
Page 17: Ongoing Care For Your Aarrow Stove
Aarrow Stove User Guide 8 Ongoing care for your Aarrow stove The following items should be checked on your stove at regular intervals to help ensure that the safe and efficient use of your stove continues for many years to come. This should only be done when the stove is unlit and cold. -
Page 18: Cracked Glass
However if you have any queries, doubts or would like further advice please do not hesitate to speak to your Aarrow dealer or call us. You will find our contact details below, as well as a list of resources where you can discover more information about your stove and associated articles. -
Page 19: Guarantee
The following guarantee periods shall apply in respect of the following Arada stoves: Non boiler Aarrow stoves come with a lifetime guarantee to the main body. The external paint finish carry a one-year guarantee only. - Page 20 Aarrow Stove User Guide 5. Your stove must have been installed by a suitably qualified person and in accordance with the manufacturer’s installation instructions. Stoves not installed by a suitably qualified person or not installed in accordance with the manufacturer’s installation instructions will not be covered by this guarantee.
-
Page 21: General
Aarrow Stove User Guide 10.3 General Our guarantee is offered as an addition to your statutory rights and will not effect your statutory rights. You can obtain information about your legal rights from trading standards office's or a citizens’ advice bureau. - Page 22 Aarrow Stove User Guide Aarrow is a brand name of Arada Ltd All Aarrow stoves are manufactured in the UK Arada Ltd Weycroft Avenue - Axminster - Devon EX13 5HU United Kingdom www.aradastoves.com T: +44 (0)1297 35700 info@aradastoves.com Page 22...
