BMW R 1200 GS Rider's Manual page 96

7
94

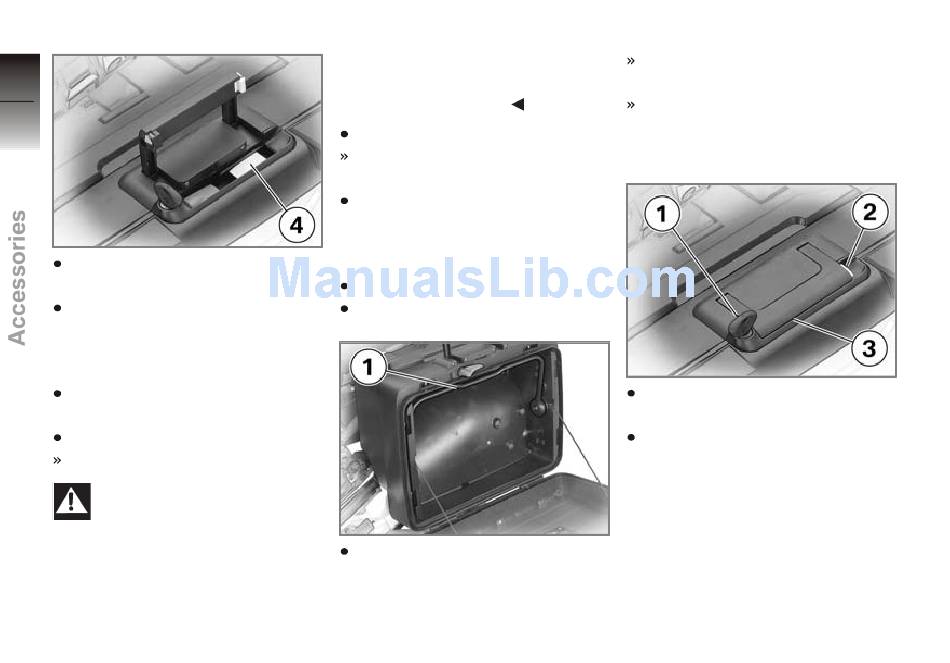

Press ribbing of rocker but-
ton 4.
With rocker button pressed, lift
case lid.
z
Closing case
Turn key in case lock perpen-
dicular to direction of travel.
Close case lid.
The lid clicks audibly into place.
If the carrying handle is
folded down when the slot
of the case lock is oriented in the
direction of travel, the lock tab
can be damaged.
Before folding down the carrying
handle, make sure that the slot of
the case lock is perpendicular to
the direction of travel.
Fold down carrying handle.
Carrying handle audibly en-
gages.
Turn key in case lock in the
direction of travel and remove.
Adjusting case volume
Open case.
Empty case completely.
To adjust case volume, lock
pivot lever 1 in upper or lower
end position.
Pivot lever in upper end posi-
tion: small volume.
Pivot lever in lower end posi-
tion: large volume.
Removing case
Turn key 1 in case lock per-
pendicular to direction of travel.
Hold down locking device 2
and fold out carrying handle 3.
