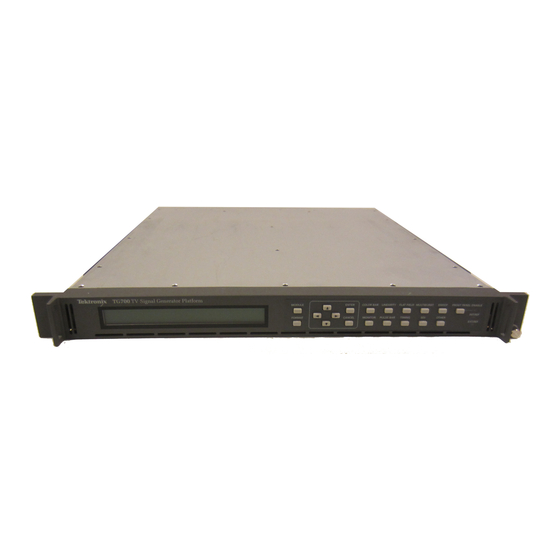

Tektronix TG700 User Manual

Tektronix TG700 User Manual

Tv signal generator platform

Hide thumbs Also See for TG700:

Service manual (810 pages)

,

Technical reference (224 pages)

,

Programming manual (218 pages)

page of 355

/ 355
Contents
Table of Contents
Bookmarks

Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Programming Manual

xx

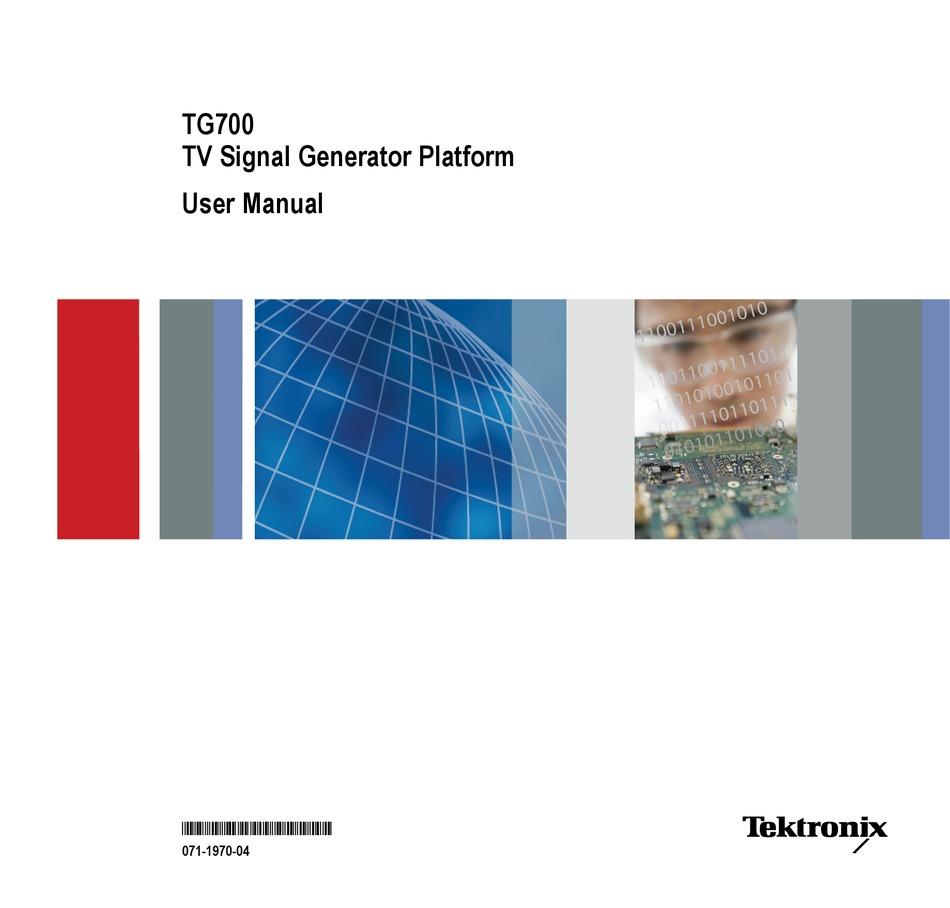

TG700

TV Signal Generator Platform

ZZZ

User Manual

*P071197004*

071-1970-04

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the TG700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tektronix TG700

Page 1 TG700 TV Signal Generator Platform User Manual *P071197004* 071-1970-04...
Page 3 TG700 TV Signal Generator Platform User Manual This document supports software version 5.5 and above. www.tektronix.com 071-1970-04...
Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
Page 5 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
Page 6 2. Transfer the Program to any person or organization outside of Customer or the corporation of which Customer is a part without the prior written consent of Tektronix, except in connection with the transfer of the equipment within which the programs are encoded or incorporated;...
Page 7 The license may be terminated by Customer at any time upon written notice to Tektronix. The license may be terminated by Tektronix or any third party from whom Tektronix may have obtained a respective licensing right if Customer fails to comply with any term or condition and such failure is not remedied within thirty (30) days after notice hereof from Tektronix or such third party.
Page 8 In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period. If Tektronix is unable to provide a replacement that is free from defects in materials and workmanship within a reasonable time thereafter, Customer may terminate the license for the Program and return the Program and any associated materials for credit or refund.
Page 9: Table Of Contents
Clock Conﬂict Messages.................. 2-16 Fan Failure Warning Message ................2-17 Using the Mainframe Menus ................2-18 Connecting to a Network ................. 2-31 Using the Mainframe General Purpose Interface (GPI) ..........2-33 Inspection and Cleaning................... 2-43 TG700 TV Signal Generator Platform User Manual...
Page 10 Factory Default Settings .................. 3-73 DVG7 Digital Video Generator ................3-74 Product Description..................3-74 Operating Procedure..................3-75 Selecting an Output Signal................3-76 DVG7 Module Main Menu ................3-79 Factory Default Settings .................. 3-95 TG700 TV Signal Generator Platform User Manual...
Page 11 Factory Default Settings ................. 3-212 HDVG7 HDTV Digital Video Generator ..............3-213 Product Description..................3-213 Operating Procedure..................3-214 Selecting an Output Signal................3-215 HDVG7 Module Main Menu................3-217 Factory Default Settings ................. 3-233 Index Index TG700 TV Signal Generator Platform User Manual...
Page 12 Table of Contents List of Figures Figure 1-1: Installing the rackmount hardware ............... Figure 1-2: Placing the TG700 in the rack ..............Figure 1-3: TG700 slot numbering ................1-10 Figure 1-4: Removing the blank panel ............... 1-11 Figure 1-5: Installing the module ................
Page 13 Figure 3-37: BG7 module SELECT SIGNAL submenu ........... 3-68 Figure 3-38: BG7 module TIMING submenu............... 3-69 Figure 3-39: BG7 module TIMECODE submenu ............3-70 Figure 3-40: BG7 module VITC submenu ..............3-72 Figure 3-41: Front-panel test signal buttons..............3-77 TG700 TV Signal Generator Platform User Manual...
Page 14 -only” zone plate............... 3-164 Figure 3-79: A “K -only” zone plate................ 3-165 Figure 3-80: A “K -only” zone plate............... 3-166 Figure 3-81: HD3G7 module main menu..............3-171 Figure 3-82: HD3G7 module main menu (Continued)............ 3-172 TG700 TV Signal Generator Platform User Manual...
Page 15 Figure 3-109: HDVG7 module TIMING submenu............3-229 Figure 3-110: HDVG7 module TIMECODE submenu ........... 3-230 Figure 3-111: HDVG7 module VIDEO submenu ............3-231 Figure 3-112: HDVG7 module BLACK submenu (Option BK only) ........3-232 TG700 TV Signal Generator Platform User Manual...
Page 16 Table 3-27: HD3G7 Generator mode – 3G Level B (2xHD 720) ........3-147 Table 3-28: HD3G7 Generator mode – HD-SDI (1920 × 1080) ......... 3-147 Table 3-29: HD3G7 Generator mode – HD-SDI (1280 × 720)........... 3-147 viii TG700 TV Signal Generator Platform User Manual...
Page 17 Table 3-39: HDLG7 module sample structure/depth signal formats........3-209 Table 3-40: HDLG7 module factory default settings............3-212 Table 3-41: HDVG7 module signal set assigned to the test signal buttons ......3-216 Table 3-42: HDVG7 module factory default settings ............. 3-233 TG700 TV Signal Generator Platform User Manual...
Page 18: General Safety Summary
Do not operate in an explosive atmosphere. Keep product surfaces clean and dry. Provide proper ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. TG700 TV Signal Generator Platform User Manual...
Page 19 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: TG700 TV Signal Generator Platform User Manual...
Page 20: Service Safety Summary
Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. TG700 TV Signal Generator Platform User Manual...
Page 21: Compliance Information
EN 55103-2:1996 Annex A Radiated magnetic ﬁeld immunity EN 61000-3-2:2006. AC power line harmonic emissions EN 61000-3-3:1995. Voltage changes, ﬂuctuations, and ﬂicker European Contact. Tektronix UK, Ltd. Western Peninsula Western Road Bracknell, RG12 1RF United Kingdom TG700 TV Signal Generator Platform User Manual xiii...
Page 22: Safety Compliance
Part 1. Additional Compliances IEC 61010-1: 2001. Safety requirements for electrical equipment for measurement, control, and laboratory use. Equipment Type Test and measuring equipment. TG700 TV Signal Generator Platform User Manual...
Page 23 Measurement Category II. For measurements performed on circuits directly connected to the low-voltage installation. Measurement Category I. For measurements performed on circuits not directly connected to MAINS. Overvoltage Category Overvoltage Category II (as deﬁned in IEC 61010-1) TG700 TV Signal Generator Platform User Manual...
Page 24: Environmental Considerations
Support/Service section of the Tektronix Web site (www.tektronix.com). Restriction of Hazardous This product has been classiﬁed as Monitoring and Control equipment, and is outside the scope of the 2002/95/EC RoHS Directive. Substances TG700 TV Signal Generator Platform User Manual...
Page 25: Preface
About This Manual This manual is composed of the following sections: Getting Started shows you how to conﬁgure and install your TG700 system and provides an Incoming Inspection procedure. The section also describes the mainframe options and how to install modules.
Page 26: Related Manuals
The TG700 TV Signal Generator Platform Release Notes (Tektronix part number 077-0229-XX) describes the new features, improvements, and limitations of the most recent available ﬁrmware for the TG700 TV Signal Generator Platform. This information is provided in both Japanese and English.
Page 27: Getting Started
Getting Started...
Page 29: Product Description
Functional check procedures Product Description The TG700 TV Signal Generator Platform is a multiformat TV signal generator platform supporting both analog and digital video standards. The TG700 consists of a mainframe and up to four plug-in modules. The modules are either signal generators or they provide special functions, such as genlock capability.
Page 30: Mainframe Memory Requirements
32 MB of memory installed and software version 5.2 or above installed. If your mainframe has 32 MB of memory and you load the TG700 memory with signals from the Frame Picture Generator application, you may not be able to upgrade the instrument to software version 5.2.
Page 31: Accessories
Blank rear panel 614-A021-00 ● LTC and GPI breakout cable (GPS7 module only) 012-1717-00 Options The following table lists the options that can be ordered with the TG700 mainframe and modules. Table 1-2: Instrument and module options Option Description Instrument/Module...
Page 32 Option FP provided extra memory, which allowed the TG700 mainframe to support the Frame Picture Generator application. This option is no longer necessary for new TG700 mainframes. If you have an older mainframe with less than 64 MB of memory, you can upgrade your mainframe to 64 MB by ordering the following upgrade kit: 040-1698-xx.
Page 33: Initial Product Inspection
Personal injury or damage to the instrument can occur if the instrument is not properly secured in the equipment rack. The TG700 is conﬁgured at shipment for use in an equipment rack. Use the information in the following ﬁgure to connect the rackmount hardware to the rack.
Page 34: Figure 1-1: Installing The Rackmount Hardware
Getting Started Figure 1-1: Installing the rackmount hardware 1–6 TG700 TV Signal Generator Platform User Manual...
Page 35: Figure 1-2: Placing The Tg700 In The Rack
Figure 1-2: Placing the TG700 in the rack To remove the TG700 from the rack, slide it out until it stops at the catches. Support the TG700 while you press in on the stop latch buttons on each side. This action will free the TG700 to slide completely out of the rack.
Page 36: Table 1-4: Ac Line Power Requirements
Connecting Power The TG700 operates from a single-phase power source with the neutral conductor at or near earth ground. The line conductor is fused for over-current protection. A protective ground connection through the grounding conductor in the power cord is essential for safe operation.
Page 37: Module Installation And Removal
Getting Started Module Installation and Removal The following procedures describe how to install and remove modules from the TG700 mainframe. A screwdriver with a #1 Phillips tip is the only tool you need to install or remove a module. CAUTION.
Page 38: Figure 1-3: Tg700 Slot Numbering
For AGL7 and GPS7 modules, only one of these modules can be installed in the TG700 mainframe at a time, and it must be installed only in slot 1. All other modules may be installed in any slot location.
Page 39: Figure 1-4: Removing The Blank Panel
ﬁrmly engaged with the Main board of the mainframe. Figure 1-5: Installing the module 5. Tighten the two screws to secure the module to the mainframe. (See Figure 1-6.) TG700 TV Signal Generator Platform User Manual 1–11...
Page 40: Figure 1-6: Securing The Module
Be careful not to damage the parts and cables inside of the module when you remove the module from the mainframe. 4. Pull the module slowly toward you while supporting the terminations or BNC cables attached to the connectors. (See Figure 1-7.) 1–12 TG700 TV Signal Generator Platform User Manual...
Page 41: Functional Checks
Installing a Module starting at step 4. (See page 1-9, Module Installation and Removal.) Functional Checks Use the following procedures to check that the TG700 modules installed in your instrument are functional. AG7 Module Functional Use the following procedure to check that the AG7 Audio Generator module...
Page 42 Procedure. 1. Install the module into the TG700 mainframe. (See page 1-9.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization process for all installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 43 Procedure. 1. Install the module into the TG700 mainframe. (See page 1-9.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization process for all installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 44 30. Press the left (◄) or right (►) arrow button to select 1080 60i and then press the ENTER button. 31. Connect the BLACK 3 connector to the HDTV waveform monitor using the 75 Ω BNC cable. 32. Check that the appropriate HDTV trilevel sync signal is displayed. 1–16 TG700 TV Signal Generator Platform User Manual...
Page 45 1. Install the module into the TG700 mainframe. (See page 1-9, Module Installation and Removal.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization process for all installed modules is executed. 3. Check that no error messages appear on the display.
Page 46 29. Press the ENTER button. The SELECT SIGNAL submenu appears. 30. Press the left (◄) or right (►) arrow button to select 100% Color Bars. Press the ENTER button to enable the selection. 1–18 TG700 TV Signal Generator Platform User Manual...
Page 47 Procedure. 1. Install the module into the TG700 Platform mainframe. (See page 1-9.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization process for all installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 48 Procedure. 1. Install the module into the TG700 mainframe. (See page 1-9.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization process for all installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 49 20. Repeat steps 10 through 18 for the lower (or upper) output channels. BG7 Module Functional Use the following procedure to check that the BG7 Black Generator module is functional: Check Required equipment. NTSC/PAL waveform monitor HDTV waveform monitor 75 Ω BNC cable TG700 TV Signal Generator Platform User Manual 1–21...
Page 50 Procedure. 1. Install the module into the TG700 mainframe. (See page 1-9.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization process for all installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 51 Procedure. 1. Install the module into the TG700 mainframe. (See page 1-9.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization process for all installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 52 Procedure. 1. Install the module into the TG700 mainframe. (See page 1-9.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization of all the installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 53 Take note of any errors or warnings. 6. Load the factory preset: a. Press the MODULE button until TG700 appears. b. Press ENTER to select Preset. c. If needed, use the up (▲) or down (▼) arrow button to select Recall.
Page 54 To avoid antenna damage, do not turn on the DC antenna power until you know that the antenna is designed to handle the selected voltage. Antenna damage can occur if the antenna is not designed to handle the voltage you select. 1–26 TG700 TV Signal Generator Platform User Manual...
Page 55 2. Connect a cable from the Black 1 output on the GPS7 module to the reference input of the WFM7120. Terminate the loop through on the monitor with a 75 Ω terminator. 3. Press the EXT REF button on the WFM7120. TG700 TV Signal Generator Platform User Manual 1–27...
Page 56 15. Use the left (◄) arrow button to select Black Burst. 16. Press the ENTER button. 17. Check that the WFM7120 shows PAL on the reference input. 18. Press the CANCEL button to exit the PAL submenu. 1–28 TG700 TV Signal Generator Platform User Manual...
Page 57 2. On the WFM7120, press the CONFIG button and select VITC as the timecode source. 3. On the TG700, press the MODULE button until GPS7 appears. 4. Use the up (▲) or down (▼) arrow button to select SELECT OUTPUT.
Page 58 3. Connect the LTC 1 output on the breakout cable to the XLR adapter you just made. 4. Connect the DSUB end of the adapter you just made to the remote connector on the WFM7120. 5. Conﬁgure the WFM7120 to use LTC as the Timecode source. 1–30 TG700 TV Signal Generator Platform User Manual...
Page 59 Connect the LTC/GPIO breakout adapter cable to the LTC/GPI DSUB on the back of the GPS7 module. c. Connect the GPI 1 connector on the breakout cable to the BNC-to-Banana-plug adapter. TG700 TV Signal Generator Platform User Manual 1–31...
Page 60 7. Look at the program time now and compare it to the program time you wrote down before. The time on the display should have reset to the default start time of 00:00:00.00 and now be counting again. 1–32 TG700 TV Signal Generator Platform User Manual...
Page 61 Procedure. 1. Install the module into the TG700 mainframe. (See page 1-9.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization of all the installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 62 19. Press the FORMAT button and use the left (◄) or right (►) arrow button to select 1080 59.94p, then press ENTER. 20. Check that the signal appears as expected on the waveform monitor and check for errors on the video session screen. 1–34 TG700 TV Signal Generator Platform User Manual...
Page 63 34. Press the right (►) arrow button to scroll through the menus and check that the voltage readings show (OK). 35. Check that a 1080 59.94p ramp signal is displayed on the waveform monitor. TG700 TV Signal Generator Platform User Manual 1–35...
Page 64 Procedure. 1. Install the module into the TG700 mainframe. (See page 1-9.) 2. Power on the TG700 mainframe by connecting it to the power source. The initialization of all the installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 65 Procedure. 1. Install the module into the TG700 mainframe. (See page 1-9.) 2. Power on the TG700 TV Signal Generator Platform by connecting it to the power source. The initialization process for all installed modules is executed. 3. Check that no error messages appear on the LCD display.
Page 66 7, check that the color bar signal appears. 11. Disconnect the BNC cable from the SIGNAL 1 connector, and then connect the BNC cable to the SIGNAL 2 connector. 12. Check that the signal appears as expected. 1–38 TG700 TV Signal Generator Platform User Manual...
Page 67: Operating Basics
Operating Basics...
Page 69: Front-Panel Controls
Operating Basics This section introduces you to the basics of operating the TG700. Common module functions are discussed here, while module-speciﬁc functions are discussed in the module-specifc sections of this manual. This section contains the following topics: Front-panel controls Rear-panel connectors...
Page 70 EXT.REF. This indicator lights when the TG700 is locked to an external reference signal or when a GPS7 module is locked to a satellite signal. If this indicator is blinking, the TG700 is conﬁgured to use the external reference signal but is unable to lock to the signal.
Page 71: Rear-Panel Connectors
TG700 when the top cover is off. Dangerous potentials are present on the Power circuit board. The TG700 operates from an AC line frequency of 48 to 63 Hz, over the range of 100 - 240 VAC (±10%), without the need for conﬁguration. (See Table 1-4 on page 1-8.)
Page 72: Figure 2-3: Ag7 Module Connectors
Install the jumper on pins 3+4 of J452 (factory-default position) to set the clock output level to CMOS compatible. Install the jumper on pins 1+2 of J452 to set the clock output level to 1V. Figure 2-4: Location of J452 on the AG7 module 2–4 TG700 TV Signal Generator Platform User Manual...
Page 73: Figure 2-5: Agl7 Module Connectors
The AGL7 module alarm output is available only when the mainframe GPI is enabled and the GPI ALARM OUTPUT menu item is set to Enable. (See page 2-33, Using the Mainframe General Purpose Interface (GPI).) TG700 TV Signal Generator Platform User Manual 2–5...
Page 74: Figure 2-6: Location Of J040 And J960 On The Agl7 Module
3. Place the 48 kHz CLOCK label provided with the module on the rear panel below the CW connector. NOTE. The word clock signal automatically follows the format of the Black 1 signal. Figure 2-6: Location of J040 and J960 on the AGL7 module 2–6 TG700 TV Signal Generator Platform User Manual...
Page 75: Figure 2-7: Atg7 Module Connectors
CH 1: Outputs the selected analog component or composite video signal. CH 2: Outputs the selected analog component or composite video signal. CH 3: Outputs the selected analog component or composite video signal. TG700 TV Signal Generator Platform User Manual 2–7...
Page 76: Figure 2-9: Awvg7 Module Connectors
Option CB enables this connector to also output a 10 ﬁeld ID or color bars signal. BLACK 4: Outputs the selected black burst or HDTV trilevel sync signal output. Option CB enables this connector to also output a 10 ﬁeld ID or color bars signal. 2–8 TG700 TV Signal Generator Platform User Manual...
Page 77: Figure 2-11: Dvg7 Module Connectors (Option Bk)
BLACK 2: Outputs the selected serial digital black signal (Option BK only). NOTE. The SIGNAL 1 and SIGNAL 2 connectors output the same test signal, and the BLACK 1 and BLACK 2 connectors output the same black signal. TG700 TV Signal Generator Platform User Manual 2–9...
Page 78: Figure 2-12: Gps7 Module Connectors
VITC and/or ATC as a timecode signal. For correct operation if you use a VGA-to-BNC breakout cable, pins 6, 7, 8, and 10 must be internally grounded together in the cable and to the connector shell. 2–10 TG700 TV Signal Generator Platform User Manual...
Page 79: Table 2-1: Gps7 Module Ltc/Gpi Connector Pin Assignments
(This connector is labeled 10 MHz / BLACK 3 on earlier GPS7 modules.) NOTE. You can use the menus to independently set the format and timing of the three black outputs and to enable VITC to be applied to the output signal. TG700 TV Signal Generator Platform User Manual 2–11...
Page 80: Figure 2-13: Hd3G7 Module Connectors
ﬁeld two. The frame pulse selection produces the once per ﬁeld pulse for all other formats. NOTE. When the SECONDARY OUTPUT selection is set to Test Pattern the SIGNAL 1 and SIGNAL 2 connectors output the same test signal. 2–12 TG700 TV Signal Generator Platform User Manual...
Page 81: Figure 2-14: Hdlg7 Module Connectors
HD SDI IN connector. LINK B: Outputs the selected HD-SDI dual-link video test signal or an upconverted version of the signal on the HD SDI IN connector. TG700 TV Signal Generator Platform User Manual 2–13...
Page 82: Figure 2-15: Hdvg7 Module Connectors (Option Bk)
SIGNAL 2: Outputs the selected serial digital video signal. BLACK 1: Outputs the selected serial digital black signal (Option BK only). BLACK 2: Outputs the selected serial digital black signal (Option BK only). 2–14 TG700 TV Signal Generator Platform User Manual...
Page 83: Frame Reset Signals
Operating Basics Frame Reset Signals The TG700 uses the three frame reset signals described below to output different video formats simultaneously. FRAME RESET 1 This frame reset signal supports the 1/1.001 system signal, and is used by the following video formats. These signals are synchronized with each other.
Page 84: Clock Conﬂict Messages
Operating Basics Clock Conﬂict Messages The TG700 uses various shared clocks to operate the mainframe and to output test signals from the installed modules. In some cases, when you change the signal format of a module output, the associated SD or HD clock frequency changes to support the new format.
Page 85: Fan Failure Warning Message
To prevent this damage, disconnect the power cable from the AC power source. The TG700 displays the following warning message if the fan on the rear panel stops working. If this warning message appears, disconnect the power cable from the AC voltage line and contact your local Tektronix Field Ofﬁce or representative.
Page 86: Using The Mainframe Menus
Operating Basics Using the Mainframe Menus When you power on the TG700 and the initializing process for all of the installed module is completed, the top menu item of the mainframe main menu appears on the LCD display. Press the up (▲) or down (▼) arrow button to scroll through the available menu selections in the main menu.
Page 87: Figure 2-17: Preset Submenu
Power On Default: Use this preset to save instrument settings that you want automatically loaded when the TG700 powers on. If one of the seven presets is selected in the mainframe GPI (General Purpose Interface), that preset takes precedence over this Power On Default preset. You cannot assign this preset name to another preset.
Page 88 ENTER button to implement the selection. You cannot delete the following presets: Power on Default, User Default, and Factory Default. 2–20 TG700 TV Signal Generator Platform User Manual...
Page 89: Figure 2-18: Sequence Submenu
Operating Basics SEQUENCE Submenus Use this menu to select and run a sequence that is already loaded into the TG700. (See Figure 2-18.) A sequence is a series of generator settings deﬁned using the Tcl language and SCPI commands. The TG700 loads a sequence and runs the command and settings in the order dictated by the sequences ﬁle.
Page 90: Figure 2-19: Frame Reset Status Submenu
FRAME RESET 3. Displays the module(s) and output(s) using frame reset signal 3. If two or more modules are using this frame reset signal, use the left (◄) or right (►) arrow button to select which modules are displayed. 2–22 TG700 TV Signal Generator Platform User Manual...
Page 91: Figure 2-20: Utility Submenu
The following ﬁgure shows the UTILITY submenu. NOTE. When the GPI is enabled, the NETWORK menu item is replaced by GPI alarm menu items in the UTILITY submenu. (See page 2-38, ALARM menu.) Figure 2-20: UTILITY submenu TG700 TV Signal Generator Platform User Manual 2–23...
Page 92 5.1 or above installed and when there is GPS7 module installed in the mainframe. Select CAL OVEN, and then press the ENTER button to access the CAL OVEN submenu. (See page 2-29.) 2–24 TG700 TV Signal Generator Platform User Manual...
Page 93: Figure 2-21: Signal Key Assign Submenu
(for example COLOR BAR). 4. Press the ENTER button to assign the signal set to the selected test signal button. 5. Repeat steps 2 to 4 until all signal set assignments are completed. TG700 TV Signal Generator Platform User Manual 2–25...
Page 94: Figure 2-22: Network Information Submenu
NOTE. To download a frame picture ﬁle created by the Frame Picture Generator application and output it as a picture, your TG700 mainframe must have 64 MB of memory installed. (See page 1-2, Mainframe Memory Requirements.) Perform the following steps to assign a frame picture ﬁle to the OTHER test signal button: 1.
Page 95: Figure 2-23: Network Setup Submenu
NETWORK SETUP Use this menu to set the network parameters for the 10 BASE-T port on the TG700, which will be used when you remotely control the TG700 using a PC Submenu and when you transfer ﬁles between the TG700 and a PC. Refer to Connecting to a Network for detailed information about connecting the TG700 to a PC.
Page 96 Operating Basics IP ADDRESS. Sets the IP address of the TG700. When no value is set, the default value is used. If DHCP service is enabled, the IP address obtained from the DHCP server is used instead of the address entered here. Refer to Manually Setting a Network Address below for instructions on how to enter an address.
Page 97: Figure 2-24: Diagnostics Submenu
GPS7 module has its own diagnostics submenu; running the diagnostics here does not run the GPS7 diagnostics). If all of the diagnostic routines are completed without any errors, the instrument will display "Pass". If a diagnostic error is displayed, contact your local Tektronix Field Ofﬁce or representative. NOTE.
Page 98: Figure 2-25: Internal Frequency Calibration Menu
Rubidium clock, GPS antenna (GPS7 module only), or the master sync signal of your video installation. To run the gain calibration, the instrument must be locked to a GPS reference. 2–30 TG700 TV Signal Generator Platform User Manual...
Page 99: Connecting To A Network
Operating Basics Connecting to a Network The TG700 has a 10 BASE-T port on the rear panel that allows you to use a PC to remotely control the instrument and to upload and download ﬁles such as signal or logo ﬁles.
Page 100 Setting the parameters on a network with a DHCP server. If your network has a DHCP server, use the NETWORK SETUP submenu to enable the TG700 to function as a DHCP client. When the TG700 is connected to the network and DHCP service is enabled, the TG700 obtains the necessary network addresses automatically from the DHCP server.
Page 101: Using The Mainframe General Purpose Interface (Gpi)
Operating Basics Using the Mainframe General Purpose Interface (GPI) You can use the 10 BASE-T port of the TG700 mainframe as a General Purpose Interface (GPI) by changing internal jumper settings. When you enable the mainframe GPI, you can recall one of the seven available presets, output an alarm signal, and display an alarm status on the LCD.
Page 102: Figure 2-28: Top Cover Removal
Figure 2-28: Top cover removal 4. Locate the connectors J000, J002, J004, J006, and J008 on the A10 MAIN board. (See Figure 2-29.) Figure 2-29: Location of the mainframe GPI connectors on the A10 MAIN board 2–34 TG700 TV Signal Generator Platform User Manual...
Page 103: Figure 2-30: Applying The Mainframe Gpi Label To The Rear Panel
8. Remove the protective backing from the GPI label provided with the instrument, and then apply it to the rear panel. (See Figure 2-30.) Figure 2-30: Applying the mainframe GPI label to the rear panel TG700 TV Signal Generator Platform User Manual 2–35...
Page 104: Table 2-3: Pin Assignments Of The 10 Base-T Connector For The Mainframe Gpi
0.5 seconds before the preset signal is recognized. The time required to change the instrument settings depends on the contents of the selected preset. 2–36 TG700 TV Signal Generator Platform User Manual...
Page 105 Operating Basics Outputting an Alarm Signal When you enable the mainframe GPI, the TG700 can output an alarm signal from pin 6 on the 10 BASE-T connector when an internal error occurs. Since the output signal is an active low; the signal level for pin 6 goes from High to Low when any errors occur.
Page 106: Figure 2-31: Mainframe Gpi Alarm Menu
Use the ALARM menu items to enable or disable the alarm signal output, to reset the alarm signal output, or to display the alarm status. The following ﬁgure shows the ALARM menu. Figure 2-31: Mainframe GPI ALARM menu 2–38 TG700 TV Signal Generator Platform User Manual...
Page 107 If this message appears, check the frequency of the genlock signal or the internal reference signal of the TG700. Genlock: Loss of Lock: The TG700 cannot lock to the genlock signal. Genlock: No Signal: A genlock signal is not connected.
Page 108 AGL7 ALARM SELECT: Selects which of the AGL7 alarms are enabled or disabled. Select this menu item, and then press the ENTER button to access the AGL7 ALARM SELECT submenu. (See page 2-42.) 2–40 TG700 TV Signal Generator Platform User Manual...
Page 109 TG700 seems to be near loss of lock. Use the left (◄) or right (►) arrow button to select between Enable and Disable. Press the ENTER button to implement the selection.
Page 110 TG700 appears to be near loss of lock. Use the left (◄) or right (►) arrow button to select between Enable and Disable. Press the ENTER button to implement the selection.
Page 111: Inspection And Cleaning
Accessories Missing items or parts of items, bent pins, Replace damaged or missing items, broken or frayed cables, and damaged frayed cables, and defective modules connectors TG700 TV Signal Generator Platform User Manual 2–43...
Page 112 2. Remove remaining dirt with a lint-free cloth dampened with a 75% Isopropyl alcohol-and-water solution. Do not use abrasive cleaners. 3. Clean the monitor screen with a lint-free cloth dampened with a 75% Isopropyl alcohol-and-water solution. 2–44 TG700 TV Signal Generator Platform User Manual...
Page 113 Modules...
Page 115: Ag7 Audio Generator Module
TG700 Programmer Manual for information about the commands to remotely control the module. Product Description The AG7 Audio Generator module is designed to be installed in the TG700 TV Signal Generator Platform. The module can output serial digital audio signals that comply with the AES/EBU standard.
Page 116: Operating Procedure
4. Press the front-panel MODULE button until the AG7 module main menu appears as shown below. 5. Use the front-panel arrow buttons to navigate and select items in the main menu and submenus. (See page 3-3, AG7 Module Main Menu.) 3–2 TG700 TV Signal Generator Platform User Manual...
Page 117: Ag7 Module Main Menu
RESOLUTION. Sets the resolution of the serial digital audio signal data. Use the left (◄) or right (►) arrow button to make the selection. The choices are 24 bits or 20 bits. Press the ENTER button to enable the selection. TG700 TV Signal Generator Platform User Manual 3–3...
Page 118: Figure 3-2: Ag7 Module Channel Parameters Submenu
Use the up (▲) or down (▼) arrow button to scroll through the menu Submenu items. The following ﬁgure shows the CHANNEL PARAMETERS submenu. Figure 3-2: AG7 module CHANNEL PARAMETERS submenu 3–4 TG700 TV Signal Generator Platform User Manual...
Page 119: Figure 3-3: Ag7 Module Audio Timing Submenu
-160 ms to +160 ms in 1 ms steps. A minus timing value is set as Delay and plus is set as Advance. NOTE. You can reset the timing offset to zero by pressing the left (◄) or right (►) arrow buttons simultaneously. TG700 TV Signal Generator Platform User Manual 3–5...
Page 120: Factory Default Settings
Table 3-1: AG7 module factory default settings Menu item name Settings CHANNEL 1 to CHANNEL 8 Frequency 1000 Hz Amplitude -20.0 dBFS Audio Click RESOLUTION 20 bits AUDIO-VIDEO SYNC Free Run AUDIO TIMING Delay or Advance 0.0 msec 3–6 TG700 TV Signal Generator Platform User Manual...
Page 121: Agl7 Analog Genlock Module
TG700 Programmer Manual for information about the commands to remotely control the module. Product Description The AGL7 Analog Genlock module is designed to be installed in the TG700 TV Signal Generator Platform. The module provides genlock function for the mainframe and installed modules.
Page 122: Operating Procedure
4. Press the front-panel MODULE button until the AGL7 module main menu appears as shown below. 5. Use the front-panel arrow buttons to navigate and select items in the main menu and submenus. (See page 3-9, AGL7 Module Main Menu.) 3–8 TG700 TV Signal Generator Platform User Manual...
Page 123: Agl7 Module Main Menu
2, or BLACK 3. When you select any of these and press the ENTER button, you will access the OUTPUT submenu to set the parameters of the selected output. (See page 3-12.) TG700 TV Signal Generator Platform User Manual 3–9...
Page 124: Figure 3-5: Agl7 Module Genlock Submenu
Field ID signal applied to the REF connector. PAL Burst: Burst locks to a PAL black burst signal applied to the REF connector. 525 SYNC: Sync locks to an NTSC black burst signal applied to the REF connector. 3–10 TG700 TV Signal Generator Platform User Manual...
Page 125 The frame frequency is the same as the NTSC or PAL frequency that was previously used. Use a 5 MHz, 10 MHz, 3.58 MHz (for NTSC), or 4.43 MHz (for PAL) signal as a CW signal source. TG700 TV Signal Generator Platform User Manual 3–11...
Page 126: Figure 3-6: Agl7 Module Output Submenu
ENTER button to conﬁrm the selection and to access the SIGNAL submenu where you will select a black burst signal. (See page 3-13.) NTSC NTSC No Setup HD SYNC (Same as BLACK 3) 3–12 TG700 TV Signal Generator Platform User Manual...
Page 127: Figure 3-7: Agl7 Module Signal Submenu
PAL formats. Use the left (◄) or right (►) arrow button to select the black burst signal, and then press the ENTER button to conﬁrm the selection. The following ﬁgure shows the SIGNAL submenu. Figure 3-7: AGL7 module SIGNAL submenu TG700 TV Signal Generator Platform User Manual 3–13...
Page 128: Figure 3-8: Agl7 Module Timing Submenu
Horizontal coarse. Use the left (◄) or right (►) arrow button to adjust the coarse horizontal offset. The range of the timing adjustment depends on the selected signal format. (See Table 3-2.) (See Table 3-3.) 3–14 TG700 TV Signal Generator Platform User Manual...
Page 129: Table 3-2: Timing Adjustment Ranges For Agl7 Input Signals
1080 29.97p ± 562 ± 29.6593 ± 7.00 1080 25p ± 562 ± 35.5556 ± 7.00 1080 24p ± 562 ± 37.0370 ± 7.00 1080 23.98p ± 562 ± 37.0741 ± 7.00 TG700 TV Signal Generator Platform User Manual 3–15...
Page 130: Factory Default Settings
OUTPUT : BLACK 2 FORMAT NTSC SIGNAL Black Burst OUTPUT : BLACK 3 FORMAT 1080 59.94i SIGNAL Trilevel Sync BLACK x : TIMING Vertical 0 Line(s) Horizontal Coarse 0.0000 ms Horizontal Fine 0.00 nsec 3–16 TG700 TV Signal Generator Platform User Manual...
Page 131: Atg7 Analog Test Generator
TG700 Programmer Manual for information about the commands to remotely control the module. Product Description The ATG7 Analog Test Generator module is designed to be installed in the TG700 TV Signal Generator Platform. The module is an analog test signal generator that provides NTSC/PAL analog composite signals.
Page 132: Operating Procedure
BLACK 1, BLACK 2, and BARS connectors, and to set the other output parameters. Refer to ATG7 Module Main Menu for detailed information about the main menu and the submenu items. (See page 3-21.) 3–18 TG700 TV Signal Generator Platform User Manual...
Page 133: Selecting An Output Signal
Color Bars signal set is output. Press the left (◄) or right (►) arrow button, or press the COLOR BAR test signal button repeatedly to select a different signal from the Color Bars signal set. Figure 3-9: Front-panel test signal buttons TG700 TV Signal Generator Platform User Manual 3–19...
Page 134: Table 3-5: Atg7 Signal Sets Assigned To The Test Signal Buttons
Pulse & Bar 2T Pulse & Bar, Sin X/X OTHER Other CCIR 17, CCIR 18, CCIR 330, CCIR 331, UK ITS 1, UK ITS 2, UK 1 Line ITS, ITS Matrix 1 3–20 TG700 TV Signal Generator Platform User Manual...
Page 135: Atg7 Module Main Menu
(◄) or right (►) arrow button to make the selection. The choices are BLACK 1, BLACK 2, or BARS. Select any of the items, and then press the ENTER button to access the SELECT OUTPUT submenu. (See page 3-119.) TG700 TV Signal Generator Platform User Manual 3–21...
Page 136: Figure 3-11: Atg7 Module Select Output Submenu
Select the format you want, then press the front-panel ENTER button to access the SELECT SIGNAL submenu, where you select the output signal to use. (See page 3-23.) 3–22 TG700 TV Signal Generator Platform User Manual...
Page 137: Table 3-6: Test Signals In The Atg7 Select Signal Submenu
Black Burst, Black Burst with Field REF, Composite Sync, Composite Blanking, Subcarrier, H Drive, V Drive, Field Reference Black Burst, Black Burst No Field REF, Composite Sync, Composite Blanking, Subcarrier, H Drive, V Drive, Field Reference, PAL Pulse TG700 TV Signal Generator Platform User Manual 3–23...
Page 138: Figure 3-13: Atg7 Module Id Text Submenu
BARS outputs, and to set the display position of the text. Use the up (▲) or down (▼) arrow button to scroll through the menu. The following table shows the ID TEXT submenu. Figure 3-13: ATG7 module ID TEXT submenu 3–24 TG700 TV Signal Generator Platform User Manual...
Page 139 ENTER button to save the text and its position to the signal ﬁle being output. SAVE. Saves the text and its position to the signal ﬁle currently being output. Press the ENTER button to save them to the signal ﬁle. TG700 TV Signal Generator Platform User Manual 3–25...
Page 140: Figure 3-14: Atg7 Module Timing Submenu
The ATG7 horizontal timing can only be adjusted in clock cycle increments. You can match the AGL7 or GPS7 module timing to the ATG7 module by adjusting the ﬁne timing controls on the AGL7 or GPS7 module. 3–26 TG700 TV Signal Generator Platform User Manual...
Page 141: Figure 3-15: Atg7 Module Apl Submenu
APL (Bounce) or Bounce mode. Use the left (◄) or right (►) arrow button to change the interval. You can set the value from 0.5 seconds to 2.0 seconds in 0.5 second steps. TG700 TV Signal Generator Platform User Manual 3–27...
Page 142: Factory Default Settings
OUTPUT : BLACK 1 and BLACK 2 FORMAT NTSC SIGNAL Black Burst OUTPUT : BARS FORMAT NTSC SIGNAL SMPTE Color Bar ID TEXT Status Disable TIMING Vertical 0 Line(s) Horizontal 0.0000 msec Mode APL OFF Period 1.0 sec 3–28 TG700 TV Signal Generator Platform User Manual...
Page 143: Avg7 Analog Video Generator
Product Description The AVG7 Analog Video Generator module is designed to be installed in the TG700 TV Signal Generator Platform. The TG700 platform must be running version 3.1 or later software. The module is an analog video signal generator which provides analog composite and component video signals in various formats.
Page 144: Operating Procedure
6. Use the front-panel arrow buttons to navigate and select items in the main menu and submenus. Refer to AVG7 Module Main Menu for detailed information about the main menu items and the submenu items. (See page 3-36.) 3–30 TG700 TV Signal Generator Platform User Manual...
Page 145: Selecting An Output Signal
4. If you change the signal format while a test signal is being output, the instrument starts loading all of the signal sets for the selected format and displays the following message "Now Loading...". When you see the message, "Done (Press CANCEL)", press the CANCEL button. TG700 TV Signal Generator Platform User Manual 3–31...
Page 146: Table 3-8: Avg7 Signal Sets Assigned To The Test Signal Buttons
Color Bars signal set. Figure 3-16: Front-panel test signal buttons If your TG700 mainframe has 64 MB of memory installed, you can download a frame picture ﬁle created by the Frame Picture Generator to the mainframe and output the picture from the AVG7 module. (See page 1-2, Mainframe Memory Requirements.) Refer to the TG700 PC Tools Technical Reference for detailed...
Page 147 2T Pulse & Bar, Sin X/X —– —– TIMING —– —– OTHER Other ITS Matrix 1, UK 1 Line ITS 525 Beta format COLOR BAR Color Bars 100% Color Bars, 75% Color Bars TG700 TV Signal Generator Platform User Manual 3–33...
Page 148 Convergence Pattern, Grey Window, White Window, 2 Level Ped. & Pluge, 4 Level Ped. & Pluge, 75% Red Field, Chroma Noise PULSE BAR Pulse & Bar 2T Pulse & Bar, T Pulses 3–34 TG700 TV Signal Generator Platform User Manual...
Page 149 Convergence Pattern, Grey Window, 2 Level Ped. & Pluge, White Window, 4 Level Ped. & Pluge PULSE BAR Pulse & Bar Window 2T Pulse & Bar TIMING Timing Bowtie —– —– —– —– OTHER TG700 TV Signal Generator Platform User Manual 3–35...
Page 150: Avg7 Module Main Menu
Scroll the active picture area of the output signal. Use the up (▲) or down (▼) arrow button to scroll through the main menu. The following ﬁgure shows the AVG7 module main menu. Figure 3-17: AVG7 module main menu 3–36 TG700 TV Signal Generator Platform User Manual...
Page 151 APL. Sets the APL and Bounce features available for the signal output. When you select this menu item and then press the ENTER button, you will access the APL submenu. (See page 3-47.) TG700 TV Signal Generator Platform User Manual 3–37...
Page 152: Figure 3-18: Avg7 Module Moving Picture Submenu
Random. Sets whether or not the picture scrolls randomly. Use the left (◄) or right (►) arrow button to select between Disable and Enable. Press the ENTER button to conﬁrm the selection. 3–38 TG700 TV Signal Generator Platform User Manual...
Page 153: Figure 3-19: Avg7 Module Overlay Submenu
ENTER button to conﬁrm the selection. OFF: Turns off the blinking function of the overlay. Fast: Sets the overlay to blink at approximately 0.5 second intervals. Slow: Sets the overlay to blink at approximately 1.0 second intervals. TG700 TV Signal Generator Platform User Manual 3–39...
Page 154: Figure 3-20: Avg7 Module Logo Submenu
To display a logo using the LOGO submenu, you need to create a logo ﬁle (.lgo) and download it to the LOGO folder of the module. Refer to the TG700 PC Tools Technical Reference for detailed information about how to create a logo ﬁle and download it to the TG700.
Page 155: Figure 3-21: Avg7 Module Id Text Submenu
Y position. Sets the vertical position of the text. The position is set as a percentage of active picture height. Use the left (◄) or right (►) arrow button to change the position. You can set the value from 0.0% to 100.0% in 1% steps. TG700 TV Signal Generator Platform User Manual 3–41...
Page 156 ENTER button to save the text and its position to the signal ﬁle. SAVE. Saves the text and its position to the signal ﬁle currently being output. Press the ENTER button to save the text and its position to the signal ﬁle. 3–42 TG700 TV Signal Generator Platform User Manual...
Page 157: Figure 3-22: Avg7 Module Circle Submenu
Diameter. Sets the diameter of the circle. The diameter is set as a percentage of active picture height. Use the left (◄) or right (►) arrow button to change the value. You can set the value from 0.0% to 100.0% in 1% steps. TG700 TV Signal Generator Platform User Manual 3–43...
Page 158: Figure 3-23: Avg7 Module Timing Submenu
Horizontal ﬁne. Use the left (◄) or right (►) arrow button to adjust the ﬁne horizontal offset. You can set the value from -10 ns to +10 ns in 0.1 ns steps. 3–44 TG700 TV Signal Generator Platform User Manual...
Page 159: Figure 3-24: Avg7 Module Video Submenu
GBR signal is being output. Use the up (▲) or down (▼) arrow button to scroll through the menu. The following ﬁgure shows the VIDEO submenu. Figure 3-24: AVG7 module VIDEO submenu TG700 TV Signal Generator Platform User Manual 3–45...
Page 160 If you try to set the SCH phase over +180 degrees, the value jumps to -179 degrees. Also, if you try to set the SCH phase under -180 degrees, the value jumps to +179 degrees. 3–46 TG700 TV Signal Generator Platform User Manual...
Page 161: Figure 3-25: Avg7 Module Apl Submenu
APL (Bounce) or Bounce mode. Use the left (◄) or right (►) arrow button to change the interval. You can set the value from 0.5 seconds to 2.0 seconds in 0.5 second steps. TG700 TV Signal Generator Platform User Manual 3–47...
Page 162: Factory Default Settings
0 Line(s) Horizontal Coarse 0.0000 ms Horizontal Fine 0.00 ns VIDEO CONFIGURATION CH1/2/3 Composites GBR SYNC Sync ON All Channels B/Pb/B-Y R/Pr/R-Y SCH PHASE 0 deg MODE APL OFF PERIOD 1.0 s 3–48 TG700 TV Signal Generator Platform User Manual...
Page 163: Awvg7 Analog Wideband Video Generator
1080/60i, 1080/59.94i, 1080/24sF, 1080/23.98sF, 720/60p, and 720/59.94p. Signals for additional system formats are included on the TG700 Software Library CD-ROM that is supplied as a standard accessory. Refer to the TG700 PC Tools Technical Reference for detailed information on how to download signal ﬁles from the CD-ROM to the TG700.
Page 164: Operating Procedure
6. Use the front-panel arrow buttons to navigate and select items in the main menu and submenus. Refer to AWVG7 Module Main Menu for detailed information about the main menu items and the submenu items. (See page 3-53.) 3–50 TG700 TV Signal Generator Platform User Manual...
Page 165: Selecting An Output Signal
4. If you change the signal format while a test signal is being output, the instrument starts loading all of the signal sets for the selected format and displays the message "Now Loading...". When you see the message, "Done (Press CANCEL)", press the CANCEL button. TG700 TV Signal Generator Platform User Manual 3–51...
Page 166: Table 3-10: Awvg7 Signal Set Assigned To The Test Signal Buttons
Color Bars signal set. Figure 3-26: Front-panel test signal buttons If your TG700 mainframe has 64 MB of memory installed, you can download a frame picture ﬁle created by the Frame Picture Generator to the mainframe and output the picture from the AWVG7 module. (See page 1-2, Mainframe Memory Requirements.) Refer to the TG700 PC Tools Technical Reference for detailed...
Page 167: Awvg7 Module Main Menu
Figure 3-27: AWVG7 module main menu MOVING PICTURE. Scrolls the active picture area of the output test signal. Select this menu item, and then press the ENTER button to access the MOVING PICTURE submenu. (See page 3-54.) TG700 TV Signal Generator Platform User Manual 3–53...
Page 168: Figure 3-28: Awvg7 Module Moving Picture Submenu
V step. Sets the number of lines to be scrolled per frame set in the Period menu item. Use the left (◄) or right (►) arrow button to change the value. You can set the value from -15 to +15 in 1-line steps. 3–54 TG700 TV Signal Generator Platform User Manual...
Page 169: Figure 3-29: Awvg7 Module Overlay Submenu
ENTER button to conﬁrm the selection. OFF: Turns off the blinking function of the overlay. Fast: Sets the overlay to blink at approximately 0.5 second intervals. Slow: Sets the overlay to blink at approximately 1.0 second intervals. TG700 TV Signal Generator Platform User Manual 3–55...
Page 170: Figure 3-30: Awvg7 Module Logo Submenu
To display a logo using the LOGO submenu, you need to create a logo ﬁle (.lgo) and download it to the LOGO folder of the module. Refer to the TG700 PC Tools Technical Reference for detailed information about how to create a logo ﬁle and download it to the TG700.
Page 171: Figure 3-31: Awvg7 Module Id Text Submenu
Y position. Sets the vertical position of the text. The position is set as a percentage of active picture height. Use the left (◄) or right (►) arrow button to change the position. You can set the value from 0.0% to 100.0% in 1% steps. TG700 TV Signal Generator Platform User Manual 3–57...
Page 172 ENTER button to save the text and its position to the signal ﬁle. SAVE. Saves the text and its position to the signal ﬁle currently being output. Press the ENTER button to save the text and its position to the signal ﬁle. 3–58 TG700 TV Signal Generator Platform User Manual...
Page 173: Figure 3-32: Awvg7 Module Circle Submenu
Diameter. Sets the diameter of the circle. The diameter is set as a percentage of active picture height. Use the left (◄) or right (►) arrow button to change the value. You can set the value from 0.0% to 100.0% in 1% steps. TG700 TV Signal Generator Platform User Manual 3–59...
Page 174: Figure 3-33: Awvg7 Module Timing Submenu
(frame reset signal). Use the up (▲) or down (▼) arrow button to change the menu items. The following ﬁgure shows the TIMING submenu. Figure 3-33: AWVG7 module TIMING submenu 3–60 TG700 TV Signal Generator Platform User Manual...
Page 175: Table 3-11: Timing Adjustment Ranges For Awvg7 Module Output Signals
± 375 ± 45.9770 ± 10.00 720 25p YPbPr/GBR ± 375 ± 44.4444 ± 10.00 720 24p YPbPr/GBR ± 375 ± 55.5556 ± 10.00 720 23p YPbPr/GBR ± 375 ± 55.6111 ± 10.00 TG700 TV Signal Generator Platform User Manual 3–61...
Page 176: Figure 3-34: Awvg7 Module Video Submenu
ON and OFF. Press the ENTER button to conﬁrm the selection. The signal name that is displayed before the ON/OFF status depends on the format of the currently selected signal (YPbPr component or GBR component). 3–62 TG700 TV Signal Generator Platform User Manual...
Page 177: Factory Default Settings
Status Disable X Position 0.0% APH Y Position 0.0% APH Diameter 90.0% APH TIMING Vertical 0 Line(s) Horizontal Coarse 0.000 ms Horizontal Fine 0.00 ns VIDEO GBR SYNC Sync ON All Channels TG700 TV Signal Generator Platform User Manual 3–63...
Page 178: Bg7 Black Generator
TG700 Programmer Manual for information about the commands to remotely control the module. Product Description The BG7 Black Generator module is designed to be installed in the TG700 TV Signal Generator Platform. The module is a multiformat black generator with the following features: Four outputs for NTSC (with or without setup) or PAL black burst and HDTV trilevel sync signals.
Page 179: Operating Procedure
5. Use the front-panel arrow buttons to navigate and select items in the main menu and submenus. Refer to BG7 Module Main Menu for detailed information about the main menu items and submenu items. (See page 3-66.) TG700 TV Signal Generator Platform User Manual 3–65...
Page 180: Bg7 Module Main Menu
BLACK 1, BLACK 2, BLACK 3, and BLACK 4. Use the left (◄) or right (►) arrow button to select the desired output, and then press the ENTER button to access the SELECT FORMAT submenu. (See page 3-67.) 3–66 TG700 TV Signal Generator Platform User Manual...
Page 181: Figure 3-36: Bg7 Module Select Format Submenu
1.2 or above and the mainframe must have software version 5.1 or above installed. This submenu is not available when HD SYNC is the selected signal format. (See page 3-70.) TG700 TV Signal Generator Platform User Manual 3–67...
Page 182: Table 3-13: Bg7 Module Signals For Each Signal Format
1080 60i, 1080 59.94i, 1080 50i, 1080 24sF, 1080 23.98sF, 1080 30p, 1080 29.97p, 1080 25p, 1080 24p, 1080 23.98p, 720 60p, 720 59.94p, 720 50p These signals are available only from the BLACK 3 and BLACK 4 connectors. 3–68 TG700 TV Signal Generator Platform User Manual...
Page 183: Figure 3-38: Bg7 Module Timing Submenu
Horizontal. Use the left (◄) or right (►) arrow button to adjust the horizontal offset. You can set the value from -1 line to +1 line in one clock steps (18.5 ns for NTSC or PAL, 13.5 ns for HDTV). TG700 TV Signal Generator Platform User Manual 3–69...
Page 184: Figure 3-39: Bg7 Module Timecode Submenu
This submenu is not available when the selected signal format is HD SYNC. Use the up (▲) or down (▼) arrow button to change the menu items. The following ﬁgure shows the TIMECODE submenu. Figure 3-39: BG7 module TIMECODE submenu 3–70 TG700 TV Signal Generator Platform User Manual...
Page 185 Select VITC 1 for one line and VITC 2 for the second line. Select the VITC signal you want to conﬁgure, and then press the ENTER button to enter the VITC submenu for the selected signal. (See page 3-72.) TG700 TV Signal Generator Platform User Manual 3–71...
Page 186: Figure 3-40: Bg7 Module Vitc Submenu
The line number range varies by format: you can select from line 10 to line 20 for NTSC, and from line 6 through line 22 for PAL. Press the ENTER button to conﬁrm the selection. 3–72 TG700 TV Signal Generator Platform User Manual...
Page 187: Factory Default Settings
Below are menus present when a GPS7 module is also installed in the mainframe TIMECODE SOURCE Disable Enable Drop Frame 30 DROP VITC OUTPUT Disable VITC 1 Line 14 VITC 2 Line 16 TG700 TV Signal Generator Platform User Manual 3–73...
Page 188: Dvg7 Digital Video Generator
TG700 Speciﬁcations and Performance Veriﬁcation Technical Reference for module speciﬁcations and for a detailed procedure to verify that the module is functioning as speciﬁed. TG700 Programmer Manual for information about the commands to remotely control the module. Product Description The DVG7 Digital Video Generator module is designed to be installed in the TG700 TV Signal Generator Platform.
Page 189: Operating Procedure
6. Use the front-panel arrow buttons to navigate and select items in the main menu and submenus. Refer to DVG7 Module Main Menu for detailed information about the main menu items and the submenu items. (See page 3-79.) TG700 TV Signal Generator Platform User Manual 3–75...
Page 190: Selecting An Output Signal
(See Figure 3-41.) For example, when you press the COLOR BAR test signal button, a signal in the Color Bars signal set is output. 3–76 TG700 TV Signal Generator Platform User Manual...
Page 191: Table 3-15: Dvg7 Module Signal Set Assigned To The Test Signal Buttons
Color Bars signal set. Figure 3-41: Front-panel test signal buttons If your TG700 mainframe has 64 MB of memory installed, you can download a frame picture ﬁle created by the Frame Picture Generator to the mainframe and output the picture from the DVG7 module.
Page 192 2.5 MHz Bowtie, 500 kHz Bowtie, Active Picture Timing, Co-Siting Pulse SDI Test Equalizer Test, PLL Test, SDI Matrix OTHER Other CCIR 17, CCIR 18, CCIR 330, CCIR 331, CCIR 331 G2 3–78 TG700 TV Signal Generator Platform User Manual...
Page 193: Dvg7 Module Main Menu
Set the timing offset on the output signals. Scroll the active picture area of the output signal. Enable or disable the output and set parameters for each embedded audio group. Enable or disable the video output signal. TG700 TV Signal Generator Platform User Manual 3–79...
Page 194: Figure 3-42: Dvg7 Module Main Menu
DVG7 Digital Video Generator Use the up (▲) or down (▼) arrow button to scroll through the main menu. The following ﬁgure shows the DVG7 module main menu. Figure 3-42: DVG7 module main menu 3–80 TG700 TV Signal Generator Platform User Manual...
Page 195 BLACK 1 and BLACK 2 connectors. Select this menu item, and then press the ENTER button to access the BLACK submenu. (See page 3-232.) TG700 TV Signal Generator Platform User Manual 3–81...
Page 196: Figure 3-43: Dvg7 Module Moving Picture Submenu
Random. Sets whether or not the picture scrolls randomly. Use the left (◄) or right (►) arrow button to select between Disable and Enable. Press the ENTER button to conﬁrm the selection. 3–82 TG700 TV Signal Generator Platform User Manual...
Page 197: Figure 3-44: Dvg7 Module Overlay Submenu
ENTER button to conﬁrm the selection. OFF: Turns off the blinking function of the overlay. Fast: Sets the overlay to blink at approximately 0.5 second intervals. Slow: Sets the overlay to blink at approximately 1.0 second intervals. TG700 TV Signal Generator Platform User Manual 3–83...
Page 198: Figure 3-45: Dvg7 Module Logo Submenu
To display a logo using the LOGO submenu, you need to create a logo ﬁle (.lgo) and download it to the LOGO folder of the module. Refer to the TG700 PC Tools Technical Reference for detailed information about how to create a logo ﬁle and download it to the TG700.
Page 199: Figure 3-46: Dvg7 Module Id Text Submenu
Y position. Sets the vertical position of the text. The position is set as a percentage of active picture height. Use the left (◄) or right (►) arrow button to change the position. You can set the value from 0.0% to 100.0% in 1% steps. TG700 TV Signal Generator Platform User Manual 3–85...
Page 200 ENTER button to save the text and its position to the signal ﬁle. SAVE. Saves the text and its position to the signal ﬁle currently being output. Press the ENTER button to save the text and its position to the signal ﬁle. 3–86 TG700 TV Signal Generator Platform User Manual...
Page 201: Figure 3-47: Dvg7 Module Circle Submenu
Diameter. Sets the diameter of the circle. The diameter is set as a percentage of active picture height. Use the left (◄) or right (►) arrow button to change the value. You can set the value from 0.0% to 100.0% in 1% steps. TG700 TV Signal Generator Platform User Manual 3–87...
Page 202: Figure 3-48: Dvg7 Module Audio Group Submenu
Use the left (◄) or right (►) arrow button to select 1, 2, 3, or 4. Select any audio channel, and then press the ENTER button to access the AUDIO CHANNEL submenu. (See page 3-89.) 3–88 TG700 TV Signal Generator Platform User Manual...
Page 203: Figure 3-49: Dvg7 Module Audio Channel Submenu
Use the up (▲) or down (▼) arrow Submenu button to scroll through the menu. The following ﬁgure shows the AUDIO CHANNEL submenu. Figure 3-49: DVG7 module AUDIO CHANNEL submenu TG700 TV Signal Generator Platform User Manual 3–89...
Page 204 When Audio Click is OFF, the Audio Tone selected in the FREQUENCY menu is output continuously. Audio Click makes it easy to identify any channel(s) of the four output channels. 3–90 TG700 TV Signal Generator Platform User Manual...
Page 205: Figure 3-50: Dvg7 Module Timing Submenu
1-clock (37.0 ns for 525-270 and 625-270 formats, 69.8 ns for 525-143 format) steps. NOTE. You can reset the timing offset to zero by pressing the left (◄) or right (►) arrow buttons simultaneously. TG700 TV Signal Generator Platform User Manual 3–91...
Page 206: Figure 3-51: Dvg7 Module Video Submenu
Turn the output mode for an audio/video timing measurement on or off. Use the up (▲) or down (▼) arrow button to scroll through the menu. The following ﬁgure shows the VIDEO submenu. Figure 3-51: DVG7 module VIDEO submenu 3–92 TG700 TV Signal Generator Platform User Manual...
Page 207 Audio signal (CH1 and CH2 of Group 1): 10000 Hz, -20 dBFS Video signal: 100% Flat Field NOTE. The AV Timing Mode setting is not saved as a preset. TG700 TV Signal Generator Platform User Manual 3–93...
Page 208: Figure 3-52: Dvg7 Module Black Submenu (Option Bk Only)
Use the left (◄) or right (►) arrow button to select Group 1, Group 2, Group 3, or Group 4. Select any of the groups, and then press the ENTER button to access the AUDIO GROUP submenu. (See page 3-88.) 3–94 TG700 TV Signal Generator Platform User Manual...
Page 209: Factory Default Settings
Disable OVERLAY : CIRCLE Status Disable X Position 0.0% APH Y Position 0.0% APH Diameter 90% APH AUDIO : GRP-1 to GRP-4 Status Disable Emphasis No Emphasis Sampling Frame Resolution 20 bits TG700 TV Signal Generator Platform User Manual 3–95...
Page 210 No Emphasis Sampling Frame Resolution 20 bits (BLACK) AUDIO : CH-1 to CH-4 Frequency 1000 Hz Amplitude -20.0 dBFS Audio Click (BLACK)TIMING Vertical 0 Line(s) 0.0000 μs Horizontal (BLACK)VIDEO Resolution 10 bits 3–96 TG700 TV Signal Generator Platform User Manual...
Page 211: Gps7 Gps Synchronization And Timecode Module
TG700 Speciﬁcations and Performance Veriﬁcation Technical Reference for module speciﬁcations and for a detailed procedure to verify that the module is functioning as speciﬁed. TG700 Programmer Manual for information about the commands to remotely control the module. TG700 TV Signal Generator Platform User Manual...
Page 212: Product Description
GPS7 GPS Synchronization and Timecode Module Product Description The GPS7 GPS Synchronization and Timecode module is designed to be installed in the TG700 TV Signal Generator Platform. The module provides the following features: Integrated GPS receiver that can serve as the system timing reference...
Page 213: Operating Procedure
(See page 3-100, Conﬁgure the GPS7 Module.) After you have conﬁgured the module, save the conﬁguration as the power-on preset so that if power is lost, the GPS7 will power-on in the correct conﬁguration. (See page 2-19, PRESET Submenu.) TG700 TV Signal Generator Platform User Manual 3–99...
Page 214: Conﬁgure The Gps7 Module
GPS7 module installed, this calibration can be done while the instrument is in service. WARNING. Dangerous electric shock hazards exist inside the TG700 mainframe. Only qualiﬁed service personnel should perform these procedures. Failure to use appropriate precautions can result in injury or death.
Page 215 1. Connect the power cord to the TG700 mainframe. 2. Check for error messages as the instrument starts. 3. Connect a GPS signal to the rear of the module.
Page 216 FRONT PANEL ENABLE button while plugging the power back into the instrument. Continue to hold the button during start up until TG700 Start up with factory mode shows on the LCD display. 3. Allow the instrument to warm up for a minimum of 20 minutes.
Page 217 Prevent risk of shock or ﬁre by ensuring that the GPS antenna is protected from lightning strikes when it is mounted outside a building or facility. The GPS7 module and TG700 mainframe do not have isolation protection from lightning, so the facility installation must provide suitable protection for the GPS antenna external to the TG700 mainframe.
Page 218 When evaluating a site, it is important to monitor it over several days and with a variety of weather conditions present. 3–104 TG700 TV Signal Generator Platform User Manual...
Page 219: Table 3-17: Figures Of Merit For Signal Quality
This means that the instrument detects that the stored position is different from the current position. In this case, the instrument will automatically go to FOM state 4 and reacquire the position. TG700 TV Signal Generator Platform User Manual 3–105...
Page 220 In particular, it illustrates how the different user inputs and conﬁguration settings combine with the time base to create the timecode. An asterisk (*) denotes points of possible user input. 3–106 TG700 TV Signal Generator Platform User Manual...
Page 221 GPS7 GPS Synchronization and Timecode Module Figure 3-54: Time ﬂow block diagram TG700 TV Signal Generator Platform User Manual 3–107...
Page 222 0:00:00 January 1, 1958. Proposed standard SMPTE 404M deﬁnes the SMPTE Epoch at that same moment. There are exactly 8040 days and 19 leap seconds between the SMPTE Epoch (TAI) and the GPS Epoch. 3–108 TG700 TV Signal Generator Platform User Manual...
Page 223 "Synchronize now" or "Synchronize once", and the time-zone offset is changed after the time-code sync has occurred, then the time-zone change offsets the incoming and outgoing time codes until the user reasserts the time synchronization. TG700 TV Signal Generator Platform User Manual 3–109...
Page 224 SNTP Server. The GPS7 includes an implementation of the Simple Network Time Protocol (version 3.0), using the network interface of the TG700 mainframe. The SNTP server is automatic; when the Master time is set to GPS and the GPS7 acquires a valid time, the server will respond with valid SNTP packets to time requests from NTP clients.
Page 225 GPS7 module can help you decide how to conﬁgure it to Settings best meet the needs of your speciﬁc applications. The GPS7 menu trees and menu descriptions can help you conﬁgure the module. (See page 3-112, GPS7 Module Main Menu.) TG700 TV Signal Generator Platform User Manual 3–111...
Page 226: Gps7 Module Main Menu
BLACK 1 output connector). Modules without REF IN do not support Genlock. Menus illustrated in this manual represent the newest features. GPS7 modules without the REF IN input have similar menu structures but not identical menu content. 3–112 TG700 TV Signal Generator Platform User Manual...
Page 227: Figure 3-55: Gps7 Module Main Menu
GPS7 GPS Synchronization and Timecode Module Use the up (▲) or down (▼) arrow button to scroll through the main menu. The following ﬁgure shows the GPS7 module main menu. Figure 3-55: GPS7 module main menu TG700 TV Signal Generator Platform User Manual 3–113...
Page 228 Use the left (◄) or right (►) arrow button to select the output you want to conﬁgure (BLACK 1, BLACK 2, or BLACK 3), and then press the ENTER button to access the BLACK submenu. (See page 3-119.) 3–114 TG700 TV Signal Generator Platform User Manual...
Page 229 (See page 3-138.) DIAGNOSTICS. Allows access to the outputs of several diagnostics. Select this menu item, and then press the ENTER button to enter the DIAGNOSTICS submenu. (See page 3-139.) TG700 TV Signal Generator Platform User Manual 3–115...
Page 230: Figure 3-56: Gps7 Module Reference Submenu
HD SYNC: Uses the HDTV trilevel signal applied to the BLACK 1 / REF IN connector as the timing reference. NOTE. The Time Of Day can also be set to Internal, VITC, or GPS. (See page 3-126, TIME OF DAY submenu.) 3–116 TG700 TV Signal Generator Platform User Manual...
Page 231 Stay Current Frequency: Sets the module timing to keep operating at the current frequency until the reference signal is recovered. Go Internal Frequency: Sets the module timing to switch to the internal frequency setting until the reference signal is recovered. TG700 TV Signal Generator Platform User Manual 3–117...
Page 232 “shock” to the system. Fast Slew: Adjusts the module timing to match the recovered GPS signal at a rate 25 times faster than the legal rate without jumping. 3–118 TG700 TV Signal Generator Platform User Manual...
Page 233: Figure 3-57: Gps7 Module Black Submenu
GPS reference. NOTE. This submenu is available only when BLACK 1 is selected for conﬁguration and the module has the BLACK 1 / REF IN connector. TG700 TV Signal Generator Platform User Manual 3–119...
Page 234: Table 3-18: Gps7 Module Output Signal Formats
REF as the output signal type. Press the ENTER button to conﬁrm the selection. BLACK TIMING. Press the ENTER button to access the BLACK TIMING submenu shown below. Figure 3-58: GPS7 module TIMING submenu 3–120 TG700 TV Signal Generator Platform User Manual...
Page 235 If conﬁgured to blank on loss of lock, this output should not be used for normal reference applications. NOTE. This submenu is available only when BLACK 2 is the selected output. TG700 TV Signal Generator Platform User Manual 3–121...
Page 236: Figure 3-59: Gps7 Module Timecode Submenu
Disable: Disables the timecode function for the selected Black output. NOTE. In addition to enabling the timecode source, at least one line must be speciﬁed and enabled to carry VITC using the VITC submenu below. 3–122 TG700 TV Signal Generator Platform User Manual...
Page 237: Figure 3-60: Gps7 Module Vitc Submenu
For NTSC, you can select lines from line 10 to 20 (lines 14 and 16 are recommended). For PAL, you can select lines between 6 and 22 (lines 19 and 21 are recommended). Press the ENTER button to conﬁrm the selection. TG700 TV Signal Generator Platform User Manual 3–123...
Page 238: Figure 3-61: Gps7 Module Gps Setup Submenu
OFF: No power is supplied to the GPS antenna. 3.3 V: Supplies 3.3 V DC to power the GPS antenna. 5 V: Supplies 5 V DC to power the GPS antenna. 3–124 TG700 TV Signal Generator Platform User Manual...
Page 239 GPO submenu. (See page 3-138, GPO Submenu.) Use the left (◄) or right (►) arrow button to select the FOM (quality of the GPS signal) value that will trigger warning indicators. (See page 3-105, Figures of Merit (FOM).) TG700 TV Signal Generator Platform User Manual 3–125...
Page 240: Figure 3-62: Gps7 Module Time Of Day Submenu
Selecting Internal applies the start time and date. Typically, this causes a disruption to the syncs, so care should be taken to verify the date and time are correct before selecting Internal mode. 3–126 TG700 TV Signal Generator Platform User Manual...
Page 241 Typically, this causes a disruption to the syncs, so care should be taken to verify the date and time are correct before selecting Internal mode. NOTE. The time zone offset must be set to maintain the correct relationship between UTC and local time. TG700 TV Signal Generator Platform User Manual 3–127...
Page 242: Figure 3-63: Gps7 Module Time Zone Offset Submenu
When the DST event occurs, the scheduled offset will be added to the time zone offset, and the DST schedule will be cleared. This allows for a new schedule to be set up for any time in the future. 3–128 TG700 TV Signal Generator Platform User Manual...
Page 243: Figure 3-64: Gps7 Module Dst Schedule Submenu
After you select an offset digit, use the up (▲) or down (▼) arrow button to change the value of the digit. Repeat for each digit as required for your offset. Press the ENTER to conﬁrm the offset change. TG700 TV Signal Generator Platform User Manual 3–129...
Page 244: Figure 3-65: Gps7 Module Program Time Submenu
After you select a digit, use the up (▲) or down (▼) arrow button to change the value of the digit. Repeat for each digit as required. Press the ENTER to conﬁrm the change. 3–130 TG700 TV Signal Generator Platform User Manual...
Page 245: Figure 3-66: Gps7 Module Jam Sync Submenu
Repeat for each digit as required. Press the ENTER to conﬁrm the change. NOTE. A daily Jam Sync should be performed on systems running at non-integer frame rates. TG700 TV Signal Generator Platform User Manual 3–131...
Page 246: Figure 3-67: Gps7 Module Leap Second Submenu
Repeat for each digit as required. Press the ENTER to conﬁrm the change. NOTE. The LEAP SECOND menu is only available when GPS is the Reference source. 3–132 TG700 TV Signal Generator Platform User Manual...
Page 247: Figure 3-68: Gps7 Module Alarm Time Submenu
After you select a digit, use the up (▲) or down (▼) arrow button to change the value of the digit. Repeat for each digit as required. Press the ENTER to conﬁrm the change. TG700 TV Signal Generator Platform User Manual 3–133...
Page 248: Figure 3-69: Gps7 Module Alarm Delay Submenu
After you select a digit, use the up (▲) or down (▼) arrow button to change the value of the digit. Repeat for each digit as required. Press the ENTER to conﬁrm the change. 3–134 TG700 TV Signal Generator Platform User Manual...
Page 249: Figure 3-70: Gps7 Module Ltc Submenu
Use this menu to conﬁgure the LTC outputs. Use the up (▲) or down (▼) arrow button to change the menu items. The following ﬁgure shows the LTC submenu. Figure 3-70: GPS7 module LTC submenu TG700 TV Signal Generator Platform User Manual 3–135...
Page 250: Table 3-19: Ltc Output Signal Formats
LTC output. (See page 3-137.) OUTPUT LEVEL. Use the left (◄) or right (►) arrow button to set the signal level of the selected LTC output between 0.5 V and 5.0 V. 3–136 TG700 TV Signal Generator Platform User Manual...
Page 251: Figure 3-71: Gps7 Module Ltc Timing Submenu
Both actions require that the input timecode has been valid for 100 continuous frames. In VITC mode, this input is equivalent to executing set commands from both the Jam Sync menu and the Time of Day synchronize function. TG700 TV Signal Generator Platform User Manual 3–137...
Page 252: Figure 3-73: Gps7 Module Gpo Submenu
This could also indicate that the oven oscillator is near its end of life and the TG700 needs to be serviced. No Genlock Detected: Output goes low when no Genlock signal is detected.
Page 253: Figure 3-74: Gps7 Module Diagnostics Submenu
TUNE. This diagnostic displays the following: Phase – The phase between the GPS pulse per second and the internal master time. A Tektronix Customer Service Representative may request these values for troubleshooting installation issues, should they occur. DAC – The DAC code that is tuning the oscillator. Useful for checking if a unit is getting close to the end of the oven oscillator tune range.
Page 254 LTC NEG INPUT. This diagnostic displays the following: Min (Raw) – The minimum raw ADC values of the negative LTC input. Max (Raw) – The maximum raw ADC values of the negative LTC input. 3–140 TG700 TV Signal Generator Platform User Manual...
Page 255: Factory Default Settings
Source: Disable Offset: + 00:00:00:00 30 Drop: Disable 30 Drop Frame VITC VITC 1 Output: Disable Line Number: 14 VITC 2 Output: Disable Line Number: 16 BLANK ON GPS UNLOCK (Black 2 only) TG700 TV Signal Generator Platform User Manual 3–141...
Page 256 Time of Day LTC 3 OFFSET + 00:00:00:00 LTC 4 TIMING Delay: 0.00 ms OUTPUT Level: 2.0 Volt LEVEL SELECT GPIO INPUT 1 Trigger Select: None OUTPUT 1 Alarm Select: None OUTPUT 2 3–142 TG700 TV Signal Generator Platform User Manual...
Page 257: Hd3G7 Hd 3 Gb/S Sdi Video Generator
TG700 Speciﬁcations and Performance Veriﬁcation Technical Reference for module speciﬁcations and for a detailed procedure to verify that the module is functioning as speciﬁed. TG700 Programmer Manual for information about the commands to remotely control the module. TG700 TV Signal Generator Platform User Manual...
Page 258: Product Description
Product Description The HD3G7 HD 3 Gb/s SDI Video Generator module is designed to be installed in the TG700 TV Signal Generator Platform. The module can be operated in either of the following two modes: Generator: The module can output 3 Gb/s SDI and 1.5 Gb/s HD-SDI video test signals in a variety of formats, including both Level A and Level B mapping structures for 3G-SDI signals.
Page 259: Operating Procedure
NOTE. In addition to the factory installed signal sets, there are enhanced signal sets available for the HD3G7 module. These signal sets are located on the TG700 SW Library and Documentation DVD that was supplied with your instrument. (See page 3-156, Install the Enhanced Signal Sets.) TG700 TV Signal Generator Platform User Manual 3–145...
Page 260: Selecting An Output Signal
4:4:4 10b Table 3-23: HD3G7 Generator mode – 3G Level A (2K × 1080) Structure 59.94i 50i 60i 23.98p 24p 25p 29.97p 30p 50p 59.94p 60p 23.98psf 24psf 25psf 29.97psf 30psf 4:4:4 12b 3–146 TG700 TV Signal Generator Platform User Manual...
Page 261: Table 3-24: Hd3G7 Generator Mode - 3G Level B (1920 × 1080)
4:2:2 10b Table 3-29: HD3G7 Generator mode – HD-SDI (1280 × 720) Structure 59.94i 50i 60i 23.98p 24p 25p 29.97p 30p 50p 59.94p 60p 23.98psf 24psf 25psf 29.97psf 30psf YCbCr 4:2:2 10b TG700 TV Signal Generator Platform User Manual 3–147...
Page 262 29.97 59.94 23.98 29/97 Output Format 59.94i 50i 23.98p 24p 25p 29.97p 30p 50p 59.94p 60p 23.98psf 24psf 25psf 29.97psf 30psf Output sample structure YCbCr 4:4:4 YCbCr+A YCbCr 4:2:2 YCbCr+A 4:4:4 GBR+A 3–148 TG700 TV Signal Generator Platform User Manual...
Page 263 4. Press the ENTER button to select the desired output mode. Note that the dot will appear in front of the output mode on the display, to indicate that it is now the selected output mode. TG700 TV Signal Generator Platform User Manual 3–149...
Page 264 • YCbCr 422 10b 2K line formats • XYZ 444 12b • RGB 444 12b HD format • YCbCr 422 10b When the desired sample structure is displayed, press the ENTER button to select it. 3–150 TG700 TV Signal Generator Platform User Manual...
Page 265: Figure 3-75: Front-Panel Test Signal Buttons
“–1” set of colors deﬁned in Table A.4 of the RP. The lower half is a set of desaturated color bars, corresponding to the “–2” color patch values. TG700 TV Signal Generator Platform User Manual 3–151...
Page 266 75% saturation. The fourth row of ramps includes fully saturated colors at 100% value. The next three rows of ramps are at 75%, 50%, and 25% value. The bottom row of ramps is monochrome. 3–152 TG700 TV Signal Generator Platform User Manual...
Page 267 No test signals are currently available for the MULTIBURST signal set. SWEEP Circle, Diagonal Sine, Zone plate test signal with real-time parametric controls. (See H Sine, H Sweep, V Sine, V Sweep, page 3-157, Zone Plate Signals.) Custom-1, Custom-2 TG700 TV Signal Generator Platform User Manual 3–153...
Page 268 This pattern is used to verify convergence of RGB channels, and no color fringing should be visible on the white lines and dots when the channels are aligned. 3–154 TG700 TV Signal Generator Platform User Manual...
Page 269 For 3G output formats only. Use this button to select the converter mode of operation. Press any other test signal button to return to generator mode operation.(See page 3-148, Select the Converter Mode.) TG700 TV Signal Generator Platform User Manual 3–155...
Page 270 HD3G7\SIGNAL directory, since it contains a duplicate copy of a subset of the Monochrome Fields.xml and Color Fields.xml patterns. 4. After you load the new signal set ﬁle(s) on the TG700 generator, you must either reboot the TG700 or perform the following SCPI command before the...
Page 271: Zone Plate Signals
However, if you alter the underlying dependent parameters individually the pattern may change to be something other than a circle. After changes have been made you can save the new signal as a custom zone plate signal. TG700 TV Signal Generator Platform User Manual 3–157...
Page 272 2. Use the left (◄) or right (►) arrow button to select a zone plate signal from the provided six standard zone plate signals (Circle, Diagonal, H Sine, H Sweep, V Sine, and V Sweep), or two user-deﬁned signals (Custom–1 Zoneplate or Custom–2 Zoneplate). 3–158 TG700 TV Signal Generator Platform User Manual...
Page 273 (◄) or right (►) arrow button to select User Custom 1 or User Custom 2. 7. Press the ENTER button to save the modiﬁed signal. TG700 TV Signal Generator Platform User Manual 3–159...
Page 274: Zone Plate Pattern Control Parameters
Each standard zone plate signal has a pattern control parameter. (See Table 3-34.) This pattern control parameter is unique to the zone plate signal it is associated with. 3–160 TG700 TV Signal Generator Platform User Manual...
Page 275: Table 3-34: Zone Plate Pattern Control Parameters
DC-max-DC sweeps per ﬁeld (sweeps = )/2). For example, in a standard with 1080 lines per ﬁeld, a vertical sweep frequency of 2160 c/aph would result in one complete frequency sweep down the picture. TG700 TV Signal Generator Platform User Manual 3–161...
Page 276: Zone Plate Dependent Parameters
Display name: ZP Amplitude Parameter Units: mV Use this parameter to adjust the zone plate signal amplitude from 0.0 mV to 798.0 mV, in 0.5 mV increments. The default value is 700 mV. 3–162 TG700 TV Signal Generator Platform User Manual...
Page 277 74.25 MHz clock, for example, the maximum value of KX will correspond to a sine frequency of 37.1 MHz. The Horizontal Sine zone plate, for example, is a “K -only” zone plate. (See Figure 3-77.) Figure 3-77: A “K -only” zone plate TG700 TV Signal Generator Platform User Manual 3–163...
Page 278 (width ÷ height) of the active format. aspect The Horizontal Sweep zone plate (H Sweep) is a “K -only” zone plate. (See Figure 3-78.) Figure 3-78: A “K -only” zone plate 3–164 TG700 TV Signal Generator Platform User Manual...
Page 279 Note that in the Y (vertical) parameters, the c/aph units translate directly into visible cycles down the frame. The Vertical Sine zone plate is a “K -only” zone plate. (See Figure 3-79.) Figure 3-79: A “K -only” zone plate TG700 TV Signal Generator Platform User Manual 3–165...
Page 280 90° is 1.0 and the sine of –90° is –1.0. When K = 0.25, ∅ the pattern will begin in the upper left corner of the screen as white; when K ∅ = –0.25, the beginning will be black. 3–166 TG700 TV Signal Generator Platform User Manual...
Page 281 20.0 after twenty seconds, and so forth. The temporal frequency will increase to maximum, return to 0.0, and repeat the cycle as long as the value of remains greater than zero. TG700 TV Signal Generator Platform User Manual 3–167...
Page 282 Enable the T Reset parameter to reset the temporal coordinate to zero. To completely disable all motion and reset the pattern, set all of the time related K parameters to zero and set the T Reset parameter to Enable. 3–168 TG700 TV Signal Generator Platform User Manual...
Page 283: Using Zone Plate Signals
Simply adjust the H Sweep Frequency until the system roll-off is at –3 dB. Read the frequency directly from the TG700 display. The H Sine Zoneplate, which provides a constant frequency horizontal sine signal instead of a swept signal, can be used to reduce error in measuring attenuation at a given frequency.
Page 284: Hd3G7 Module Main Menu
Access output calibration (only available when in factory mode). Use the up (▲) or down (▼) arrow button to scroll through the main menu. The following ﬁgures show the HD3G7 module main menu. 3–170 TG700 TV Signal Generator Platform User Manual...
Page 285: Figure 3-81: Hd3G7 Module Main Menu
HD3G7 HD 3 Gb/s SDI Video Generator Figure 3-81: HD3G7 module main menu TG700 TV Signal Generator Platform User Manual 3–171...
Page 286: Figure 3-82: Hd3G7 Module Main Menu (Continued)
HD3G7 HD 3 Gb/s SDI Video Generator Figure 3-82: HD3G7 module main menu (Continued) 3–172 TG700 TV Signal Generator Platform User Manual...
Page 287 Use the left (◄) or right (►) arrow button to select Use Y/G Channel or to select a 0% to 100% Flat Field in 10% increments, and then press the ENTER button to enable the selection. TG700 TV Signal Generator Platform User Manual 3–173...
Page 288 TRIGGER OUTPUT. Allows you to select a line rate, frame rate, or the module system clock as a trigger for an external instrument, such as an oscilloscope. (See page 3-193, TRIGGER OUTPUT Submenu.) 3–174 TG700 TV Signal Generator Platform User Manual...
Page 289: Figure 3-83: Hd3G7 Module Status Menu In Generator Mode
YCbCr 4:2:2 10 bits: Indicates the output sampling structure. Converter Mode: The following ﬁgure shows an example STATUS display when the module is in the converter mode. Converter (3G-A): Indicates that the incoming HD SDI video stream is being converted. TG700 TV Signal Generator Platform User Manual 3–175...
Page 290: Figure 3-84: Hd3G7 Module Output Mode Submenu
SMPTE 292 HD streams in the same format (for example 1080i 59.94). Select between Test Signal/Test Signal or Test Signal/Black for the two streams. HD. Available when the HD mode is selected. The output is a 1.485 Gb/s SMPTE 292 compliant signal. 3–176 TG700 TV Signal Generator Platform User Manual...
Page 291: Figure 3-85: Hd3G7 Module Moving Picture Submenu
Random. Sets whether or not the picture scrolls randomly. Use the left (◄) or right (►) arrow button to select between Disable and Enable. Press the ENTER button to conﬁrm the selection. TG700 TV Signal Generator Platform User Manual 3–177...
Page 292: Figure 3-86: Hd3G7 Module Audio (Embedded) Submenu
While in the Audio Channel submenu, you can set the embedded audio frequency, amplitude, and click rate for the channel. The following ﬁgure shows the AUDIO (EMBEDDED) Audio Group submenu.(See Figure 3-86.) Figure 3-86: HD3G7 module AUDIO (EMBEDDED) submenu 3–178 TG700 TV Signal Generator Platform User Manual...
Page 293: Figure 3-87: Hd3G7 Module Audio : Channel Submenu
(▲) and down (▼) arrow buttons to set the number for that position. Press the ENTER button again to conﬁrm the new frequency. TG700 TV Signal Generator Platform User Manual 3–179...
Page 294 Audio Control Packet (ACP). Use the left (◄) or right (►) arrow button to select between Frame, Frame without Frame Number, and Asynchronous. Press the ENTER button to conﬁrm the selection. 3–180 TG700 TV Signal Generator Platform User Manual...
Page 295: Figure 3-88: Hd3G7 Module Timing Submenu
D-to-A converter. Use the left (◄) or right (►) arrow button to set the relative timing to either Serial (0H) or Analog (DAC). TG700 TV Signal Generator Platform User Manual 3–181...
Page 296: Figure 3-89: Hd3G7 Module Timecode Submenu
Use this menu to set timecode parameters for the selected output. Use the up (▲) or down (▼) arrow button to scroll through the menu. The following ﬁgure shows the TIMECODE submenu. Figure 3-89: HD3G7 module TIMECODE submenu 3–182 TG700 TV Signal Generator Platform User Manual...
Page 297 ATC-VITC. Use this menu selection to enable or disable the Ancillary Vertical Interval Time Code. Use the left (◄) and right (►) arrow buttons to select between Enable and Disable, and then press the ENTER button to conﬁrm the selection. TG700 TV Signal Generator Platform User Manual 3–183...
Page 298: Figure 3-90: Hd3G7 Module Video Submenu
Y component (XYZ format) of the serial digital video signal on or off. Use the left (◄) or right (►) arrow button to select between ON and OFF. Press the ENTER button to conﬁrm the selection. 3–184 TG700 TV Signal Generator Platform User Manual...
Page 299 1 second then set to black and muted for 4 seconds. Use this signal to measure the AV delay through a system with the AV Timing mode on an appropriate Tektronix waveform monitor or rasterizer. TG700 TV Signal Generator Platform User Manual...
Page 300 The Data Count indicates the number of User Data Words to follow, and the User Data Words (UDW) comprise the actual payload carried in the ancillary data. The HD3G7 module addresses User Data Words 000 through 254. 3–186 TG700 TV Signal Generator Platform User Manual...
Page 301: Figure 3-91: Ancillary Payload Submenu
HD3G7 HD 3 Gb/s SDI Video Generator The following ﬁgures show the ANC PAYLOAD submenu. Figure 3-91: Ancillary Payload submenu TG700 TV Signal Generator Platform User Manual 3–187...
Page 302: Figure 3-92: Ancillary Payload Submenu (Continued)
HD3G7 HD 3 Gb/s SDI Video Generator Figure 3-92: Ancillary Payload submenu (Continued) 3–188 TG700 TV Signal Generator Platform User Manual...
Page 303 Word and exit User Data Word editing for that word. NOTE. To make this process easier, you can use the PC-based TGSetup application. This application also allows you to import and export User Data Words as CSV ﬁles. TG700 TV Signal Generator Platform User Manual 3–189...
Page 304 Field 2: Line. Use this menu selection to set the line in Field 2 to carry the ancillary payload. Use the left (◄) and right (►) arrow buttons to set the line number. This menu selection is available only in interlaced formats. 3–190 TG700 TV Signal Generator Platform User Manual...
Page 305 Note that these are all eight-bit values for the respective User Data Word. The HD3G7 module will automatically calculate the parity bits when Parity is set to Automatic, which is the default. TG700 TV Signal Generator Platform User Manual 3–191...
Page 306: Figure 3-93: Afd Code '1001' For A 16:9 Coded Frame
For this example, the SMPTE RP 219 color bars are an effective test pattern, because the center section of the 16:9 test signal contains the original 4:3 aspect ratio SMPTE pattern. 3–192 TG700 TV Signal Generator Platform User Manual...
Page 307: Figure 3-94: Hd3G7 Module Trigger Output Submenu
When set for a Test Signal, the Signal 2 output is the same as the Signal 1 output. When set to Black, the black signal is the same format and sample structure as the Signal 1 output. TG700 TV Signal Generator Platform User Manual 3–193...
Page 308: Figure 3-95: Hd3G7 Module Diagnostics Submenu
Use this menu to view operation parameters for the HD3G7 module. Module diagnostics provide status information only and do not affect operating behavior. The following ﬁgure shows the DIAGNOSTICS submenu. Figure 3-95: HD3G7 module DIAGNOSTICS submenu 3–194 TG700 TV Signal Generator Platform User Manual...
Page 309 CANC – The number of errors detected on the C portion of the ancillary data space in the input signal. CLEAR CRC ERRORS. Press the ENTER button to clear the CRC error counters. TG700 TV Signal Generator Platform User Manual 3–195...
Page 310 The special signals are unscrambled and are synchronous with the clock out of the trigger BNC. They are used to check performance or used when adjusting serial levels. See the TG700 TV Signal Generator Platform Service Manual for information on adjustments and using factory mode.
Page 311: Factory Default Settings
–20 dBFS Amplitude Audio Click A1-1 through A4-4 Channel Origin Frame Sampling TIMING Vertical 0 Line(s) Horizontal 0.0000 μs Relative To Serial (0H) TIMECODE Source Program Time 30 Drop Frame Enable ATC-LTC ATC-VITC TG700 TV Signal Generator Platform User Manual 3–197...
Page 312 Field 1, Line: Field 2, Line: Start Sample 1928 Video Channel Luma Link Location Link A Stream Location HS Stream 1 SMPTE 352 PAYLOAD Enable TRIGGER OUTPUT System Clock SECONDARY OUTPUT Test Pattern 3–198 TG700 TV Signal Generator Platform User Manual...
Page 313: Hdlg7 Hd Dual Link Video Generator
TG700 Speciﬁcations and Performance Veriﬁcation Technical Reference for module speciﬁcations and for a detailed procedure to verify that the module is functioning as speciﬁed. TG700 Programmer Manual for information about the commands to remotely control the module. Product Description The HDLG7 HD Dual Link Video Generator module is designed to be installed in the TG700 TV Signal Generator Platform.
Page 314: Operating Procedure
6. Use the front-panel arrow buttons to navigate and select items in the main menu and submenus. Refer to HDLG7 Module Main Menu for detailed information about the main menu items and the submenu items. (See page 3-208.) 3–200 TG700 TV Signal Generator Platform User Manual...
Page 315: Selecting An Output Signal
Input Format mismatch (Check FORMAT) on the STATUS menu. Refer to the TG700 Speciﬁcations and Performance Veriﬁcation Technical Reference for a listing of the supported input and output format combinations for the HDLG7 module.
Page 316: Table 3-36: Hdlg7 Module Signal Formats
1. Press the front-panel MODULE button until the HDLG7 module main menu appears as shown below. 2. Press the FORMAT button. The menu display changes to show the currently selected signal format as shown below. 3–202 TG700 TV Signal Generator Platform User Manual...
Page 317: Figure 3-96: Front-Panel Test Signal Buttons
Color Bars signal set. Press the CANCEL button to return to the main menu. Figure 3-96: Front-panel test signal buttons If your TG700 mainframe has 64 MB of memory installed, you can download a frame picture ﬁle created by the Frame Picture Generator to the mainframe and output the picture from the DVG7 module.
Page 318: Table 3-37: Hdlg7 Module Hd Test Signal Set Assigned To The Test Signal Buttons
Embedded audio selection menu. (See page 3-206, Selecting the Converter Mode.) SMPTE RP219 Color Bars refers to SMPTE RP219 Color Bar (I/Q Even). Not available in 2K-format mode of operation. 3–204 TG700 TV Signal Generator Platform User Manual...
Page 319: Table 3-38: Hdlg7 Module Projector Test Pattern Set Assigned To The Test Signal Buttons
Horizontal Gradient: 16 to 1913 in 1 level steps. Vertical Gradient: 16 to 2880 in 1 level steps (2048 x 1080 format); 16 to 2404 in 1 level steps (2048 x 1556 format). TG700 TV Signal Generator Platform User Manual 3–205...
Page 320 RGB to XYZ color-space converter. The output of the converter is gamma corrected for digital cinema. The XYZ mode can be selected only in the 2K format mode. 3–206 TG700 TV Signal Generator Platform User Manual...
Page 321 4. Press the CANCEL button to return to the main menu. NOTE. When you select the converter mode, the 2K TEST SIGNAL KEY ASSIGN setting will automatically switch to HD Test Signal. TG700 TV Signal Generator Platform User Manual 3–207...
Page 322: Hdlg7 Module Main Menu
Generate a moving picture. Use the up (▲) or down (▼) arrow button to scroll through the main menu. The following ﬁgure shows the HDLG7 module main menu. Figure 3-97: HDLG7 module main menu 3–208 TG700 TV Signal Generator Platform User Manual...
Page 323: Table 3-39: Hdlg7 Module Sample Structure/Depth Signal Formats
1080 GBR+A 4:4:4 10 bits 1080 YCbCr 4:4:4 12 bits 1080 YCbCr 4:4:4 10 bits 1080 YCbCr+A 4:4:4 10 bits 1080 YCbCr 4:2:2 12 bits 1080 YCbCr 4:2:2 10 bits 1080 YCbCr+A 4:2:2 12 bits TG700 TV Signal Generator Platform User Manual 3–209...
Page 324 (See Table 3-38 on page 3-205.) MOVING PICTURE. Scrolls the active picture area of the output test signal. Select this menu item, and then press the ENTER button to access the MOVING PICTURE submenu. (See page 3-211.) 3–210 TG700 TV Signal Generator Platform User Manual...
Page 325: Figure 3-98: Hdlg7 Module Link Offset Submenu
(or randomly). Use the up (▲) or down (▼) arrow button to Submenu scroll through the menu. The following ﬁgure shows the MOVING PICTURE submenu. Figure 3-99: HDLG7 module MOVING PICTURE submenu TG700 TV Signal Generator Platform User Manual 3–211...
Page 326: Factory Default Settings
MOVING PICTURE H Step 0 Sample(s) V Step 0 Line(s) Period 1 Frame(s) Random Disable Normal Converter mode LINK A Converter embedded audio 2K Horizontal/Vertical Gradient offset Horizontal Gradient offset Vertical Gradient offset 3–212 TG700 TV Signal Generator Platform User Manual...
Page 327: Hdvg7 Hdtv Digital Video Generator
TG700 Speciﬁcations and Performance Veriﬁcation Technical Reference for module speciﬁcations and for a detailed procedure to verify that the module is functioning as speciﬁed. TG700 Programmer Manual for information about the commands to remotely control the module. Product Description The HDVG7 HDTV Digital Video Generator module is designed to be installed in the TG700 TV Signal Generator Platform.
Page 328: Operating Procedure
6. Use the front-panel arrow buttons to navigate and select items in the main menu and submenus. Refer to HDVG7 Module Main Menu for detailed information about the main menu items and the submenu items. (See page 3-217.) 3–214 TG700 TV Signal Generator Platform User Manual...
Page 329: Selecting An Output Signal
When the HDVG7 module is selected and you press any of the front-panel test signal buttons, the selected signal in the signal set is output. (See Figure 3-100.) TG700 TV Signal Generator Platform User Manual 3–215...
Page 330: Figure 3-100: Front-Panel Test Signal Buttons
Color Bars signal set. Figure 3-100: Front-panel test signal buttons If your TG700 mainframe has 64 MB of memory installed, you can download a frame picture ﬁle created by the Frame Picture Generator to the mainframe and output the picture from the HDVG7 module. (See page 1-2, Mainframe Memory Requirements.) Refer to the TG700 PC Tools Technical Reference for detailed...
Page 331: Hdvg7 Module Main Menu
Scroll the active picture area of the output signal. Enable or disable the output and set parameters for each embedded audio group. Enable or disable the Y, Pb, and/or Pr components on the video output signal. TG700 TV Signal Generator Platform User Manual 3–217...
Page 332: Figure 3-101: Hdvg7 Module Main Menu
HDVG7 HDTV Digital Video Generator Use the up (▲) or down (▼) arrow button to scroll through the main menu. The following ﬁgure shows the HDVG7 module main menu. Figure 3-101: HDVG7 module main menu 3–218 TG700 TV Signal Generator Platform User Manual...
Page 333 TIMECODE. Sets the timecode parameters for the module outputs when a GPS7 module is installed. To support this capability, the module hardware must be version 2.0 or above. The TG700 mainframe must have software version 5.1 or above installed. Select this menu item, and then press the ENTER button to access the TIMECODE submenu.
Page 334: Figure 3-102: Hdvg7 Module Moving Picture Submenu
Random. Sets whether or not the picture scrolls randomly. Use the left (◄) or right (►) arrow button to select between Disable and Enable. Press the ENTER button to conﬁrm the selection. 3–220 TG700 TV Signal Generator Platform User Manual...
Page 335: Figure 3-103: Hdvg7 Module Overlay Submenu
ENTER button to conﬁrm the selection. OFF: Turns off the blinking function of the overlay. Fast: Sets the overlay to blink at approximately 0.5 second intervals. Slow: Sets the overlay to blink at approximately 1.0 second intervals. TG700 TV Signal Generator Platform User Manual 3–221...
Page 336: Figure 3-104: Hdvg7 Module Logo Submenu
To display a logo using the LOGO submenu, you need to create a logo ﬁle (.lgo) and download it to the LOGO folder of the module. Refer to the TG700 PC Tools Technical Reference for detailed information about how to create a logo ﬁle and download it to the TG700.
Page 337: Figure 3-105: Hdvg7 Module Id Text Submenu
Y Position. Sets the vertical position of the text. The position is set as a percentage of active picture height. Use the left (◄) or right (►) arrow button to change the position. You can set the value from 0.0% to 100.0% in 1% steps. TG700 TV Signal Generator Platform User Manual 3–223...
Page 338 ENTER button to save the text and its position to the signal ﬁle. SAVE. Saves the text and its position to the signal ﬁle currently being output. Press the ENTER button to save the text and its position to the signal ﬁle. 3–224 TG700 TV Signal Generator Platform User Manual...
Page 339: Figure 3-106: Hdvg7 Module Circle Submenu
Diameter. Sets the diameter of the circle. The diameter is set as a percentage of active picture height. Use the left (◄) or right (►) arrow button to change the value. You can set the value from 0.0% to 100.0% in 1% steps. TG700 TV Signal Generator Platform User Manual 3–225...
Page 340: Figure 3-107: Hdvg7 Module Audio Group Submenu
Enable or disable the embedded audio of the selected audio group. Select which audio channel to enable. Set the emphasis status bits, sampling alignment status bits, and sample bits of the selected audio group. Figure 3-107: HDVG7 module AUDIO GROUP submenu 3–226 TG700 TV Signal Generator Platform User Manual...
Page 341: Figure 3-108: Hdvg7 Module Audio Channel Submenu
Use the up (▲) or down (▼) arrow Submenu button to scroll through the menu. The following ﬁgure shows the AUDIO CHANNEL submenu. Figure 3-108: HDVG7 module AUDIO CHANNEL submenu TG700 TV Signal Generator Platform User Manual 3–227...
Page 342 When Audio Click is OFF, the Audio Tone selected in the FREQUENCY menu is output continuously. Audio Click makes it easy to identify any channel(s) of the four output channels. 3–228 TG700 TV Signal Generator Platform User Manual...
Page 343: Figure 3-109: Hdvg7 Module Timing Submenu
You can set the value from -1 to +1 line in 1-clock (13.5 ns) steps. NOTE. You can reset the timing offset to zero by pressing the left (◄) or right (►) arrow buttons simultaneously. TG700 TV Signal Generator Platform User Manual 3–229...
Page 344: Figure 3-110: Hdvg7 Module Timecode Submenu
After you select an offset digit, use the up (▲) or down (▼) arrow button to change the value of the digit. Repeat for each digit as required for you offset. Press the ENTER to conﬁrm the offset change. 3–230 TG700 TV Signal Generator Platform User Manual...
Page 345: Figure 3-111: Hdvg7 Module Video Submenu
AV Timing Mode. Turns the output mode for an audio/video timing measurement on or off. Use the left (◄) or right (►) arrow button to select between ON and OFF. Press the ENTER button to conﬁrm the selection. TG700 TV Signal Generator Platform User Manual 3–231...
