Owner's Manual and Instructions
Congratulations!
Y ou have purchased the finest kerosene portable forced air construction heater available.
Your new L.B. White heater incorporates the benefits from the most experienced
manufacturer of heating products using state-of-the-art technology.
We, at L.B. White, thank you for your confidence in our products and welcome any
suggestions or comments you may have...call us, toll-free, at (800) 345-7200.
ATTENTION ALL USERS
This heater has been tested and evaluated by C.S.A. International in accordance with
the requirements of Standard UL733 and ANSI A10.10-1998, CAN/CSA B140.0-03
and CSA B140.8 - 1967 and is listed and approved as a Kerosene forced-air
construction heater with application for the temporary heating of buildings under
construction, alteration, or repair. If you are considering using this product for any
application other than its intended use, then please contact the L.B. White Co., Inc.

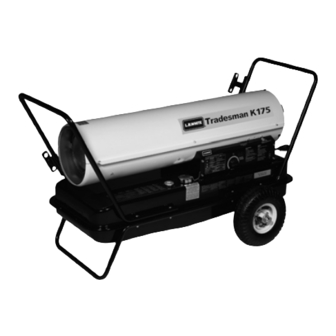

Tradesman Kerosene Heaters
MODELS
OUTPUT (BTUH)
CP045CK
45,000
75,000
CP075CK
125,000
CP125DK
175,000
CP175DK
210,000
CP210DK
Certification by:
FUEL
1-K
Kerosene
150-28814
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for L.B. White Tradesman CP045CK
Summary of Contents for L.B. White Tradesman CP045CK
- Page 1 Your new L.B. White heater incorporates the benefits from the most experienced manufacturer of heating products using state-of-the-art technology. We, at L.B. White, thank you for your confidence in our products and welcome any suggestions or comments you may have...call us, toll-free, at (800) 345-7200.
- Page 2 Read this Owner’s Manual before installing or using this product. Only properly-trained service people should repair or install this heater. Save this Owner’s Manual for future use and reference. Owner’s Manuals and replacement labels are available at no charge. For assistance, contact L.B. White at 800- 345-7200. WARNING...
-
Page 3: Table Of Contents
Parts Schematic (CP045CK & CP075CK) ........ -
Page 4: Heater Specifications
Heater Specifications Model SPECIFICATIONS CP045CK CP075CK Fuel Type 1-K, Kerosene Max Input (BTUH) 45,000 75,000 Ventilation Air Required to Support Combustion 175 CFM 265 CFM Pump Pressure (psig) Fuel Consumption per Hour (gal) Ball Bearing Motor Characteristics 1/8 HP, 3,300 RPM... - Page 5 Heater Specifications Model SPECIFICATIONS CP125DK CP175DK CP210DK Fuel Type 1-K, Kerosene 125,000 175,000 210,000 Max Input (BTUH) 520 CFM 600 CFM 650 CFM Ventilation Air Required to Support Combustion Pump Pressure (PSIG) Fuel Consumption per Hour (gal) 1.32 Ball Bearing Motor Characteristics 1/5HP 3455 RPM 1/4HP 3430 RPM...
-
Page 6: Safety Information
Safety Information HAZARD DEFINITIONS DANGER Indicates an imminently hazardous situation which, if not avoided WILL result in death or serious injury. WARNING Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. - Page 7 GENERAL SAFETY INFORMATION (cont.) WARNING WARNING Risk of CO Poisoning! Risk of Burns/Fire/Explosion! Use this heater only in well ventilation areas. Provide proper Keep all combustible materials away from this heater. ventilation. See heater specifications (page 4 & 5 Minimum Clearances Outlet 8 feet (250 cm) Never use this heater in living or sleeping areas.
-
Page 8: Heater Specifications
Installation and Assembly Instructions HEATER SPECIFICATIONS Introduction Please read this USER’S MANUAL carefully. It will show you Product Features how to assemble, maintain and operate this heater safely and efficiently to obtain the full benefits of its many features. Fan Guard Consumer: Retain these instructions for future reference. -
Page 9: Assembly
Screw Figure – Component Identification CP125DK / CP175DK CP210DK F F i i g g u u r r e e 4 4 – Handle and Cord Wrap Installation CP045CK and CP075CK Nuts Flange Screws Screws Wheel Support Frame Front Handle... -
Page 10: Overview Of Heater Design
NEVER store kerosene in direct sunlight or near a source of +/-10 Degrees +/-10 Degrees heat. NEVER use kerosene that has been stored from one season F/50 CP045CK/CP075CK to the next. Kerosene deteriorates over time. OLD F/110 F/90 CP125DK KEROSENE WILL NOT BURN PROPERLY IN THIS HEATER. -
Page 11: Fueling Your Heater
OPERATION (cont.) FUELING YOUR HEATER TO SHUT DOWN HEATER Never fill the heater fuel tank in the living space: fill the Turn switch to “OFF” and unplug power cord. tank outdoors. M M o o d d e e l l C C P P 0 0 4 4 5 5 CK K M M o o d d e e l l C C P P 0 0 7 7 5 5 CK K Do not overfill your heater and be sure heater is level. -
Page 12: Longterm Storage Of Your Heater
Do not store kerosene over summer for use during next heating season. Using old fuel may damage heater. FUEL TANK DRAIN CP045CK & CP075CK 1. Drain fuel tank through fuel cap opening. 3. Tighten drain bolt firmly into the tank, otherwise it will not seal 2. -
Page 13: Maintenance
MAINTENANCE USE ORIGINAL EQUIPMENT REPLACE MENT PARTS. Use of third-party or other alternate components will void warranty and may cause unsafe operating conditions. AIR OUTPUT FILTER, LINT FILTER WARNING Air Output Filter Fire or explosion hazard! Never service heater while it is plugged in or while hot! End Filter Cover Screw FUEL TANK... -
Page 14: Nozzle
Nozzle Nozzle Adaptor Nozzle Adaptor Figure 14 – Nozzle Replacement CP210DK Figure 13 – Nozzle Replacement For Models CP045CK-CP175DK (For Model CP210DK Only) CLEAN NOZZLE AS NEEDED - Remove upper shell (See Air Intake Filter, page 13). (For Models CP045CK - CP175DK only) - Remove fan blade (See Fan Blades). -
Page 15: Spark Plug
Install Photocell Incorrect Correct Figure 15 – Spark Plug Replacement (For Models CP045CK-CP175DK) - Remove upper shell (See Air Intake Filter, page 13). - Remove fan (See Fan Blades). - Remove ignitor wire from spark plug. - Remove spark plug from nozzle adaptor using Figure 17 –... -
Page 16: Fuel Filter
- Turn relief valve counterclockwise to decrease pressure. - Set pump pressure to correct pressure for each model. - Stop heater (see “Operation”, page 10). Model Pump Pressure CP045CK 2.8 PSI CP075CK 3.8 PSI CP125DK 5.5 PSI CP175DK 7.5 PSI... -
Page 17: Replacing Fuse
- Replace switch wires to power switch. Switch - Replace side cover. Screw Wires Fuse Fuse Holder NOTE: Specified fuse rating: AC 125/8A, part number 572447 Model : CP045CK Fuse Holder Fuse Screw Side Cover Power Switch Switch Wire Figure 20 – Replacing Fuse... -
Page 18: Wiring Diagram
PHOTO CELL BLACK LIMIT FUSE CONTROL POWER 8A/125VAC SWITCH YELLOW BLACK AC120V 60Hz WHITE GREEN EARTH Figure 21 - Wiring Diagram Model CP045CK CONTROL PCB SPARK PLUG BLACK BLACK IGNITOR BLUE BLACK POWER LAMP (LED) ORANGE BLACK PUMP WHITE MOTOR... - Page 19 WIRING DIAGRAM CONTROL PCB SPARK PLUG BLACK IGNITOR BLACK POWER LAMP (LED) ORANGE BLACK PUMP WHITE MOTOR CAPACITOR GREEN THERMOSTAT CN2(AC2)/ (TEMP. CONTROL) EARTH CN1(AC1)/ BLUE BLACK ROOM I/G WIRE PHOTO MODEL CAPACITOR BLUE BLACK SENSOR CELL COLOR BLACK CP125DK 20uF/350VAC WHITE LIMIT...
-
Page 20: Troubleshooting
Troubleshooting Troubleshooting Chart Symptom Possible Cause(s) Corrective Action 1. Wrong pump pressure 1. See Pump Pressure Adjustment, page 16 Heater ignites but MAIN PCB assembly shuts heater off after a 2. Dirty Air Output, Air Intake or Lint Filter 2. See Air Output, Air Intake and Lint Filters, page 13 short period of time. -
Page 21: Parts Identification
-Part description and number as shown in parts list 15-4 15-1 15-2 15-3 18-2 18-5 18-8 18-1 18-9 18-3 18-10 18-6 18-7 F F i i g g u u r r e e 24– Repair Parts Illustration for Portable Oil-Fired Heaters Models CP045CK, CP075CK... -
Page 22: Parts List (Cp045Ck & Cp075Ck)
PARTS LIST Reference Part Number for Models: Number Description CP045CK CP075CK Fuel Tank Assembly 572701 572700 572453 572454 Fuel Gauge Fuel Cap ---------- 572908 ---------- Panel Right Side Assembly 572920 572919 Power Switch ---------- 572906 ---------- Thermostat Wire ------ 572149 Display P.C.B. -
Page 23: Parts Schematic (Cp125Dk & Cp175Dk)
Parts Identification PARTS SCHEMATIC (CP125DK & CP175DK) For Repair Parts, call 1-800-345-7200 Please provide following information: -Model number -Serial number (if any) -Part description and number as shown in parts list 15-4 15-1 15-2 15-3 18-2 18-4 18-5 18-8 18-9 18-1 18-3 18-10... -
Page 24: Parts List (Cp125Dk & Cp175Dk)
PARTS LIST (CP125DK & CP175DK) Reference Part Number for Models: Number Description C C P P 1 1 2 2 5 5 DK K C C P P 1 1 7 7 5DK K Fuel Tank Assembly 572707 572714 Fuel Gauge 572455 572456 Fuel Cap... -
Page 25: Parts Schematic (Cp210Dk)
Parts Identification PARTS SCHEMATIC (CP210DK) For Repair Parts, call 1-800-345-7200 Please provide following information: -Model number -Serial number (if any) -Part description and number as shown in parts list 16-4 16-2 16-1 16-3 18-2 18-4 18-5 18-8 18-9 18-1 18-3 18-10 18-6 18-7... -
Page 26: Parts List (Cp210Dk)
PARTS LIST (CP210DK) Reference Part Number for Models: Number Description CP210DK Fuel Tank Assembly 572721 Fuel Gauge 572457 Fuel Cap 572908 Panel Right Side Assembly 572923 Power Switch 572906 Thermostat Wire 572149 Drain Plug 572450 Power Cord 572160 Panel Left Side Assembly 572262 Ignition Transformer 572246... -
Page 27: Parts Schematic (Handles/Wheels)
Parts Identification PARTS SCHEMATIC HANDLES & WHEELS For Repair Parts, call 1-800-345-7200 Please provide following information: -Model number -Serial number (if any) -Part description and number as shown in parts list HARDWARE KIT F F i i g g u u r r e e 2 2 7– Repair Parts Illustration for Models CP125DK, CP175DK, CP210DK Replacement Parts List for Models CP125DK, CP175DK, CP210DK Ref. -
Page 28: Warranty Information
12 months from date of shipment from L B. White. found to be defective, L.B. White Co., Inc. will at its option, repair or replace the defective part or heater, with a new part or heater, F.O.B., Onalaska, Wisconsin.
