L.B. White CP350AK Owner's Manual

L.B. White CP350AK Owner's Manual

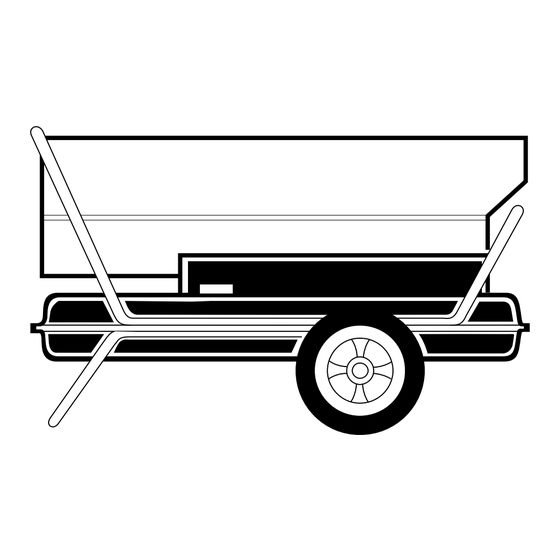

Kerosene high pressure portable forced air heaters
Hide thumbs Also See for CP350AK:

Advertisement

TRADESMAN K350
and K600
600 SIDE
Heater Sizes: 350,000 and 600,000 Btu/Hr
IMPORTANT: Read and understand this manual before assembling, starting, or servicing
heater. Improper use of heater can cause serious injury. Keep this manual for future reference.

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2
PRODUCT IDENTIFICATION ..................................................... 3
UNPACKING ............................................................................... 3
THEORY OF OPERATION ......................................................... 3
FUELS ......................................................................................... 4
VENTILATION ............................................................................. 4
OPERATION ............................................................................... 4
STORING, TRANSPORTING, OR SHIPPING ............................ 5
OPERATION WITH PORTABLE GENERATOR .......................... 5
PREVENTATIVE MAINTENANCE SCHEDULE ......................... 6
TROUBLESHOOTING ................................................................ 6
Fill In For Your Records
Model No. ___________________
(Located on side panel)
Serial No. ___________________
(Located on fuel tank)
Date of Purchase: ______________
PV 027
With Thermostat
Models: CP350AK and CP600AK
KEROSENE HIGH PRESSURE
PORTABLE FORCED AIR HEATERS
OWNER'S MANUAL
SERVICE PROCEDURES .......................................................... 8
SPECIFICATIONS .................................................................... 18
WIRING DIAGRAM ................................................................... 18
MAINTENANCE KITS ............................................................... 18
ACCESSORY ............................................................................ 18
TECHNICAL SERVICE ............................................................. 18
REPLACEMENT PARTS .......................................................... 18
OWNER'S REGISTRATION FORM .......................................... 19
WARRANTY INFORMATION ...................................... Back Cover
350 SIDE
®
PV 026

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP350AK and is the answer not in the manual?

Questions and answers

Summary of Contents for L.B. White CP350AK

  • Page 1: Table Of Contents

    K600 600 SIDE Heater Sizes: 350,000 and 600,000 Btu/Hr Models: CP350AK and CP600AK IMPORTANT: Read and understand this manual before assembling, starting, or servicing heater. Improper use of heater can cause serious injury. Keep this manual for future reference.
  • Page 2: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION WARNINGS WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm. IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or ser- vice this heater.
  • Page 3: Product Identification

    PRODUCT IDENTIFICATION Hot Air Outlet Upper Shell Lower Shell Fuel Cap Thermostat Flame-Out Control Reset Button Figure 1 - 350,000 Btu/Hr Model Hot Air Outlet Lower Shell Fuel Cap Thermostat Figure 2 - 600,000 Btu/Hr Model 105850-01D UNPACKING 1. Remove all protective packing applied to heater for shipment. 2.
  • Page 4: Fuels

    FUELS VENTILATION OPERATION FUELS WARNING: Use only kerosene or No. 1 fuel oil to avoid risk of fire or explosion. Never use gasoline, naphtha, paint thinners, alcohol, or other highly flammable fuels. Do not use heavy fuels such as No. 2 fuel oil or No. 2 diesel. Using heavy fuels will result in: •...
  • Page 5: Storing, Transporting, Or Shipping

    OPERATION Continued TO STOP HEATER CAUTION: Never unplug heater while heater is running. Heater must go through purge cycle. The purge cycle cools the combustion chamber. Damage to heater can occur if combustion chamber is not cooled. Do not restart heater until purge cycle is complete.
  • Page 6: Preventative Maintenance Schedule

    Check each season for dirt and debris Motor Not required, permanently lubricated TROUBLESHOOTING Note: For additional help, visit DESA International’s Technical Service web site at www.desatech.com. OBSERVED PROBLEM Motor does not start when heater is plugged in and thermostat setting is higher than...
  • Page 7 TROUBLESHOOTING Continued OBSERVED PROBLEM Heater will not ignite, but motor runs for a short period of time. 105850-01D POSSIBLE CAUSE 1. A) Fuel tank empty B) Water in fuel C) Wrong fuel 2. Dirt in nozzle 3. Very low temperature may cause fuel to thicken and not flow 4.
  • Page 8: Service Procedures

    TROUBLESHOOTING SERVICE PROCEDURES TROUBLESHOOTING Continued OBSERVED PROBLEM Heater ignites, but flame-out control shuts off heater after a short period of time Heater burns, but puffs of smoke can be seen Heater does not burn steady Heater burns with odor Heater smokes continuously SERVICE PROCEDURES WARNING: Never service heater while it is plugged in, operating, or hot.
  • Page 9: Spark Plug

    SERVICE PROCEDURES Continued FAN BLADES AND AIR DEFLECTORS 1. Remove upper shell (see Upper Shell Removal, page 8). 2. Clean fan blades and air deflectors with clean, soft cloth moist- ened with kerosene or solvent (see Figure 7). 3. Dry fan blades and air deflectors thoroughly. 4.
  • Page 10: Fuel Lines

    SERVICE PROCEDURES SERVICE PROCEDURES Continued 5. Stop heater (see page 5). 6. Remove pressure gauge. Replace pressure gauge plug in fuel pump port marked “GAUGE.” Model Pump Pressure 350,000 Btu/Hr 100 PSI 600,000 Btu/Hr 110 PSI Pressure Gauge Fuel Pump Port Marked “GAUGE”...
  • Page 11: Fuel Filters

    SERVICE PROCEDURES Continued Solenoid Valve Figure 15 - Fuel Line at Solenoid Valve Figure 16 - Fuel Lines at Pump FUEL FILTERS A. Tank Fuel Filter 1. Disconnect fuel lines from pump and fuel filter canister (if equipped) with 7/16" wrench (see Figure 17). 2.
  • Page 12: Illustrated Parts Breakdown And Parts List

    ILLUSTRATED PARTS BREAKDOWN ILLUSTRATED PARTS BREAKDOWN 350,000 BTU 105850-01D...
  • Page 13: Parts List

    PARTS LIST 350,000 BTU This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Repair Service on the back page of this manual. REF. †Not available as complete assembly. See page 18. 105850-01D PART NO.
  • Page 14 ILLUSTRATED PARTS BREAKDOWN ILLUSTRATED PARTS BREAKDOWN 600,000 BTU 105850-01D...
  • Page 15 PARTS LIST 600,000 BTU This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Repair Service on the back page of this manual. 105850-01D REF. PART NO. DESCRIPTION 130-21889 Upper Shell 130-20805 Screw, #10-16 x 1/2" 130-21890 Combustion chamber &...
  • Page 16: Part List

    PARTS LIST PART LIST Burner Head Assembly 350,000 and 600,000 Btu/Hr PART NO. DESCRIPTION 130-20808 Screw, #6-32 x 3/8" 130-20826 Photocell bracket 130-20830 Spark plug 130-20767 Nozzle (350,000 Btu/Hr) 130-21911 Nozzle (600,000 Btu/Hr) 130-20839 Plug 130-20836 Burner head body 130-20841 Straight nipple 120-20840 Solenoid valve...
  • Page 17 PART LIST Motor and Pump Assembly 350,000 and 600,000 Btu/Hr For Heaters With Fuel Filter/Canister External To Pump REF. PART NO. DESCRIPTION 130-20868 Wiring cover 130-20819 Screw, 5/16-24 x 5/16" 130-20820 External lockwasher, 5/16" 130-20806 Screw, #10-16 x 3/8" 120-20870 Motor (350,000 Btu/Hr) 130-21912 Motor (600,000 Btu/Hr)
  • Page 18: Specifications

    SPECIFICATIONS WIRING DIAGRAM MAINTENANCE KITS ACCESSORY TECHNICAL SERVICE REPLACEMENT PARTS SPECIFICATIONS 350,000 Btu/Hr 600,000 Btu/Hr Output Rating (Btu/Hr) 350,000 Fuel Use only kerosene or No. 1 fuel oil Fuel Tank Capacity (U.S. Gallons) Fuel Consumption (Gallons Per Hr) Electric Requirements 120V/60 Hz Amperage (Normal Run) Motor RPM...
  • Page 19: Owner's Registration Form

    NOTES _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ 105850-01D NOTES...
  • Page 20 A. Equipment L.B. White Co., Inc. warrants that the component parts of its equipment are free from defects in material and workmanship, when properly operated and maintained in accordance with the maintenance instructions, safety guides and labels contained with each unit. If, within 12 months from the date of purchase by the end user, any component is found to be defective, L.
