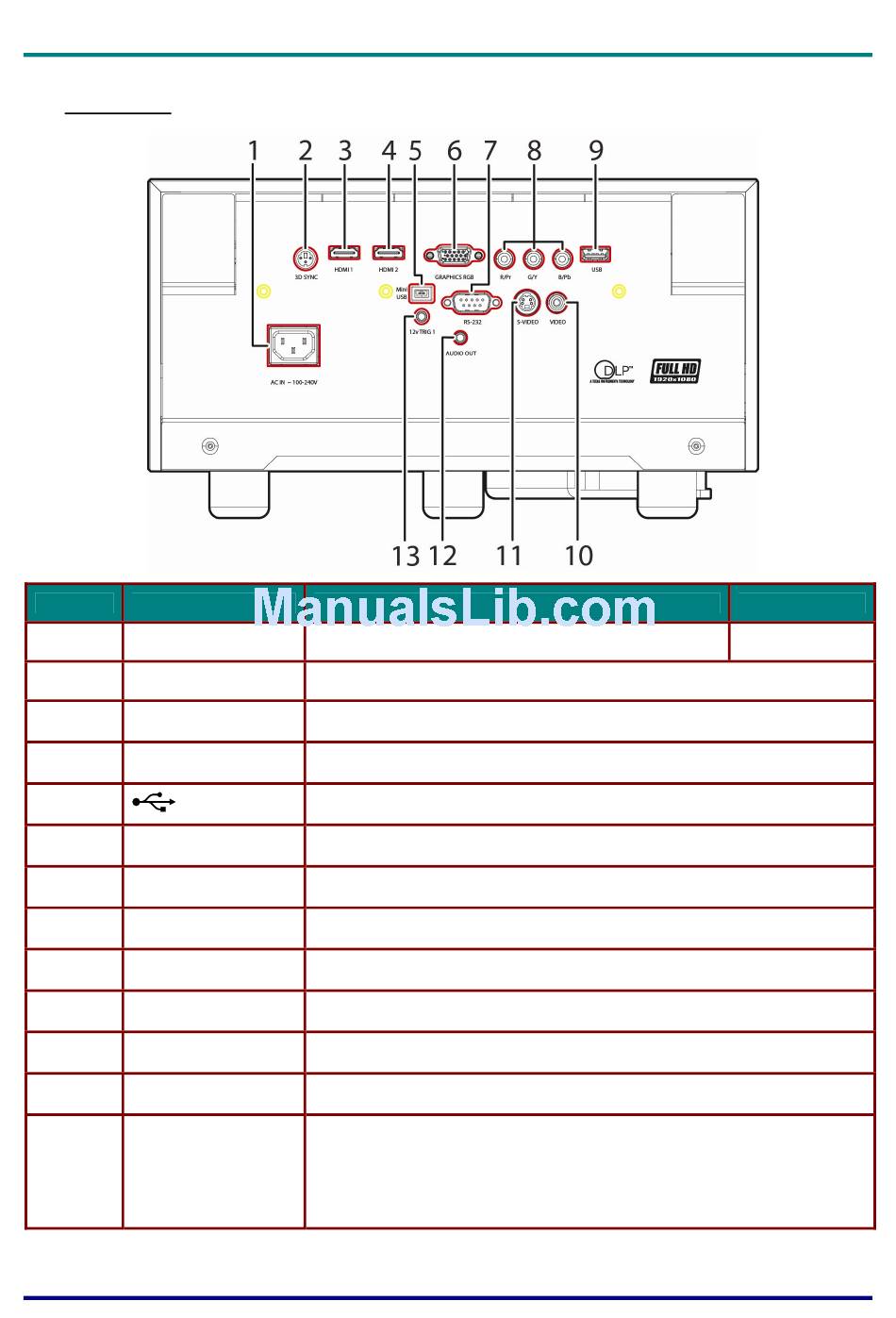

Rear view

I L
TEM ABEL
1.
AC IN
2.
3D SYNC
3.
HDMI 1
4.
HDMI 2
5.
(USB)
6.
VGA IN
7.
RS-232C
8.
COMPONENT
9.
USB POWER
10.
VIDEO IN
11.
S-VIDEO
12.
AUDIO OUT
13.
DC 12V TRIGGER
D
ESCRIPTION
Connect the POWER cable
Connect the SIM2 3D glasses IR transmitter
Connect the HDMI cable from a HDMI device
Connect the HDMI cable from a HDMI device
Connect the USB cable from a computer
Connect the RGB cable from a computer
Connect RS-232 serial port cable for remote control
Connect the Component cable from a component device
For USB charge support DC 5V
Connect the COMPOSITE cable from a video device
Connect the S-VIDEO cable from a video device
Connect an AUDIO cable to audio amplifier
When connected to the screen through a commercially available cable,
the screen deploys automatically on start up of the projector. The screen
retracts when the projector is powered off (see notes below).
Note: do not use a 3.5mm mono type cable; use a 3.5mm 3 pin type
stereo cable
