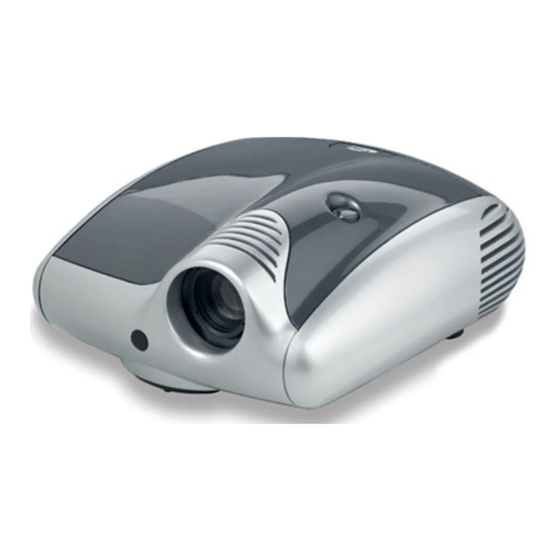

Summary of Contents for Sim2 C3XE

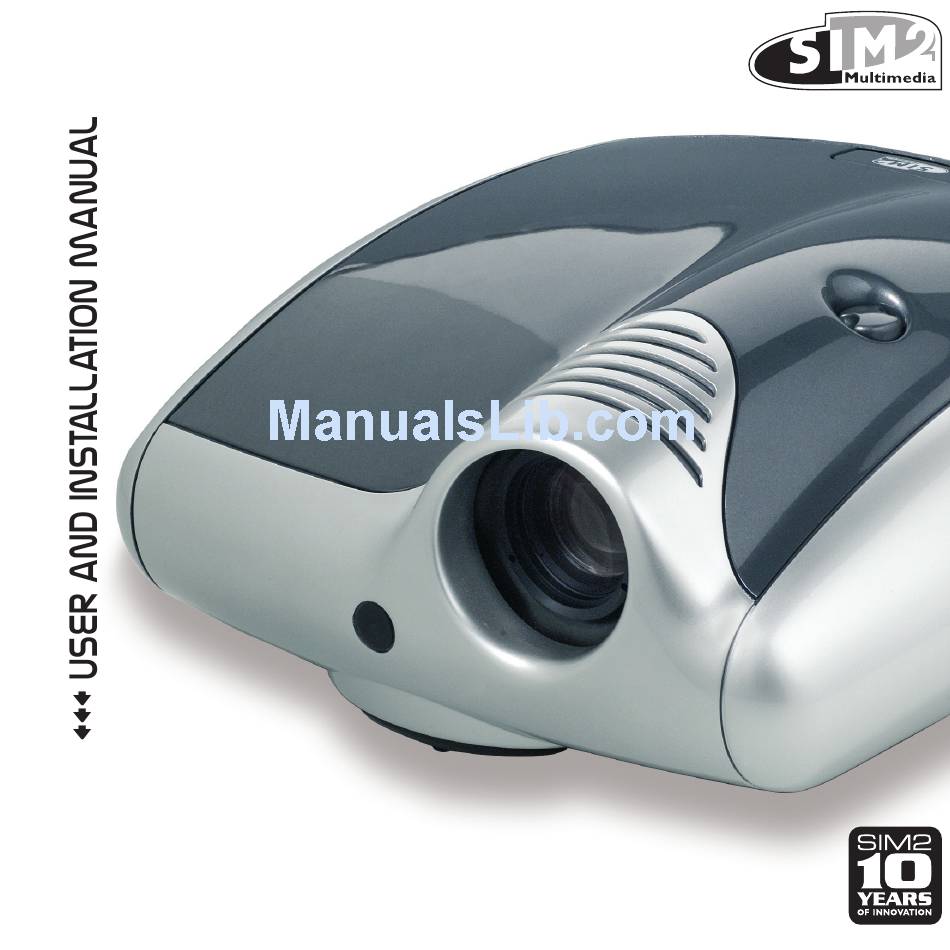

- Page 1 460559000...
-
Page 2: Remote Control And Keypad
1 REMOTE CONTROL AND KEYPAD BACKLighTiNg STAND-BY / ON Backlights the keys on the remote control LIGHT Sets the panel to stand-by . KEYS 0-9 Select the sources directly. Switches on the panel from Standby. SOURCE Displays the source selection menu. -
Page 3: Table Of Contents
1 iNTRODUCTiON The C3XE projector represents the state of the art in image processing Different input signal resolutions can be adapted to match the specified combined with the innovative DLP™ sytsem and outstanding optics. screen resolution without loss of image quality, thanks to a generous selection of preset aspect ratios, some of which are user definable. -
Page 4: Important Safety Instructions
Read all chapters of this manual carefully before switching on the projector. This manual provides basic instructions for using the C3XE system. installation, preliinary adjustments and procedures that necessitate the removal of the top cover and contact with electrical com- ponents must be done by authorised, trained technicians. - Page 5 PROJECTOR R / P C / Y B / P L (R S 2 3 S - V ID E H IC S - V ID E R E M D IO E S C Projection lens. 11 S-Video input.
- Page 6 • Changing the fuses. • Do not allow the unit to overheat. Before changing the fuse disconnect the unit from the To prevent this, allow a free space of at least 40 cm around mains power supply. the back of the projector.
-
Page 7: Unpacking
3 UNPACKiNg To remove the C3XE system from its carton follow the diagrams (Fig. 4). Keep the carton for use when transporting or ship- ping the unit. Fig.4 CONTENTS Of PACKAgE - the projector - Remote control - four 1.5V AAA batteries (for remote control) - three power cables (EU, UK, USA) for the projector - the user manual. -
Page 8: Installation
ZOOM HELP observe the safety instructions included with the bracket FOCUS itself. if using a bracket other than that supplied by SiM2 FOCUS AUTO ASPECT Multimedia, make sure that the projector is at least 65 mm below the ceiling and that the bracket does not obstruct the air vents (intake and outlet). - Page 9 Prevent ambient light shining directly on the screen during projection as this will reduce the contrast of the projected image. Furniture and other objects with reflecting surfaces, as well as light coloured walls should be avoided, as they are likely to interfere with the screen’s characteristics.
-
Page 10: Switching The Projector On And Off
5 SwiTChiNg ThE PROJECTOR ON AND Off wARNiNg: Connect the projector to a power supply with a SwiTCh ON fROM STANDBY nominal voltage within the following values: 100-240 V AC, 50/60 hz. it must be earthed (fig. 12). With the remote control: press one of the keys 1...9 or with 0. -
Page 11: Connections
Do not SwiTChiNg Off AND RETURNiNg TO STANDBY switch off the projector with the power switch until the fans have stopped running. With the remote control: press With the keypad: press When switching off, the projector goes into stand-by mode and stores the input selection at the time of switch-off. -
Page 12: Connections Board
C3XE - Connection panel RGB - YPrPb GRAPHICS RGB - YPrPb + 1 2 R / P U S B S-VIDEO 1 . 1 C / Y N T R B / P VIDEO ( R S 2 3 2... - Page 13 Connect the R, G, B outputs of the source to the respective R, in compliance with the S/PDIF standard. G, B inputs of the C3XE (taking care not to invert the positions) You can use a DVI-D > HDMI adapter cable to connect the and any synchronisation signals to the HV.
-
Page 14: Remote Control
MOTORiSED SCREEN OUTPUTS RS232 iNTERfACE CONNECTOR 12 Volt RS 232 USB 1.1 R / C C / Y R / C B / C C / Y L ( R S 2 3 B / C L ( R... -
Page 15: On Screen Menu
9 ON SCREEN MENU All system functions can be operated from the keypad or MAiN MENU remote control, with the aid of a complete, user-friendly on screen menu. To access the main menu of the On Screen Display press the MENU key on the keypad or the MENU+ or MENU- key on the remote control. - Page 16 To access these submenus, press the <, mentre l’uscita ed il ritorno al livello superiore avviene con la pressione dei tasti MENU+/- key. Aspect Normal Press ESC on the remote control or keypad to interrupt the Anamorphic Colour Temperature...
- Page 17 Selecting the NO option causes the de-interlacer to apply a NORMAL: projects the image occupying the full height of the Motion compensated algorithm optimized for video camera screen while maintaining the aspect ratio of the input signal. signals. When the input signal aspect ratio is 4:3 black vertical bands are displayed on the right and left of the picture.
- Page 18 There are 4 sets of gamma curves: Standard (ST), Enhanced SIM2 (EN) and Graphics (GR), User. The Standard curve has been defined for general use, and is set for videocameras, digital cameras, and for viewing films or photos on your PC. The Enhanced set is suitable for watching movies.
- Page 19 Values from 1.5 to 2.2 allow you to emphasise the detail of dark Y/C DELAY images, but reduce overall contrast. Values higher than 2.2 In the case of Video and S-Video signals, it may be necessary increase overall contrast, but reduce the detail of dark areas.
- Page 20 LiST projector is connected to the mains power supply. In order to make the C3XE system increasingly flexible, the In STANDBY mode the projector remain in STANDBY mode and functions described below make it possible to modify the inputs...
- Page 21 Active video signal sources (shown in the inputs selection menu) f1-f2 keys are distinguished by tick symbols. The remote control is equipped with two keys (F1 and F2) which It can useful to identify the input with a user defined name are associated with various different functions.
- Page 22 Color Temperature MEMORiES Clicking the key in question again (F1 / F2) enables you to set the colour temperature from HIGH, MEDIUM, LOW AND USER. The main picture parameters can be saved in discrete sets of values called “Memories” so that they can be subsequently gamma Correction applied as a group using a single command.
- Page 23 2 3 2 the corresponding drop-down menu (◀ key). Select the line S - V I D E H I C S - V ‘Save initial settings’. I D E R E M To confirm the operation, the message ‘Initial settings saved in...
-
Page 24: Cleaning And Maintenance
10 CLEANiNg AND MAiNTENANCE Displays the current status of the projector and information concerning the projected video/graphic signal. The projector does not require internal adjustment. There are This function is displayed on pressing the key on the remote no user serviceable parts inside the projector. -
Page 25: Common Problems
• Make sure the video or graphic signals supplied by the image too dark, too pale or unnaturally coloured source are compatible with the C3XE system’s technical specifications and, in particular, with those of the selected • Check compatibility of the video or graphic signals with input. -
Page 26: Optional Accessories
Additional Information chapter for greater details on projection distance and enlargement ratios. Always contact our service centre to have the lens replaced. Use only original or SiM2 Multimedia approved accessories. warning: for ceiling/wall installation, by means of suspension bracket, carefully follow the instructions and safety instruc- tions recommended by the Manufacturer in the bracket’s... -
Page 27: Technical Specifications
TEChNiCAL SPECifiCATiONS ELECTRONiCS gENERAL: Mains cable: (EU, UK and US); 2m length Input signals: Mains: from 100 to 240 Vac (3,8-1,5 A) • COMPOSITE VIDEO (CVBS) Frequency: from 50 to 60 Hz gold plated RCA connectors 380 W max 1,0 V / 75 Ω, negative synchronisation... -
Page 28: Structure Of The On Screen Menu
ON SCREEN MENU LAYOUT Video • S-Video Component [NTSC] HDMI™ 1-2 Ghaphics Brightness Brightness Brightness Contrast Contrast Contrast Sharpness Color Color Sharpness Mode Tint Sharpness Sharpness Sharpness Mode Filter Cinema Mode Video Type Noise reduction Component Video • S-Video HDMI™... - Page 29 Orientation Floor Keystone Floor-rear Horizontal Lens Ceiling Vertical Power Lamp Ceiling-rear Auto Power ON Stand-by Logo light on Test patterns Initial settings English Italiano Français Deusch Español Português Language Source list F1/F2 keys F1 F2 Source info Zoom OSD background...
-
Page 30: Dimensions
DiMENSiONS 285.3 280.6 41.5 72.6 431.4... -
Page 31: Projection Distance
PROJECTiON DiSTANCE 16/9 Screen size Max projection distance Screen width Min projection distance (diagonal) max L max L in . 50” 44” 66” 90” 60” 52” 79” 107” 70” 61” 93” 126” 80” 70” 106” 144” 90” 78” 119”... - Page 32 • Viale Lino Zanussi, 11 • 33170 Pordenone - ITALY Phone +39.434.383.253-256 • Fax +39.434.383260-261 www.sim2.com • e-mail: info@sim2.it SIM2 USA Inc. • 10108 USA Today Way • 33025 Miramar FL - USA Phone +1.954.4422999 • Fax +1.954.4422998 www.sim2usa.com • e-mail: sales@sim2usa.com SIM2 Deutschland GmbH •...
