Super Circuits N6076 Quick Manual

Twisted-Pair
● Power
(Not supplied)
Prepare the product, your PC and switch hub ready
for connection. Make sure that your PC has a LAN
port available for connection to the network cable of
the product.
Connect with your power adaptor directly using the
twisted pair (not supplied) after plug the supplied 2pin
connector into J6 as shown.
J6
Twisted-Pair
● Power
(Not supplied)
● HUB

Micro SD Card Slot

Make sure the orientation of the contacts when

insert the Micro SD card.

External I/O Connector

For further details, please refer to user manual
in the attached CD.

Connect to Alarm/Reset

Connect to an extension I/O terminal block which is used to
connect external infrared detectors, beepers and smoke
detectors.
Pin 1 DC 12V out
Pin 2 GND
Pin 3 Audio in
Pin 4 GND
Pin 5 Audio out
Pin 6 GND
Pin 7 RS485-
Pin 8 RS485+
Pin 9 Alarm NO
Pin 10 Alarm NC
Pin 11 Alarm COM
Pin 12 Alarm K
Pin 13 Alarm A
Insert the Micro SD Card
6
RMIM-01G06039 Ver:10

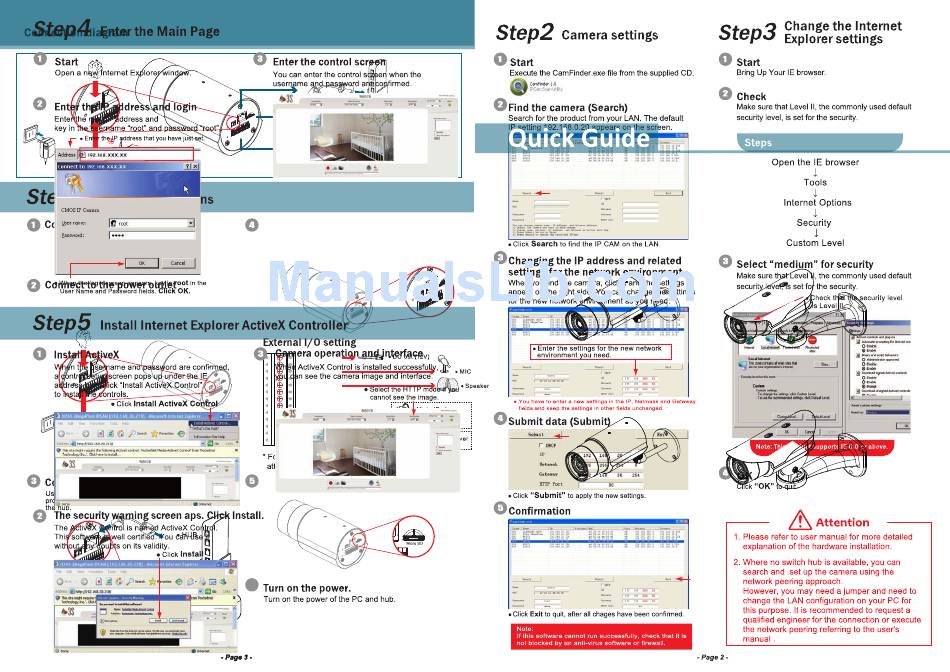

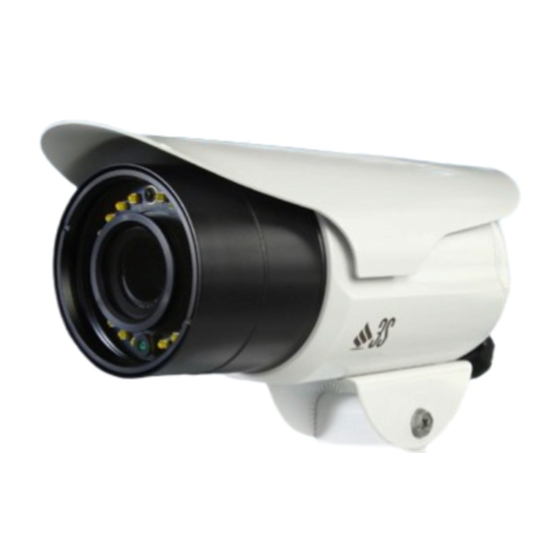

Bullet Network Camera
N6074 N6076
Indoor / Vari-Focal Lens Outdoor / Vari-Focal Lens
N6075 N6077
Indoor / Fixed Lens Outdoor / Fixed Lens
