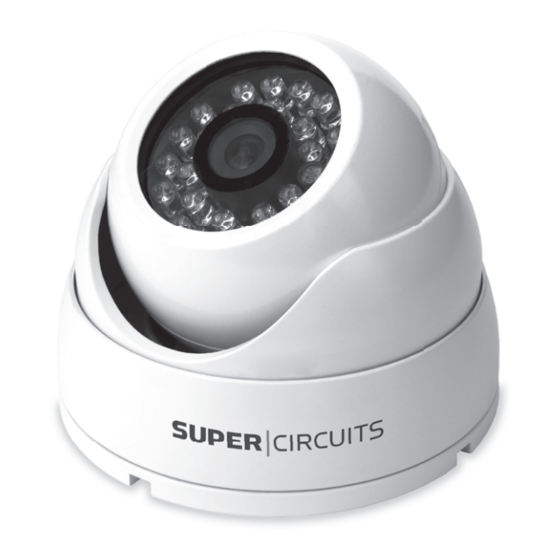

Infrared dome ccd
camera User Manual
Products: CD33-2, CD33VF-2, CD33VFHR-2,
CD33VFW-2, CD33W-2, CD33WHR-2
CD33-2_CM
3/30/2010 3:19:22 PM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Super Circuits CD33-2
Summary of Contents for Super Circuits CD33-2
- Page 1 Infrared dome ccd camera User Manual Products: CD33-2, CD33VF-2, CD33VFHR-2, CD33VFW-2, CD33W-2, CD33WHR-2 Please read this manual before installing and using this camera and always follow instructions for proper use. Please le this manual away for future reference. CD33-2_CM CD33W.indd 1...
-
Page 2: Legal Notice
WARNING RISk of electRIc Shock. do Not opeN. To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. LEGAL NOTICE Supercircuits’ products are designed to meet safety and performance standards with the use of specific Supercircuits authorized accessories. - Page 3 WARNINGS & CAUTIONS Do not use the camera if fumes, smoke or a strange odor is emitted from the unit, or if it seems to not function correctly. Disconnect the power source WARNING immediately and consult your supplier. Always follow the instructions in the installation guide when applying power.
- Page 4 WARNINGS & CAUTIONS Whether or not the camera is used outdoors, never point it toward the sun. Use caution when operating the camera in the vicinity of spot lights or other bright lights CAUTION and light re ecting objects. Do not use the camera in extreme environments where high temperatures or high humidity exists.
-
Page 5: Table Of Contents
Tables Specifi cations for Table 1. CD33W-2, CD33-2, CD33WHR-2 cameras ....13 Specifi cations for Table 2. CD33VF-2, CD33VFHR-2, CD33VFW-2 cameras ... 14 Infrared Dome CCD Camera User Manual CD33W.indd 5... -
Page 6: Features
SECTION 1: FEATURES SECTION 1 Features The CD33-2 series weatherproof, vandal resistant turret dome cameras are ideal for exterior locations where surveillance in low-light environments is required. These cameras include: Advanced image sensors for greater picture clarity • Precision lenses to achieve the perfect view •... -
Page 7: Camera Components
SECTION 1: FEATURES 1.1 Camera components Video 75 Ohm Drop Cable 12 V DC Base Housing Bezel Turrent Style Camera Housing Focus Adjust (VF Models) Camera Lens IR LEDs Infrared Dome CCD Camera User Manual CD33W.indd 2 3/30/2010 3:19:24 PM... -
Page 8: Camera Connections
SECTION 1: FEATURES 1.2 Camera connections Connect Connect Single camera with monitor (above); Multiple camera system with DVR and monitor (below) www.supercircuits.com CD33W.indd 3 3/30/2010 3:19:24 PM... -
Page 9: Installation
SECTION 2: INSTALLATION SECTION 2 Installation 2.1 What’s in the box The camera package contains: Camera assembly • Instruction manual • Hardware kit, including four 1" screws and four wall inserts • 2.2 Tools you need To install the camera, you will need: Phillips #2 screwdriver •... -
Page 10: Installation Instructions
SECTION 2: INSTALLATION 2.3 Installation instructions Separate the base from the rest of the camera assembly by unscrewing the housing bezel. Removal of housing bezel Determine where the camera will be mounted. Using the base as a template, mark the location of the four mounting screw holes. - Page 11 SECTION 2: INSTALLATION Mounting Screw Holes Camera base Drill mounting screw holes into the mounting surface. If the mounting surface is a soft material, such as a drywall, use a 3/16" bit to drill the mounting holes. Use a hammer to tap the wall inserts provided into each hole until they are ush with the surface.
- Page 12 SECTION 2: INSTALLATION If the mounting surface is a very soft material, such as ceiling tile, place a wood block behind the tile. Screws longer than 1" may be required. Drill holes for the mounting screws through the surface and into the wood block. If mounting the camera on a harder surface, such as wood, drill the mounting screw holes with a 3/32"...
- Page 13 SECTION 2: INSTALLATION Drill a 3/4" hole through the mounting surface at the center of the base. 3/4" Cable Routing Hole Use a #2 Phillips screwdriver to mount the base with the provided screws. With the camera in the camera housing, route the drop cable through the 3/4"...
- Page 14 SECTION 2: INSTALLATION Set the camera on the base with the camera cable pressed into one of the cable guides of the base. Allow some slack in the cable within the base to allow for camera positioning later. 10. Use a #2 Phillips screwdriver to mount the base with the provided screws.
- Page 15 SECTION 2: INSTALLATION it onto the base. Screw the housing bezel onto the base until the camera and camera housing are held in place. 12. Attach the BNC video/power cable to the camera cable as required. Notice that power connectors on the BNC video/power ...
-
Page 16: Aiming The Camera
SECTION 3: AIMING THE CAMERA SECTION 3 Aiming the Camera Connect the video cable from the camera to (a test monitor or to) the BNC input on the DVR. Connect the DC12V adapter to the camera. Loosen the housing bezel until the housing can be rotated on the base. -
Page 17: Cleaning
SECTION 4: CLEANING SECTION 4 Cleaning Clean the camera lens and IR lamp shield with an approved glass cleaning solution and a lint free cloth. Dust can be removed from the unit by wiping it with a soft damp • cloth. -
Page 18: Specifi Cations
SECTION 5: SPECIFICATIONS Table 1. Speci cations for CD33W-2, CD33-2, CD33WHR-2 cameras Model CD33W-2 CD33-2 CD33WHR-2 Image Sensor 1/4" Sharp CCD 1/4" Sharp CCD 1/3" SONY CCD TV system NTSC CCD total pixels 537 (H) x 505 (V) 537 (H) x 505 (V) 811 (H) x 508 (V) Scanning system 525 Lines, 60 fi... -
Page 19: Table 2. Specifi Cations For Cd33Vf-2, Cd33Vfhr-2, Cd33Vfw-2 Cameras
SECTION 5: SPECIFICATIONS Table 2. Speci cations for CD33VF-2, CD33VFHR-2, CD33VFW cameras Model CD33VFW-2 CD33VF-2 CD33VFHR-2 Image Sensor 1/3" SONY CCD 1/3" SONY CCD 1/3" SONY CCD TV system NTSC CCD total pixels 537 (H) x 505 (V) 537 (H) x 505 (V) 811 (H) x 508 (V) Scanning system 525 Lines, 60 fi... -
Page 20: Troubleshooting
SECTION 6: TROUBLESHOOTING SECTION 6 Troubleshooting Before sending the camera for repair, please check below to make sure that the camera is installed correctly. If it still does not perform adequately, please consult your supplier or contact Supercircuits directly at 1.800.335.9777. No picture on the monitor screen. - Page 21 SECTION 6: TROUBLESHOOTING The picture has interference. The camera may be close to a high voltage source, such as a power generator. The BNC cable is not terminated properly. The video cables are not connected properly. This camera is a precision instrument and when treated with care, will provide years of satisfactory ...
- Page 22 CD33W.indd 17 3/30/2010 3:19:27 PM...
- Page 23 CD33W.indd 18 3/30/2010 3:19:27 PM...
- Page 24 CD33W.indd 19 3/30/2010 3:19:27 PM...
