- Page 1 940 nm IR GSM Field Surveillance Camera User Manual Product: 940-GSM Please read this manual before using your camera, and always follow the instructions for safety and proper use. Save this manual for future reference. 940-GSM_CM 9/13/13...
- Page 2 Operate this device only in environments where the temperature or humidity is within the recommended range. Operation in extreme temperatures or humidity levels may cause electric shock and shorten the life of the product. CAUTION...
-
Page 3: Table Of Contents
Table of Contents SECTION 1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.1 Application . -
Page 4: Features

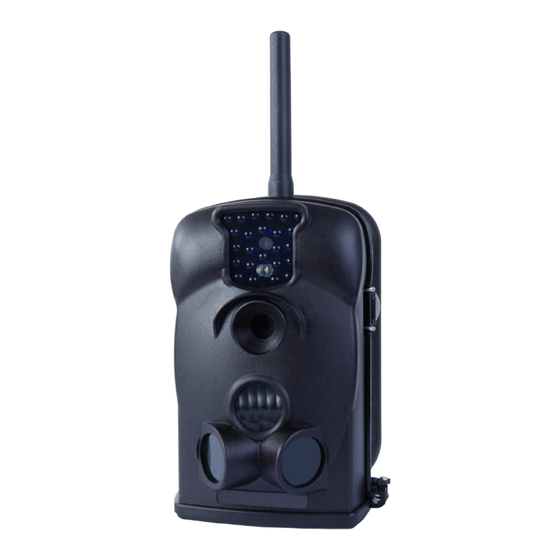

SECTION 1 Features The 940-GSM Field Surveillance Camera is a rugged, water-repellent outdoor camera for use in extreme temperature conditions. It includes the MMS (Multimedia Messaging Service) module for transmitting video and pictures to a phone or email address. With its highly sensitive passive infra-red (PIR) sensor, the camera detects the sudden change of ambient temperature caused by moving objects in a region of interest (ROI), triggers to take pictures/videos, and sends the images via a GSM network to the user’s cell... -
Page 5: Camera Unit
1.2 Camera unit The 940-GSM Field Surveillance Camera includes two modules: a camera module and an MMS module. These modules are usually latched together. To separate them, loosen the thumb screw on the back of the unit, undo the buckle on the side, then carefully remove the tab of the camera module from the slot on the side of the MMS module. -
Page 6: Camera Module Setup
SECTION 1: FEATURES 1.3 Camera module setup The camera module features a built-in infra-red (IR) array for taking photos up to 30’ away in dark environments, and built-in passive IR (PIR) sensors for detecting objects moving into the region of interest (ROI). IR Array Light Sensor Motion... - Page 7 SECTION 1: FEATURES The camera external interface connectors are located Inside the cover on the bottom of the camera module. To open the bottom cover, turn the latch on the lower corner so it points toward the body of the camera, then push it down to open the cover. Latch Latch Alignment...
-
Page 8: Installing An Sd Card
SECTION 1: FEATURES 1.3.1 Installing an SD card To install an SD (flash memory) card: Set the power switch to off. Slide the card into the SD card slot as shown below. The card should slide in smoothly. Power Switch SD Card Push the SD card in until it latches into place. -
Page 9: Camera Module Controls
SECTION 1: FEATURES Insert 2 AA Batteries Here, Insert 2 AA Batteries Here, “–” Ends toward Base. “+” Ends toward Base. Battery Bay Cover After installing batteries, fold the battery bay cover up, then press it in until it latches. To perform software setup for the camera, refer to Section 2 of this manual. -
Page 10: Mms Module Setup
SECTION 1: FEATURES Keypad control panel The keypad control panel us used for configuration setup , manual camera operation, and for viewing and playing back recorded photos and video. Button Function MENU Press to enter the configuration menu system to program the camera. Press when needed to navigate in the menu system. -
Page 11: Installing A Sim Card
SECTION 1: FEATURES 1.4.1 Installing a SIM card To install a SIM card, open the card holder and slide the card all the way into the card holder as shown below. Then fold the card holder onto the contacts, and slide the card holder towards the bottom of the unit to lock it into place. SIM Card Card Contacts... -
Page 12: Installing Batteries In The Mms Module
SECTION 1: FEATURES 1.4.2 Installing batteries in the MMS module When installing batteries in the battery compartment, follow the (sardine) orientation order shown below. Camera module Contact Pins Put Positive Terminals For These Batteries Here. Put Positive Terminals For These Batteries Here. After installing batteries, close the battery compartment cover. -
Page 13: Advanced Settings
SECTION 2: ADVANCED SETTINGS SECTION 2 Advanced Settings Advanced settings can be configured using the TFT display and keypad control buttons, or through a computer. 2.1 Camera setup using the keypad control buttons To enter camera setup mode: Separate the camera and MMS modules. Install batteries in the camera module. -
Page 14: Camera Setup With A Pc
SECTION 2: ADVANCED SETTINGS Parameter Setting Description Interval 1 minute, optional from Select the length of time that the camera will wait between the time of the last picture was writ- 1 second to 60 minutes ten in the SD card, until it responds to any new triggers from the PIR sensor. During the selected interval, the camera will not take pictures/videos. -
Page 15: Camera Function Setup
SECTION 2: ADVANCED SETTINGS In the MMS Setup subdirectory, find and run the Setup .exe file. The following window will open: 2.2.1 Camera function setup Click the Camera Setup button to open the camera interface shown below. In the camera setup menu, do the following. Refer to the Menu system parameters table above for more information. 940 nm IR GSM Field Surveillance Camera... -
Page 16: Mms Function Setup
SECTION 2: ADVANCED SETTINGS Select the Mode, Image Size, Video Size, etc. options you prefer from the drop-down menus. Set the Timer, Serial No ., and Time Lapse menu setup as needed. Click the GetTime button to set the camera’s date and time to your computer’s date and time. Power off the camera if necessary, then connect the camera USB interface to the computer using the USB cable provided. - Page 17 SECTION 2: ADVANCED SETTINGS To setup the MMS functions, do the following: Click MMS Setup. The MMS window will open. Open the MMS Mode drop-down list and select either Auto or Manual. Auto: If you selected Auto, open the Country drop-down list and select your country and the Mobile Phone Network Operator (MPNO) for your SIM card.
- Page 18 SECTION 2: ADVANCED SETTINGS Manual: If you selected Manual, contact your MPNO for the required information to use their service, then enter the parameters in the fields below. Power off the camera if necessary, then connect the camera USB interface to the computer using the USB cable provided. Wait for the computer to recognize the USB device (your SD card).
-
Page 19: Using Your Camera
SECTION 3: USING YOUR CAMERA SECTION 3 Using your camera 3.1 Aiming the camera With the power switch in TEST mode, you can test the working area of the PIR (passive infrared) sensor sensing angle and distance. Using this test you can find the best placement for mounting and aiming the camera. To perform the test: Attach the camera to a tree or tripod, aiming it at the region of interest (ROI). -
Page 20: View Local Mnpo Name And Signal Strength
SECTION 3: USING YOUR CAMERA SIM card is installed and the MMS service is active. (NOTE: Some MMS services require pre-paid balance in the account.) • The SIM card is not password protected. • MMS function setup is correct. • The Timer function is OFF. -
Page 21: Important Notes
In the 940-GSM camera, the combination of the two side prep sensors and the main sensor provides a 100° to 120° angle of induction, a very wide scope far out spanning the 50 ° angle of the camera lens. It can capture the whole body of a moving object in as short as 0.2 second. -
Page 22: Auto Adjustment Of Video Length
SECTION 3: USING YOUR CAMERA 3.3.3 Auto adjustment of video length To extend the battery life, we suggest that you install 8 AA alkaline batteries when using the camera in Video mode or Cam+Video mode. When battery power gets low, this camera automatically shortens the video length to take more video clips of surveillance targets, which can provide more useful information. -
Page 23: Specifications
SECTION 3: SPECIFICATIONS SECTION 4 Specifications Item Specification Image sensor 5 Mega Pixels Color CMOS Maximum pixel size 2560 x 1920 Lens F = 3.1; FOV = 52°; auto IR-cut IR Flash 30 ft (9.14 m) TFT screen 2.36” (48 x 35.69 mm); 480 (RGB)*234 dots; 16.7 M colors Keypad 6 keys Memory... - Page 24 SECTION 4: SPECIFICATIONS Item Specification Low battery SMS alert “Battery Low” text alert sent Power supply 2 x 4 x AA batteries External DC power adapter Plug Size: 4.0 x 1.7; Voltage: 6 ~ 12 VDC (1 ~ 2 A) Standby current 0.4 mA Standby time...
-
Page 25: Appendix Amms Troubleshooting
APPENDIX A: MMS TROUBLESHOOTING APPENDIX A MMS Troubleshooting Following are some common MMS problems and suggested solutions. For additional questions, contact your product provider. I set up a new receiving phone number, but MMS pictures are still being sent to the old number. What should I do? Switch the camera OFF.
