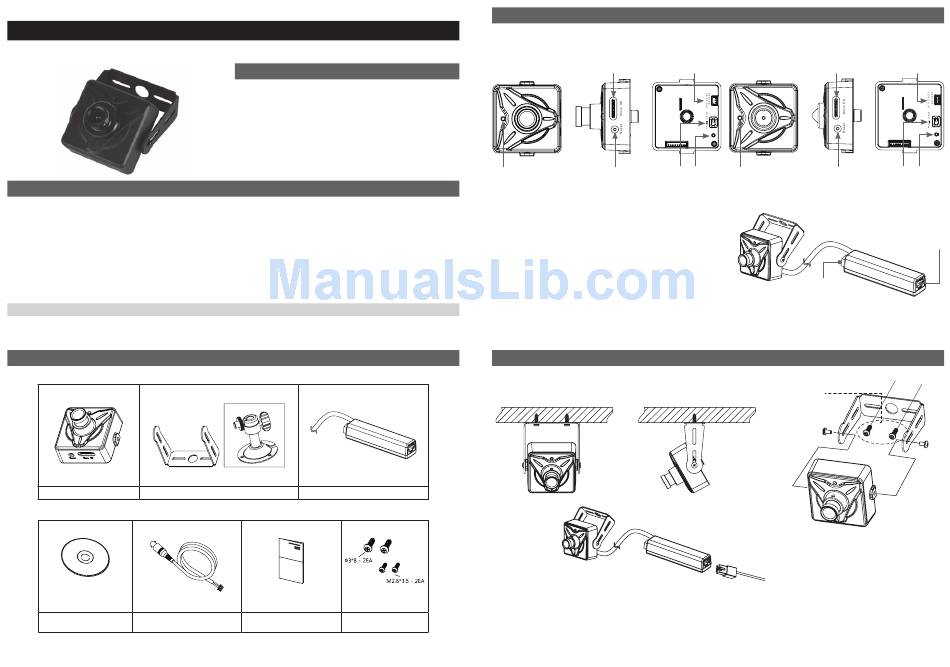

Super Circuits PC2MP-UXP Installation Manual

Megapixel Network Camera

Installation Guide

1. Introduction
IP Dome Camera Installation Guide
This installation guide provides instructions for installing the Network Camera on your
network. For all other aspects of using the product, please see the User's Manual,
available on the CD included in this package.
Installation Steps
1. Check the package contents against the list below.
2. Read the Product description.
3. Install the hardware.
4. Set an IP address.
5. Set the admin and user ID and password. (see User's Manual)
I m p o r t an t! : This product must be used in compliance with local laws and regulations.
2. Package Contents
Network Camera Mounting Bracket
Software CD Video Output Test Cable
Table of Contents
1. INTRODUCTION
2. PACKAGE CONTENTS
3. PRODUCT DESCRIPTION
4. HARDWARE INSTALLATION
5. IP ADDRESS ASSIGNMENT
6. PRODUCT SPECIFICATIONS
* Option
PoE B'D Cable
Installation Guide Screws
3. Product Description
Description and Function
Board Lens Type
➎
➍ ➊
1. Reset Button – Press the reset switch for more than 10 seconds,
the restore the camera to the function default settings.
2. Service Video Connector – Outputs video to the monitor.
3. Status LED
4. Hole
5. Micro SD Card Socket.
6. NTSC / PAL slide Switch.
7. Power Input(DC12V) – Connects to DC 12V power.
8. Network Connector –
The Network Camera connects to the network via a standard
network cable, and automatically detects the speed of the local network segment
(10BaseT/100BaseTX Ethernet). PoE Supported
4. Hardware Installation
IP camera are designed to be installed using a template as shown below.
Camera Mounting Position
Connection
1. Connect the camera to the network using a UTP cable (CAT.5), Power can be supplied via the network cable (PoE)
2. Connect DC 12V to the power terminal. This is not necessary if the Network Camera is connected to a PoE hub or midspan.
3. Check that the indicator LEDs indicates the correct conditions.
4. Connect the analog monitor to the service video connector for adjusting focus, then press and quickly release the reset
switch for focus assistant mode. Then you can select normal view or focus view mode using the reset switch.
Caution: When you use focus assistant mode, "Focus View" mode is recommended for more exact focus.
Caution: Focus assistant mode will be automatically exited after 3 minutes for normal operation.
Pinhole Lens Type
➋ ➎
➏ ➌ ➍ ➊
➐
Tapping Screw:
ø3 x 8(2ea)
Machine Screw: ❶
M2.6 x 3.5(2ea)
➋
➏ ➌
➑
❶
CAUTION !
Please start installing
in the order shown.
