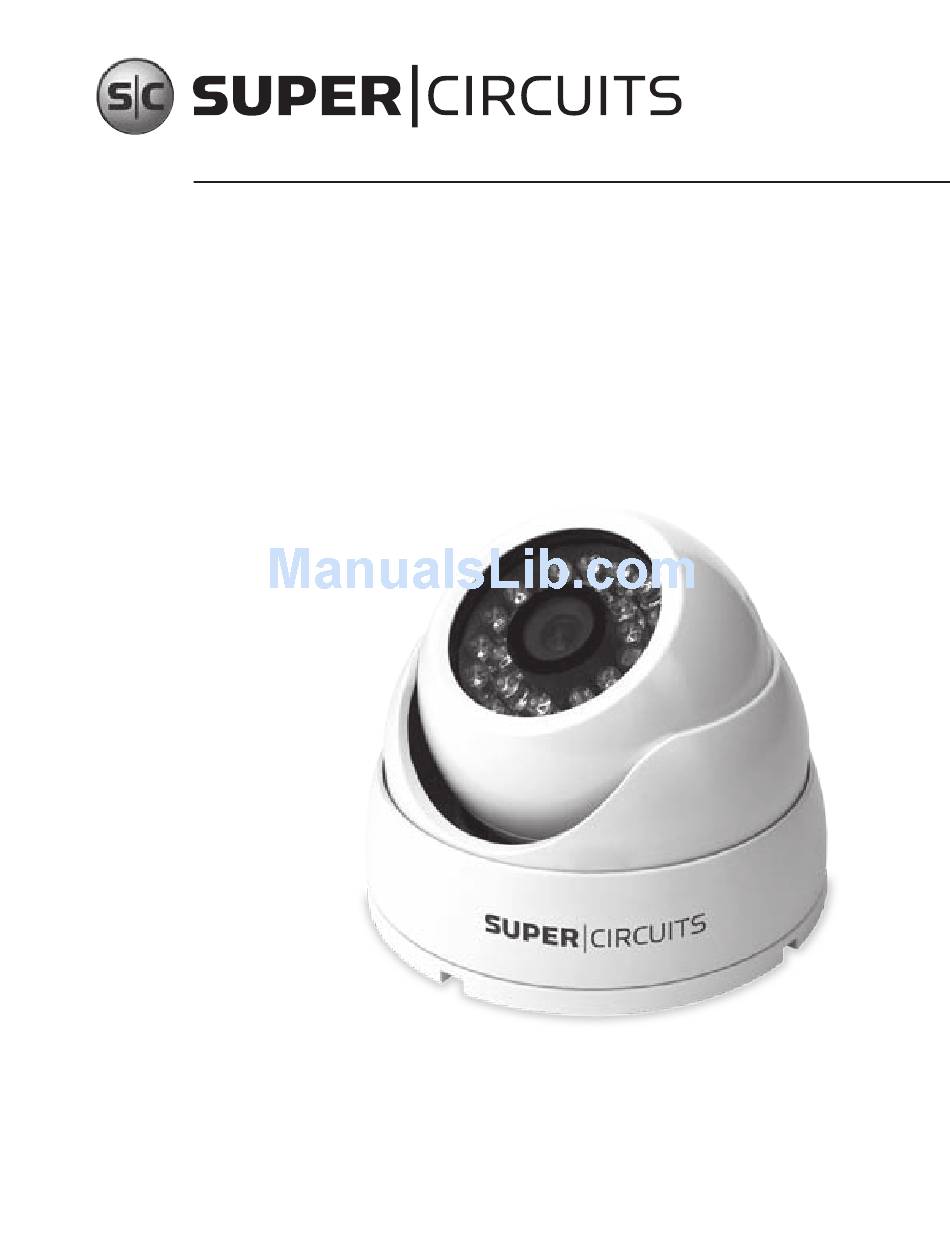

- Page 1 Infrared Dome CCD Camera User Manual Products: CD33-2, CD33VF-2, CD33VFHR-2, CD33VFW-2, CD33W-2, CD33WHR-2 Please read this manual before installing and using this camera and always follow instructions for proper use. Please file this manual away for future reference. CD33-2_CM 8/9/12...
- Page 2 WARNING RISK OF ELECTRIC SHOCK. DO NOT OPEN. To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. LEGAL NOTICE Supercircuits products are designed to meet safety and performance standards with the use of specific Supercircuits authorized accessories.
- Page 3 WARNINGS & CAUTIONS Do not use the camera if fumes, smoke or a strange odor is emitted from the unit, or if it seems to not function correctly. Disconnect the power source immediately and consult your supplier. WARNING Always follow the instructions in the installation guide when applying power.
- Page 4 WARNINGS & CAUTIONS Whether or not the camera is used outdoors, never point it toward the sun. Use caution when operating the camera in the vicinity of spot lights or other bright lights and light reflecting objects. CAUTION Do not use the camera in extreme environments where high temperatures or high humidity exists.
-
Page 5: Table Of Contents
CD33W-2,.CD33-2,.CD33WHR-2.cameras. . . . . . . . . . . . . . . . . . . . . -
Page 6: Features
SECTION 1: FEATURES SECTION 1 Features The CD33-2 series weatherproof, vandal resistant turret dome cameras are ideal for exterior locations where surveillance in low-light environments is required. These cameras include: Advanced image sensors for greater picture clarity • Precision lenses to achieve the perfect view •... -
Page 7: Camera.components
SECTION 1: FEATURES 1 . 1 .Camera.components Video 75 Ohm Drop Cable 12 V DC Base Housing Bezel Turret Style Camera Housing Focus Adjust (VF Models) Camera Lens IR LEDs Infrared Dome CCD Camera User Manual... -
Page 8: Camera.connections
SECTION 1: FEATURES 1 .2.Camera.connections Connect Connect Single camera with monitor (above); Multiple camera system with DVR and monitor (below) www.supercircuits.com... -
Page 9: Installation
SECTION 2: INSTALLATION SECTION 2 Installation 2 . 1 .What’s.in.the.box The camera package contains: Camera assembly • Instruction manual • Hardware kit, including four 1" screws and four wall inserts • 2 .2.Tools.you.need To install the camera, you will need: Phillips #2 screwdriver •... -
Page 10: Installation.instructions
SECTION 2: INSTALLATION 2 .3.Installation.instructions Separate the base from the rest of the camera assembly by unscrewing the housing bezel. Removal of housing bezel Determine where the camera will be mounted. Using the base as a template, mark the location of the four mounting screw holes. www.supercircuits.com... - Page 11 SECTION 2: INSTALLATION Mounting Screw Holes Camera base Drill mounting screw holes into the mounting surface. If the mounting surface is a soft material, such as a drywall, use a 3/16" bit to drill the mounting holes. Use a hammer to tap the wall inserts provided into each hole until they are flush with the surface.
- Page 12 SECTION 2: INSTALLATION If the mounting surface is a very soft material, such as ceiling tile, place a wood block behind the tile. Screws longer than 1" may be required. Drill holes for the mounting screws through the surface and into the wood block. If mounting the camera on a harder surface, such as wood, drill the mounting screw holes with a 3/32"...
- Page 13 SECTION 2: INSTALLATION Drill a 3/4" hole through the mounting surface at the center of the base. 3/4" Cable Routing Hole Use a #2 Phillips screwdriver to mount the base with the provided screws. With the camera in the camera housing, route the drop cable through the 3/4" hole until the camera housing is fitted onto the base.
- Page 14 SECTION 2: INSTALLATION Set the camera on the base with the camera cable pressed into one of the cable guides of the base. Allow some slack in the cable within the base to allow for camera positioning later. Use a #2 Phillips screwdriver to mount the base with the provided screws.
- Page 15 SECTION 2: INSTALLATION Without allowing the camera to hang by the drop cable, place the camera housing with the housing bezel over the camera and fit it onto the base. Screw the housing bezel onto the base until the camera and camera housing are held in place. Attach the BNC video/power cable to the camera cable as required.
-
Page 16: Aiming.the.camera
SECTION 3: AIMING THE CAMERA SECTION 3 Aiming the Camera Connect the video cable from the camera to (a test monitor or to) the BNC input on the DVR. Connect the DC12V adapter to the camera. Loosen the housing bezel until the housing can be rotated on the base. -
Page 17: Cleaning
SECTION 4: CLEANING SECTION 4 Cleaning Clean the camera lens and IR lamp shield with an approved glass cleaning solution and a lint free cloth. Dust can be removed from the unit by wiping it with a soft damp cloth. To remove stains, •... -
Page 18: Cd33W-2,.Cd33-2,.Cd33Whr-2.Cameras
SECTION 5: SPECIFICATIONS Table 1. Specifications for CD33W-2, CD33-2, CD33WHR-2 cameras Model CD33W-2 CD33-2 CD33WHR-2 Image.Sensor 1/4".Sharp.CCD 1/4".Sharp.CCD 1/3".SONY.CCD TV.system NTSC CCD.total.pixels 537.(H).x.505.(V) 537.(H).x.505.(V) 811.(H).x.508.(V) Scanning.system 525.Lines,.60.fields/s SYNC.system Internal Horizontal.resolution 420.TV.lines 420.TV.lines 540.TV.line Minimum.illumination 0.lux./.F2 .0.(LED.on) Lens Standard.3 .6.mm.lens IR.range 50.ft.(15 .24.m) -
Page 19: Cd33Vf-2,.Cd33Vfhr-2,.Cd33Vfw-2.Cameras
SECTION 5: SPECIFICATIONS Table 2. Specifications for CD33VF-2, CD33VFHR-2, CD33VFW cameras Model CD33VFW-2 CD33VF-2 CD33VFHR-2 Image.Sensor 1/3".SONY.CCD 1/3".SONY.CCD 1/3".SONY.CCD TV.system NTSC CCD.total.pixels 537.(H).x.505.(V) 537.(H).x.505.(V) 811.(H).x.508.(V) Scanning.system 525.Lines,.60.fields/s SYNC.system Internal Horizontal.resolution 420.TV.lines 420.TV.lines 540.TV.lines Minimum.illumination 0.lux./.F2 .0.(LED.on) Lens 4.~.9.mm.varifocal.lens IR.range 90.ft.(27 .43.m) Infrared.status Under.10.lux.by.CDS.Auto.Control B .L .C ..control... -
Page 20: Troubleshooting
SECTION 6: TROUBLESHOOTING SECTION 6 Troubleshooting Before sending the camera for repair, please check below to make sure that the camera is installed correctly. If it still does not perform adequately, please consult your supplier. No picture on the monitor screen. Check that all connected devices are powered on. - Page 21 SECTION 6: TROUBLESHOOTING The picture has interference. The camera may be close to a high voltage source, such as a power generator. The BNC cable is not terminated properly. The video cables are not connected properly. This camera is a precision instrument and when treated with care, will provide years of satisfactory performance.
