Super Circuits PC813IR User Manual

50 Ft IR True LPR Weatherproof Camera

User Manual

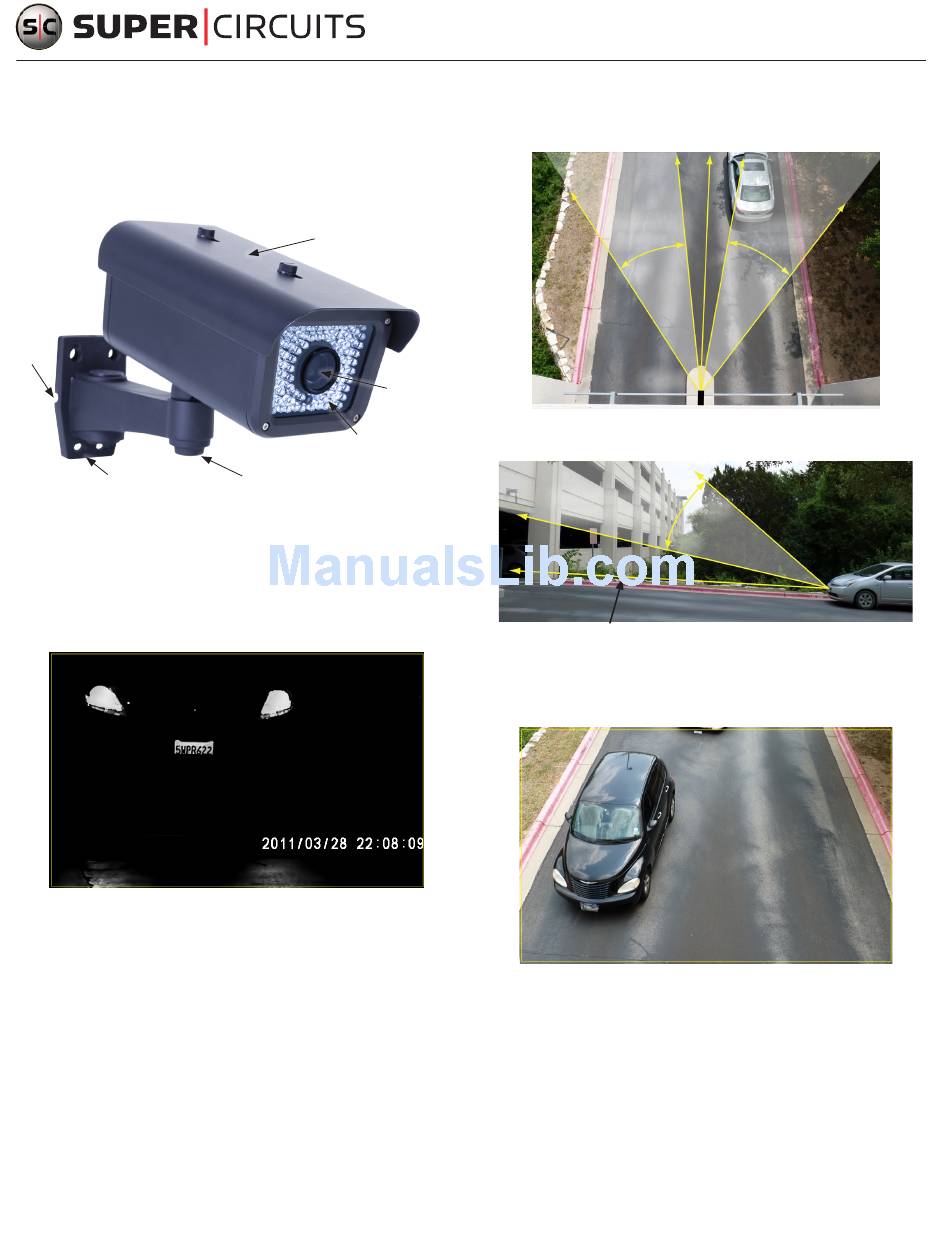

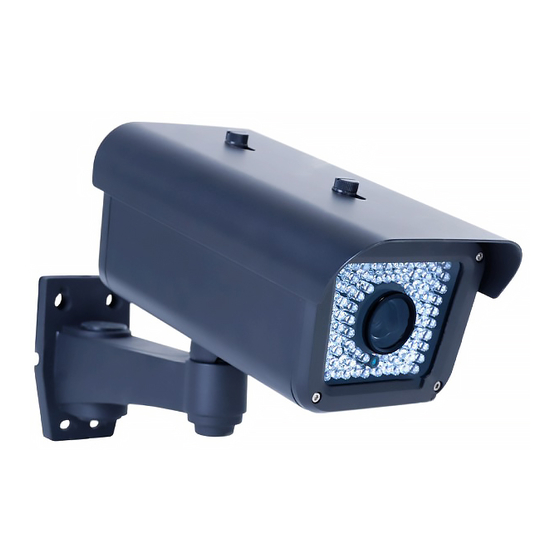

The Supercircuits PC813IR LPR (License Plate Recognition) camera is ideal for isolating images of license
plates of cars moving through an entry point, in slow traffic, or when stationary. This camera provide a
usable license plate image, day or night.
Cable
Guide
Mounting Plate
Important features include:
600 lines of resolution
•
9-22 mm lens
•
50 ft IR range
•
Captures license plates on vehicles moving up to 30 mph
•
Concealed bracket
•
4.88" (w) x 12.8" (l) x 7.72" (h)
•
LPR Camera Image of a Car at Night
What's in the box
Mounting template
•
4 screws with wall inserts
•
Hex wrench
•
Power cable adapter
•
This instruction sheet
•
Camera Placement
To capture the image of a license plate, the vehicle cannot be traveling more than 30 mph, and the camera
must be positioned within a specific range. Also, since some jurisdictions only require license plates to be
displayed on the back of the vehicle (for instance, on motorcycles in most locations) the camera should be
positioned to see them. The position of the camera should meet the following four criteria:
: The camera must be placed within 50 feet of the target license plate.
Horizontal distance
www.supercircuits.com
1
Sun Shield
Lens
LED Array
Gimbal Set Screw
: Horizontally, the camera must be positioned between 8° and 35° left or right of
Horizontal range
the centerline of the vehicle.
Sector with
best view
+35°
Camera
: Vertically, the camera must be positioned between 10° and 38° of the plane the
Vertical range
vehicle is traveling in.
Position Camera in This
Sector for Best View
Direction of Travel
: the camera field of view should be adjusted to include the entire lane width where the
Field of view
vehicle will travel. These adjustments are made by aiming the camera, setting the zoom (tele-wide),
and focus. See step 2.
Field of View - 811 x 508 pixels
Step 1. Installing the camera
When installing the camera, the video and power drop cables can be routed through the mounting
surface behind the mounting plate (most secure), or through cable guides on the sides of the mounting
plate.
1. Find the optimal position for the camera, observing the
2. Determine and acquire fasteners adequate to attach the camera to the mounting surface. The screws
and wall inserts are provided with your camera work well with many surface types.
Direction of
Camera
Sector with
best view
+8° 0° -8°
-35°
38°
10°
guidelines above.
Camera Position
PC813IR_CQ
