Page 1: User Manual
FVT-5001 / FVT-5301 / GVT-5000 Copper to Fiber Media Converter Module User Manual Model Part No. Description 10/100Base-TX to 100Base-FX 532502 FVT-5001 SC, Multi-mode 2km (TS-1000) 10/100Base-TX to 100Base-FX 532530 FVT-5301 SC, Single-mode 30km (TS-1000) 1000BaseT to SFP mini-GBIC 532500... -
Page 2: Fcc Warning
FCC Warning This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Table Of Contents
Table of Contents INTRODUCTION..........1 1.1....1 THERNET XPENSION ODULE 1.2......1 IGABIT XPENSION ODULE 1.3........2 ACKAGE ONTENTS HARDWARE DESCRIPTION ......2 2.1..........2 RONT ANEL 2.2. LED I ....3 THERNET NDICATORS 2.3. LED I ....... -
Page 4: Introduction

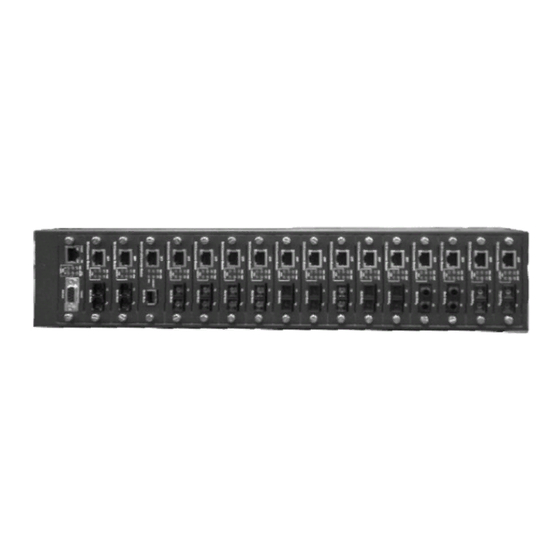

Introduction These converter modules are for FVT-5000 16 slot Converter Chassis with TS-1000 supported. By this converter module, user can get higher bandwidth from your network infrastructure and extend network available link distance by fiber cable 1.1. Fast Ethernet Expansion Module Comply with IEEE 802.3, 802.3u standards Convert between UTP cabling and Fiber-optic cabling One RJ-45 connector, Auto-MDI/MDIX for UTP port... -
Page 5: Package Contents
1.3. Package Contents Media Converter Module User manual If any item is damaged or missing, please contact your local dealer for service. Hardware Description 2.1. Front Panel FVT-5001 FVT-5301 GVT-5000... -
Page 6: Fast Ethernet Led Indicators
2.2. Fast Ethernet LED Indicators Status Meaning Green Power on Green Link on 100Mbps Speed (UTP) Link on 10Mbps Speed Green The unit is linking with it’s link partner. LK/ACT Blinks The unit is transmitting or receiving packets (UTP) No device attached Green The unit is linking with it’s link partner. -
Page 7: Gigabit Led Indicators
2.3. Gigabit LED Indicators Status Meaning Green Power on Green Link on 1000Mbps Speed Orange Link on 100Mbps Speed (UTP) Link on 10Mbps Speed Green The unit is linking with it’s link partner. LK/ACT Blinks The unit is transmitting or receiving packets (UTP) No device attached Green... -
Page 8: Installation
Installation 3.1. Chassis This installation is only for mounting in converter chassis converter module. You can follow the steps below to install modular converters. Remove the module slot cover from the converter chassis. Install the modular converter by inserting it into the guides and sliding it in, and then, press it firmly until the power plug in the chassis plugs into the modular converter receptacle property. -
Page 9: Fiber
3.2. Fiber For the Fast Ethernet Fiber Port: We provide SC connectors (multi/single mode). Please follow the below figure to connect it. Wrong connection will cause the port cannot work properly. This is a Class 1 Laser/LED product ATTENTION Do not stare into the Laser/LED beam... -
Page 10: Specification
Specification 4.1. Optical Fiber Wavelength Avg. Launch Avg. Model No. (nm) Power (dB) Sensitivity (dB) FVT-5001 1310 (nm) -18 (dB) -30 (dB) SC, Multi-mode FVT-5301 1310 (nm) -6 (dB) -34 (dB) SC, Single-mode Avg. Power Max. FDX Fiber Model No. -
Page 11: Technical Specification
4.3. Technical Specification Fast Ethernet Module IEEE802.3 10Base-T IEEE802.3u 100Base-TX/100Base-FX Standard IEEE802.3x Flow Control and Back pressure TS-1000 Supported Fiber: Duplex SC Connector RJ-45 Socket: 10/100Mbps Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Switch Store and Forward architecture Fiber Core: Multi-Mode (62.5/125um, 50/125um) Single-Mode (8/125um, 10/125um) Fiber... - Page 12 Gigabit Ethernet Module IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX Standard IEEE802.3x Flow Control and Back pressure Fiber: SFP Slot, 3.3V Connector RJ-45 Socket: 10/100/1000Mbps Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Switch Store and Forward architecture Fiber Core: Multi-Mode (62.5/125um, 50/125um) Single-Mode (8/125um, 10/125um) Fiber Wavelength: 850nm(Multi-mode)
