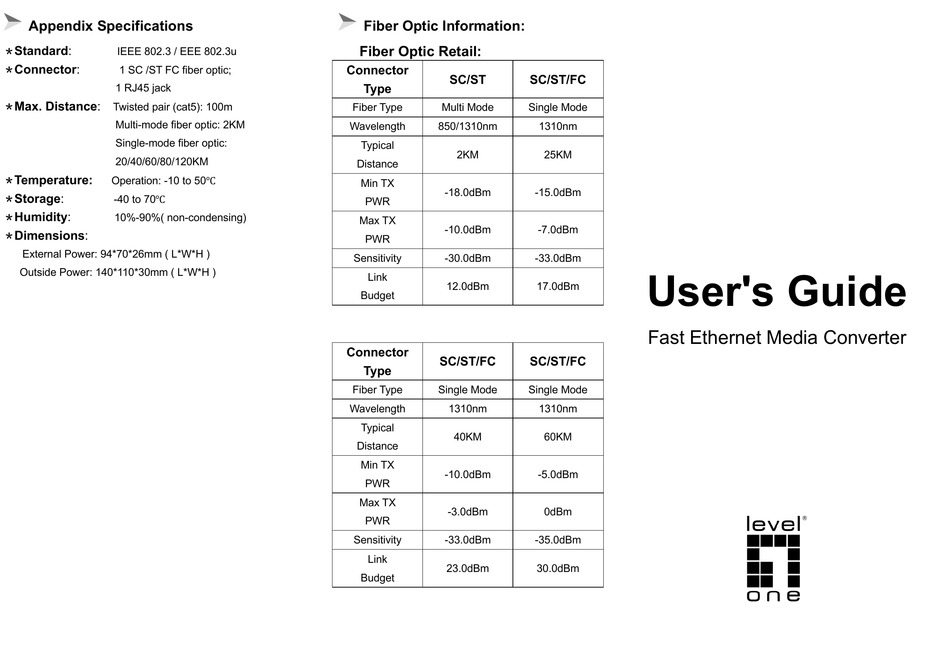

Appendix Specifications

Standard:
IEEE 802.3 / EEE 802.3u
Connector:
1 SC /ST FC fiber optic;
1 RJ45 jack
Max. Distance:
Twisted pair (cat5): 100m
Multi-mode fiber optic: 2KM
Single-mode fiber optic:
20/40/60/80/120KM
Temperature:
Operation: -10 to 50℃
Storage:
-40 to 70℃
Humidity:
10%-90%( non-condensing)
Dimensions:
External Power: 94*70*26mm ( L*W*H )
Outside Power: 140*110*30mm ( L*W*H )
Fiber Optic Information:
Fiber Optic Retail:
Connector
SC/ST
Type
Fiber Type
Multi Mode
Wavelength
850/1310nm
Typical
2KM
Distance
Min TX
-18.0dBm
PWR
Max TX
-10.0dBm
PWR
Sensitivity
-30.0dBm
Link
12.0dBm
Budget
Connector
SC/ST/FC
Type
Fiber Type
Single Mode
Wavelength
1310nm
Typical
40KM
Distance
Min TX
-10.0dBm
PWR
Max TX
-3.0dBm
PWR
Sensitivity
-33.0dBm
Link
23.0dBm
Budget
SC/ST/FC
Single Mode
1310nm
25KM
-15.0dBm
-7.0dBm
-33.0dBm
User's Guide
17.0dBm
Fast Ethernet Media Converter
SC/ST/FC
Single Mode
1310nm
60KM
-5.0dBm
0dBm
-35.0dBm
30.0dBm
