Page 1: User Manual
LevelOne User Manual VDS-0200 / VDS-0201 Ethernet over VDSL2 Converter V1.0... - Page 2 FCC Certifications This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Table of Content 1. INTRODUCTIONS ................... 4 2. APPLICATION NOTES ................4 3. FEATURES ..................... 5 4. PACKING CONTENTS ................5 5. LED INDICATORS .................. 6 6. DIP SWITCHES SETTINGS ..............7 7. DATA RATES & DISTANCES ..............9 8. TECHNICAL SUPPORT ................ 10... -
Page 4: Introductions
Introductions The VDS-0200/VDS-0201, a VDSL2 (Very high-bit-rate Digital Subscriber Line) LAN converter, provides a broadband transmission up to 100/60Mbps of downstream/upstream data rate over single pair copper line for point-to-point Ethernet connectivity. With 100/60Mbps data rate, the VDSL2 converter supports transmission distance up to 300 meters, and 30/10 Mbps for 1km long range connection. -
Page 5: Features
Features ITU-T G.993.1, G.993.2 VDSL/VDSL2 and SG15Q4 DMT Compliance 100/60Mbps DownSream/UpStream for distance up to 300 meters Supports VDSL2 connection up to 2000 meters Support Annex A, B for internal splitter (option) Line Surge Protection ... -
Page 6: Led Indicators

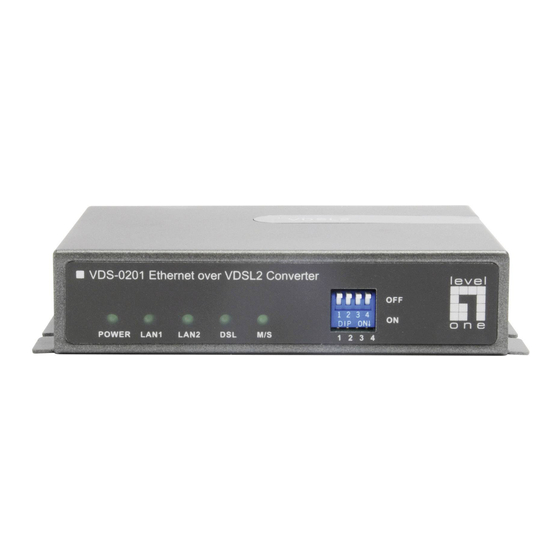

LED Indicators On the front panel of VDS-0200/VDS-0201, there are 5 LED indicators as the following VDS-0200 Front Panel VDS-0201 Front Panel VDS-0200/VDS-0201 Rear Panel POWER Green On Indicates power is on and normal Green On Indicates Ethernet LAN1 port is in connection... -
Page 7: Dip Switches Settings
Dip Switches Settings Pin 1 Pin 2 Pin 3 Pin 4 VTU-C/R Mode Rate Limit VTU-C Interleaved 50/20 Mbps VTU-R Fast Full Rate Pin 1: VTU-C/R Switch VTU-C: The converter will act as at the Central Office (CO) side. VTU-R: The converter will act as at the Customer Premise Equipment (CPE) or Remote side. - Page 8 Pin 3: Rate limit control 50/20 Mbps: Line rate limited to 50/20 Mbps. Full Rate: Provides up to 100Mbps/60Mbps line rate in short line. Pin 4: Signal to Noise Ratio (SNR) 9dB: Higher SNR margin (9dB) will result in less error with more stable VDSL2 link. 6dB: Original and Normal channel noise protection with 6 dB SNR.
-
Page 9: Data Rates & Distances
Data Rates & Distances Performance in AWG 26 Line at 6dB with full rate Down Stream Data Rate (Mbps) Up Stream Data Rate (Mbps) Distance (feet) 1000 1250 1500 1750 2000 2500 3000 3500 4000... -
Page 10: Technical Support
Technical Support Thank you for selecting LevelOne products. LeveOne’s website contains the latest user documentation and soft-ware updates for LevelOne products. Please contact LevelOne Technical Support through our website. World Wide Web http://www.level1.com...
