Stand-Alone Media Converter
Model No.
FVT-2001
FVT-2002
FVT-2201
FVT-2202
FVT-2401
GVT-2000
GVT-2001
GVT-2002
GVT-2003
Copper to Fiber
User Manual
10/100BASE-TX to 100BASE-FX MMF SC Converter, 2km
10/100BASE-TX to 100BASE-FX MMF ST Converter, 2km
10/100BASE-TX to 100BASE-FX SMF SC Converter, 20km
10/100BASE-TX to 100BASE-FX SMF SC Converter, 20km
10/100BASE-TX to 100BASE-FX SMF SC Converter, 40km
10/100/1000BASE-T to 1000BASE-X SFP Converter
10/100/1000BASE-T to 1000BASE-SX MMF SC Converter,
550m
10/100/1000BASE-T to 1000Base-SX/LX SMF SC Converter,
20km
10/100/1000BASE-T to 1000Base-SX/LX SMF ST Converter,
20km
Description
Ver. 1.03
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LevelOne FVT-2001
Summary of Contents for LevelOne FVT-2001
- Page 1 Copper to Fiber Stand-Alone Media Converter User Manual Model No. Description FVT-2001 10/100BASE-TX to 100BASE-FX MMF SC Converter, 2km FVT-2002 10/100BASE-TX to 100BASE-FX MMF ST Converter, 2km FVT-2201 10/100BASE-TX to 100BASE-FX SMF SC Converter, 20km FVT-2202 10/100BASE-TX to 100BASE-FX SMF SC Converter, 20km...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ........... 1 1.1. FEATURES ..........1 2.1. FRONT PANEL ..........3 2.2. REAR PANEL ..........4 2.3. LED INDICATORS ........5 2.4. DIP-SWITCH ..........7 CABLING ..............8 SPECIFICATION ..........10 OPTIONAL SFP MODULES ....... 12... -
Page 3: Introduction
SC, ST or SFP connector to provide necessary connection interface and distance capabilities. LevelOne have designed 19” racks to organize media converters the smart way by providing a single power supply. With the Plug-and-play technology, the converter is easy to set-up and run. - Page 4 § One fiber connector (SC/ ST) for 100Base-FX. § 2 DIP-switches to set the operation mode § Link- Lost-Forwarding function. Gigabit Ethernet Module § Comply with IEEE 802.3, 802.3u and 802.3x, IEEE 802.3ab 1000BaseT, 802.3z 1000Base SX/LX standards. § Convert between UTP cabling and Fiber-optic cabling. §...
-
Page 5: Front Panel

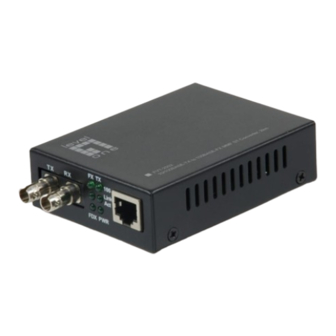

Hardware Description 2.1. Front Panel l FVT-2001 / FVT-2002 / FVT-2201 / FVT-2401 / FVT-2202 l GVT-2000 l GVT-2001 / GVT-2002 / GVT-2003 (1) RJ-45 Port (3) Fiber/SFP Connector (2) LED Indicators (4) DIP-Switch... -
Page 6: Rear Panel
2.2. Rear Panel Model No. Power Adapter FVT-2001 DC 5V, 1A FVT-2002 DC 5V, 1A FVT-2201 DC 5V, 1A FVT-2202 DC 5V, 1A FVT-2401 DC 5V, 1A GVT-2000 DC 5V, 2A GVT-2001 DC 5V, 2A GVT-2002 DC 5V, 2A GVT-2003... -
Page 7: Led Indicators
2.3. LED Indicators Fast Ethernet Module Status Meaning Power on Fiber 100Mbps Speed 100Mbps UTP Speed 10 Mbps UTP Speed Converter works in the full duplex mode Converter works in the half duplex mode Connection status display for fiber link. “ON”... - Page 8 Gigabit Ethernet Module Status Meaning Power on 1000 1000Mbps UTP Speed 100Mbps UTP Speed Converter works in the full duplex mode Converter works in the half duplex mode Active status display of electrical interface link Blinks UTP(right) Blink” indicates packet goes through TP Active status display of fiber interface link Blinks Fiber(left)
-
Page 9: Dip-Switch
2.4. DIP-switch The DIP-switch is used to configure operation mode for LLF (Link Lost Forwarding) and Flow-Control function for UTP/Fiber port. The default value of DIP switch is OFF. Fast Ethernet Module/Gigabit Ethernet Module Status Description LFP is Enable LFP is Disable Flow-Control function ENABLED Flow-Control function DISABLED Link Lost Forwarding:... -
Page 10: Cabling
Cabling Fast Ethernet Module § Twisted-pair segment can be use unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling. The cable must comply with the IEEE 802.3u 100Base TX standard for Category 5. The cable between the converter and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. - Page 11 Optical Fiber Avg. Launch Avg. Module Name Wavelength Power Sensitivity 100Base-FX Fiber SC MM 1310 (nm) >-21dBm -31dBm 100Base-FX Fiber ST MM 1310 (nm) >-21dBm -31dBm 100Base-FX Fiber SC SM 1310 (nm) >-15dBm -34dBm 20KM 100Base-FX Fiber SC SM 1310 (nm) >-10dBm -37dBm 40KM...
-
Page 12: Specification
Specification Fast Ethernet Module IEEE802.3 10BASE-T Standard IEEE802.3u 100BASE-TX/100BASE-FX IEEE802.3x Flow Control and Back pressure Fiber: Duplex ST/SC Connector RJ-45 Socket: CAT-3/5 (10/100Mbps) Twisted Pair cable, Auto MDI/MDI-X, Auto-Negotiation Switch Store and Forward architecture Fiber Core: Multi-Mode (62.5/125um, 50/125um) Single-Mode (8/125um, 9/125um) Wavelength: 1310nm(Multi-mode) Fiber 1310nm(Single-mode) - Page 13 Gigabit Ethernet Module IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX Standard IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX standards IEEE802.3x Flow Control and Back pressure Fiber: SC / SFP Connector RJ-45 Socket: CAT-5 (10/100/1000 Mbps or pure 1000Mbps) Twisted Pair cable, Auto MDI/MDI-X, Auto-Negotiation Switch Store and Forward architecture...
-
Page 14: Optional Sfp Modules
Optional SFP Modules CVH-2000 supports 3.3V mini-GBIC module Model No. Description 1.25Gbps Multi-mode SFP Transceiver, GVT-0300 550m, 850nm 1.25Gbps Single-mode SFP Transceiver, GVT-0301 10km, 1310nm...
