Stand-Alone Media Converter
Quick Installation Guide
Model
No.
FVT-2001
FVT-2002
FVT-2201
FVT-2202
FVT-2401
GVT-2000
GVT-2001
GVT-2002
Copper to Fiber
RJ45 to SC Fast Ethernet Media Converter,
Multi-Mode Fiber, 2km
RJ45 to ST Fast Ethernet Media Converter,
Multi-Mode Fiber, 2km
RJ45 to SC Fast Ethernet Media Converter,
Single-Mode Fiber, 20km

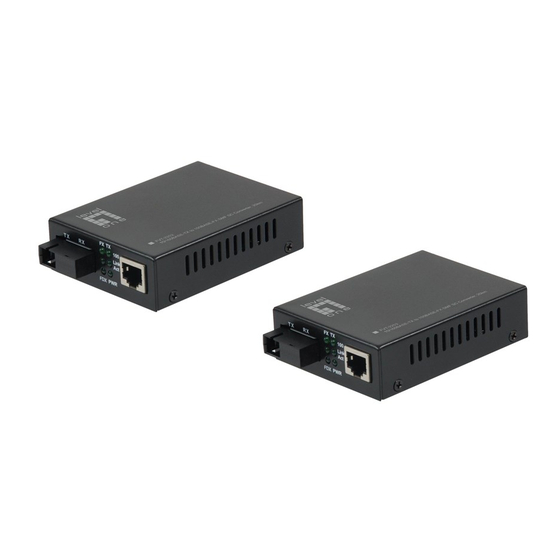

RJ45 to SC BIDI Fast Ethernet Media Converter
Set, Single-Mode Fiber, 20km
RJ45 to SC Fast Ethernet Media Converter,
Single-Mode Fiber, 40km
RJ45 to SFP Gigabit Media Converter
RJ45 to SC Gigabit Media Converter, Multi-Mode
Fiber, 550m
RJ45 to SC Gigabit Media Converter, Single-Mode
Fiber, 20km
Description
Ver. 1.4 - 1910
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LevelOne FVT-2202
Summary of Contents for LevelOne FVT-2202
- Page 1 FVT-2002 Multi-Mode Fiber, 2km RJ45 to SC Fast Ethernet Media Converter, FVT-2201 Single-Mode Fiber, 20km RJ45 to SC BIDI Fast Ethernet Media Converter FVT-2202 Set, Single-Mode Fiber, 20km RJ45 to SC Fast Ethernet Media Converter, FVT-2401 Single-Mode Fiber, 40km GVT-2000...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ........... 1 1.1............. 1 EATURES 1.2..........2 ACKAGE ONTENTS HARDWARE DESCRIPTION ......3 2.1............3 RONT ANEL 2.2............4 ANEL 2.3. LED I ..........5 NDICATORS 2.4. DIP- ............7 SWITCH CABLING ..............9 SPECIFICATION .......... -
Page 3: Introduction
SC, ST or SFP connector to provide necessary connection interface and distance capabilities. LevelOne have designed 19” racks to organize media converters the smart way by providing a single power supply. With the Plug-and-play technology, the converter is easy to set-up and run. -
Page 4: Package Contents
Gigabit Ethernet Module ▪ Comply with IEEE 802.3, 802.3u and 802.3x, IEEE 802.3ab 1000BaseT, 802.3z 1000Base SX/LX standards. ▪ Convert between UTP cabling and Fiber-optic cabling. ▪ One RJ-45 connector, Auto-MDI/MDIX for UTP port. ▪ Support 10/100/1000 Mbps Auto-negotiation for UTP port ▪... -
Page 5: Hardware Description
Hardware Description 2.1. Front Panel FVT-2001 / FVT-2002 / FVT-2201 / FVT-2401 GVT-2000 GVT-2001 (1) RJ-45 Port (3) Fiber/SFP Connector (2) LED Indicators (4) DIP-Switch... -
Page 6: Rear Panel
2.2. Rear Panel Power Adapter: (10/100M DC 5V, 1A; 10/100/1000M DC 5V, 2A) The rear panel contains a power socket. This power socket accepts DC 5V voltage and minimum 1A & 2A supplied current. -
Page 7: Led Indicators
2.3. LED Indicators Fast Ethernet Module Status Meaning Power on Fiber FX 100 100Mbps Speed 100Mbps UTP Speed TX 100 10 Mbps UTP Speed Converter works in the full duplex mode Converter works in the half duplex mode Connection status display for fiber link. “ON”... - Page 8 Gigabit Ethernet Module Status Meaning Power on 1000 1000Mbps UTP Speed 100Mbps UTP Speed Converter works in the full duplex mode Converter works in the half duplex mode LINK/ACT Active status display of electrical interface link Blinks (UTP) Blink” indicates packet goes through TP LNK/ACT Active status display of fiber interface link Blinks...
-
Page 9: Dip-Switch
DIP-switch The DIP-switch is used to configure operation mode for LLF (Link Lost Forwarding) and operation mode for UTP/Fiber port. The default value of DIPswitch is OFF. Fast Ethernet Module Status Description LFP is Enable LFP is Disable Flow Conntrol Enable Flow Conntrol Disable Gigabit Ethernet Module Status... - Page 10 Link Lost Forwarding: When LLF is enable, allow UTP link failures to be reported to the fiber side and also allow Fiber link failure to be reported to the UTP side. Therefore, A link loss forward feature is provided in both UTP and Fiber side.
-
Page 11: Cabling
Cabling Fast Ethernet Module ▪ Twisted-pair segment can be use unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling. The cable must comply with the IEEE 802.3u 100Base TX standard for Category 5. The cable between the converter and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. - Page 12 Optical Fiber Avg. Launch Avg. Module Name Wavelength Power Sensitivity 100Base-FX Fiber SC MM 1310 (nm) >-21dBm -31dBm 100Base-FX Fiber ST MM 1310 (nm) >-21dBm -31dBm 100Base-FX Fiber SC SM 1310 (nm) >-15dBm -34dBm 20KM 100Base-FX Fiber SC SM 1310 (nm) >-10dBm -37dBm 40KM...
-
Page 13: Specification
Specification Fast Ethernet Module IEEE802.3 10BASE-T Standard IEEE802.3u 100BASE-TX/100BASE-FX IEEE802.3x Flow Control and Back pressure Fiber: Duplex ST/SC Connector RJ-45 Socket: CAT-3/5 (10/100Mbps) Twisted Pair cable, Auto MDI/MDI-X, Auto-Negotiation Switch Store and Forward architecture Fiber Core: Multi-Mode (62.5/125um, 50/125um) Single-Mode (8/125um, 9/125um) Fiber Wavelength: 1310nm(Multi-mode) parameters... - Page 14 Gigabit Ethernet Module IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX Standard IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX standards IEEE802.3x Flow Control and Back pressure Fiber: SC / SFP Connector RJ-45 Socket: CAT-5 (10/100/1000Mbps or pure 1000Mbps) Twisted Pair cable, Auto MDI/MDI-X, Auto-Negotiation Switch Store and Forward architecture Fiber Core: Multi-Mode (62.5/125um, 50/125um)
-
Page 15: Optional Sfp Modules
Optional SFP Modules CVH-2000 supports 3.3V mini-GBIC module Model No. Description GVT-0300 1.25G MMF SFP Transceiver, 550 m, 850nm GVT-0301 1.25G SMF SFP Transceiver, 10 km, 1310nm GVT-0302 1.25G SMF SFP Transceiver, 80 km, 1550nm...
